Configuring QoS on Cisco Devices: Boost Performance & Ensure Traffic Priority [CCNP Enterprise]

I know those moments when your VOIP calls crackle or your video meetings lag during business hours—it’s like trying to have a conversation through a wall! Over the years, I’ve learned that configuring Quality of Service (QoS) on Cisco devices can be a true game-changer. Together, we’ll explore how to set it up, why it matters, and walk step-by-step through an Eve-NG lab. Grab your favorite chai, and let’s get your network humming smoothly again.

---

Theory in Brief

What is QoS?

Quality of Service (QoS) refers to a set of tools and techniques network engineers use to control and prioritize traffic based on rules and policies. With QoS, crucial applications like voice, video, and critical data get priority handling over less important traffic like file downloads or social media.

Why do we need QoS?

In enterprise environments—where voice, video, cloud services, and data flows all coexist—unmanaged traffic leads to dropped packets, latency spikes, and jitter. QoS ensures that time-sensitive data is handled promptly, while less-critical flows are queued or limited.

How QoS works on Cisco devices

Cisco devices use a structured approach called Modular QoS CLI (MQC) where you:

1. Classify traffic (class-maps),
2. Mark or manipulate it (policy-maps),
3. Apply policies to interfaces (service-policy).

You can also configure trust boundaries, policing vs. shaping, queues (LLQ, CBWFQ), and congestion-avoidance mechanisms like WRED. The result: more predictable, efficient networks.

---

Summary / Comparison / Pros & Cons

Feature	Description	Pros	Cons
MQC (class-map)	Defines what traffic to match (ACLs, DSCP, NBAR)	Granular traffic matching, reusable	Initial config takes planning
policy-map	Defines actions like priority, queue, policing, shaping	Flexible—prioritize, police, shape	Misconfig can disrupt traffic flow
service-policy	Applies policy to interface, ingress or egress direction	Easy deployment, per-interface control	Must be applied in correct direction
LLQ	Strict priority queue for real-time traffic	Low latency/jitter for voice and video	Could starve other traffic if misconfigured
CBWFQ	Weighted queuing for fair bandwidth allocation	Prevents starvation, ensures fairness	No strict priority, not ideal for VoIP
Policing	Enforces rate limit by dropping excess packets	Controlled rate enforcement	Drops unwanted bursts, may disrupt apps
Shaping	Buffers excess to smooth bursts	Burst absorption without drops	Introduces delay, buffer management
Trust boundary	Controls which markings are honored	Prevents spoof, secures network	Must be defined and enforced across network
WRED	Random Early Drop to avoid buffer overflows	Smooth congestion avoidance	Needs careful tuning on thresholds

---

Essential CLI Commands

Task	Command Example	Purpose
View QoS policy on interface	show policy-map interface Gi0/1	Displays applied policies and traffic stats
Debug classification	debug qos packet class-map VOICE	Real-time classification troubleshooting
Show queue statistics	show queueing interface Gi0/1	Displays queue utilization and drops
Show class-map	show class-map	Shows classification definitions
Show policing and shaping stats	show policy-map interface Gi0/1	Includes policing/shaping counters
Clear policy counters	clear policy-map interface Gi0/1 counters	Reset counters for fresh measurements
Trust state check	show mls qos interface Gi0/2 trust	Verifies if interface trusts DSCP or CoS
Show QoS config globally	`show running-config	section policy-map`
Show WRED table	show wred interface Gi0/1	Shows WRED settings and profiles applied
Verify NBAR protocol match	show policy-map interface Gi0/1 class VOICE	Shows packet counts for class — confirms classification

---

Real-World Use Case

Scenario	Description	Solution Implemented	Outcome
VoIP and Video on WAN	Voice and video suffer latency during backups and file transfers	LLQ for voice, CBWFQ for video, policing for bulk traffic	Voice quality ensured, smooth video, bulk traffic delayed
Branch Office Internet	Guest browsing saturates bandwidth, affecting business-critical apps	Shape guest traffic, prioritize business-critical apps	Business apps get priority, browsing throttled without blocking
Data Center Backup	Large nightly backups compete with real-time replication traffic	Police backup pipeline during day, shape at night	Backup runs reliably off-hours, replication unaffected during day
Cloud Application Access	API calls to SaaS are slow during peak time	Class and prioritize API ports, shape general traffic	API latency stable, other traffic controlled

---

Small EVE‑NG Lab

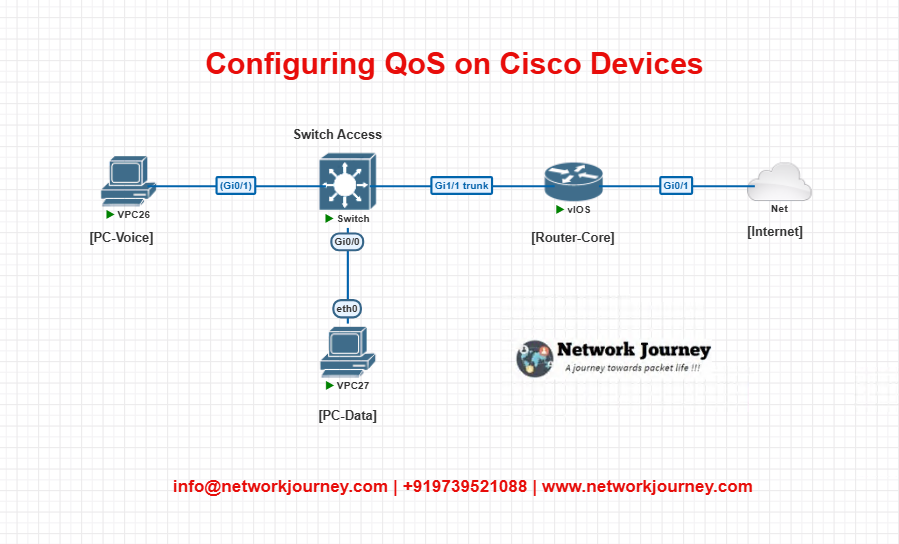

Lab Diagram

• Switch-Access: Connected to PC-Voice & PC-Data; VLAN 10 for voice
• Router-Core: Implements QoS on egress interface (toward Internet)

CLI Configuration

Switch-Access

interface Gi0/1
  switchport mode access
  switchport access vlan 10
  mls qos trust cos

interface Gi0/2
  switchport mode access
  switchport access vlan 20
  mls qos trust none

interface Gi1/1
  switchport mode trunk
  mls qos trust dscp

Router-Core

class-map match-any VOICE
  match ip dscp ef

class-map match-any BULK
  match access-group 101

access-list 101 permit ip any any

policy-map WAN-QOS
  class VOICE
    priority percent 20
  class BULK
    police 50000000 conform-action transmit exceed-action drop
  class class-default
    fair-queue

interface Gi0/1
  service-policy output WAN-QOS

---

Troubleshooting Tips

Problem	Possible Cause	Troubleshooting Tip
Voice jitter and delay	Missing LLQ or incorrect percent reservation	Verify config with show policy-map interface; check preemptive order
Bulk traffic still congesting	Shaping not applied; policing insufficient	Confirm policing with show policy-map; adjust rate
Packets dropped unexpectedly	Queue overflow	Inspect queue stats via show queueing interface and WRED setup
DSCP not honored across switches	Trust boundary incorrect	Use show mls qos interface to verify and adjust trust
Counters not incrementing	Policy not applied correctly	Ensure policy is bound to correct interface/direction

---

FAQs

1: What is QoS and why is it essential on Cisco networks?

Answer:
QoS (Quality of Service) is a set of technologies used to manage and prioritize network traffic. On Cisco networks, QoS helps ensure that critical applications like VoIP, video conferencing, or business-critical SaaS receive the necessary bandwidth, low latency, and minimal packet loss. Without QoS, all traffic is treated equally, which can cause poor performance for latency-sensitive services during congestion.

---

2: What is MQC (Modular QoS CLI), and how does it work?

Answer:
MQC is Cisco’s modular approach to QoS configuration. It breaks down QoS into three logical steps:

1. Class-map – Identifies traffic based on criteria like DSCP, ACL, or NBAR protocols.
2. Policy-map – Defines what to do with the classified traffic (e.g., prioritize, police, shape).
3. Service-policy – Applies the policy to an interface (ingress or egress).

This modularity makes QoS configurations reusable, organized, and scalable.

---

3: How do I decide between policing and shaping?

Answer:

• Policing: Drops or marks traffic that exceeds a certain rate. It is more aggressive and used when you want strict bandwidth enforcement.
• Shaping: Buffers excess traffic and sends it later to smooth bursts. Ideal for outbound traffic to WAN links or MPLS providers.

Use shaping for outbound WAN links to avoid drops.
Use policing to restrict traffic from untrusted sources or enforce SLA contracts.

---

4: What is Low Latency Queuing (LLQ) and when should I use it?

Answer:
LLQ provides a strict priority queue for traffic that needs ultra-low delay and jitter—like voice and video.

In your policy-map, you’d use:

class VOICE
 priority percent 30

This guarantees bandwidth and always sends VOIP packets first. Be cautious—if misconfigured, it can starve other traffic, so always define bandwidth limits.

---

5: Where should QoS policies be applied—in ingress or egress?

Answer:

• Egress (outbound): Most QoS actions like queuing, shaping, and prioritization happen here. This is the most common place to apply policies.
• Ingress (inbound): Used for classifying, marking, or policing traffic as it enters the device. Limited actions supported.

Best practice: Apply policies at the egress of WAN interfaces and use ingress marking/policing at access switches or untrusted zones.

---

6: What are DSCP values, and how are they used in QoS?

Answer:
DSCP (Differentiated Services Code Point) is a 6-bit value in the IP header used to mark and classify packets.

Common DSCP values:

DSCP	Value	Purpose
EF	46	Voice (Expedited Forwarding)
AF41	34	High-priority Video
CS6	48	Network Control
Default	0	Best Effort

Cisco devices can match on DSCP values in class-maps and prioritize or restrict traffic accordingly.

---

7: What is a trust boundary and why does it matter in QoS?

Answer:
A trust boundary defines where QoS markings (CoS/DSCP) are either trusted (preserved) or overwritten.

• Trust known devices like IP phones (e.g., via CDP).
• Do not trust end-hosts like laptops or PCs—they may mark traffic unfairly.

You configure trust using:

mls qos trust dscp

or

mls qos trust cos

depending on whether the device is using Layer 3 or Layer 2 markings.

---

8: Can QoS work across the Internet?

Answer:
Generally, no. Most ISPs do not honor DSCP markings across the public internet. They may strip them or treat all traffic as best effort.

However, QoS works well in private WAN environments, such as:

• MPLS (where SLAs exist)
• SD-WAN (where DSCP can be mapped to tunnel classes)
• VPNs over Internet (when marked internally)

Always verify QoS behavior with your provider or SD-WAN vendor.

---

9: How can I verify that QoS is working correctly?

Answer:
Use Cisco CLI commands:

• show policy-map interface Gig0/1 – Displays traffic matching, drops, shaping stats.
• show class-map – View definitions of traffic classes.
• show queueing interface – See output queue lengths and drops.
• debug qos packet – (Use with care) for real-time matching logs.

Check if your VOICE or VIDEO classes are receiving traffic and not dropping packets unnecessarily.

---

10: What are common mistakes in QoS deployment?

Answer:

1. Forgetting to apply the service-policy to the interface.
2. Trusting end devices that shouldn’t be trusted (e.g., PCs).
3. Using LLQ without bandwidth limits, starving other traffic.
4. Policing instead of shaping on outbound WAN, causing unnecessary drops.
5. Misclassification due to missing ACLs, wrong DSCP, or unsupported NBAR protocols.

To avoid these issues, test in labs like EVE-NG, validate configs with show commands, and monitor traffic over time.

---

YouTube Link

Watch the Complete CCNP Enterprise: Configuring QoS on Cisco Devices: Boost Performance & Ensure Traffic Priority Lab Demo & Explanation on our channel:

---

Final Takeaways

Understanding how to differentiate and implement Configuring QoS on Cisco Devices: Boost Performance & Ensure Traffic Priority is critical for anyone pursuing CCNP Enterprise (ENCOR) certification or working in enterprise network roles. Use this guide in your practice labs, real-world projects, and interviews to show a solid grasp of architectural planning and CLI-level configuration skills.
