Introduction

Designing Cisco ISE for large-scale enterprise deployments is not a simple “add another node” exercise. It’s about engineering a security access fabric that:

  • Serves hundreds of thousands of endpoints concurrently.
  • Stays resilient across multiple data centers.
  • Ensures authentication latency stays low even under load.
  • Provides real-time visibility & troubleshooting without performance trade-offs.

A Large-Scale Distributed Deployment (LSDD) typically includes:

  • Dedicated Policy Service Nodes (PSNs): Scalable authentication engines.
  • Policy Administration Nodes (PANs): Centralized control + redundancy.
  • Monitoring Nodes (MnTs): Centralized logging/visibility with redundancy.
  • Load Balancers: To distribute RADIUS/TACACS load across PSNs.
  • Replication & Synchronization: PAN → PSNs, MnT cluster consistency.

This workbook is designed as a practical masterclass:
Every section includes step-by-step GUI configuration and CLI validation so you don’t just configure — you also verify and troubleshoot like TAC engineers.

Problem Statement

The Challenge:
Small ISE clusters scale poorly in enterprise environments. Problems include:

  • Authentication bottlenecks when thousands of users log in simultaneously.
  • Single points of failure when PAN/MnT is not redundant.
  • Slow policy propagation across nodes.
  • Logging gaps when MnT fails.
  • Inefficient RADIUS load balancing without proper PSN design.

Without a distributed design, enterprises risk:

  • User downtime due to overload.
  • Compliance failures (missing logs).
  • Weak security enforcement at global scale.

Solution Overview

Cisco ISE Large-Scale Deployment Architecture provides:

  1. PAN redundancy → Primary & Secondary.
  2. PSN scalability → Multiple PSNs behind load balancers (F5, ACE, Citrix).
  3. MnT clustering → Active/Standby or Split for log redundancy.
  4. Replication model → PAN is the single point of config changes → syncs to PSNs/MnTs.
  5. Geo-redundancy → Deploy nodes across multiple DCs.
  6. CLI & GUI health checks → Validate node sync, replication, session load.

Sample Lab Topology

Lab Environment:

  • Platform: VMware ESXi / EVE-NG.
  • Nodes:
    • 2x PAN (Primary + Secondary).
    • 4x PSN (behind load balancer).
    • 2x MnT (Active/Standby).
  • Network Devices:
    • Cisco Switch with 802.1X + MAB enabled.
    • Cisco WLC for wireless integration.
  • Endpoints:
    • Windows 10 laptops.
    • BYOD + corporate devices.

Topology Diagram:

Step-by-Step GUI & CLI Configuration Guide

Step 1: Enable Large Deployment Mode

  • GUI:

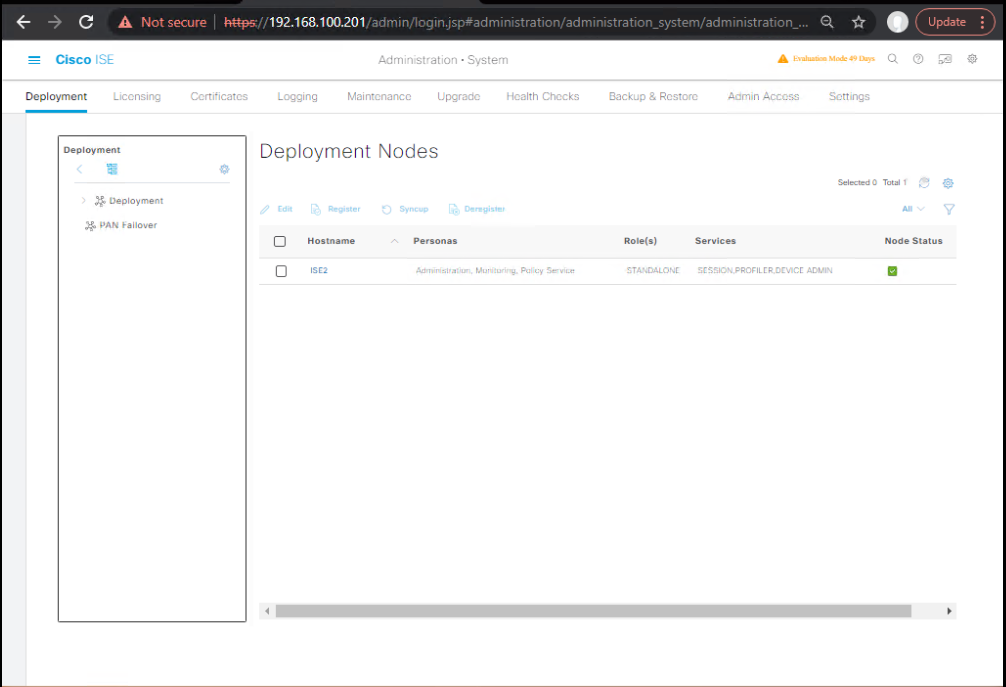

    1. Navigate to Administration > System > Deployment.
    2. Select Enable PAN & MnT redundancy.
    3. Apply changes.
  • CLI Validation:
ise/admin# show application status ise
ise/admin# show running-config ise

Step 2: Add Secondary PAN

  • GUI:
    1. Go to Administration > System > Deployment.Register new node. Assign Admin role → mark as Secondary PAN.
  • CLI Validation:
ise/admin# show logging system
ise/admin# show application status ise | include Admin

Step 3: Add Multiple PSNs

  • GUI:
    1. Register node. Assign PSN role.
    2. Repeat for all nodes.
    3. Add them behind load balancer.
  • CLI Validation (on PSN):
ise/psn# show application status ise
ise/psn# show radius statistics
ise/psn# show sessions

Step 4: Configure MnT Clustering

  • GUI:
    1. Register MnT node → select Monitoring role.
    2. Configure one as Active, other as Standby.
  • CLI Validation:
ise/mnt# show logging system
ise/mnt# show running-config ise

Step 5: Verify Replication & Node Health

  • GUI:
    • Administration > System > Deployment → Node Status
  • CLI:
ise/admin# show replication status
ise/admin# show application status ise

FAQs – Large-Scale Cisco ISE Distributed Deployment

1. How many nodes can a single Cisco ISE deployment support?

Answer:

  • Cisco ISE supports up to 50 nodes in a single deployment (ISE 3.x).
  • You can have 2 PANs (Primary + Secondary), 2 MnTs, and multiple PSNs depending on scale.
  • Node roles are distributed:
    • PAN: Centralized configuration.
    • PSN: Authentication/Authorization runtime.
    • MnT: Centralized logging.

Validation:

  • GUI: Administration > System > Deployment → Check node list.
  • CLI:
ise/admin# show application status ise
ise/admin# show running-config ise

2. What is the recommended node role distribution in a large deployment?

Answer:

  • PAN (2 nodes) → 1 Primary + 1 Secondary (DR site).
  • MnT (2 nodes) → 1 Active + 1 Standby.
  • PSN (Scalable) → Usually 4–20 nodes behind load balancers.
  • Keep PAN/MnT roles separate from PSN in production to reduce overhead.

Tip: PAN+MnT can coexist, but in large-scale >25k endpoints, separate them.

3. How does load balancing for PSNs work in practice?

Answer:

  • Use external load balancer (F5, Citrix, ACE) to distribute RADIUS/TACACS+ requests across PSNs.
  • Load balancer must support persistence (“stickiness”) so the same session stays on one PSN.
  • Recommended method: Source-IP based persistence.

Validation:

  • GUI: Operations > RADIUS > Live Sessions → Session distribution.
  • CLI:
ise/psn# show radius statistics
ise/psn# show sessions

4. What happens if the Primary PAN fails?

Answer:

  • The Secondary PAN remains in standby mode until you promote it manually.
  • Configuration changes can only be made on active Primary PAN.

Failover Test:

  • GUI: Administration > System > Deployment → Promote Secondary PAN.
  • CLI:
ise/admin# application configure ise

5. Can PSNs be geographically distributed across multiple data centers?

Answer:

  • Yes, PSNs are often deployed at branch/DC sites for local authentication.
  • Latency requirement: RADIUS/EAP must be <300 ms round trip.
  • All PSNs sync policies from the PAN automatically.

Tip: Always use local PSNs in large campuses to reduce WAN latency.

6. How does ISE replication work between nodes?

Answer:

  • PAN → PSNs & MnTs push replication.
  • Config changes are done only on Primary PAN → auto-sync to other nodes.
  • MnT log replication works in active/standby mode.

Validation:

  • GUI: Administration > System > Deployment → Replication Status.
  • CLI:
ise/admin# show replication status

7. What are the hardware/sizing guidelines for LSDD?

Answer:

  • PAN: 16 vCPUs, 32 GB RAM, 600 GB disk (for >25k endpoints).
  • PSN: 8–16 vCPUs, 32 GB RAM.
  • MnT: 16 vCPUs, 64 GB RAM, 2 TB disk (for long-term log storage).

Reference: Cisco ISE Performance & Scale guide.

8. What’s the best way to monitor PSN load and session health?

Answer:

  • GUI: Operations > Live Sessions → Per-PSN session view.
  • CLI:
ise/psn# show sessions
ise/psn# show radius statistics
ise/psn# show application status ise
  • Use SNMP/REST APIs for external monitoring tools (SolarWinds, Splunk, etc).

9. Can MnT nodes be deployed across data centers?

Answer:

  • Yes, but ensure latency <300 ms.
  • Logs replicate between active/standby.
  • In large-scale, often one MnT per DC for local log redundancy.

Tip: Always integrate MnT with external syslog/SIEM for compliance.

10. What are the top failure scenarios to validate in LSDD labs?

Answer:

  1. Primary PAN failure → Secondary PAN promotion.
  2. PSN outage → Load balancer reroutes sessions.
  3. MnT failover → Verify logs continue in standby.
  4. WAN link failure → Local PSN handles authentication.
  5. Replication break → Policies not updating on remote PSNs.

CLI Tools:

ise/admin# show logging system
ise/admin# show application status ise
ise/psn# show radius statistics

YouTube Link

For more in-depth Cisco ISE Mastery Training, subscribe to my YouTube channel Network Journey and join my instructor-led classes for hands-on, real-world ISE experience

[NEW COURSE ALERT] CISCO ISE (Identity Service Engine) by Sagar Dhawan
CCIE Security v6.1 Training – Ticket#1 Discussed
CCIE Security v6.1 – MAC Authentication Bypass (MAB) in Cisco ISE
CCNP to CCIE SECURITY v6.1 – New Online Batch

Closing Notes

Large-Scale Deployment of Cisco ISE is about scalability, high availability, and distributed control.

  • Separate roles (PAN, PSN, MnT) for efficiency.
  • Use load balancing for PSNs.
  • Always validate replication and session load via GUI + CLI.

By mastering LSDD, you’re operating at the CCIE-level of ISE expertise, capable of building carrier-grade NAC infrastructures.
