Introduction

TACACS+ (Terminal Access Controller Access Control System Plus) is the go-to protocol for device administration control in enterprise networks. Unlike RADIUS, which is primarily for network access (wired/wireless), TACACS+ is designed for controlling administrative access to routers, switches, firewalls, and other network gear.

In Cisco ISE, TACACS+ centralizes the authentication, authorization, and accounting of network device administrators. This is critical in multi-admin environments where tracking every login, command execution, and privilege level change is necessary for compliance, auditing, and security.

With TACACS+ in ISE, you can:

• Grant different privilege levels to different users.
• Log every administrative action.
• Enforce multi-factor authentication for device logins.
• Ensure unauthorized users cannot access device CLI.

---

Problem Statement

In large networks:

• Admin credentials are often shared among engineers — a huge security risk.
• Local device accounts make it difficult to revoke access when someone leaves.
• Tracking who ran what command is nearly impossible without centralized logging.

Without TACACS+, you’re left with scattered admin accounts, weak accountability, and no granular command control — a compliance nightmare.

---

Solution Overview

Cisco ISE with the Device Administration Service (TACACS+) solves this by:

• Acting as a central TACACS+ server for all network devices.
• Authenticating admins via corporate Active Directory or internal ISE database.
• Authorizing commands based on roles, privilege levels, or policy sets.
• Storing detailed accounting logs for every admin action.

---

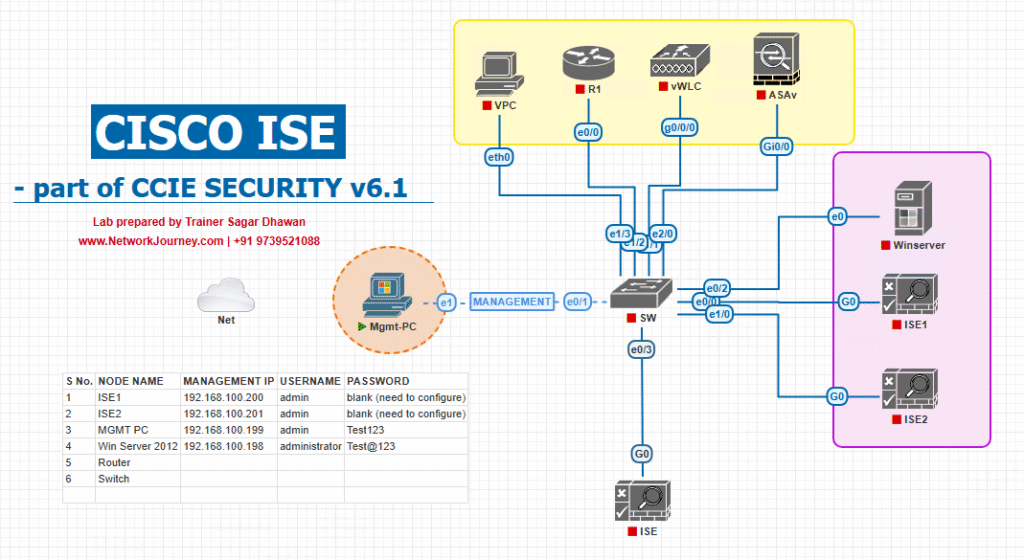

Sample Lab Topology

Lab Components:

• ISE 3.x running in VMware/EVE-NG.
• Catalyst Switch (access & core role).
• Cisco WLC for wireless device admin demo.
• Two endpoints (Admin PCs) with SSH client.
• Active Directory Server (optional for external auth).

Diagram Description:

• Admin PCs connect via SSH to Switch/WLC.
• Switch/WLC sends TACACS+ requests to ISE.
• ISE verifies credentials, applies admin role policies, and logs activities.

---

Step-by-Step GUI Configuration Guide

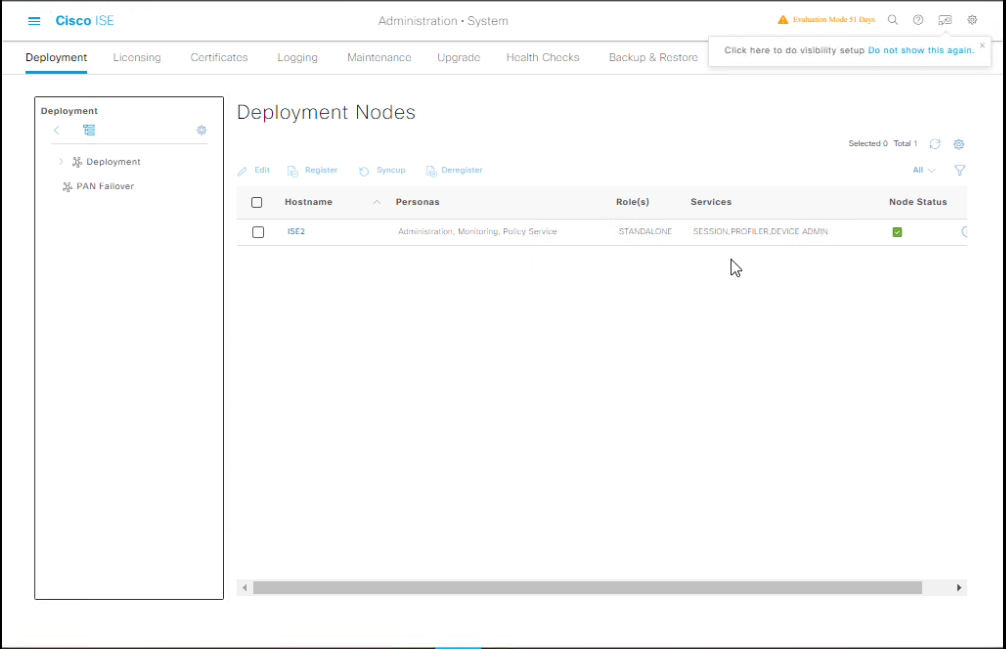

Step 1 – Enable TACACS+ on ISE

1. Log in to ISE GUI.
2. Go to Administration → System → Deployment.
3. Select your ISE node.
4. Under TACACS+ Service, enable the checkbox.
5. Save & restart application services if prompted.
   • [Screenshot: ISE Deployment TACACS+ Service Enabled]

---

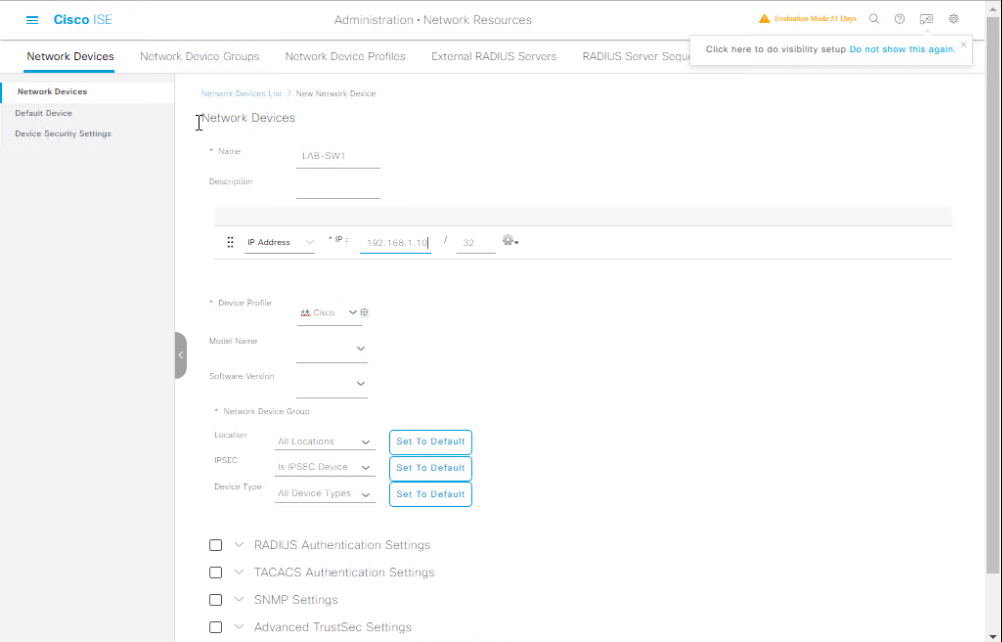

Step 2 – Add Network Device for TACACS+

1. Go to Administration → Network Resources → Network Devices.
2. Click Add.
3. Name: LAB-SW1
4. IP Address: 192.168.1.10 (switch mgmt IP)
5. Enable TACACS+ Authentication Settings.
6. Set a shared secret (must match switch config).
7. Save.
   • [Screenshot: Network Device TACACS+ Config]

---

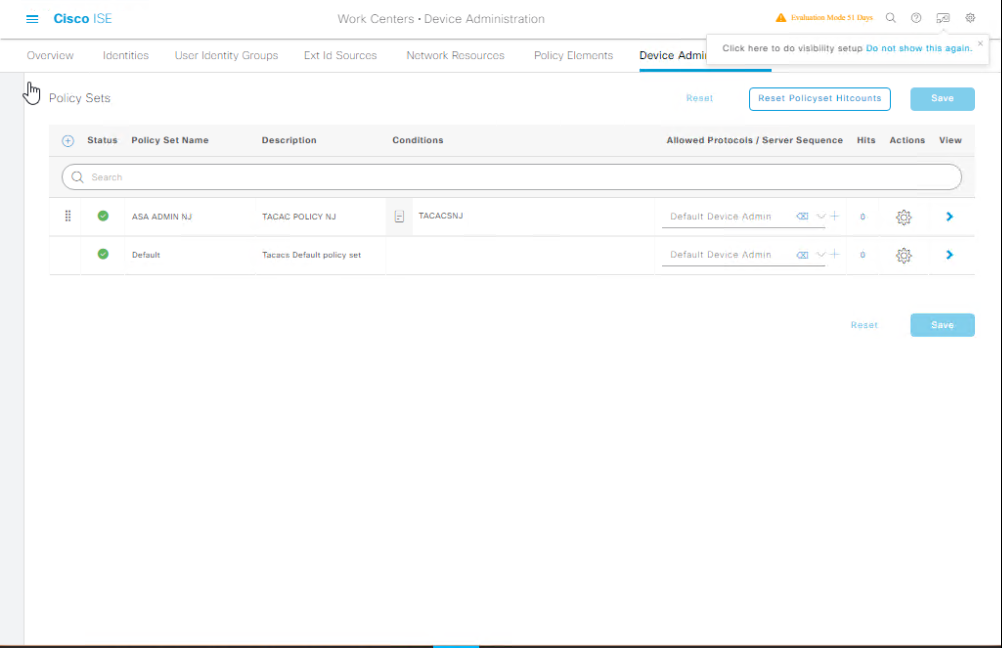

Step 3 – Create Device Admin Policy Set

1. Go to Work Centers → Device Administration → Policy Sets.
2. Create a new Policy Set named Switch_Admin_Access.
3. Conditions:
   • Device: Device Type = Switch
4. Authentication Policy: Use Internal Users or AD join point.
5. Authorization Policy: Map users to Privilege Levels (e.g., 15 for full access, 1 for read-only).
   • [Screenshot: TACACS+ Policy Set Screen]

---

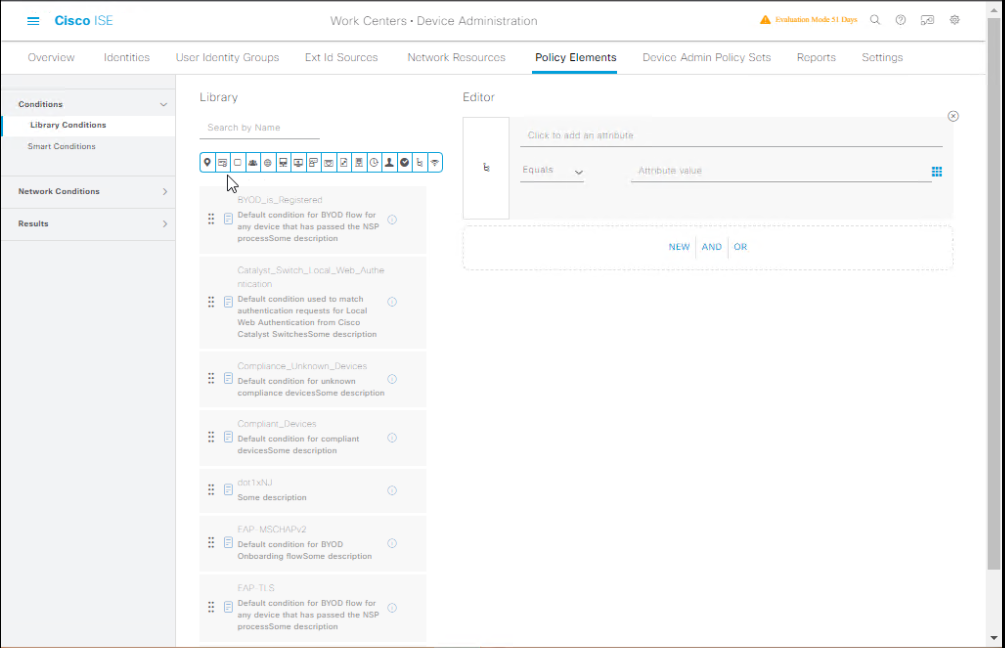

Step 4 – Create Command Sets (Optional Granular Control)

1. Go to Work Centers → Device Administration → Policy Elements → Command Sets.
2. Create Full_Access (Permit All Commands).
3. Create Read_Only (Permit show commands, deny configure commands).
   • [Screenshot: TACACS+ Command Set Creation]

---

Step 5 – Switch CLI Configuration

! Enable AAA
aaa new-model

! Define TACACS+ servers
tacacs server ISE1
 address ipv4 192.168.1.50
 key cisco123

! Enable device admin via TACACS+
aaa authentication login default group tacacs+ local
aaa authorization exec default group tacacs+ local
aaa accounting commands 15 default start-stop group tacacs+

! Optional: Fallback to local if ISE is down
aaa authentication login default group tacacs+ local

! Enable privilege level support
aaa authorization commands 15 default group tacacs+ local

---

Step 6 – Validation

• SSH from Admin PC to switch:

ssh admin@192.168.1.10

• Authenticate with ISE user credentials.
• Check ISE Live Logs → TACACS+ Authentication for login records.
• Run a few commands (e.g., show run) and confirm they appear in TACACS+ Accounting logs.

---

FAQs – Cisco ISE TACACS+

1. What’s the primary difference between TACACS+ and RADIUS in ISE?
   • TACACS+ is used for device administration (managing switches, routers, firewalls, etc.) and separates authentication, authorization, and accounting functions.
   • RADIUS is used for network access control (wired, wireless, VPN). In ISE, you can run both on the same node.

---

2. Which TCP/UDP ports does TACACS+ use, and do I need to open them in the firewall?
   • TACACS+ uses TCP port 49 by default. TCP ensures reliable delivery of authentication requests and accounting logs. You must allow TCP/49 between the network devices and the ISE node.

---

3. Can I integrate TACACS+ with Active Directory for authentication?
   • Yes. In ISE, you can join the node to AD and map TACACS+ policies to AD groups (e.g., NetAdmin_Full or NetOps_ReadOnly). This eliminates the need to create separate local ISE accounts.

---

4. How do I restrict an engineer to read-only access on network devices?
   • Use TACACS+ Command Sets in ISE.
     • Create a Command Set that allows only show commands.
     • Deny configure, reload, and other privileged commands.
     • Apply it in the Authorization Policy for that user/group.

---

5. What happens if ISE is unavailable — will I be locked out of devices?
   • Not if you configure a local fallback on your network devices: aaa authentication login default group tacacs+ local This ensures that local accounts can still log in if TACACS+ is unreachable.

---

6. Can TACACS+ log every command an admin runs?
   • Yes. TACACS+ Accounting in ISE can log:
     • Start/stop times of device sessions
     • Commands executed, along with timestamps
     • Privilege level changes

---

7. Do I need a special license in ISE for TACACS+?
   • Yes. The Device Administration license is required to use TACACS+ in ISE. Without it, TACACS+ configuration and policies are not available.

---

8. Can I have different TACACS+ policies for switches, firewalls, and wireless controllers?
   • Absolutely. In ISE Policy Sets, use Device Type or Location conditions to apply unique policies and command sets for each device category.

---

9. How can I test TACACS+ connectivity from the device to ISE?
   • On the network device (e.g., Cisco switch): test aaa group tacacs+ admin password legacy Or from ISE CLI: ise/admin# ping <device_ip> ise/admin# show logging Check Live Logs → TACACS+ in ISE GUI for the test request.

---

10. Can I run TACACS+ and RADIUS simultaneously on the same ISE node?
    • Yes. ISE can handle both services concurrently, using separate policy sets for TACACS+ (Device Admin) and RADIUS (Network Access). This is common in real-world deployments.

---

YouTube Link

For more in-depth Cisco ISE Mastery Training, subscribe to my YouTube channel Network Journey and join my instructor-led classes for hands-on, real-world ISE experience

---

Closing Notes

By enabling TACACS+ on Cisco ISE, you gain granular control over network device administration, ensure accountability, and meet compliance requirements. This is a must-have for organizations aiming for strong operational security.

---
