Introduction

In real networks, endpoints don’t trickle in—they arrive in waves: 300 cameras for a new building, 1,000 scanners for a retail rollout, 2,500 laptops post-merger. Manually clicking through Context Visibility → Endpoints isn’t just slow—it’s operational debt that creates drift between policy intent and reality.

This masterclass turns Cisco ISE into a programmable platform using ERS (External RESTful Services) and OpenAPI so you can create, tag, group, quarantine, and delete thousands of endpoints with repeatable, auditable workflows. You’ll build a lab where:

You pre-stage new MACs into Endpoint Identity Groups (EIGs),
Attach SGTs for TrustSec,
Stamp custom attributes (Location, Owner, CostCenter),
Quarantine with ANC on demand,
And validate everything in ISE GUI, Live Logs, and network device CLI.

By the end, you’ll have a reusable CSV-driven + Python/cURL toolkit to run bulk endpoint operations with confidence.

Problem Statement

Operational gaps without automation

New site cutovers require hundreds/thousands of pre-staged MACs for MAB/IoT. Doing it by hand is error-prone.
Endpoint Identity Groups & SGTs must be applied consistently for authorization/DACLs/SGACLs. Human clicks drift.
Rapid containment (ANC) for outbreaks requires batch action—seconds, not hours.
CMDB/MDM/ServiceNow often becomes a “truth silo.” ISE lags unless you synchronize.

We need: Idempotent, scripted, bulk endpoint CRUD (Create/Read/Update/Delete) + tagging + quarantine, with verifiable outcomes.

Solution Overview

Enable ERS & OpenAPI on ISE with a least-privileged ERS admin.
Use ERS resources:
- /ers/config/endpoint (create/update/delete/search)
- /ers/config/endpointgroup (lookup group UUIDs)
- /ers/config/sgt (lookup SGT UUIDs)
- /ers/config/ancendpoint/apply|clear (quarantine workflows)
Drive bulk using:
- A CSV (name, mac, groupName, sgtName, description, location, custom attributes),
- Python requests (or Postman/cURL) with pagination & retries,
- Validation via GUI (Context Visibility, Live Logs), ERS GETs, and network device CLI (show authentication sessions).

Sample Lab Topology

Platform: VMware/EVE-NG

Nodes

ISE Policy Administration Node (PAN) + MnT (single-node lab), HTTPS/ERS on 9060/tcp.
Catalyst 9300 Switch (Access) for MAB test, uplink to core.
WLC + AP (optional) for wireless MAB/EAP validation.
Automation Workstation (Windows/Linux/Mac): Postman + Python 3.10+.
Test Endpoints:
- IoT camera (MAB),
- Printer (MAB),
- Laptop (802.1X) to watch ANC behavior.

Logical Flow

Workstation → ISE ERS API (CRUD, ANC).
ISE pushes decisions to NADs (switch/WLC) during authZ.
Switch/WLC enforces DACL/SGT/VLAN; ANC quarantine if applied.

Diagram:

Step-by-Step GUI Configuration Guide (with API & CLI)

A) ISE System Prep

Enable ERS & OpenAPI

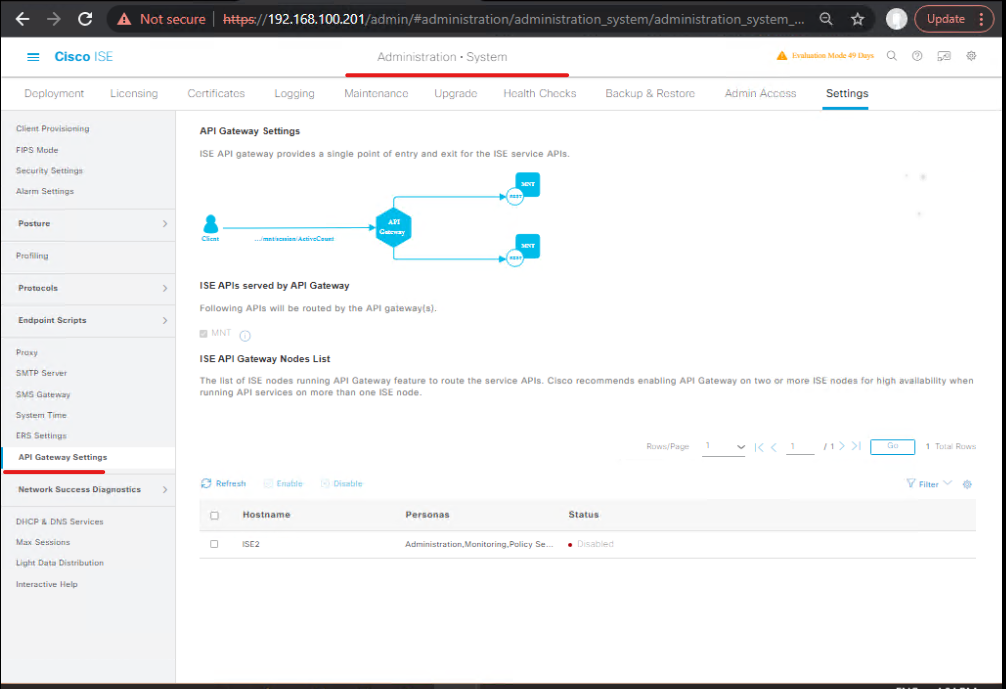

Navigate: Administration → System → Settings → API Settings
- Check Enable ERS for Read/Write
- (Optional) Enable OpenAPI interactive docs.
- (Optional) Restrict ERS IP allowlist for security.
  [ISE API Settings]

Create ERS-only Admin

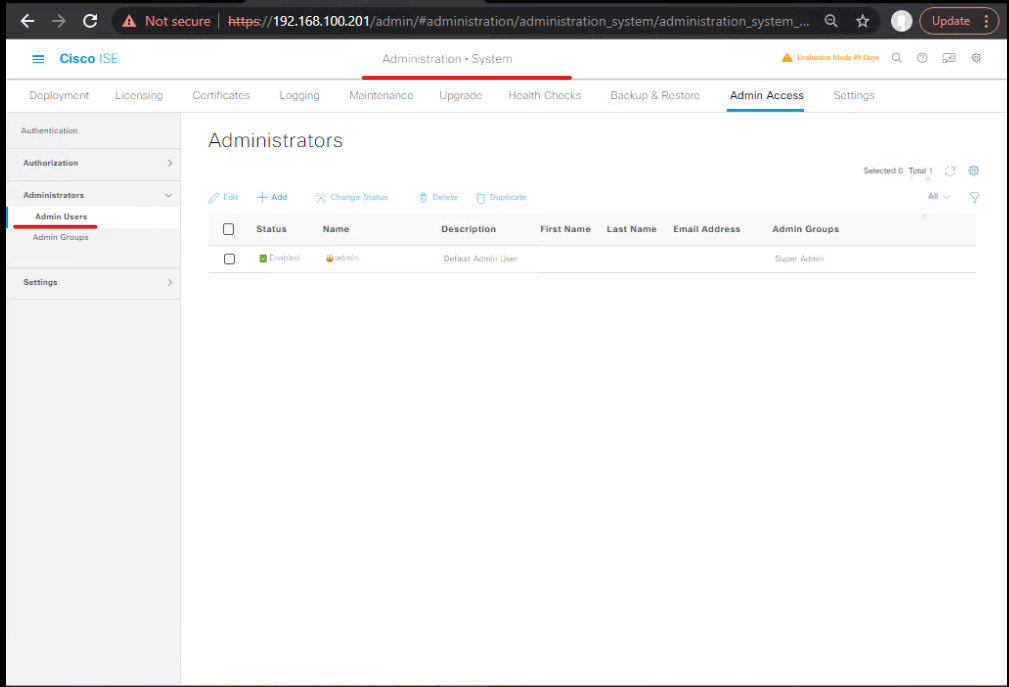

Administration → System → Admin Access → Administrators
- Add user: ers-admin with ERS Admin (or custom role with only endpoint/anc/sgt read/write).
  [ ISE Admins & Roles]

Certificates & TLS

Ensure ISE portal/ERS cert is CA-signed or import ISE CA into your workstation trust store.

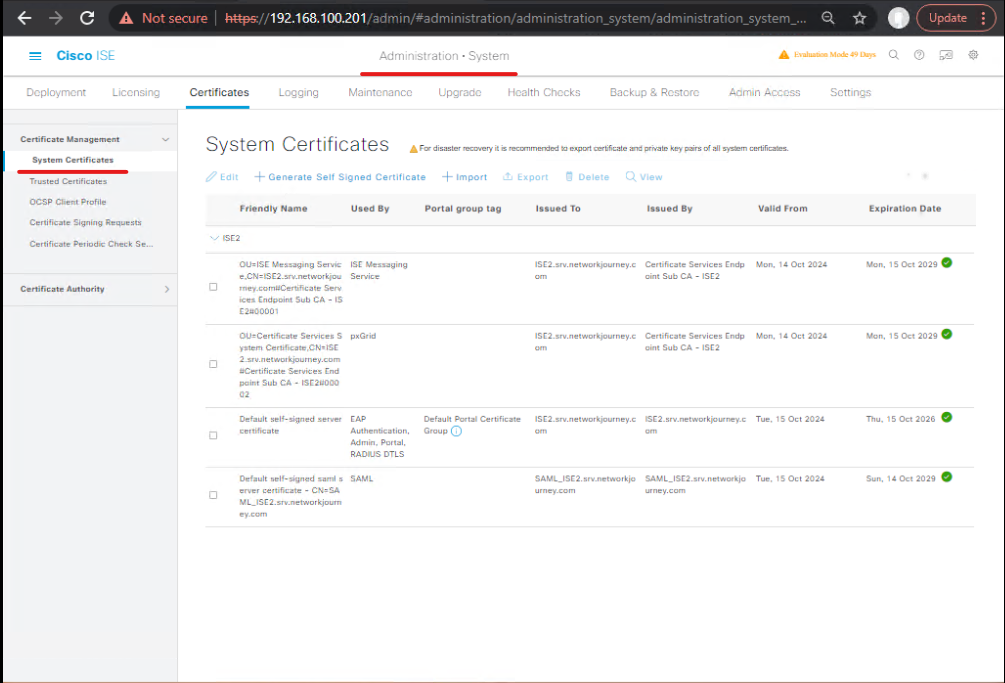

[Certificates → System Certificates]

Create Endpoint Identity Groups (EIG) & SGTs

Work Centers → Profiler → Endpoint Identity Groups: add IoT-Cameras, Printers
[ Endpoint Identity Groups]

Work Centers → TrustSec → Components → Security Group Tags: add IoT, Printers
[SGT Table]

Optional: ANC Policies

Operations → Adaptive Network Control: create policy QUARANTINE (e.g., DACL QUAR-BLOCK or SGACL deny-all).
[ANC Policy]

B) First Contact: Test ERS with Postman/cURL

Postman Setup

New Collection → Variable ise_base = https://<ise-ip>:9060
Auth: Basic Auth using ers-admin.
Default headers:
- Accept: application/json
- Content-Type: application/json

GET Endpoint Groups (find Group UUID)

GET {{ise_base}}/ers/config/endpointgroup?filter=name.EQ.IoT-Cameras

[Postman GET endpointgroup]

GET SGT (find SGT UUID)

GET {{ise_base}}/ers/config/sgt?filter=name.EQ.IoT

[Postman GET sgt]

Create One Endpoint (camera)
Example JSON payload (use your groupId/sgtId UUIDs):

{
  "ERSEndPoint": {
    "name": "camera-01",
    "mac": "AA:BB:CC:11:22:33",
    "description": "Lobby Cam",
    "staticGroupAssignment": true,
    "groupId": "<UUID-of-IoT-Cameras>",
    "securityGroupId": "<UUID-of-SGT-IoT>",
    "customAttributes": { "customAttributes": { "Location": "BLR-1F", "Owner": "Facilities" } }
  }
}

POST {{ise_base}}/ers/config/endpoint

Expect 201 Created.
[Postman POST endpoint]

Verify in GUI

Context Visibility → Endpoints: search MAC AA:BB:CC:11:22:33
[Endpoints Table]

cURL equivalents (Linux/Mac)

curl -k -u ers-admin:'ChangeMe!' \
 -H "Accept: application/json" -H "Content-Type: application/json" \
 -X GET "https://<ise>:9060/ers/config/endpointgroup?filter=name.EQ.IoT-Cameras"

curl -k -u ers-admin:'ChangeMe!' \
 -H "Accept: application/json" -H "Content-Type: application/json" \
 -d @camera.json \
 -X POST "https://<ise>:9060/ers/config/endpoint"

C) Bulk Create/Update from CSV (Provided Script)

Your files (already generated):

CSV template: ise_endpoints_template.csv
Python script: ise_bulk_endpoints.py

Edit the script’s header (ISE host/creds/VERIFY_SSL).

ISE_HOST = "https://10.10.10.5:9060"
ISE_USER = "ers-admin"
ISE_PASS = "ChangeMe!"
VERIFY_SSL = False

Open CSV and add rows (one per endpoint). Columns included:

name, mac, groupName, sgtName, description, location, customAttr1Key, customAttr1Value, customAttr2Key, customAttr2Value

Run (example)

python3 ise_bulk_endpoints.py apply-csv --file /path/to/ise_endpoints_template.csv

The script will for each row:
- Lookup Endpoint Identity Group (by name) → UUID
- Lookup SGT (by name) → UUID
- Create the endpoint if not found, else Update
- Sleep briefly to avoid bursts

Validation

GUI: Context Visibility → Endpoints, filter by Location, Owner, or MAC.
[Endpoints with Custom Attributes]
ERS: GET /ers/config/endpoint?filter=mac.EQ.AA:BB:CC:11:22:33
Switch CLI (MAB or reauth to test policy): # On Catalyst Access (sample) show authentication sessions interface Gi1/0/10 details show authentication sessions mac AA:BB:CC:11:22:33 details Validate AuthC, AuthZ, DACL/SGT, and Status.

D) Bulk Quarantine / Clear via ANC (Script & API)

Apply ANC to a device

python3 ise_bulk_endpoints.py anc-apply --mac AA:BB:CC:11:22:33 --policy QUARANTINE

Validate in GUI: Operations → Adaptive Network Control → ANC Endpoints
[ANC Applied]

Clear ANC

python3 ise_bulk_endpoints.py anc-clear --mac AA:BB:CC:11:22:33

CLI Validation

Force reauth (wired): conf t interface Gi1/0/10 authentication control-direction in mab dot1x pae authenticator authentication periodic authentication timer reauthenticate 60 end clear authentication sessions interface Gi1/0/10 show authentication sessions interface Gi1/0/10 details
You should see DACL/SGT changes reflecting ANC.

E) Update, Move, or Delete Endpoints (Idempotent)

Update (change group/SGT/attributes)
Just edit CSV row → rerun apply-csv. The script PUT updates the endpoint.

Delete by MAC

python3 ise_bulk_endpoints.py delete --mac AA:BB:CC:11:22:33

Validate: ERS GET returns 404 or absent; GUI endpoint removed.

Common ERS return codes to expect

200/201/204 = success,
401 = auth issue,
404 = not found,
409 = conflict (already exists),
415 = media type header mismatch,
422 = schema issues.

Expert-Level Use Cases

Greenfield Site Cutover: Pre-stage 3,000 IoT MACs with Location/Owner attributes; run during maintenance window; validate with bulk GET and spot-check on access ports.
Contractor Season: Create temporary Endpoint Identity Group + SGT; import contractor MACs with Expiry attributes; nightly job moves expired to Blacklist (or deletes).
CMDB Sync: Nightly pull from ServiceNow or CMDB; diff against ISE /endpoint list; add/update where drift detected; tag CostCenter.
MDM/EMM Alignment: From Intune/JAMF inventory, pre-stage corporate devices with SGT=Corporate; BYOD remains dynamic via profiling.
Rapid Outbreak Containment: SOC feed (SIEM) posts suspicious MACs to an ANC queue; Python Lambda/container applies QUARANTINE in seconds; clears automatically after remediation.
Mergers & Acquisitions: Mass ingest of legacy devices; map foreign groups to ISE EIG and SGTs; run transform rules in CSV pre-processor.
Zero-Touch IoT: OUI-based bootstrap—create endpoints by OUI bucket with staticGroupAssignment and restricted DACL; elevate after validation job.
Compliance Tagging: Weekly job tags endpoints missing posture → SGT NonCompliant; AuthZ maps that SGT to quarantine VLAN/portal.
Lifecycle Governance: lastSeen > 90 days? Move to Dormant group and reduce access; purge after 180 days.
High-Velocity Retail: Store opening playbook—site code in custom attribute; bulk run per-store CSV; single verification dashboard for go/no-go.
SGACL Migration: Phase from DACL to TrustSec—bulk attach SGTs while keeping DACLs; flip SGACL once SXP/propagation validated.
API-Driven Guest MAC Passthrough: Sponsor portal event posts auto-created guest MACs to a dedicated EIG with temporary access window via API.
Blue/Green Policy Changes: Duplicate EIG/SGT sets; bulk pivot pilot endpoints to Green for A/B testing; roll back in minutes via API.
Asset Owner Self-Service: Portal writes to CSV in SharePoint; pipeline validates and pushes to ISE; sends success/failure mail per row.
Drift Remediation Dashboard: Scheduled job lists endpoints missing expected SGT/EIG vs policy intent; one-button “Remediate” calls ERS.

Validation Quick Checklist (GUI + CLI)

Context Visibility → Endpoints shows new MACs with correct EIG/SGT and custom attributes.
Operations → RADIUS → Live Logs shows expected AuthZ policy hits post-reauth.
ANC tab lists quarantined endpoints when applied.
Switch: show authentication sessions mac <mac> details shows DACL/SGT/VLAN as intended.
cURL/Script GETs return expected payloads and HTTP 200s.

FAQs – Bulk Endpoint Management via API

1. What are the prerequisites for using Bulk Endpoint Management via Cisco ISE APIs?

Answer:
You need:
- ISE with ERS (External RESTful Services) API enabled.
- Administrator account with ERS Admin role.
- API client software like Postman or Python scripts with Requests module.
- Trusted certificate for HTTPS communication (optional but recommended for production).
- Network connectivity to TCP 443 of ISE nodes.

2. How do I authenticate my API requests in Cisco ISE?

Answer:
Authentication is done using Basic Authentication with ISE admin credentials.
Headers must include:

Authorization: Basic <Base64(username:password)>
Accept: application/json
Content-Type: application/json

Always test with a single GET request first:

GET https://<ISE-IP>:9060/ers/config/endpoint

3. What is the recommended way to bulk-add endpoints in ISE?

Answer:
Use the ERS API POST method with JSON body containing endpoint details. Example:

{
  "ERSEndPoint": {
    "name": "Finance-Laptop01",
    "mac": "AA:BB:CC:DD:EE:FF",
    "description": "Finance Department Endpoint",
    "groupId": "<Group-UUID>"
  }
}

For bulk imports, write a Python script that loops over a CSV file and POSTs each entry to ISE.

4. How can I validate if endpoints were successfully added via API?

Answer:
Use GET calls or the ISE GUI. Example:

GET https://<ISE-IP>:9060/ers/config/endpoint?filter=mac.EQ.AA:BB:CC:DD:EE:FF

GUI Validation:

Navigate to Administration > Identity Management > Identities > Endpoints.
Search for the MAC address and confirm its group assignment and status.

5. Can I bulk-update endpoint attributes such as descriptions, groups, or profiles?

Answer:
Yes, use PUT method with endpoint ID. Steps:

GET the endpoint to retrieve its unique ID.
PUT updated details.
Example:

PUT https://<ISE-IP>:9060/ers/config/endpoint/<id>
{
  "ERSEndPoint": {
    "id": "<id>",
    "mac": "AA:BB:CC:DD:EE:FF",
    "description": "Updated Finance Asset",
    "groupId": "<New-Group-UUID>"
  }
}

6. What’s the fastest way to delete multiple endpoints in bulk?

Answer:
ISE doesn’t support bulk delete in one call, but you can automate via Python loop:

for mac in mac_list:
    id = get_endpoint_id(mac)
    requests.delete(f"https://<ISE-IP>:9060/ers/config/endpoint/{id}", headers=headers, verify=False)

GUI Validation: Recheck Endpoint Identity List to ensure entries are gone.

7. How do I find the correct Group ID (UUID) when assigning endpoints via API?

Answer:
Use:

GET https://<ISE-IP>:9060/ers/config/endpointgroup

It returns all endpoint groups with their UUIDs.
Pro Tip: Keep a local JSON/CSV reference of your Group IDs for scripting efficiency.

8. Can I integrate Cisco ISE Bulk Endpoint Management with external systems like CMDB or Asset DB?

Answer:
Yes. Many organizations integrate with:
ServiceNow CMDB → Auto-push new assets to ISE.
Asset inventory systems → Sync endpoints daily.
MDM platforms (Intune, AirWatch) → Update endpoint attributes (e.g., compliant vs. non-compliant).
This is achieved by building a middleware script that pulls from CMDB and POSTs to ISE via API.

9. What are the rate limits or performance considerations for bulk API calls?

Answer:
Cisco ISE API does not enforce hard rate limits, but best practice:
- Throttle requests to 5–10 per second.
- Use batch scripts with error handling & retries.
Performance bottlenecks come from:
- ISE CPU utilization.
- Database replication in multi-node deployments.
  Always test in lab before production import of thousands of endpoints.

10. What troubleshooting steps should I take if API bulk imports fail?

Answer:
Check ISE ERS logs (/var/log/ise/ers.log).
Verify JSON syntax (missing commas, invalid MAC format).
Ensure endpoint group UUID exists.
Run ISE GUI test: manually add one endpoint, confirm group exists.
Use curl with -v to debug request headers:

curl -k -u admin:password -H "Content-Type: application/json" -H "Accept: application/json" -X POST -d @endpoint.json https://<ISE-IP>:9060/ers/config/endpoint

If still failing, enable API debugging logs in ISE > Operations > Logging.

YouTube Link

For more in-depth Cisco ISE Mastery Training, subscribe to my YouTube channel Network Journey and join my instructor-led classes for hands-on, real-world ISE experience

[NEW COURSE ALERT] CISCO ISE (Identity Service Engine) by Sagar Dhawan

CCIE Security v6.1 Training – Ticket#1 Discussed

CCIE Security v6.1 – MAC Authentication Bypass (MAB) in Cisco ISE

CCNP to CCIE SECURITY v6.1 – New Online Batch

Closing Notes

You now have a repeatable, auditable way to make ISE reflect policy intent at scale: create/update/delete endpoints, attach EIG + SGT, push ANC on demand, and prove results via GUI and CLI. Treat ISE as code—version CSVs/scripts, peer review changes, and pilot before sweeping production.

Fast-Track to Cisco ISE Mastery Pro

Ready to dominate ISE automation end-to-end?
I run a focused 4-month, instructor-led CCIE Security journey (hands-on ISE, TrustSec, pxGrid, automation).

Get the full course outline and reserve your seat here: course.networkjourney.com/ccie-security.
Bonus for early sign-ups: Postman collections, Python playbooks, and graded lab checklists tailored to your environment.

Subscribe to Network Journey on YouTube for weekly ISE deep dives, and apply for the cohort to get 1:1 lab feedback and career-grade projects.

Enroll Now & Future‑Proof Your Career
Email: info@networkjourney.com
WhatsApp / Call: +91 97395 21088

21 DAYS CCNA BOOTCAMP	Click to Watch
PYTHON3/ANSIBLE for NETWORK AUTOMATION	Click to Watch
"FIREWALL MASTERY" : PA + FGT+ CP + ASA/FTD + F5 LTM	Click to Watch
OSPF+BGP+MPLS	Click to Watch
SDN ORCHESTRATION	Click to Watch

PYTHON NETWORK AUTOMATION	Read Course Outline
CCNA + CCNP ENTERPRISE	Read Course Outline
CCNA to CCIE SECURITY	Read Course Outline
CISCO DEVNET + DEVCOR	Read Course Outline
"MASTER CLOUD" : AZ700 + AWS + GCP	Read Course Outline
"FIREWALL MASTERY" : PA + FGT+ CP + ASA/FTD + F5 LTM	Read Course Outline
CISCO DNAC	Read Course Outline
CISCO ISE	Read Course Outline
MULTI-VENDOR TRAINING	Read Course Outline
SDN ORCHESTRATION	Read Course Outline

[Day 120] Cisco ISE Mastery Training: Bulk Endpoint Management via API (ERS + OpenAPI)
