Day 35 – Cisco ISE Mastery Training: BYOD Wired Onboarding

[Day 35] Cisco ISE Mastery Training: BYOD Wired Onboarding

Post Views: 69

Introduction

In today’s hybrid workspace, BYOD (Bring Your Own Device) is no longer optional — employees, contractors, and guests all bring their own laptops to connect to corporate resources. Over wired connections, onboarding BYOD devices is trickier than wireless because physical switch ports require 802.1X/MAB authentication, provisioning portals, and secure certificate handling — all without preconfiguring the device.
Cisco ISE provides a fully automated BYOD wired onboarding workflow where endpoints:

  • Self-register
  • Get onboarded with an endpoint identity certificate
  • Are assigned the correct network profile without manual IT intervention

This process ensures security compliance while keeping the user experience frictionless.

Problem Statement

Traditional wired onboarding involves:

  • Manual IT setup
  • MAC whitelisting or pre-registered device entries
  • Weak guest access controls
  • No endpoint compliance tracking

These methods cause:

  • Security gaps (rogue devices gain access)
  • Operational delays
  • Frustration for end users

We need a solution that authenticates unknown devices, registers them in ISE, provisions them with certificates, and dynamically authorizes them — all without IT desk visits.

Solution Overview

Cisco ISE’s BYOD wired onboarding uses:

  • 802.1X + MAB fallback
  • ISE Guest/BYOD portals for self-service onboarding
  • Certificate provisioning via ISE SCEP or internal CA
  • Authorization policy rules that change based on onboarding stage

Flow:

  1. Endpoint connects to wired port
  2. ISE classifies device as unknown → redirects to BYOD portal
  3. User logs in with corporate credentials
  4. Certificate provisioned to endpoint
  5. Device reauthenticates with EAP-TLS using new certificate
  6. Full access granted based on compliance profile

Sample Lab Topology

Lab Tools: VMware/EVE-NG, Cisco ISE, Catalyst Switch (L2/L3), BYOD laptop endpoints

Components:

  • ISE Node (2.7 or higher) on VMware
  • Catalyst 9300 in EVE-NG or physical
  • Windows/Mac endpoint (BYOD device)
  • AD/DNS server (optional for identity store)

Diagram:

Port Gi1/0/10 configured for 802.1X + MAB with VLAN assignment via ISE.

Step-by-Step GUI + CLI Configuration Guide

A. Switch CLI Configuration

conf t
aaa new-model
aaa authentication dot1x default group radius
aaa authorization network default group radius
aaa accounting update periodic 5

radius server ISE1
 address ipv4 10.10.10.5 auth-port 1812 acct-port 1813
 key cisco123

ip device tracking
interface Gi1/0/10
 switchport mode access
 authentication order mab dot1x
 authentication priority dot1x mab
 authentication port-control auto
 mab
 dot1x pae authenticator
 spanning-tree portfast

Validation:

show authentication sessions interface Gi1/0/10 details

B. ISE GUI Configuration

Step 1 – Enable BYOD Services

  • Navigate: Administration → Settings → Client Provisioning
  • Enable BYOD Device Registration and Certificate Provisioning

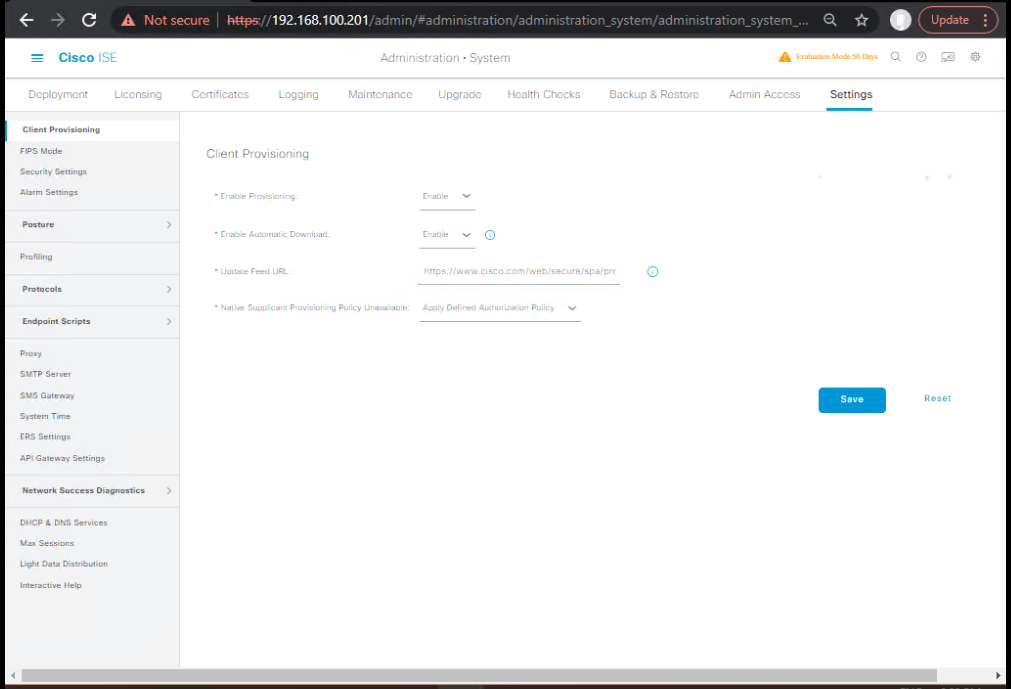

  • [Screenshot: ISE BYOD Service Enable Screen]

Step 2 – Create BYOD Portal

  • Go to Work Centers → Guest Access → Portals & Components → BYOD Portals
  • Create New BYOD Portal

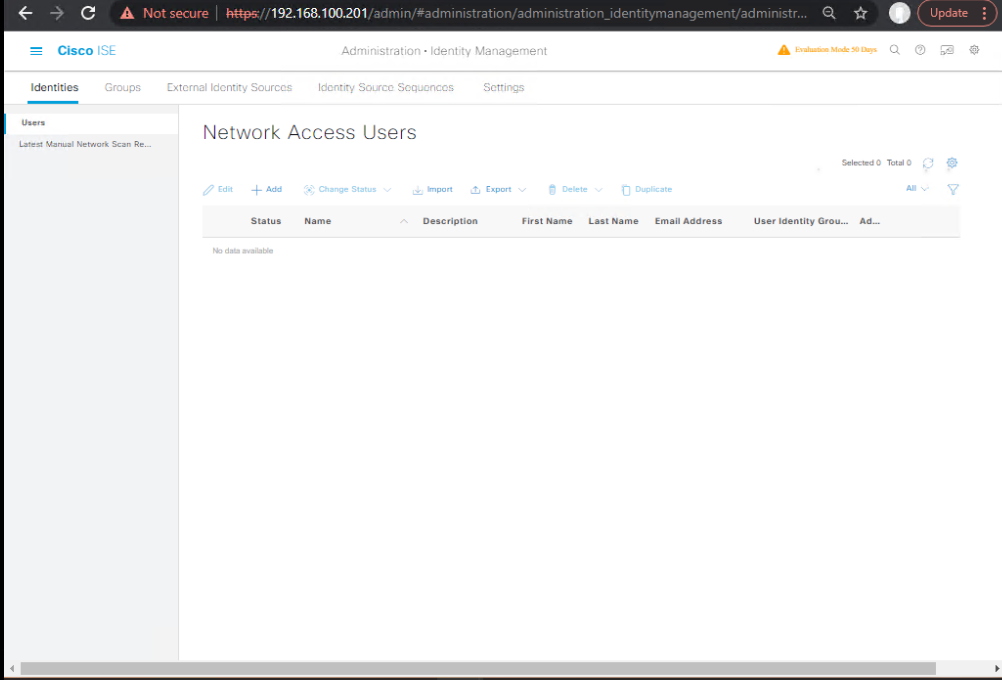

  • Set authentication method = AD or Internal Users

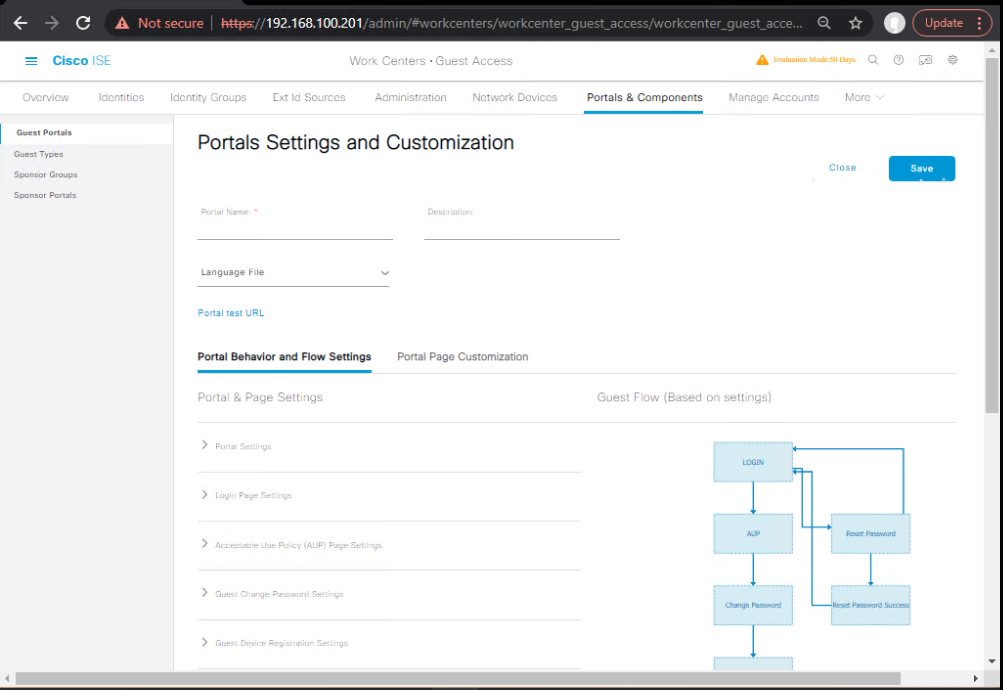

  • [Screenshot: BYOD Portal Configuration]

Step 3 – Client Provisioning Policy

  • Go to Policy → Policy Elements → Results → Client Provisioning → Resources
  • Add AnyConnect Compliance Module and Certificate provisioning script

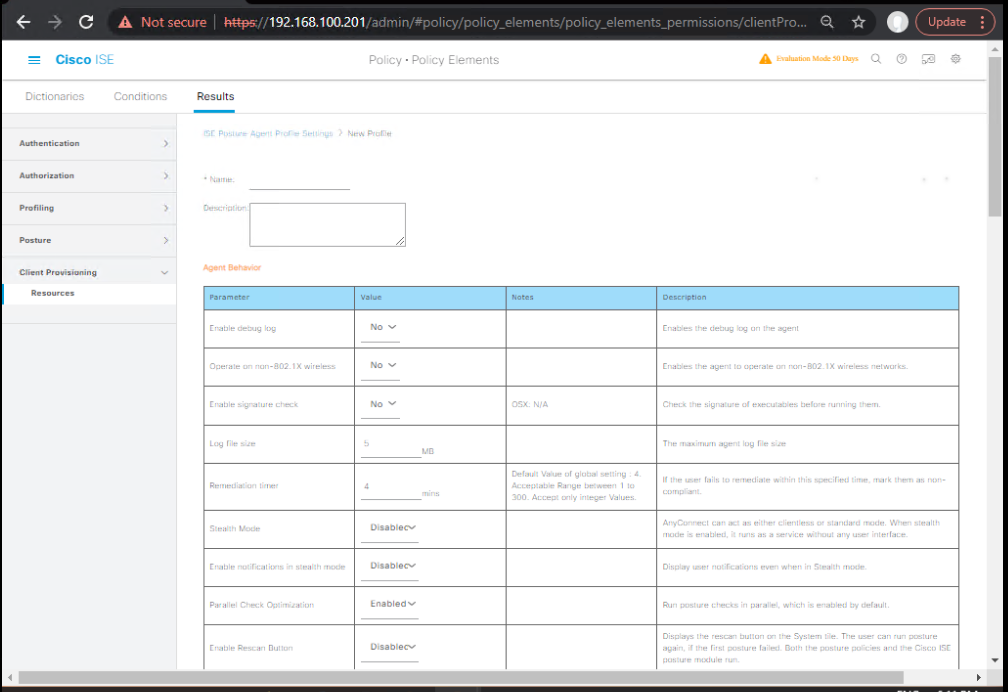

  • [Screenshot: Client Provisioning Policy]

Step 4 – Authorization Policy
Example rules:

  1. Condition: Wired_MAB and Endpoint:IdentityGroup = Unknown
    → Result: Redirect to BYOD Portal ACL
  2. Condition: Wired_802.1X and CertificateIssuedBy ISE
    → Result: Full Access VLAN/ACL
  • [Screenshot: ISE Authorization Policy Rules]

Step 5 – Download & Install AnyConnect NAM/Posture Module (if required)

  • Redirect ACL allows ISE, DNS, CRL, SCEP, and update servers
  • User downloads from portal → installs

CLI Validation after Onboarding:

show authentication sessions interface Gi1/0/10 details
# Look for:
Status: Authz Success
Method: dot1x
Domain: DATA

FAQs – BYOD Wired Onboarding

1. How is BYOD wired onboarding different from wireless onboarding in Cisco ISE?

  • Wired onboarding requires configuring 802.1X/MAB on switch ports, handling VLAN assignments, and managing limited portal redirection through ACLs on the access switch.
  • Wireless onboarding typically uses a WLC to redirect traffic to the BYOD portal without manual ACL configuration.
  • In wired setups, switch hardware, IOS version, and RADIUS timeout tuning are more critical.

2. Do I need a separate VLAN for BYOD onboarding?

  • Recommended but not mandatory.
  • A dedicated VLAN for onboarding (with limited internet/ISE access) improves security and simplifies troubleshooting.
  • VLAN assignment can be done dynamically via ISE Authorization Profiles during onboarding.

3. What’s the role of the BYOD portal ACL in wired onboarding?

  • It ensures that before onboarding is complete, the endpoint can only reach:
    • ISE nodes (HTTPS)
    • SCEP server
    • DNS server
    • CRL distribution points
  • Without the ACL, endpoints might either get full access prematurely or be unable to reach the onboarding resources.

4. Can a non-domain-joined device complete BYOD wired onboarding?

  • Yes — domain membership is not required.
  • Users authenticate with AD or internal ISE credentials, and the endpoint is provisioned with an ISE-issued certificate.

5. How do we handle endpoints that don’t support 802.1X for wired BYOD?

  • Use MAB to trigger web-based onboarding.
  • This is less secure and may require stricter ACLs to reduce risk.
  • Some legacy devices may need manual MAC registration in ISE.

6. What happens if an onboarded device’s certificate expires?

  • The device will fail 802.1X EAP-TLS authentication.
  • ISE can redirect it to the BYOD portal for re-provisioning.
  • Best practice: configure certificate lifetimes and renewal reminders in ISE.

7. Can posture checks be integrated into BYOD wired onboarding?

  • Yes, via Cisco AnyConnect Posture Module.
  • You can require compliance (e.g., AV running, OS patch level) before granting full VLAN/ACL access after onboarding.

8. How does ISE differentiate between corporate BYOD and guest devices?

  • Endpoint identity groups and authorization rules separate BYOD from guests.
  • Guests use guest portals; BYOD devices are recognized by certificates issued during onboarding.

9. What’s the most common failure point in BYOD wired onboarding?

  • Misconfigured switch redirection ACLs or missing DNS reachability.
  • Endpoints can’t load the BYOD portal if they can’t resolve ISE’s hostname or reach its HTTPS service.

10. How do I verify BYOD wired onboarding success from CLI and GUI?

  • CLI (Switch): show authentication sessions interface Gi1/0/10 details # Look for Method: dot1x, Status: Authz Success
  • ISE GUI:
    • Go to Operations → RADIUS → Live Logs
    • Look for final authentication using EAP-TLS and the endpoint identity group updated to RegisteredDevices.
