[Day 4] Cisco ISE Mastery Training: Lab Topology Design for ISE Practice

---

Introduction

In today’s enterprise networks, controlling who and what connects is no longer optional — it’s a security necessity.
Cisco Identity Services Engine (ISE) is the gold standard for Network Access Control (NAC), enabling centralized authentication, authorization, and accounting for wired and wireless devices.

This Day 4 session of our Cisco ISE Mastery Training goes beyond theory. You’ll design and build a fully functional ISE lab topology using VMware Workstation or EVE-NG, complete with:

• Catalyst Switch (wired access)
• Wireless LAN Controller (WLC)
• Active Directory (AD) Integration
• Endpoints (wired and wireless)
• Full step-by-step GUI & CLI configuration

We’ll configure 802.1X, MAB, and Guest Access, validate authentication, and troubleshoot with RADIUS Live Logs — exactly as you’d do in production.

Whether you’re preparing for CCNP/CCIE Security, working in a SOC/NOC, or just starting with ISE, this lab will give you real-world NAC deployment skills.

---

Problem Statement

Without Cisco ISE:

• Unauthorized devices can plug in and access sensitive data.
• Guest Wi-Fi lacks proper isolation.
• Switches and WLCs operate with static VLAN assignments.
• Incident response is slow — no clear visibility of device/user identity.

Result: security gaps, compliance failures, and increased breach risk.

---

Solution Overview

Cisco ISE addresses this by:

• Centralizing authentication & authorization using RADIUS.
• Enforcing policies based on user identity, device type, and posture.
• Integrating with switches, WLCs, firewalls, and Active Directory.
• Providing guest portals, BYOD onboarding, and profiling.

---

Sample Lab Topology

Lab Components (VMware/EVE-NG):

• Cisco ISE VM (v3.x, 4 vCPU, 16GB RAM, 300GB disk)
• CSR1000v Router (routing + internet simulation)
• Catalyst Switch (IOSv-L2 or physical)
• Cisco WLC (v9800 or legacy 5508 in EVE-NG)
• Windows Server 2019 (AD, DNS, DHCP)
• Windows 10 Client (wired test)
• Wireless Client (laptop or VM)

Topology Layout:

           [Internet Cloud Simulation]
                     |
                 [CSR1000v Router]
                     |
             ---------------------
             |                   |
     [Catalyst Switch]    [WLC 9800]
             |                   |
   [Windows 10 Client]     [Wi-Fi Laptop]
             |
         [ISE Server]
             |
      [Windows Server AD]

---

Step-by-Step Lab Guide

Part 1 – ISE Initial Setup

1. Deploy ISE VM in VMware/EVE-NG.
2. Configure hostname, DNS, NTP.
3. Install ISE license.
4. Create admin user.

Part 2 – Add Network Devices

1. ISE GUI:
   Administration → Network Resources → Network Devices → Add
   • Name: Switch-Access1
   • IP: 10.10.10.2
   • Enable RADIUS Authentication Settings
   • Shared Secret: cisco123

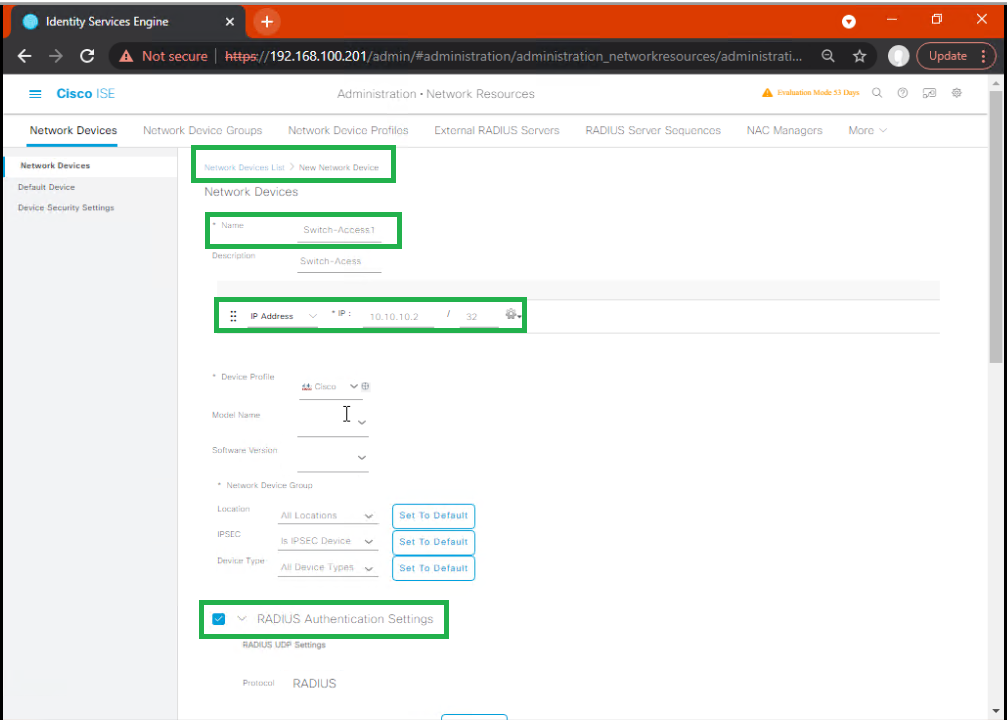

     [Screenshot: ISE Add Network Device Screen]
2. Repeat for WLC.

Part 3 – Integrate ISE with Active Directory

1. ISE GUI:
   Administration → Identity Management → External Identity Sources → Active Directory
   • Click Join → Enter domain & credentials.
     [Screenshot: ISE AD Join Screen]
2. Verify status.

Part 4 – Configure Policy Sets

1. ISE GUI:
   Policy → Policy Sets → Add New: Wired_802.1X

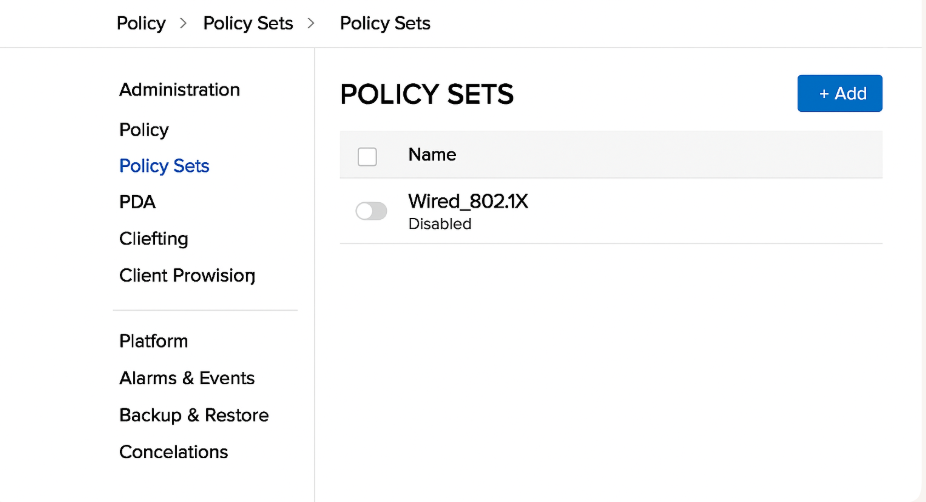

   [Screenshot: ISE Policy Set Screen]
2. Authentication Policy:
   • If Wired 802.1X → Use AD.
   • If MAB → Use Internal Endpoints.
3. Authorization Policy:
   • AD Group: IT_Dept → VLAN 20.
   • Unknown MAC → Guest VLAN 30.

Part 5 – Switch Configuration (CLI)

conf t
radius server ISE
 address ipv4 10.10.10.5 auth-port 1812 acct-port 1813
 key cisco123
!
aaa new-model
aaa authentication dot1x default group radius
aaa authorization network default group radius
!
dot1x system-auth-control
!
interface Gig1/0/1
 switchport mode access
 authentication port-control auto
 mab
 dot1x pae authenticator
 spanning-tree portfast

Part 6 – WLC Configuration

1. GUI:
   Security → AAA → RADIUS Authentication → Add ISE.

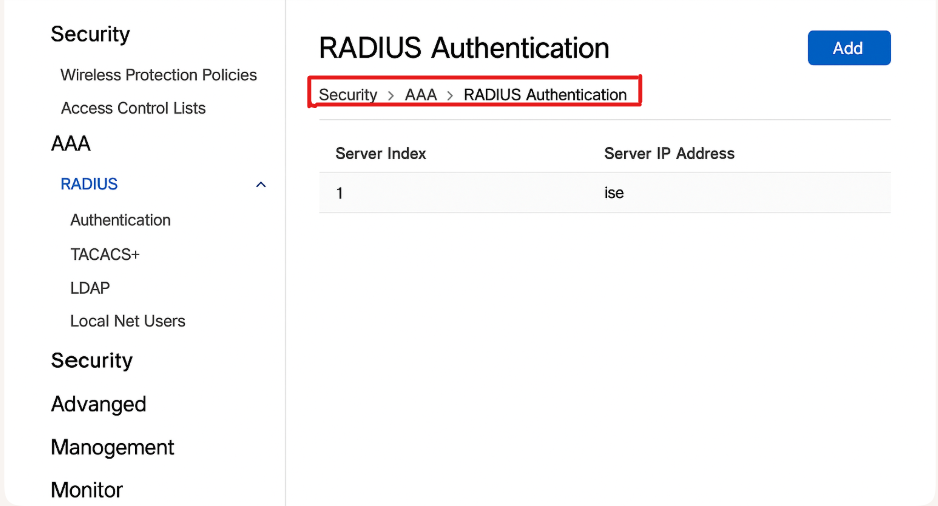

   [Screenshot: WLC RADIUS Config Screen]
2. Enable RADIUS NAC.
3. Map WLAN SSID to ISE.

Part 7 – Validation

• ISE GUI:
  Operations → RADIUS → Live Logs to verify success.

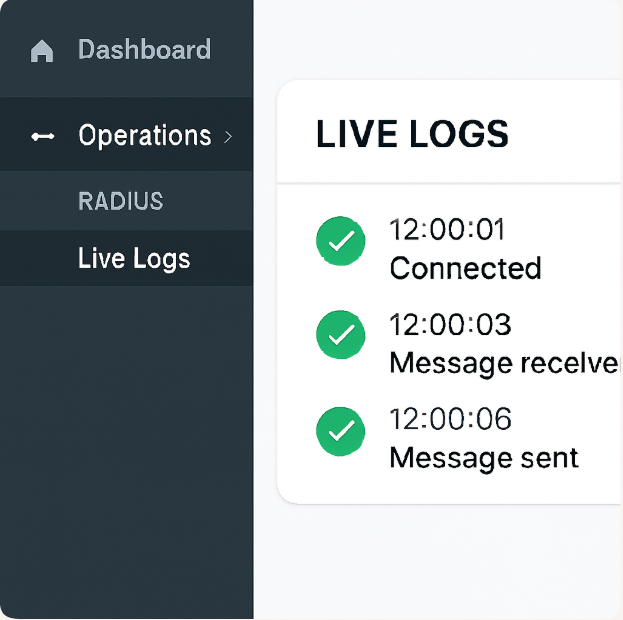

  [Screenshot: ISE Live Logs]
• Switch CLI:

show authentication sessions interface Gi1/0/1
show dot1x all

• WLC CLI:

show client detail <MAC>

---

FAQ

1. Can I run Cisco ISE in a lab with less than the recommended hardware specs?

• Yes, but expect performance degradation.
• Minimum workable (lab only): 4 vCPU, 12GB RAM, 200GB disk.
• Recommended: 4 vCPU, 16GB RAM, 300GB disk.
• Features like profiling and posture need more resources.
• Tip: Disable unused services in the lab to save CPU/RAM.

---

2. Why does my ISE fail to join Active Directory?

• Common causes:
  • NTP mismatch > 5 minutes between ISE and AD.
  • Incorrect DNS resolution of the domain controller.
  • Firewall blocking TCP/UDP 88, 389, 636, 3268, 464.
• Fix: show ntp nslookup ad.domain.local ping ad.domain.local
• In ISE GUI: Administration → Deployment → Synchronize Time before retry.

---

3. Do I need a physical switch for 802.1X testing in the lab?

• No, IOSv-L2 in EVE-NG supports 802.1X & MAB commands for basic testing.
• But: Physical Catalyst switches offer full dot1x features, including voice VLANs, critical VLANs, and downloadable ACLs.
• CLI check: show dot1x all show authentication sessions

---

4. My MAB authentication isn’t working — what should I check?

• Ensure endpoint MAC address is in ISE → Internal Endpoints with correct format (uppercase, no delimiters).
• Switch port must have: mab authentication order mab dot1x
• ISE Live Logs will show if RADIUS request is reaching ISE.

---

5. How do I capture RADIUS traffic for troubleshooting?

• On switch: monitor session 1 source interface Gi1/0/1 monitor session 1 destination interface Gi1/0/2 Connect Wireshark to Gi1/0/2, filter: udp.port==1812 || udp.port==1813
• Or capture on ISE CLI: tcpdump -i eth0 port 1812 or port 1813 -w radius.pcap

---

6. What’s the difference between 802.1X, MAB, and WebAuth in ISE?

• 802.1X:
  • Uses EAP with username/password or certificate.
  • Most secure, supports posture and profiling.
• MAB:
  • Uses MAC address lookup when 802.1X fails or is not supported.
  • Often for printers, IP phones, IoT devices.
• WebAuth:
  • Redirects users to a captive portal (common in guest Wi-Fi).

---

7. Can I assign ACLs dynamically from ISE?

• Yes — use Downloadable ACLs (dACLs).
• Create ACL in ISE:
  Policy → Policy Elements → Results → Authorization → Downloadable ACLs
• Assign in Authorization Profile.
• Switch must support ip device tracking for dACL enforcement.

---

8. Why is my endpoint stuck in “unauthorized” state?

• Possible causes:
  • Missing dot1x system-auth-control globally.
  • Port config missing authentication port-control auto.
  • ISE policy mismatch (auth success but no matching authorization rule).
• Validate: show authentication sessions interface Gi1/0/1 details

---

9. Can I simulate BYOD onboarding in the lab?

• Yes, with:
  • AD Certificate Services for issuing device certificates.
  • Multiple SSIDs (one for onboarding, one for production).
  • ISE MyDevices portal.
• BYOD flow works fully in EVE-NG with a WLC & simulated clients.

---

10. How do I reset the ISE admin password in a lab?

• Console into ISE VM:
  • Reboot.
  • At boot menu, select ISE Recovery Mode.
  • Choose “Reset administrator password”.
• Or if logged in with another admin: application reset-passwd ise admin

---
