Day 58 – Cisco ISE Mastery Training: iOS Device Onboarding

[Day 58] Cisco ISE Mastery Training: iOS Device Onboarding

Post Views: 5

Introduction

iOS Device Onboarding in Cisco ISE is more than just “getting an iPhone onto the Wi-Fi.” In enterprise NAC (Network Access Control) deployments, onboarding refers to the process where unmanaged, personally owned, or BYOD (Bring Your Own Device) iOS devices are securely registered, provisioned, and granted network access based on corporate security policy.

For iOS, Cisco ISE provides a streamlined BYOD workflow using a captive portal redirection that guides users through certificate enrollment via SCEP, installing an MDM profile, and automatically reconfiguring their Wi-Fi settings to use secure EAP methods (like EAP-TLS).

This eliminates weak password-based authentication for personal devices and gives network admins visibility and control — without making employees jump through IT tickets.

Problem Statement

Modern enterprises often allow employees to connect personal iPhones or iPads to corporate resources. Without a proper onboarding process:

  • Devices may connect using insecure credentials (e.g., simple WPA2-PSK).
  • IT loses visibility into device ownership, compliance, and security posture.
  • Password changes break connectivity for unmanaged devices.
  • Offboarding is manual and error-prone.

The challenge: How can we allow BYOD iOS devices while ensuring certificate-based, policy-driven, and revocable access without burdening the helpdesk?

Solution Overview

Cisco ISE’s BYOD Onboarding workflow for iOS devices solves this by:

  • Redirecting new/unregistered devices to an ISE BYOD portal.
  • Authenticating the user with their corporate credentials.
  • Enrolling the device for a client certificate via SCEP (through ISE or integrated CA).
  • Delivering a mobileconfig profile that configures the secure SSID and EAP-TLS authentication.
  • Applying device registration records in ISE for ongoing policy enforcement.
  • Allowing revocation or quarantine of non-compliant devices.

Sample Lab Topology

Lab Components:

  • ISE Server: 3.2 or later, running on VMware ESXi/EVE-NG.
  • Wireless LAN Controller (WLC): AireOS or Catalyst 9800.
  • Access Points: Lightweight APs connected to WLC.
  • Switches: Layer 2/Layer 3 access switch for AP connectivity.
  • Endpoints: iPhone/iPad (latest iOS), test Windows/macOS device for admin portal.
  • CA Server: Internal Microsoft CA integrated with ISE for SCEP.

Topology Diagram:

  • SSID: BYOD-WIFI (open or WPA2-Enterprise with MAC-based redirection)
  • ISE handles RADIUS authentication and redirection.
  • WLC applies ACL for pre-onboarding redirection.

Step-by-Step GUI Configuration Guide

Step 1: Enable BYOD in ISE

  1. Navigate to Work Centers > BYOD.
  2. Click Enable BYOD and select Self-Service Portal as the onboarding method.

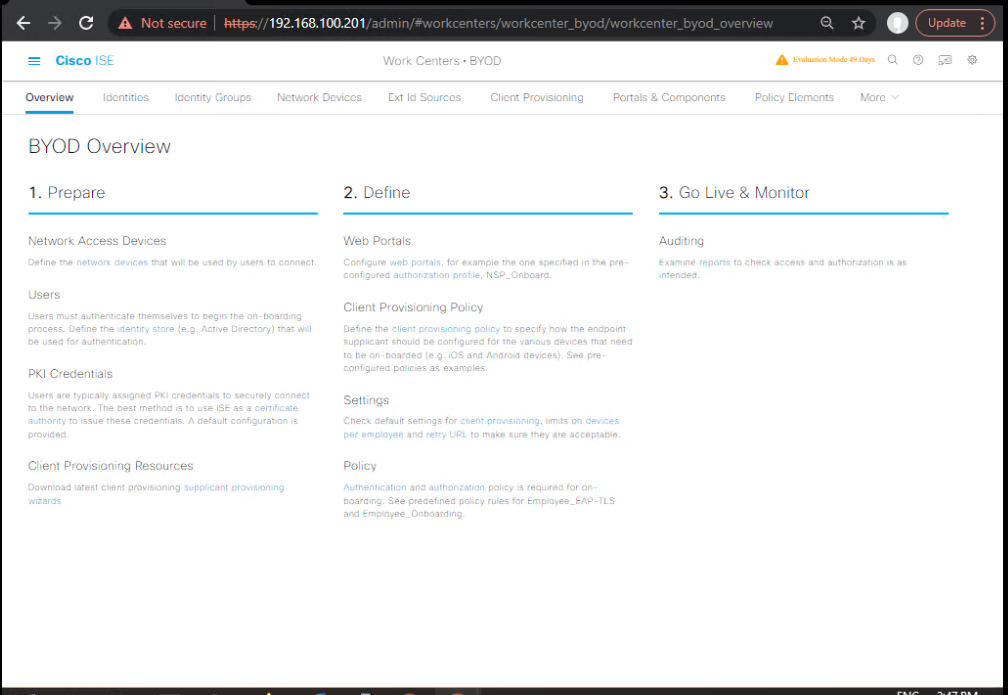

    [Screenshot: ISE BYOD Portal Configuration]

Step 2: Configure Policy Elements

  1. Authorization Profile – BYOD Redirect
    • Go to Policy > Policy Elements > Results > Authorization > Authorization Profiles.
    • Create BYOD-REDIRECT:
      • Access Type: Access-Accept.
      • ACL: Pre-auth ACL (configured on WLC).
      • Redirect URL: ISE BYOD Portal URL.

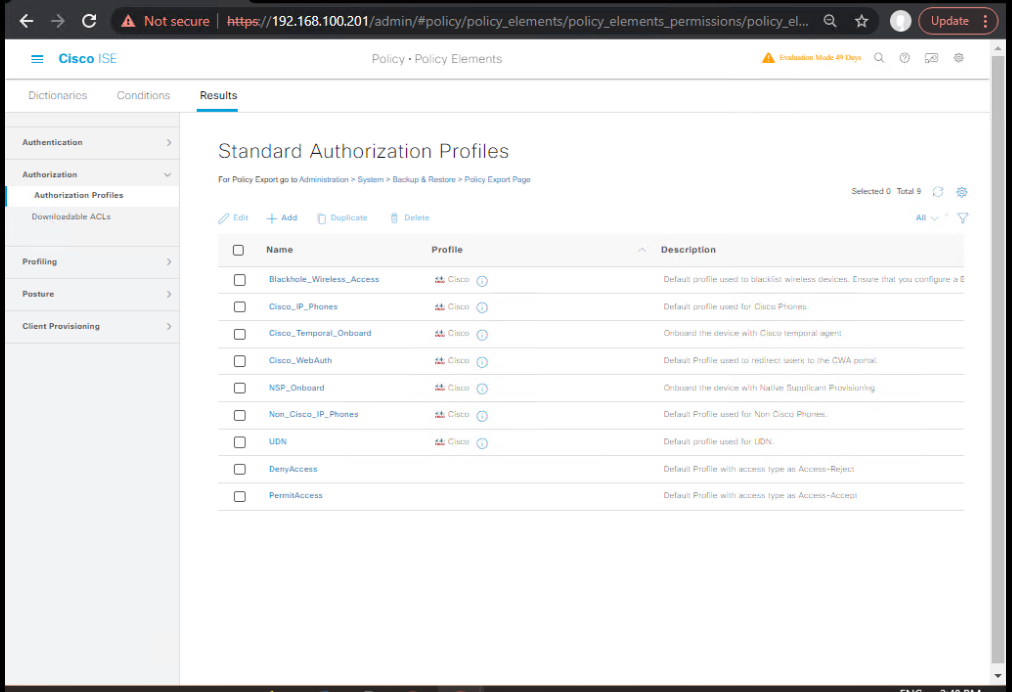

        [Screenshot: BYOD Redirect Authorization Profile]
  1. Authorization Profile – BYOD Completed
    • Create BYOD-ACCESS:
      • Access Type: Access-Accept.
      • VLAN: BYOD-SECURE.
      • Downloadable ACL (optional).

Step 3: Configure WLC for BYOD Redirect

On WLC GUI:

  1. Create ACL BYOD-REDIRECT-ACL:
    • Permit ISE IP, DNS, CA server.
    • Deny all other traffic (except DHCP).
  2. Create WLAN BYOD-WIFI:
    • Security: WPA2-Enterprise or open + MAC Filtering.
    • AAA Override: Enabled.
    • RADIUS Servers: ISE nodes.
    • Apply pre-auth ACL for redirection.

CLI Example:

config acl create BYOD-REDIRECT-ACL
config acl rule add BYOD-REDIRECT-ACL permit 0.0.0.0 0.0.0.0 host <ISE_IP>
config wlan create 5 BYOD-WIFI BYOD-WIFI
config wlan security wpa2 enable 5
config wlan security 802.1X enable 5
config wlan radius_server auth add 5 <ISE_IP> 1812

Step 4: Create ISE Policy Set

  1. Condition – iOS Detection
    • Use Device:Device Type EQUALS Apple-iOS.
  2. Authentication Policy
    • Allow MAB for redirect phase.
    • Allow EAP-TLS/EAP-PEAP for post-onboarding.
  3. Authorization Policy
    • IF (Device Not Registered AND iOS) → BYOD-REDIRECT.
    • IF (Device Registered AND iOS) → BYOD-ACCESS.

[Screenshot: ISE Policy Set for iOS Onboarding]

Step 5: Test iOS Onboarding

  1. Connect iPhone to BYOD-WIFI.
  2. Safari opens BYOD Portal automatically (via redirection).
  3. Authenticate with AD credentials.
  4. Download & install mobileconfig profile.
  5. Device reconnects to SSID using EAP-TLS with installed certificate.

Step 6: Validation

On ISE GUI:

  • Operations > RADIUS > Live Logs
    Look for two authentications:
    • Initial MAB/PEAP-Redirect (Access-Accept with Redirect URL).
    • Final EAP-TLS (Access-Accept with full access VLAN).

On WLC CLI:

show client detail <MAC>
show acl summary

On iOS Device:

  • Settings → General → VPN & Device Management → Verify installed profile.
  • Wi-Fi → Verify SSID is using “EAP-TLS” under details.

FAQs – iOS Device Onboarding in Cisco ISE

Q1: Why do iOS devices require a different onboarding approach compared to Windows or Android?
A: iOS has a sandboxed OS design and a special provisioning method using .mobileconfig profiles. This means EAP settings, certificates, and Wi-Fi configs must be pushed via an MDM profile or ISE’s BYOD portal — you can’t just manually import them like on Windows.

Q2: Does onboarding require the iOS device to first connect to an open SSID?
A: Usually yes, for the redirect stage. Many deployments use an open or PSK SSID with a pre-auth ACL to redirect unregistered devices to ISE. Some enterprises also use MAC-based bypass on the secure SSID for onboarding.

Q3: Can we onboard an iOS device if it’s already connected to the corporate SSID with username/password?
A: Yes. The device will be detected as not registered and redirected to the BYOD portal for certificate provisioning, then it will reconnect with EAP-TLS.

Q4: How does ISE detect that an iOS device is unregistered?
A: Through endpoint profiling and endpoint identity groups. The device MAC address is checked against ISE’s endpoint database; if not registered, it matches the BYOD redirection policy.

Q5: What happens if the user closes Safari during onboarding?
A: The process halts. The device remains in pre-onboarding state, and the next time it tries to access the network it will be redirected again until completion.

Q6: What’s the difference between BYOD onboarding and Guest access for iOS devices?
A: BYOD onboarding results in device registration and certificate-based secure access for corporate resources. Guest access is typically temporary, not registered in ISE for long-term policy enforcement, and uses different portal/auth rules.

Q7: Can we integrate MDM with iOS onboarding in ISE?
A: Yes. When integrated, ISE can enforce posture/compliance checks (e.g., device encryption, jailbreak detection) before granting access, in addition to certificate provisioning.

Q8: How are the installed certificates renewed when they expire?
A: ISE can prompt the device to re-enroll before expiry. In BYOD mode, the user revisits the portal; with MDM, the process can be automated.

Q9: What if an iOS device is lost or stolen after onboarding?
A: The admin can revoke the certificate in the CA and delete the endpoint record in ISE. The device will then fail EAP-TLS authentication.

Q10: Can one user onboard multiple iOS devices under the same account?
A: Yes, unless the ISE policy explicitly limits devices per user. Many deployments set a max device count per user to prevent abuse.

YouTube Link

For more in-depth Cisco ISE Mastery Training, subscribe to my YouTube channel Network Journey and join my instructor-led classes for hands-on, real-world ISE experience

[NEW COURSE ALERT] CISCO ISE (Identity Service Engine) by Sagar Dhawan
CCIE Security v6.1 Training – Ticket#1 Discussed
CCIE Security v6.1 – MAC Authentication Bypass (MAB) in Cisco ISE
CCNP to CCIE SECURITY v6.1 – New Online Batch

Closing Notes

iOS Device Onboarding with Cisco ISE transforms BYOD from a security headache into a controlled, automated process. You get:

  • Certificate-based secure Wi-Fi for personal devices.
  • Self-service user experience.
  • Centralized visibility & revocation in ISE.
    Done right, it’s a one-time setup that pays off in reduced IT tickets and stronger NAC security.
