Introduction

Security Group Tags (SGTs) are the identity currency of Cisco TrustSec. Instead of binding policy to IPs/VLANs, ISE assigns an SGT (e.g., HR=10, Finance=20, Guest=30) to users/devices at authentication time. These tags travel (inline) or are distributed (via SXP) so switches, WLCs, and firewalls can enforce role-to-role policy (SGACLs) consistently—no matter where endpoints connect.

Today you’ll build the SGT foundation in ISE, map tags to identities and IPs, propagate them to the network, and validate the end-to-end path with GUI and CLI.


Problem Statement

Traditional NAC deployments hit walls with:

  • ACL sprawl & VLAN explosion when modeling many roles.
  • Mobility/roaming: IPs/VLANs change; policy shouldn’t.
  • Un-auth devices (printers/IoT) still need role-based control.
  • Multi-domain consistency (wired, wireless, WAN/DC) is hard.

You need identity-driven segmentation that scales and remains stable even as users roam, devices rotate subnets, and networks grow.


Solution Overview

ISE solves this by making SGT the policy handle:

  • Define SGTs (names + numeric tags).
  • Assign SGTs dynamically via Authorization Profiles during 802.1X/MAB/Guest/BYOD, or statically via IP-to-SGT for non-auth devices.
  • Distribute SGTs to devices supporting inline tagging; use SXP (SGT Exchange Protocol) where inline isn’t available.
  • Enforce role-to-role policy with SGACLs at egress devices (switches, WLC, firewalls).
  • Operate/Validate with ISE Live Logs, Context Visibility, and device CLIs.

Sample Lab Topology

Platform: VMware/EVE-NG
Nodes:

  • ISE 3.x (PAN+MnT) – 10.10.10.5
  • AD/CA – 10.10.10.20 (users: HR/FIN groups; PKI optional)
  • C9300 (Access) – 10.10.10.31 (inline SGT capable)
  • C9500 (Core) – 10.10.10.41 (inline SGT + SXP “hub”)
  • WLC 9800-CL – 10.10.10.50 (SSID Corp-WPA2-Ent)
  • AP joined to WLC
  • ASA/FTD (optional pxGrid/SGT consumer)
  • Endpoints: Win10 (802.1X capable), Printer (non-auth), iPhone (802.1X)

Diagram:


Sample SGT plan:

  • HR = 10, Finance = 20, IT = 30, Guest = 40, Printers = 50, Servers = 60

Step-by-Step GUI Configuration Guide (with CLI + Validation)

A) ISE Node & Devices Prep

  1. Enable TrustSec services (ISE):

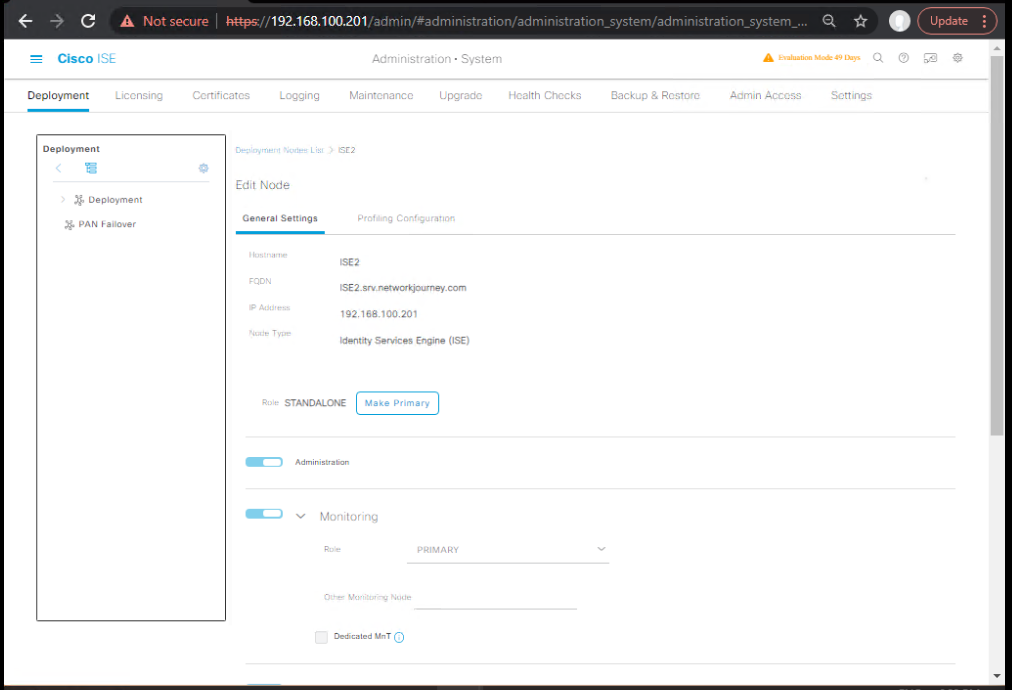

    Administration → System → Deployment → select ISE node → ensure TrustSec is enabled.
    [Screenshot: ISE Deployment Node – TrustSec role]
  1. Add Network Devices (WLC/Switches):

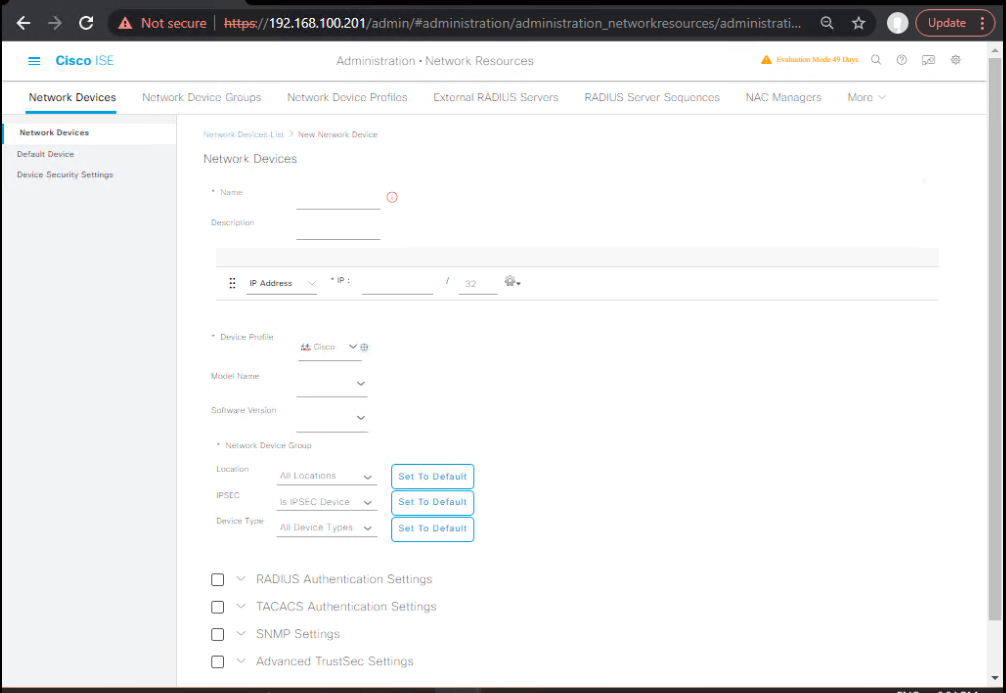

    Administration → Network Resources → Network DevicesAdd
    • Name/IP, RADIUS secret, CoA enabled.
    • (Optional) TACACS unchecked.
      [Screenshot: ISE Add Network Device]

Validation (ISE CLI):

show running-config | include network-device
show logging application ise-trustsec.log tail

B) Create SGTs (ISE)

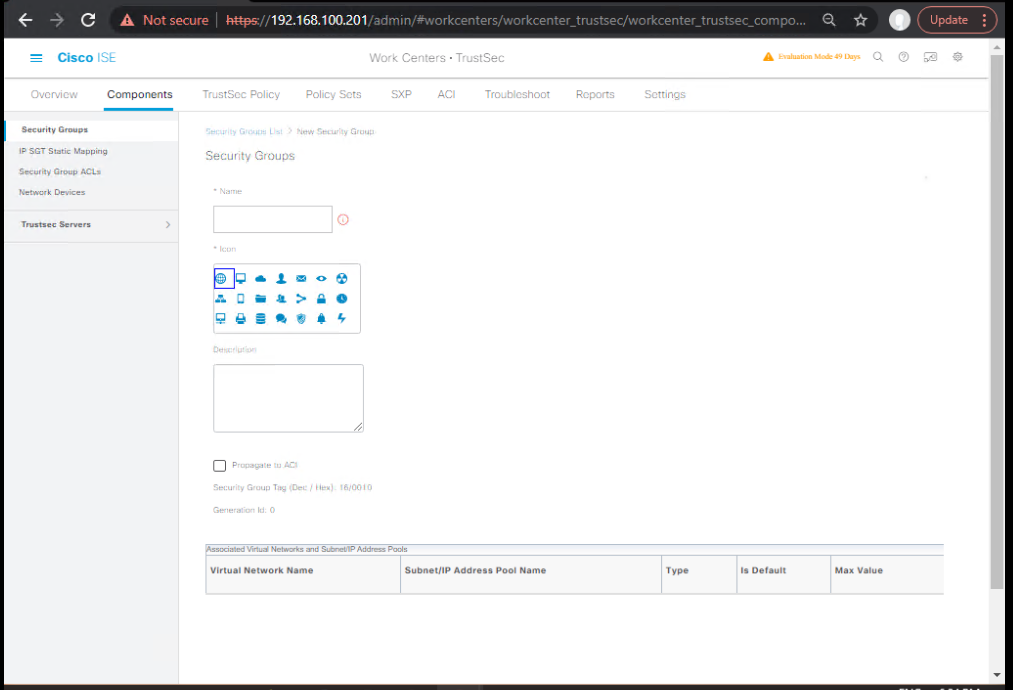

  1. Work Centers → TrustSec → Components → Security GroupsAdd
    • Create: HR(10), Finance(20), IT(30), Guest(40), Printers(50), Servers(60).
      [Screenshot: ISE Security Groups List]
  1. (Optional) Color/description for reporting clarity.

Validation (GUI): Groups appear with unique numeric tags.
Validation (CLI on Switch after download later):

show cts role-based sgt-map

C) IP-to-SGT Mapping (for non-auth endpoints)

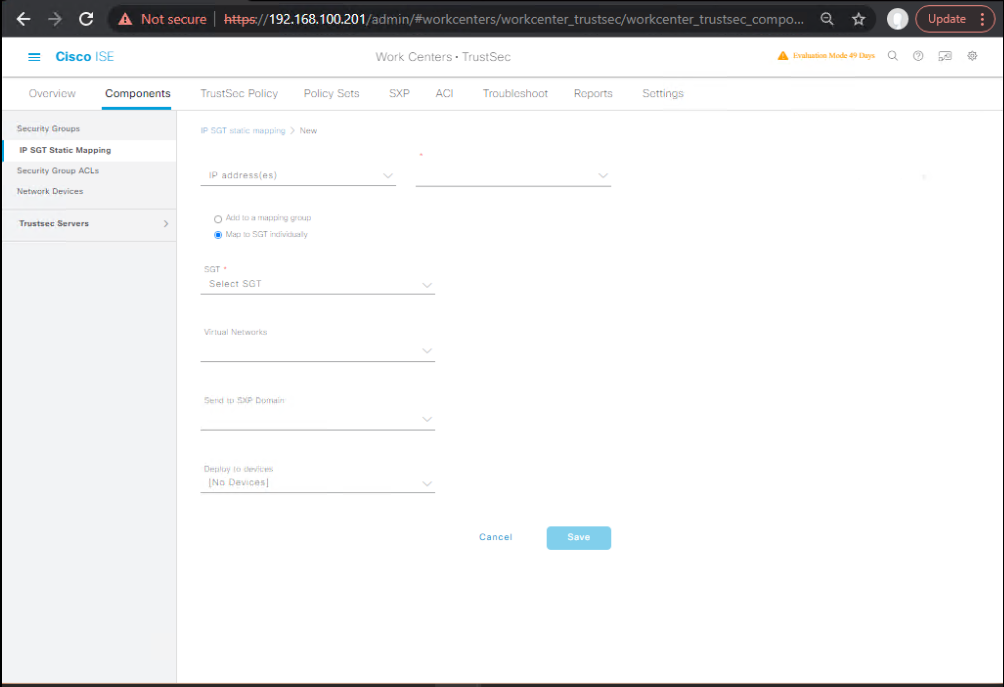

  1. ISE: TrustSec → Components → IP SGT Static MappingsAdd
    • Printer IP 10.20.50.15 → SGT Printers(50)
      [Screenshot: ISE IP-SGT Mapping Screen]
  1. (Optional) Add Servers subnet 10.30.0.0/24Servers(60).

Validation (Device after SXP):

show cts role-based sgt-map

D) Authorization Profiles that Assign SGTs

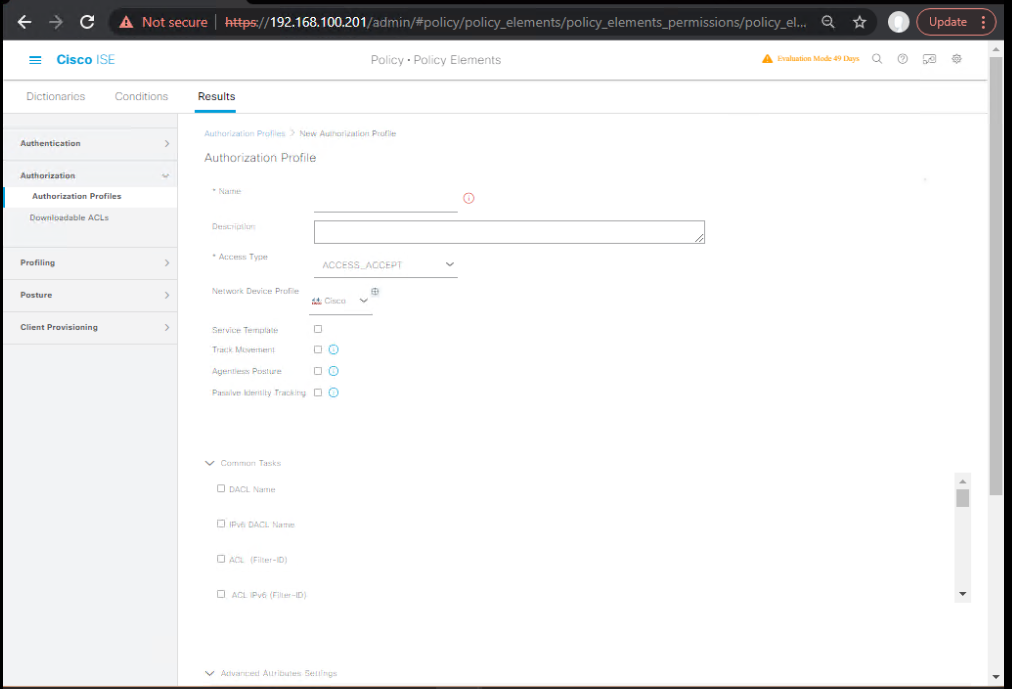

  1. Policy → Policy Elements → Results → AuthorizationAuthorization ProfilesAdd
    • Name: AP-HR-SGT10, Security Group: HR(10), DACL/VLAN optional.
    • Repeat for Finance/IT/Guest.
      [Screenshot: ISE Authorization Profile – SGT field]

Tip: Keep SGT-only profiles (no VLANs/ACLs) for clean testing.


E) Policy Set for Wired/Wireless (SGT Assignment at AuthZ)

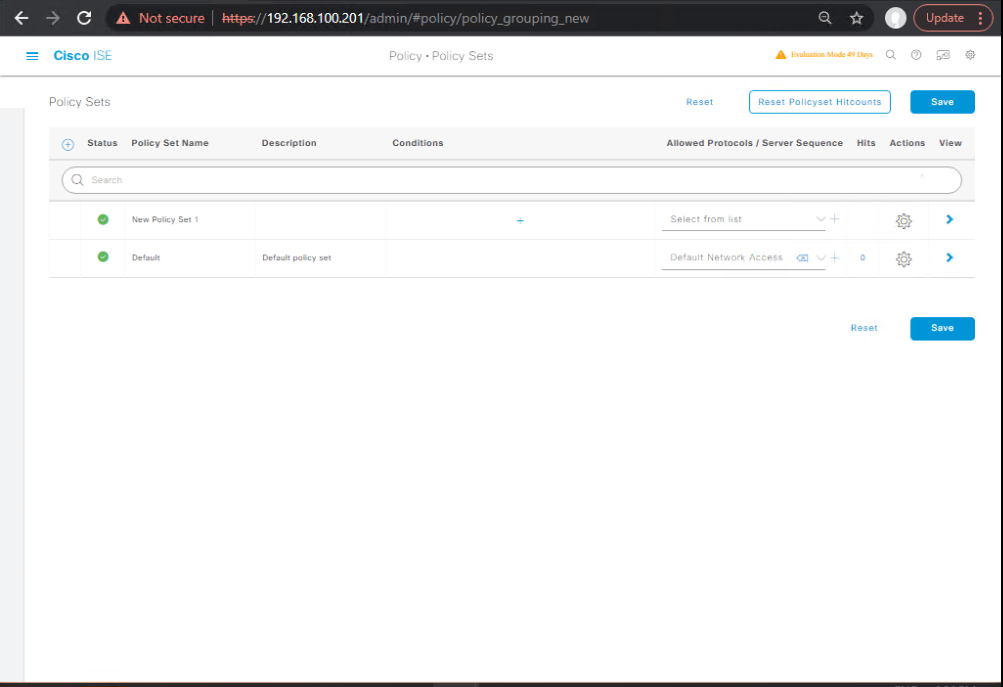

  1. Policy → Policy Sets → New Set TrustSec-SGT-Assignment
  2. Authentication Policy:
    • 802.1X → AD as ID store
    • MAB → Internal Endpoints (for labs)
      [Screenshot: ISE Policy Set – AuthN Rules]
  1. Authorization Policy (top-down):
    • If AD:Group = HRAP-HR-SGT10
    • If AD:Group = FinanceAP-FIN-SGT20
    • If DeviceProfile = PrinterPrinters(50) (or rely on IP-SGT)
    • Else → Guest(40)
      [Screenshot: ISE Policy Set – AuthZ Rules with SGT column visible]

Validation (GUI):
Operations → RADIUS → Live Logs → check a successful session → Security Group column shows the tag.
[Screenshot: ISE Live Logs – Security Group column]


F) Push TrustSec Policy/Context to Devices

  1. Work Centers → TrustSec → Devices → add Access/Core/WLC devices to Download SGT/SGACL.
    • Ensure pxGrid (if using ASA/FTD) is connected.
      [Screenshot: TrustSec Devices – Download Status]

Validation (Switch CLI):

show cts environment-data
show cts role-based permissions
show cts role-based sgt-map
show cts sxp connections  ! if using SXP

G) Switch CLI (Access/Core) – Inline &/or SXP

Global:

conf t
aaa new-model
aaa authentication dot1x default group radius
aaa authorization network default group radius
radius server ISE1
 address ipv4 10.10.10.5 auth-port 1812 acct-port 1813
 key C1sco123
ip device tracking   ! or 'device-tracking' (platform dependent)
dot1x system-auth-control

cts role-based enforcement
cts sxp enable
cts sxp default password Cisco123
cts sxp connection peer 10.10.10.41 password Cisco123 mode local  ! Access->Core
end
wr

Interface (wired user on Gi1/0/1):

int gi1/0/1
 switchport mode access
 authentication port-control auto
 mab
 dot1x pae authenticator
 spanning-tree portfast
end

Validate (Switch):

show authentication sessions interface gi1/0/1 details
show cts role-based sgt-map
show cts role-based permissions
show cts sxp connections

H) WLC 9800 – AAA + TrustSec Bits

  1. AAA/RADIUS:
    Configuration → Security → AAA → RADIUS Servers → Add ISE (10.10.10.5, key).
    [Screenshot: 9800 RADIUS Server]

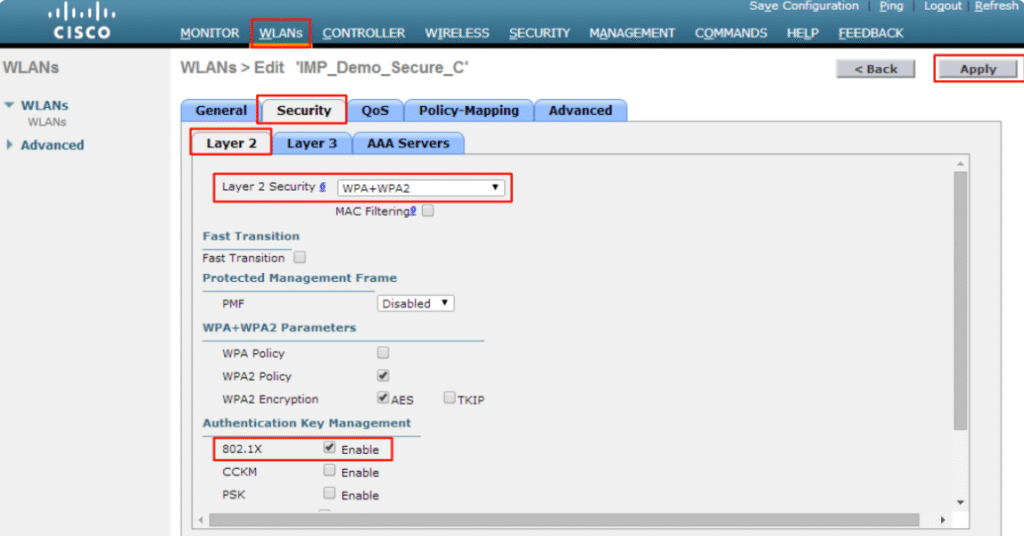

  1. WLAN (Corp-WPA2-Ent):
    • Security → Layer2 = WPA2-Enterprise (802.1X)
    • AAA tab → set ISE as AuthN/AuthZ server
      [Screenshot: 9800 WLAN Security 802.1X]
  2. Policy Profile:
    • Enable Central Auth (and Central Assoc if used)
    • (Platforms/features permitting) enable TrustSec/SGT usage
      [Screenshot: 9800 Policy Profile – TrustSec/SGT]*

Validate (WLC CLI):

show wireless client summary
show wireless client mac <CLIENT-MAC> detail  | include Policy|SGT

I) Functional Validation – End-to-End

  1. 802.1X user (HR) connects (wired or wireless):
    • ISE Live Logs: Auth Success, Security Group = HR(10)
    • Switch CLI: show authentication sessions interface gi1/0/1 details | i Security Group Tag show cts role-based sgt-map | i <client-ip>
    • WLC CLI (wireless): check client details for applied policy/SGT.
  2. Printer (non-auth) traffic:
    • Ensure IP-SGT mapping is visible on Access/Core (show cts role-based sgt-map).
    • Ping/communicate according to SGACL (if configured).
  3. Change user from HR→Guest:
    • Update group/Authorization match → Reauthenticate in ISE Live Sessions.
    • Verify updated SGT on switch/WLC (CoA event seen).

J) (Optional) Minimal SGACL for Proof

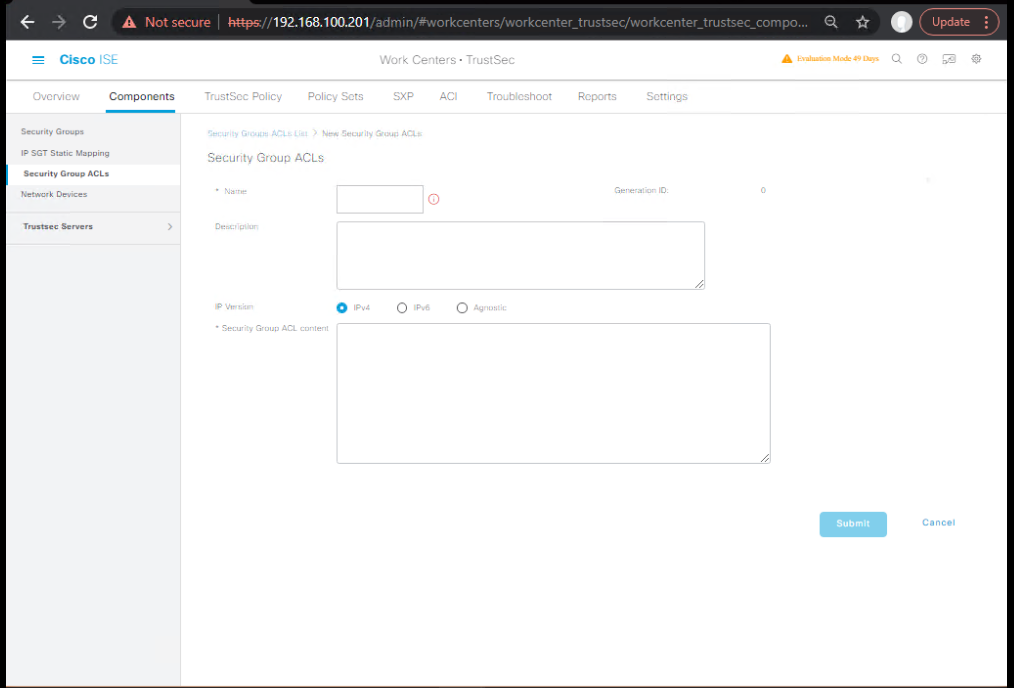

In ISE: TrustSec → Components → SGACLs → Add HR_to_Guest_Deny (deny ip).
Matrix: TrustSec → Policy Matrix → HR → Guest = HR_to_Guest_Deny.
Validate (Switch):

show cts role-based permissions | sec "HR(10)->Guest(40)"
show cts role-based counters

Attempt HR→Guest traffic → should fail; reverse may succeed if allowed.


FAQs on Cisco ISE – Configuring Security Group Tags (SGTs)

Q1. What is an SGT in Cisco ISE, and how does it differ from traditional VLAN-based segmentation?

  • Answer: An SGT (Security Group Tag) is a metadata label assigned to a user, device, or session. Unlike VLANs that segment traffic by network topology, SGTs apply policy dynamically, independent of physical network boundaries. This enables micro-segmentation, identity-based access control, and scalable policies without VLAN sprawl.

Q2. How do I configure a new Security Group Tag (SGT) in Cisco ISE?

  • Answer:
  1. Navigate to Work Centers > TrustSec > Components > Security Group.
  2. Click Add.
  3. Provide Name, Description, and Tag ID.
  4. Save and verify the SGT is available in the list.
    [Screenshot: Add New SGT Window]

Q3. Can I assign SGTs dynamically based on authentication results?

  • Answer: Yes. You can use Authorization Policies in Cisco ISE to assign an SGT dynamically. For example:
    • If a user authenticates via AD and belongs to “Finance”, assign SGT = Finance-SGT.
    • If a device authenticates via MAB and is tagged as IoT, assign IoT-SGT.
      [Screenshot: Policy Set with SGT Assignment]

Q4. How do I validate that SGTs are being applied to endpoints?

  • Answer:
  1. In ISE, go to Operations > RADIUS > Live Logs.
  2. Check the Authorization Profile → ensure the SGT value is applied.
  3. On CLI (switch/WLC): show cts role-based sgt-map show cts role-based permissions

Q5. How do I propagate SGTs across the network fabric?

  • Answer: SGTs are distributed via SGT Exchange Protocol (SXP) or inline tagging (802.1AE / MACsec capable devices).
    • Configure SXP on Cisco ISE and switches:
    cts sxp enable cts sxp connection peer 10.1.1.5 password cisco mode local speaker [Screenshot: ISE SXP Connection Config Screen]

Q6. Can SGTs be enforced on wireless users?

  • Answer: Yes. Cisco WLC integrates with ISE and applies SGTs to wireless sessions. You must configure the WLC as a TrustSec device in ISE and ensure SGT Exchange is enabled. Then, policies apply equally to wired and wireless users.

Q7. How do I configure role-based access policies using SGTs?

  • Answer:
  1. In ISE: Work Centers > TrustSec > Policy Matrix.
  2. Select Source SGT → Destination SGT.
  3. Define action: Permit, Deny, or Redirect.
    [Screenshot: TrustSec Policy Matrix Window]
    On CLI (switch): show cts role-based permissions

Q8. What happens if a device doesn’t receive an SGT?

  • Answer: The device will either default to the Unknown SGT (tag 0) or follow the fallback authorization profile. Best practice: always configure a catch-all authorization rule to assign a default SGT for unclassified traffic.

Q9. How do I monitor and troubleshoot SGT deployment in Cisco ISE?

  • Answer:
    • Use ISE Live Logs to confirm SGT assignment.
    • On switches/WLC:
    show cts environment-data show cts role-based counters
    • In ISE GUI: Operations > TrustSec Reports.

Q10. Can SGTs integrate with firewalls for end-to-end policy enforcement?

  • Answer: Yes. Cisco Firepower, ASA with Firepower Services, and FTD can consume SGTs via pxGrid integration. This allows end-to-end, identity-based segmentation from access to firewall enforcement.

YouTube Link

For more in-depth Cisco ISE Mastery Training, subscribe to my YouTube channel Network Journey and join my instructor-led classes for hands-on, real-world ISE experience

[NEW COURSE ALERT] CISCO ISE (Identity Service Engine) by Sagar Dhawan
CCIE Security v6.1 Training – Ticket#1 Discussed
CCIE Security v6.1 – MAC Authentication Bypass (MAB) in Cisco ISE
CCNP to CCIE SECURITY v6.1 – New Online Batch

Closing Notes

You now have a production-grade SGT foundation: tags defined, assigned dynamically at auth, statically for non-auth devices, propagated via inline/SXP, and validated with ISE logs and device CLIs. This is the prerequisite for scalable role-to-role enforcement using SGACLs across wired/wireless/DC.
