Introduction

Cisco TrustSec changes the game by letting us write security policies based on identity (SGT) instead of network constructs like IP or VLAN.
The Policy Matrix is the central brain: a two-dimensional grid where rows = source SGT, columns = destination SGT, and each cell = SGACL rule (Permit/Deny/Custom).

Think of it like a firewall ACL table, but centralized in ISE and pushed automatically to your switches/firewalls.
This eliminates IP ACL sprawl and makes zero-trust segmentation scalable.


Problem Statement

Traditional ACL-based segmentation fails because:

  • Every IP change requires ACL edits.
  • Rules multiply as endpoints/VLANs grow.
  • Policy is fragmented across devices → hard to audit.
  • Enforcing “only Finance can talk to DBs” takes 20+ IP ACL entries across multiple firewalls.

TrustSec Policy Matrix solves this by:

  • Expressing intent in SGT language (Finance → DB: Permit 443).
  • Compiling into SGACLs automatically.
  • Distributing from ISE → all devices consistently.

Solution Overview

Cisco ISE lets you:

  1. Define SGTs = labels for identities (Employees, Guests, Finance, Servers, Printers).
  2. Write SGACLs = reusable ACL contracts (e.g., ALLOW-HTTPS, ALLOW-PRINTING, ALLOW-COMMON-INFRA).
  3. Map SGACLs into the Matrix (SGT→SGT).
  4. Deploy to Devices (Catalyst, ASA/FTD, WLC).
  5. Validate enforcement with GUI counters and CLI show cts outputs.

Sample Lab Topology

Platform: VMware ESXi + EVE-NG
ISE: Cisco ISE 3.x (PAN+MnT)
Switches:

  • Access: Catalyst 9300 (C9300-A)
  • Core/Distribution: Catalyst 9500 (C9500-D)
    WLC: 9800-CL in EVE-NG
    Endpoints:
  • Wired: Win10 PC (802.1X → Employees SGT), Printer (MAB → Printers SGT)
  • Wireless: Win11 laptop (SSID mapped to Guests SGT)
    Optional: ASA/FTD as TrustSec listener

Step-by-Step GUI Configuration Guide + CLI Validation


Step A: Prereqs

  • Sync time/NTP across all devices and ISE
  • 802.1X/MAB already working (endpoints getting SGTs from ISE)
  • Access switches exporting SGT mappings via SXP to ISE (Day 73 config)

Check on switch:

show authentication sessions interface Gi1/0/10 details
show cts role-based sgt-map ip 10.10.20.50

Expected: Endpoint 10.10.20.50 has SGT=Employees(2)


Step B: Define Security Groups (SGTs)

ISE GUI:

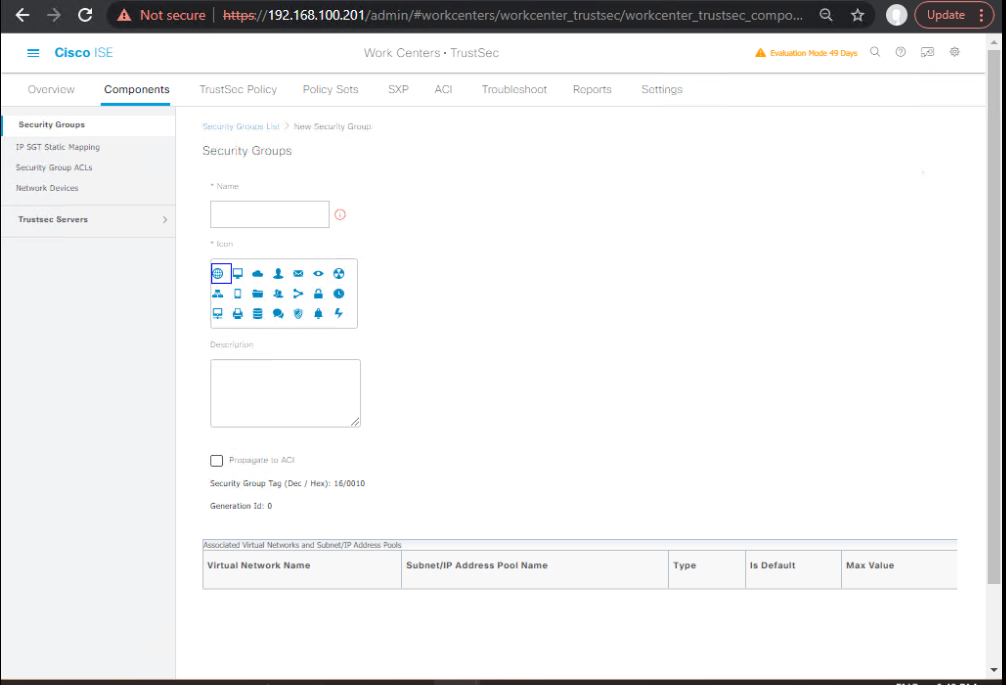

  • Navigate: Work Centers → TrustSec → Components → Security Groups → Add
  • Create:
    • Employees (2)
    • IT-Admins (5)
    • Finance (10)
    • Printers (15)
    • Servers (20)
    • Guests (30)

Validation CLI (switch):

show cts role-based sgt

Should list same SGTs synced from ISE.


Step C: Create SGACLs (Reusable Contracts)

ISE GUI:

  • Work Centers → TrustSec → Components → Security Group ACLs → Add

Examples:

  1. ALLOW-COMMON-INFRA permit udp dst eq 53 permit tcp dst eq 53 permit udp dst eq 67 permit udp src eq 67 permit udp dst eq 123 permit icmp
  2. ALLOW-EMP-TO-SERVERS-HTTPS permit tcp dst eq 443
  3. ALLOW-PRINT-MGMT permit tcp dst eq 9100 permit tcp dst eq 515 permit tcp dst eq 631
  4. ALLOW-IT-FULL permit ip

Validation CLI (switch):

show cts role-based access-list

Should show all SGACLs pulled from ISE.


Step D: Build TrustSec Policy Matrix

ISE GUI:

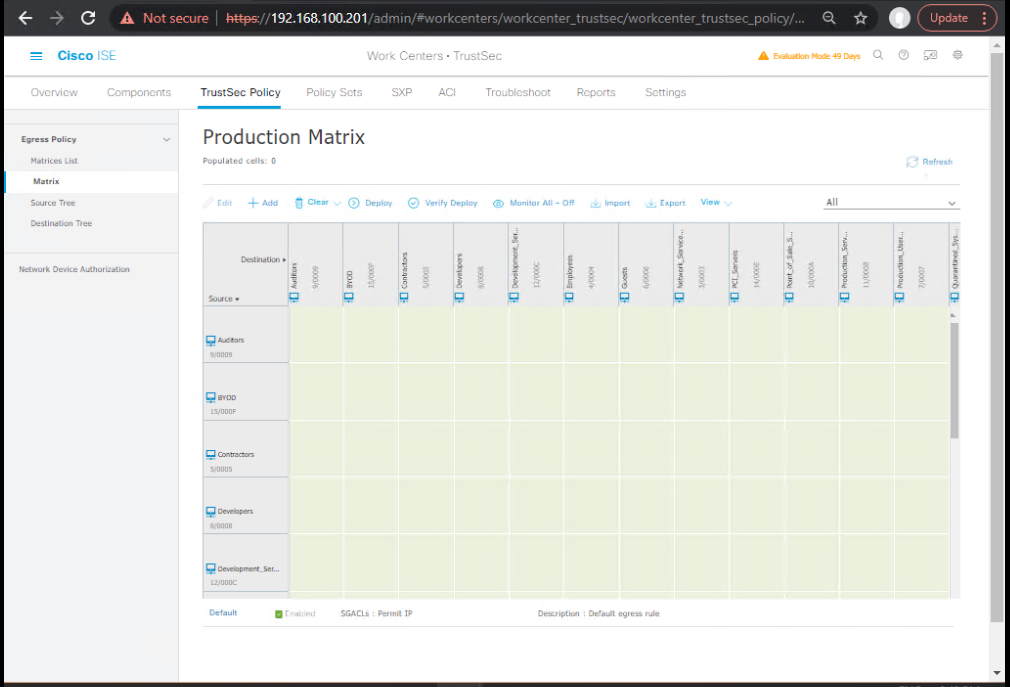

  • Navigate: Work Centers → TrustSec → Policy → Policy Matrix
  • Configure cells:
Source SGTDestination SGTAction/SGACLs
Employees(2)Servers(20)ALLOW-EMP-TO-SERVERS-HTTPS + ALLOW-COMMON-INFRA
Employees(2)Printers(15)ALLOW-PRINT-MGMT + ALLOW-COMMON-INFRA
IT-Admins(5)AnyPermit IP
Guests(30)Servers(20)Deny IP
Guests(30)Finance(10)Deny IP
Employees(2)Employees(2)ALLOW-COMMON-INFRA
Unknown(0)AnyDeny IP (Zero-Trust default)

Step E: Deploy Matrix to Devices

ISE GUI:

  • Work Centers → TrustSec → Devices
  • Select devices (C9300-A, C9500-D, ASA)
  • Click Update/Deploy

Validation CLI (switch):

show cts role-based permissions

Should display compiled matrix, e.g.:

From SGT 2 to SGT 20 : permit tcp dst eq 443
                       permit udp dst eq 53
                       permit icmp
From SGT 30 to SGT 20: deny ip

Step F: Generate Traffic + Check Counters

On Catalyst:

show cts role-based counters
show cts role-based counters from 2 to 20
  • Run curl/https from Employees → Servers = Counter increments in permit.
  • Run ssh from Employees → Servers = Counter increments in deny.
  • Run ping from Guests → Servers = Counter increments in deny.

On ISE GUI:

  • Operations → RADIUS Live Logs = shows SGT assignments.
  • Work Centers → TrustSec → Policy → Policy Matrix → Counters = global view.

FAQs – Cisco ISE TrustSec Policy Matrix

1. How is the TrustSec Policy Matrix different from traditional ACLs?
The Policy Matrix is identity-based instead of IP-based. Traditional ACLs depend on IP addresses, VLANs, or subnets, which change frequently. TrustSec uses SGTs (Security Group Tags), which are static and tied to user/device roles. This makes policy simpler, portable, and consistent across the network.


2. Do I need to configure the policy in both directions (source → destination and destination → source)?
Yes. The matrix is unidirectional. If you permit Employees(2) → Servers(20) on HTTPS, the reverse (Servers → Employees) will still be denied unless you explicitly allow it. Always design policies with bidirectional flows in mind.


3. What happens if no SGACL is defined for a source/destination pair?
The default action is deny all traffic. TrustSec works on a zero-trust principle: everything is denied unless permitted by the matrix. That’s why many deployments include an “ALLOW-COMMON-INFRA” SGACL for DNS, DHCP, NTP, and ICMP.


4. How can I confirm if TrustSec enforcement is active on a switch?
Use the CLI:

show cts

Check for:

Global CTS Information
    Role-based enforcement: Enabled

If enforcement is disabled, even though the policy matrix is downloaded, it won’t apply.


5. How do I validate if a specific SGT-to-SGT policy is working?
Run traffic and check counters:

show cts role-based counters from <src-sgt> to <dst-sgt>

You’ll see hit counts increment under permit or deny depending on the rule. This is the most reliable validation.


6. Why is traffic not being blocked even though I configured deny rules in the matrix?
Common causes:

  • The endpoint doesn’t have an SGT assigned (check with show cts role-based sgt-map).
  • The switch is not downloading SGACLs from ISE (show cts role-based access-list).
  • Enforcement disabled (show cts).
  • The traffic path bypasses a TrustSec enforcement device (e.g., routed via a non-CTS switch).

7. How are SGACLs merged when multiple rules apply?
ISE compiles all SGACLs applied to an SGT pair into a single effective ACL. Within a SGACL, order matters, but across SGACLs, the rules are merged logically. If there’s a conflict, deny takes precedence (secure-first approach).


8. What is the purpose of the “Unknown” SGT in the Policy Matrix?
The Unknown(0) tag represents traffic with no SGT classification (e.g., unauthenticated endpoints, non-SGT capable devices). Best practice: set Unknown → Any = Deny IP to prevent unauthorized traffic from bypassing policy.


9. Can I use the Policy Matrix with wireless users on a WLC?
Yes. Wireless clients get an SGT assigned via ISE (802.1X/MAB). The WLC then propagates the SGT to the network (via CAPWAP). Policies from the matrix will apply the same way as wired endpoints, as long as the WLC supports TrustSec.


10. What happens if a device in the path does not support TrustSec?
If traffic traverses a device that is not TrustSec-aware, SGT information may be lost (unless inline tagging is preserved). In that case:

  • Use SXP to propagate mappings to that device.
  • Ensure critical policy enforcement happens at the first TrustSec-capable hop after the endpoint.
