Introduction

Cisco’s Threat-Centric NAC (TC-NAC) takes network access control beyond authentication and authorization.
It integrates real-time threat intelligence from Cisco ecosystem tools (Firepower, AMP for Endpoints, Cisco SecureX, Talos, Stealthwatch) into Cisco ISE.

Why this matters:

  • A user can be authenticated and authorized normally, but later infected by malware.
  • Traditional NAC can’t react after initial access.
  • TC-NAC enables dynamic session enforcement → Quarantine, block, or restrict the endpoint when it’s flagged as compromised.

This shifts ISE from identity-based NAC to threat-driven adaptive NAC.


Problem Statement

The Challenge:

  • NAC grants access at login but has no visibility into post-admission compromise.
  • Attackers often bypass traditional NAC by infecting trusted devices after authentication.
  • Security teams need:
    • Automated detection of compromised endpoints.
    • Integration between threat detection tools and NAC enforcement.
    • Real-time policy updates without manual intervention.

Without TC-NAC:

  • Malware spreads laterally.
  • SOC teams rely on manual incident response.
  • Networks lack adaptive defense.

Solution Overview

Cisco ISE + TC-NAC Approach:

  • Uses pxGrid (Platform Exchange Grid) to integrate with Cisco Threat Intelligence feeds.
  • Security partners (Firepower, AMP, Talos, Stealthwatch, SecureX) send threat events to ISE.
  • ISE updates endpoint Security Group Tags (SGTs) or Posture Status.
  • Network devices enforce policy via SGACLs, VLAN change, dACLs, or quarantine VLAN.

Result:

  • Endpoint compromised → flagged in Firepower/Talos → pxGrid → ISE session updated → switch/WLC enforces block/quarantine in real-time.

Sample Lab Topology

Lab Components (VMware/EVE-NG)

  • ISE 3.x (PAN + PSN roles)
  • WLC 9800 for wireless endpoints
  • Catalyst 9300 switch for wired integration
  • Firepower Management Center (FMC) + Firepower NGFW
  • AMP for Endpoints / SecureX
  • Endpoints: Windows 10 client + Ubuntu IoT device

Diagram:


Step-by-Step GUI + CLI Configuration Guide

Step 1 – Enable pxGrid on ISE

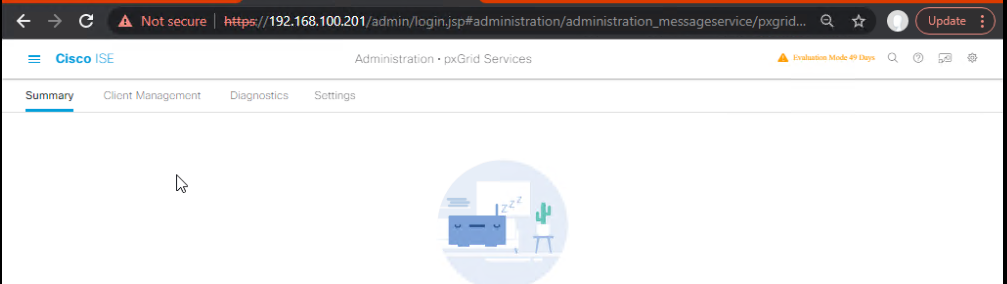

  1. Navigate to Administration > pxGrid Services.
  2. Enable pxGrid Node.
    • Check “Enable”
    • Select certificate for pxGrid.
    • Click Save.
      [Screenshot: ISE pxGrid Services]

Step 2 – Register Firepower/AMP with ISE

  1. On Firepower FMC:
    • Go to Integration > Identity Sources > pxGrid.
    • Add ISE hostname/IP.
    • Upload ISE pxGrid certificate.
    • Test connectivity.
      [Screenshot: FMC pxGrid Integration]
  2. On ISE:
    • Approve the Firepower pxGrid client under pxGrid Clients.
      [Screenshot: pxGrid Client Approval]

Step 3 – Create Adaptive Network Policy in ISE

  1. Navigate to Policy > Policy Sets > Authorization Policy.
  2. Add Rule:
    • Condition: Endpoint Threat = High (received via pxGrid).
    • Result: Quarantine VLAN 150 OR Apply dACL - DenyAll.
      [Screenshot: ISE Authorization Rule – Quarantine]

Step 4 – Configure Threat Feed Conditions

  1. Navigate to Policy > Profiling > Conditions.
  2. Add Condition:
    • Attribute: pxGrid ThreatCategory.
    • Operator: equals.
    • Value: Malware.
      [Screenshot: ISE Threat Condition Setup]

Step 5 – Switch/WLC Enforcement

On Catalyst Switch:

conf t
cts role-based enforcement
cts authorization list ise-auth
aaa authorization network ise-auth group radius

On WLC 9800:

radius server ISE
  address ipv4 10.1.1.10 auth-port 1812 acct-port 1813
  key Cisco123
aaa authorization network default group radius

Step 6 – Validation

GUI Validation

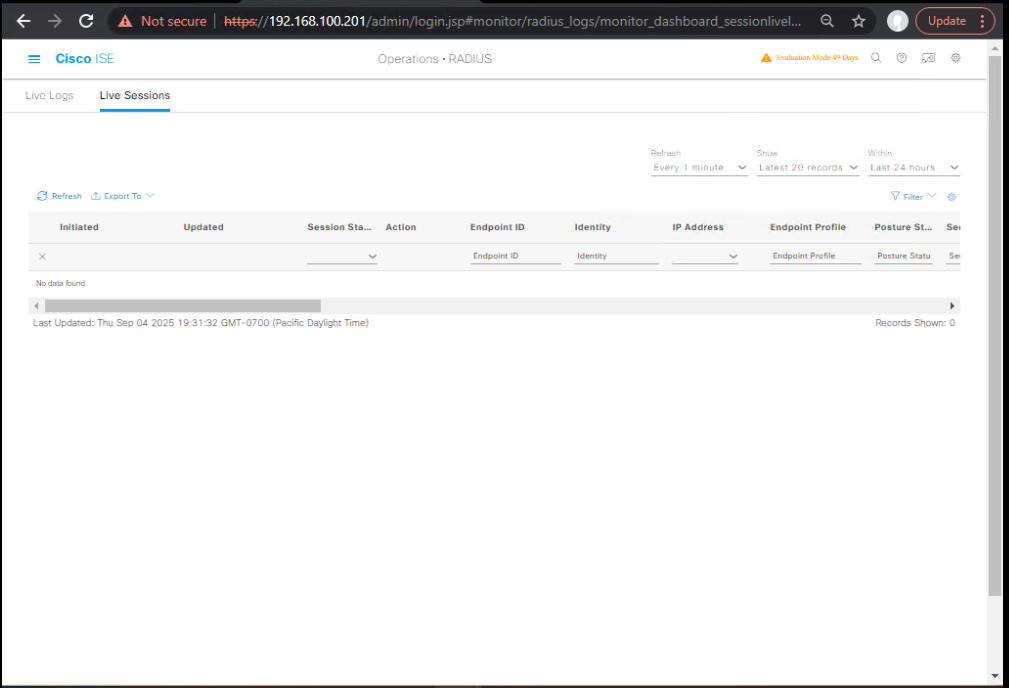

  1. Go to Operations > Live Sessions.
  2. Select endpoint.
  3. Verify: Session shows Threat = High and Quarantine Policy applied.
    [Screenshot: ISE Live Session – Quarantined Endpoint]

CLI Validation
On Switch:

show cts role-based session
show authentication sessions interface Gi1/0/2

On WLC:

show wireless client mac <mac-address> detail

You should see:

  • SGT updated or dACL applied.
  • VLAN change if configured.

FAQs

1. Q: What licenses are required to enable Threat-Centric NAC in Cisco ISE?
A: At minimum, you need the Plus License (for pxGrid and integrations). The Base License covers identity and auth, but TC-NAC requires pxGrid-based threat feed subscriptions, which fall under Plus. If you add posture/remediation, you also need the Apex license.


2. Q: How does ISE know an endpoint is compromised?
A: ISE itself doesn’t do malware analysis. Instead, it subscribes to external threat intelligence feeds (e.g., Firepower, AMP, Talos, Stealthwatch) via pxGrid. When those tools detect a compromise, they push the threat context into ISE, which updates the endpoint’s session state.


3. Q: What enforcement options does ISE support when a threat is detected?
A: Enforcement is flexible:

  • Quarantine VLAN → reassign endpoint to remediation VLAN.
  • Downloadable ACL (dACL) → block/allow only specific traffic.
  • SGACLs with SGT reassignment → dynamic segmentation-based restrictions.
  • Full block/port shut (last resort).

4. Q: Can Threat-Centric NAC apply different actions based on severity?
A: Yes. ISE can consume threat severity levels (Low, Medium, High, Critical) from pxGrid. You can build Authorization Policy rules such as:

  • Low → allow with monitoring.
  • Medium → apply restricted ACL.
  • High → move to quarantine VLAN.
  • Critical → deny all access.

5. Q: How quickly does ISE enforce a policy after a threat is detected?
A: In most cases, under 10–15 seconds. The flow is: Threat detected → Partner publishes event → pxGrid notifies ISE → ISE reevaluates session → switch/WLC enforces updated authorization.


6. Q: What happens if the endpoint is cleared by the threat intelligence source?
A: The same integration works in reverse. When Firepower/AMP marks the endpoint as “clean”, pxGrid notifies ISE → session gets re-evaluated → endpoint is restored to its original authorization (normal VLAN/ACL). This is called automatic remediation.


7. Q: Can Threat-Centric NAC work in distributed ISE deployments?
A: Yes. pxGrid is cluster-aware. You can enable pxGrid on one or more nodes. Threat events published on one node replicate to all PSNs in the deployment, ensuring consistent policy enforcement across the network.


8. Q: What’s the best way to validate TC-NAC is working in a lab?
A:

  1. Connect endpoint to switch/WLC and verify normal access.
  2. Simulate threat detection in Firepower (e.g., flag host with malware signature).
  3. Check ISE Live Sessions → endpoint status should change to “Threat High” with new policy.
  4. On switch: show authentication sessions interface Gi1/0/2 show cts role-based session Verify VLAN change, dACL, or SGT applied.

9. Q: What troubleshooting steps should I take if pxGrid events are not received by ISE?
A:

  • On ISE:
    • Check pxGrid service: show application status ise.
    • Review logs: show logging application pxgrid.log tail.
  • On FMC/AMP: Ensure pxGrid certificate trust is established.
  • In GUI: Confirm pxGrid Client is “Approved” in ISE.

10. Q: Can non-Cisco tools integrate with Threat-Centric NAC?
A: Yes. Any security product that supports pxGrid API can publish threat events to ISE. Examples: IBM QRadar, Splunk, McAfee ePO. They integrate via pxGrid SDK, and ISE enforces policy the same way.


YouTube Link

For more in-depth Cisco ISE Mastery Training, subscribe to my YouTube channel Network Journey and join my instructor-led classes for hands-on, real-world ISE experience

[NEW COURSE ALERT] CISCO ISE (Identity Service Engine) by Sagar Dhawan
CCIE Security v6.1 Training – Ticket#1 Discussed
CCIE Security v6.1 – MAC Authentication Bypass (MAB) in Cisco ISE
CCNP to CCIE SECURITY v6.1 – New Online Batch

Closing Notes

  • Threat-Centric NAC makes access policies dynamic → not just “who you are” but “are you safe right now.”
  • Integration via pxGrid is the backbone.
  • Testing and validation are crucial: always verify Live Sessions, switch/WLC session state, and pxGrid logs.
