Introduction

“Today you’ll turn Cisco ISE into an automation platform. We’ll use the ERS (External RESTful Services) API and the MnT (Monitoring) A to do real work: auto-onboard endpoints, push ANC quarantine, read live sessions, and integrate with tools like SecureX/CI/CD. By the end, you’ll have Postman, cURL, and Python examples that you can drop into production.”

You will build & validate:

ERS enablement, API admin & cert trust
Create/Read/Update/Delete (CRUD) for Endpoints & Internal Users
ANC automation (apply + clear) via REST
Live Session lookups via MnT API
A Postman collection + Python requests mini-SDK
End-to-end enforcement proof on switch/WLC (CLI + ISE logs)

Problem Statement (what breaks today)

NAC tasks (add endpoints, quarantine/unquarantine, bulk changes) are often manual & slow.
SOC tools see IPs; ISE acts on MAC/user/session. Humans copy/paste between consoles—error-prone.
We need repeatable APIs to integrate ISE with SOC/XDR/ITSM, reduce MTTR, and prove actions with logs.

Solution Overview (what we’ll automate)

ERS API (port 9060/TCP/HTTPS): Admin CRUD for ISE objects (Endpoints, Internal Users, ANC, SGTs, etc.).
MnT API (port 443/TCP/HTTPS): Query live sessions, RADIUS details, posture status for validation.
Security: Mutual TLS trust, least-privilege ERS admin, audit logs, and NTP/DNS hygiene.

We’ll keep to battle-tested APIs: endpoint, internaluser, ancendpoint (apply/clear), and MnT session lookups. These are stable across ISE 2.7–3.x.

Sample Lab Topology (VMware/EVE-NG)

Platform: VMware ESXi/Workstation or EVE-NG

Nodes:

ISE 3.2/3.3 (PAN+MnT+PSN; pxGrid optional, ERS enabled)
AD DS (for 802.1X users)
Catalyst 9300 (17.x) as access switch (802.1X/MAB/CoA)
WLC 9800-CL (wireless validation optional)
Windows 10/11 test endpoint (802.1X or MAB)
Automation Workstation (Postman + Python 3.10+)

Topology Layout:

Pre-req green checks:

DNS A/PTR & NTP aligned (AD/ISE/Switch)
RADIUS AuthC/AuthZ already working in ISE (wired; wireless optional)
ISE ERS enabled; ERS admin user created; test creds verified
Firewall permits: 9060/tcp (ERS), 443/tcp (MnT/GUI)

Step-by-Step GUI Configuration Guide (with CLI + API runbooks)

Phase 0 — Health & connectivity (CLI)

ISE CLI

show clock
show ntp
show application status ise | include (Application|pxGrid|Database|AD)
ping <switch/wlc/ip>

Switch CLI (802.1X path alive)

show authentication sessions

Phase 1 — Enable ERS & create API admin (GUI)

Turn on ERS (External RESTful Services)

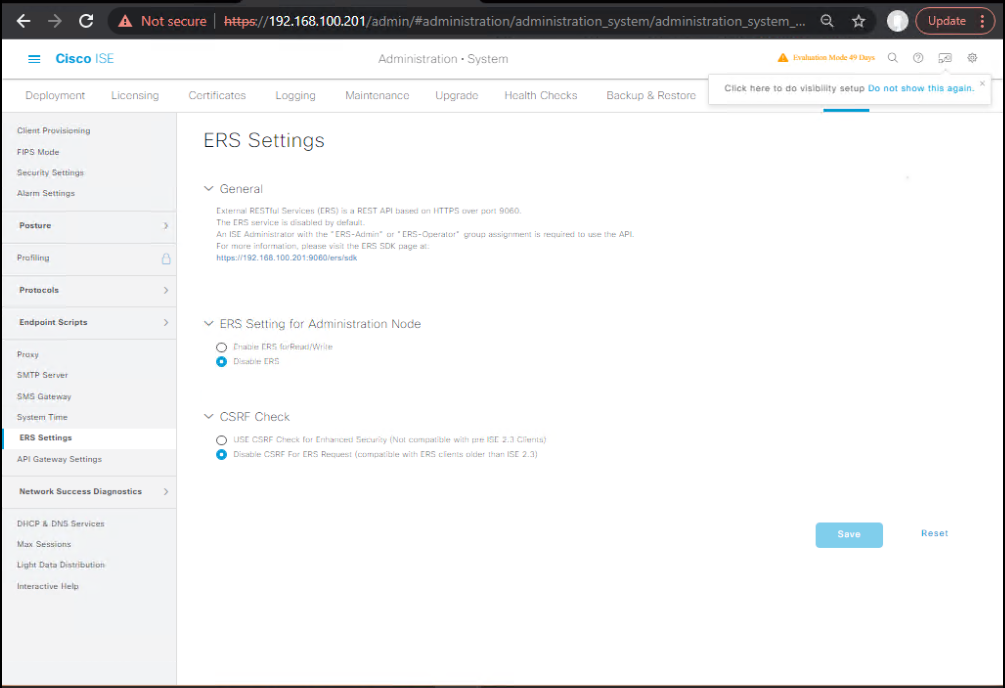

GUI: Administration → System → Settings → ERS Settings → check Enable ERS for Read/Write → Save
Create least-privilege ERS admin
GUI: Administration → System → Admin Access → Administrators → Add
- Username: ers-svc
- Password: (complex)
- Roles: ERS Admin (and MnT if you’ll call MnT API with same user)
- Restrict IP if desired (security best practice)
(Recommended) Bind proper server certificate

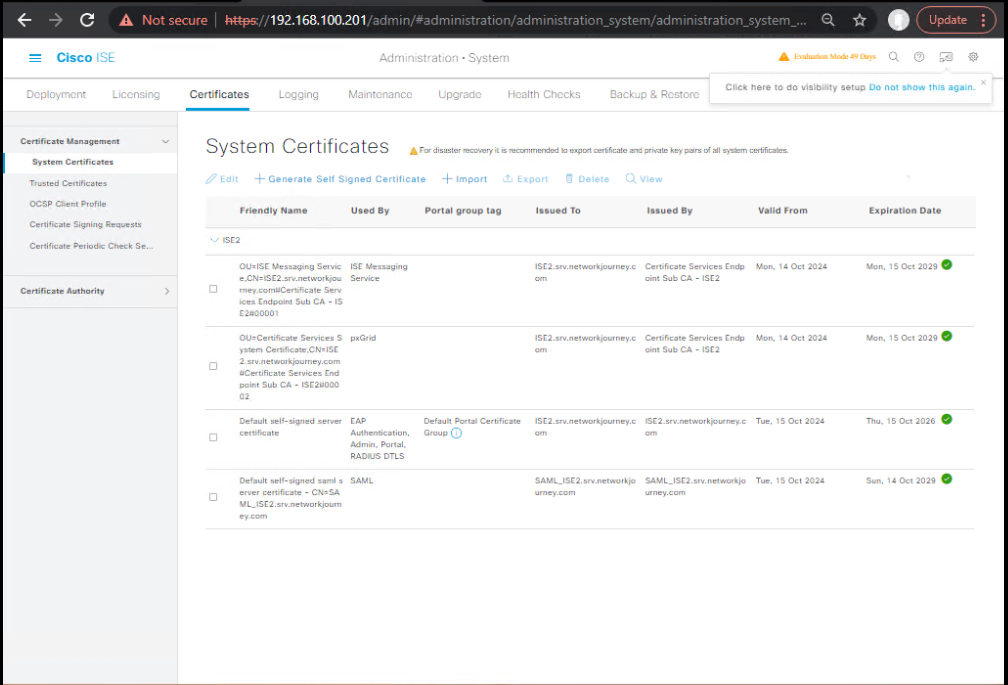

GUI: Administration → System → Certificates → System Certificates
- Use a CA-signed cert with FQDN/SAN; trust chain installed on Automation WS
Open the API help page (for live reference)
GUI: Administration → Developer Resources (or ERS API Docs link)

Phase 2 — Postman workspace (quick start)

Create environment variables:
- ISE_HOST = ise.lab.local
- ERS_USER = ers-svc
- ERS_PASS = <password>
- BASE_ERS = https://{{ISE_HOST}}:9060/ers
- BASE_MNT = https://{{ISE_HOST}}/admin/API/mnt
Global headers (per request):
- Accept: application/json
- Content-Type: application/json

Phase 3 — “Hello API” (ERS + MnT) with cURL & Postman

cURL (ERS API status)

export ISE=ise.lab.local
curl -k -u ers-svc:'<pass>' -H "Accept: application/json" https://$ISE:9060/ers/config/endpoint

Postman: GET {{BASE_ERS}}/config/endpoint → Send
Expected: JSON with paging block & (possibly empty) endpoint list

cURL (MnT session by MAC)

MAC="AA:BB:CC:DD:EE:FF"
curl -k -u ers-svc:'<pass>' "https://$ISE/admin/API/mnt/Session/MACAddress/$MAC"

Expected: XML/JSON session details (user/ip/SGT) if active

Note: MnT often returns XML; set Accept: application/xml in Postman when using MnT endpoints.

Phase 4 — API Lab 1: Create an Endpoint (ERS)

Goal: Add a MAC to ISE (e.g., for MAB or inventory).

POST {{BASE_ERS}}/config/endpoint
Body (JSON):

{
  "ERSEndPoint": {
    "name": "Lab-Laptop-01",
    "mac": "AA:BB:CC:DD:EE:FF",
    "description": "Added via ERS API",
    "groupId": null,
    "staticGroupAssignment": false,
    "staticProfileAssignment": false
  }
}

Validate (GUI):

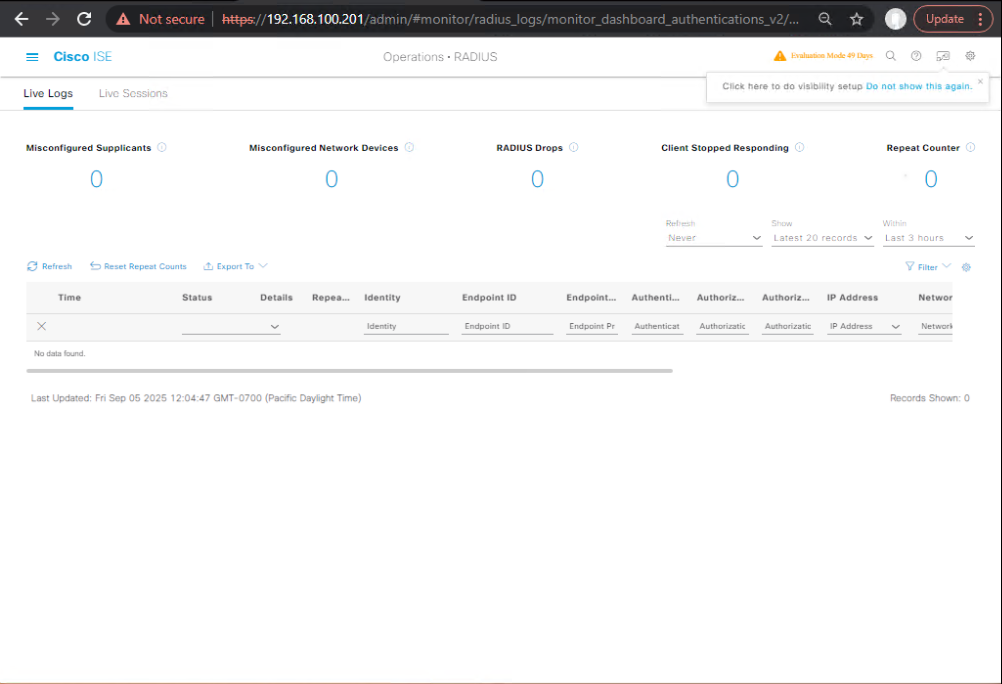

Operations → RADIUS → Live Logs (after re-auth), or Context Visibility → Endpoints

Validate (Switch CLI):

show authentication sessions interface Gi1/0/10 details

Look for Endpoint Policy hit using the new endpoint info.

Phase 5 — API Lab 2: ANC Quarantine (apply/clear) (ERS)

Create an ANC policy (if not yet):
GUI: Work Centers → Policy → Policy Elements → Results → ANC Policies → Add

Name: ANC-QUAR-dACL
Type: dACL (deny all except IT mgmt) or SGT quarantine

Apply ANC (ERS)
POST {{BASE_ERS}}/config/ancendpoint/apply
Body (JSON):

{
  "OperationAdditionalData": {
    "additionalData": [
      { "name": "macAddress", "value": "AA:BB:CC:DD:EE:FF" },
      { "name": "policyName", "value": "ANC-QUAR-dACL" }
    ]
  }
}

Validate (GUI):

Operations → Adaptive Network Control → entry shows Applied
Operations → RADIUS → Live Logs → CoA event + new AuthZ = QUAR

Validate (Switch CLI):

show authentication sessions interface Gi1/0/10 details
! Expect dACL/SGT/VLAN updated after CoA

Clear ANC (ERS):
POST {{BASE_ERS}}/config/ancendpoint/clear
Body (JSON):

{
  "OperationAdditionalData": {
    "additionalData": [
      { "name": "macAddress", "value": "AA:BB:CC:DD:EE:FF" }
    ]
  }
}

Re-validate: switch/WLC returns to normal; ISE Live Logs show CoA Reauth.

Phase 6 — API Lab 3: Internal User (ERS)

POST {{BASE_ERS}}/config/internaluser
Body (JSON):

{
  "InternalUser": {
    "name": "api-tester",
    "password": "S0m3C0mpl3x!",
    "enabled": true,
    "changePassword": false,
    "email": "api.tester@lab.local",
    "firstName": "API",
    "lastName": "Tester",
    "description": "Created by ERS",
    "identityGroups": "User Identity Group"
  }
}

Validate (GUI): Administration → Identity Management → Identities

Phase 7 — API Lab 4: MnT Session Proof (read-only validation)

GET {{BASE_MNT}}/Session/EndPointIPAddress/{{ip}}

Set Accept: application/xml
Confirm user, MAC, device profile, AuthZ profile, SGT, ANC state

Phase 8 — Python mini-SDK (quick wins)

Run on the Automation WS (has network reachability to ISE).

import requests, sys
BASE_ERS = "https://ise.lab.local:9060/ers"
BASE_MNT = "https://ise.lab.local/admin/API/mnt"
AUTH = ("ers-svc","<password>")
verify_tls = False  # set to CA bundle path in prod
headers_json = {"Accept":"application/json","Content-Type":"application/json"}
def get_endpoints():
    r = requests.get(f"{BASE_ERS}/config/endpoint", auth=AUTH, headers=headers_json, verify=verify_tls)
    r.raise_for_status()
    return r.json()
def create_endpoint(name, mac):
    body = {"ERSEndPoint":{"name":name,"mac":mac,"description":"API created",
            "staticGroupAssignment":False,"staticProfileAssignment":False}}
    r = requests.post(f"{BASE_ERS}/config/endpoint", json=body, auth=AUTH, headers=headers_json, verify=verify_tls)
    r.raise_for_status()
    return r.headers.get("Location")
def anc_apply(mac, policy):
    body = {"OperationAdditionalData":{"additionalData":[
        {"name":"macAddress","value":mac},{"name":"policyName","value":policy}]}}
    r = requests.post(f"{BASE_ERS}/config/ancendpoint/apply", json=body, auth=AUTH, headers=headers_json, verify=verify_tls)
    r.raise_for_status()
    return True
def anc_clear(mac):
    body = {"OperationAdditionalData":{"additionalData":[{"name":"macAddress","value":mac}]}}
    r = requests.post(f"{BASE_ERS}/config/ancendpoint/clear", json=body, auth=AUTH, headers=headers_json, verify=verify_tls)
    r.raise_for_status()
    return True
def mnt_session_by_mac(mac):
    r = requests.get(f"{BASE_MNT}/Session/MACAddress/{mac}", auth=AUTH, headers={"Accept":"application/xml"}, verify=verify_tls)
    r.raise_for_status()
    return r.text
if __name__ == "__main__":
    mac = "AA:BB:CC:DD:EE:FF"
    print("Endpoints:", get_endpoints())
    print("Create:", create_endpoint("Lab-Laptop-01", mac))
    print("ANC Apply:", anc_apply(mac, "ANC-QUAR-dACL"))
    print("MnT:", mnt_session_by_mac(mac)[:300], "...")
    print("ANC Clear:", anc_clear(mac))

Validate output:

HTTP 201 for create (Location header with object ID)
ANC apply/clear return 202/204 (ISE version dependent)
MnT returns XML with session fields

Phase 9 — Auditing & Logs (ISE GUI + CLI)

GUI:

Operations → Adaptive Network Control (who applied ANC, when)
Operations → Reports → RADIUS AuthC/AuthZ & Change of Authorization

ISE CLI (quick tailers)

show logging application ise-psc.log | include (ANC|CoA|AuthZ)
show logging application catalina.out | include ERS

(Log filenames differ across versions; if catalina.out not present, inspect /var/log/ise/ GUI via Operations → Troubleshoot → Download Logs.)

Phase 10 — “Break & Fix” drills

Wrong password in Postman → 401 → fix credentials.
ERS disabled → 404/connection refused on :9060 → enable ERS.
TLS fail → trust the ISE CA on the workstation or use -k in lab.
ANC applied but no enforcement → check CoA in Live Logs & switch CLI; ensure AuthZ rule for UseCase: ANC is above normal rules.
MnT empty → session not active or using wrong MAC; verify on switch with show auth sess.

REST API Cookbook for Cisco ISE

1. Get All Active Sessions

Use case: See all authenticated endpoints.
API:

GET https://ISE-FQDN:9060/ers/config/session

cURL:

curl -k -u USERNAME:PASSWORD \
"https://ISE-FQDN:9060/ers/config/session"

Validation: Should return list of all current sessions with usernames, MACs, IPs.

2. Get Specific Session by MAC Address

API:

GET https://ISE-FQDN:9060/ers/config/session/MACADDRESS

Validation: Confirms status (Active, Disconnected, Posture Pending).

3. Add New Endpoint to ISE (Static Entry)

API:

POST https://ISE-FQDN:9060/ers/config/endpoint

Payload (JSON):

{
  "ERSEndPoint": {
    "name": "Lab-Printer",
    "mac": "00:11:22:33:44:55",
    "staticGroupAssignment": true,
    "groupId": "SGT_ID_HERE"
  }
}

cURL:

curl -k -u USERNAME:PASSWORD -H "Content-Type: application/json" \
-d @endpoint.json \
"https://ISE-FQDN:9060/ers/config/endpoint"

4. Delete an Endpoint

DELETE https://ISE-FQDN:9060/ers/config/endpoint/ENDPOINT_ID

Validation: 204 No Content → success.

5. Get All Security Group Tags (SGTs)

GET https://ISE-FQDN:9060/ers/config/sgt

Returns JSON/XML list of all SGTs defined in ISE.

6. Create a New Security Group Tag (SGT)

Payload:

{
  "Sgt": {
    "name": "IoT-Sensors",
    "description": "For all IoT Devices",
    "value": "5001"
  }
}

API:

POST https://ISE-FQDN:9060/ers/config/sgt

7. Trigger Session Reauthentication (Reauth)

Use case: Force reauthentication after policy change.

PUT https://ISE-FQDN:9060/ers/config/session/MACADDRESS/reAuth

Validation: Endpoint is forced to re-authenticate.

8. Quarantine an Endpoint (via ANC Policy)

Step 1 – Create ANC Policy

{
  "AncPolicy": {
    "name": "Quarantine",
    "actions": ["QUARANTINE"]
  }
}

POST https://ISE-FQDN:9060/ers/config/ancpolicy

Step 2 – Apply Policy to Endpoint

{
  "OperationAdditionalData": {
    "additionalData": [
      {"name": "macAddress", "value": "00:11:22:33:44:55"},
      {"name": "policyName", "value": "Quarantine"}
    ]
  }
}

POST https://ISE-FQDN:9060/ers/config/ancendpoint/apply

9. Remove Quarantine Policy from Endpoint

{
  "OperationAdditionalData": {
    "additionalData": [
      {"name": "macAddress", "value": "00:11:22:33:44:55"}
    ]
  }
}

POST https://ISE-FQDN:9060/ers/config/ancendpoint/clear

10. Get All Network Devices (Switches, WLCs, Routers)

GET https://ISE-FQDN:9060/ers/config/networkdevice

Validation: Returns JSON list of NADs registered in ISE.

11. Add New Network Device (Switch/WLC)

{
  "NetworkDevice": {
    "name": "LAB-SW1",
    "description": "Lab Switch",
    "authenticationSettings": {
      "radiusSharedSecret": "ISEsecret123"
    },
    "tacacsSettings": {
      "sharedSecret": "ISEtacacs123"
    },
    "NetworkDeviceIPList": [
      {"ipaddress": "10.10.10.2", "mask": 32}
    ]
  }
}

POST https://ISE-FQDN:9060/ers/config/networkdevice

12. Retrieve Posture Results for Endpoint

GET https://ISE-FQDN:9060/ers/config/posture/MACADDRESS

Returns compliance state (Compliant / Non-Compliant / Unknown).

13. Get All Identity Groups

GET https://ISE-FQDN:9060/ers/config/identitygroup

14. Create a New Identity Group

{
  "IdentityGroup": {
    "name": "Contractors",
    "description": "Temporary users"
  }
}

POST https://ISE-FQDN:9060/ers/config/identitygroup

15. Add a User to Identity Group

{
  "User": {
    "name": "contractor1",
    "password": "Cisco123!",
    "identityGroups": "Contractors"
  }
}

POST https://ISE-FQDN:9060/ers/config/internaluser

Validation in Lab

Use Postman, cURL, or Python requests module.
Validate API calls in ISE GUI (Work Centers → pxGrid/ANC → Endpoints → SGTs).
CLI check:

ise/admin# show logging application ise-psc.log tail

(to confirm API transaction success).

FAQs – REST API Automation in Cisco ISE

1. What are the prerequisites before using REST APIs on ISE?

Ensure ERS (External RESTful Services) is enabled under Administration → System → Settings → ERS Settings.
Create a dedicated ERS Admin user with ERS Admin role.
Confirm port 9060 (ERS) and port 443 (pxGrid/ERS over TLS) are open in firewall.
Test basic connectivity with:

curl -k -u ersadmin:password https://ISE-FQDN:9060/ers/config/version

2. Do ISE REST APIs require HTTPS?

Yes. All ISE REST APIs are secured over HTTPS only.
Self-signed certs can be used in labs (with -k in cURL / SSL verification off in Postman).
In production, always use CA-signed certificates.

3. How do I test APIs quickly without coding?

Use Postman or Insomnia REST clients.
Import Cisco’s ERS API collections (Cisco DevNet provides Postman collections).
Validate authentication with a simple GET like:

GET /ers/config/endpoint

4. What’s the difference between XML and JSON output in ISE APIs?

ISE supports both JSON and XML for request and response.
Default: XML.
To request JSON, add header:

-H "Accept: application/json"
-H "Content-Type: application/json"

JSON is recommended for automation (Python, Ansible, etc.).

5. Why do I get “401 Unauthorized” when calling APIs?

Common causes:
1. Wrong username/password.
2. User not assigned ERS Admin role.
3. ERS API not enabled in global settings.
4. Using wrong port (should be 9060).

6. Can I modify policy sets or authorization rules via API?

No. As of ISE 3.x, REST APIs allow managing endpoints, SGTs, identity groups, ANC, sessions, network devices, but not policy sets.
Policy changes must be done via GUI or pxGrid APIs for dynamic enforcement.

7. How do I automate endpoint quarantine with REST APIs?

Workflow:
1. Create ANC policy (POST /ers/config/ancpolicy).
2. Apply policy to endpoint (POST /ers/config/ancendpoint/apply).
3. Verify with GUI → Operations → ANC Policy.
This is often integrated with SIEM/SOAR tools.

8. How do I pull real-time session data for automation?

Use:

GET /ers/config/session

This gives endpoint session details (IP, MAC, posture state).
Engineers often integrate this with scripts for reporting, threat hunting, or bulk actions (like force-re-authentication).

9. Is there rate limiting or performance impact when using APIs heavily?

Cisco ISE does not publish strict API rate limits, but best practice:
- Avoid more than 10–15 API calls per second per node.
- Use bulk APIs where available (e.g., exporting endpoints instead of looping individually).
- Monitor ISE CPU/memory via show application status ise.

10. What tools/languages do engineers typically use with ISE APIs?

Python with requests module (most common).
Postman/Insomnia for testing.
Ansible for declarative automation.
SOAR/SIEM platforms (like Splunk Phantom, Palo Alto XSOAR, SecureX) integrate via ISE REST APIs.

YouTube Link

For more in-depth Cisco ISE Mastery Training, subscribe to my YouTube channel Network Journey and join my instructor-led classes for hands-on, real-world ISE experience

[NEW COURSE ALERT] CISCO ISE (Identity Service Engine) by Sagar Dhawan

CCIE Security v6.1 Training – Ticket#1 Discussed

CCIE Security v6.1 – MAC Authentication Bypass (MAB) in Cisco ISE

CCNP to CCIE SECURITY v6.1 – New Online Batch

Closing Notes

Treat ISE as a platform: ERS for action, MnT for truth.
Automate quarantine & rollback—and prove it with MnT + switch CLI.
Harden: CA-signed certs, least-privilege ERS accounts, IP restrictions, and logs shipped to SIEM.

Upgrade Your Skills – Start Today

“For more in-depth Cisco ISE Mastery Training, subscribe to my YouTube channel Network Journey and join my instructor-led classes.

Fast-Track to Cisco ISE Mastery Pro — (4-month live cohort).

Full labs: REST/ERS, MnT, ANC, pxGrid, Threat-Centric NAC, TrustSec, Wired/Wireless, Posture
Production-grade automation playbooks + troubleshooting bibles
Course outline & enrollment: https://course.networkjourney.com/ccie-security/ ”

Enroll Now & Future‑Proof Your Career
Email: info@networkjourney.com
WhatsApp / Call: +91 97395 21088

21 DAYS CCNA BOOTCAMP	Click to Watch
PYTHON3/ANSIBLE for NETWORK AUTOMATION	Click to Watch
"FIREWALL MASTERY" : PA + FGT+ CP + ASA/FTD + F5 LTM	Click to Watch
OSPF+BGP+MPLS	Click to Watch
SDN ORCHESTRATION	Click to Watch

PYTHON NETWORK AUTOMATION	Read Course Outline
CCNA + CCNP ENTERPRISE	Read Course Outline
CCNA to CCIE SECURITY	Read Course Outline
CISCO DEVNET + DEVCOR	Read Course Outline
"MASTER CLOUD" : AZ700 + AWS + GCP	Read Course Outline
"FIREWALL MASTERY" : PA + FGT+ CP + ASA/FTD + F5 LTM	Read Course Outline
CISCO DNAC	Read Course Outline
CISCO ISE	Read Course Outline
MULTI-VENDOR TRAINING	Read Course Outline
SDN ORCHESTRATION	Read Course Outline
