[Day 88] Cisco ISE Mastery Training: Automating Endpoint Management via API

Post Views: 6

Table of Contents

Introduction

“Today we’ll turn endpoint management in ISE into code. We’ll automate the full lifecycle of endpoints (MAC identities): create, search, update, move between Endpoint Identity Groups, tag with custom attributes, trigger ANC quarantine, force reauth/CoA, and bulk-import MACs from CSV. We’ll verify every API action in the ISE GUI, Live Logs, MnT, and on the switch/WLC CLI so you can prove enforcement end-to-end.”

What you’ll build & validate:

  • Enable ERS (External RESTful Services) securely, create a least-privilege ERS user
  • CRUD for Endpoints (/ers/config/endpoint) + Endpoint Groups (/ers/config/endpointgroup)
  • Custom Attributes on endpoints for policy (e.g., Owner, AssetTag, Site)
  • Assign/move endpoints to Endpoint Identity Groups (static)
  • ANC automation (quarantine / clear) and Session actions (reauth / disconnect)
  • Bulk CSV endpoint import/update with Python
  • Cross-validation with ISE GUI, RADIUS Live Logs, MnT queries, and NAD/WLC CLI

Problem Statement

  • Manual endpoint (MAC) registration is slow/error-prone, especially for printers, IoT, headless devices (MAB).
  • SOC needs rapid quarantine for suspicious MACs; GUI clicks don’t scale or integrate with SIEM/SOAR.
  • Endpoint metadata (owner, location, asset tags) lives in spreadsheets—not in ISE where policy runs.
  • Bulk changes (migrations, site cutovers) require repeatable, auditable automation.

Solution Overview

  • ISE ERS API exposes Endpoints and Endpoint Groups over HTTPS:9060 for full lifecycle automation.
  • Custom Attributes on endpoints let you drive Authorization conditions without external DBs.
  • ANC (Adaptive Network Control) APIs apply Quarantine/Shut/Port Bounce to a MAC.
  • Session APIs (ERS) let you reauth/disconnect sessions so policy takes effect immediately.
  • MnT API confirms runtime state (active sessions, posture, IP/MAC/user/ device details).

Sample Lab Topology (VMware/EVE-NG)

Nodes

  • ISE 3.2/3.3 (PAN+MnT+PSN; ERS enabled)
  • Catalyst 9300 (17.x) as wired NAD (802.1X/MAB/CoA)
  • 9800-CL WLC (optional wireless validation)
  • Endpoints: Win10/11 supplicant; IoT/Printer (MAB)
  • Automation WS: Postman + Python 3.10+

Pre-reqs: DNS/NTP; NAD registered as Network Device with shared secret; policy set that handles MAB and 802.1X; CoA enabled on NAD.

Step-by-Step GUI Configuration Guide (with CLI + API runbooks)

Phase 0 — Health & Services (CLI quick checks)

ISE CLI

show clock
show ntp
show application status ise | include Application|Database|API|pxGrid
ping <NAD-IP> source <ISE-PSN-IP>

Switch CLI

show clock
show authentication sessions
show aaa servers

Phase 1 — Enable ERS + ERS Admin + Certs (GUI)

  1. Enable ERS
    GUI: Administration → System → Settings → ERS Settings → Enable ERS for Read/Write → Save
    [Screenshot: ISE ERS Settings – Enabled]
  1. Create ERS Admin
    GUI: Administration → System → Admin Access → Administrators → Add
    • Username: ers-endpoints-svc
    • Roles: ERS Admin (optionally MnT Read if using MnT API with same user)
    • (Security) Restrict by IPs
      [Screenshot: Admin with ERS Role]

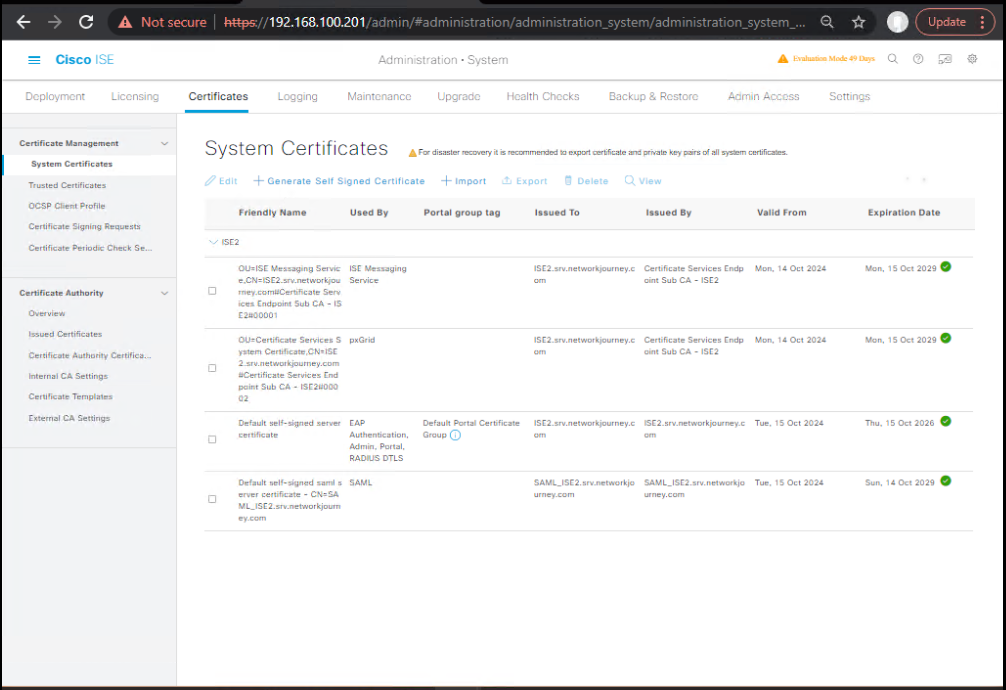

  1. Certificates
    GUI: Administration → System → Certificates → System Certificates → HTTPS cert (CA-signed in prod)
    [Screenshot: System Certificates]
  1. API sanity test
curl -k -u ers-endpoints-svc:'<pass>' \
  -H "Accept: application/json" \
  https://ISE-FQDN:9060/ers/config/version

Expect 200 + version.

Phase 2 — Build Endpoint Identity Groups (GUI)

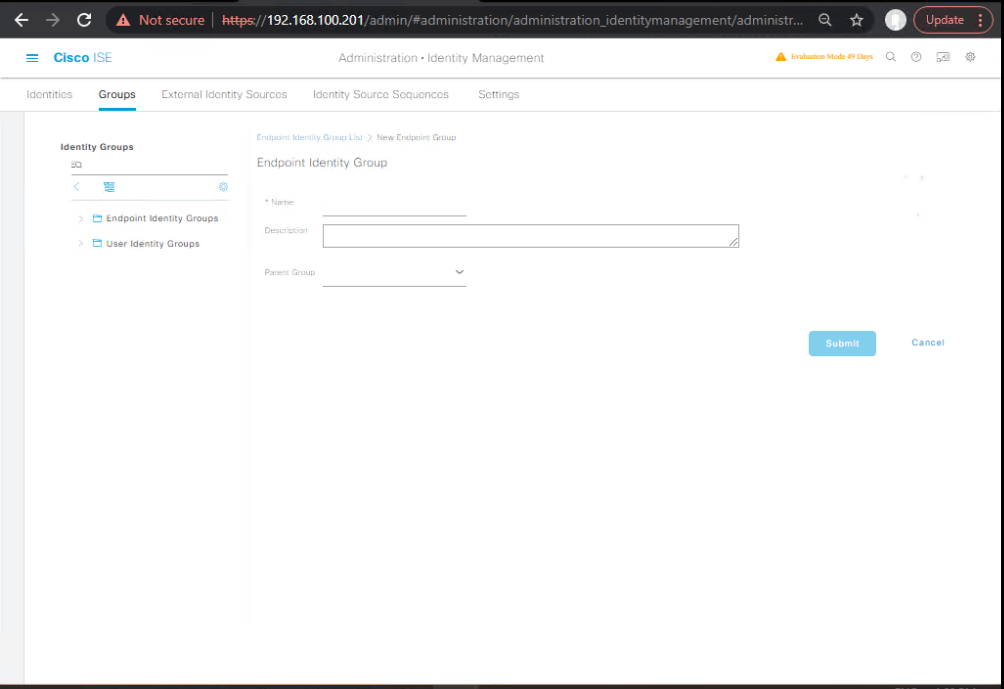

  1. Create Endpoint Groups
    GUI: Administration → Identity Management → Groups → Endpoint Identity Groups → Add
    • Printers
    • IoT-Sensors
    • BYOD-Unmanaged
      [Screenshot: Endpoint Identity Groups]

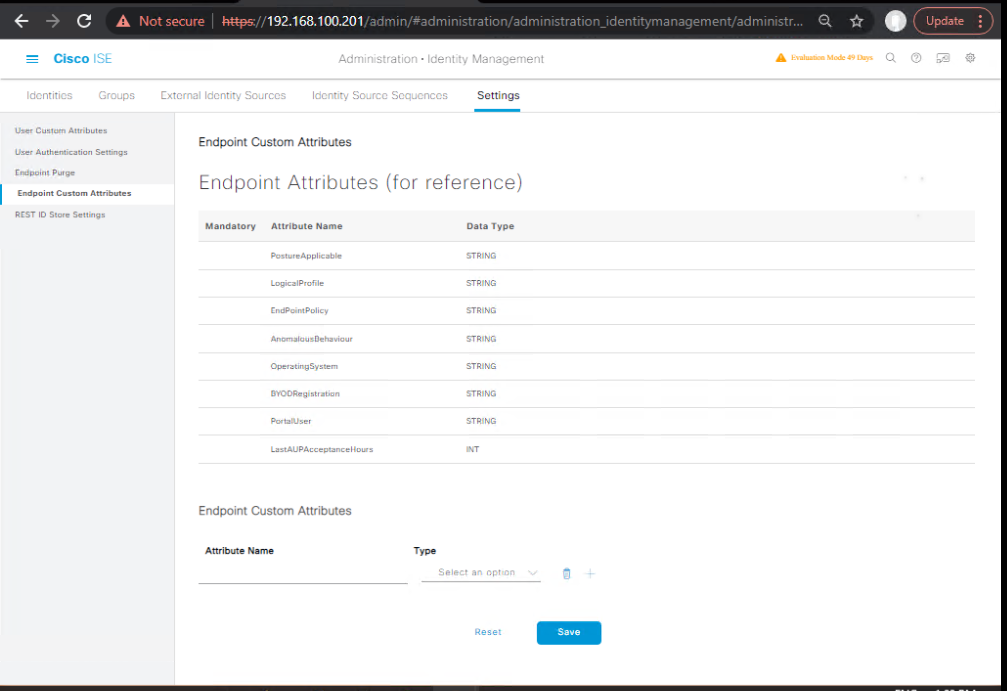

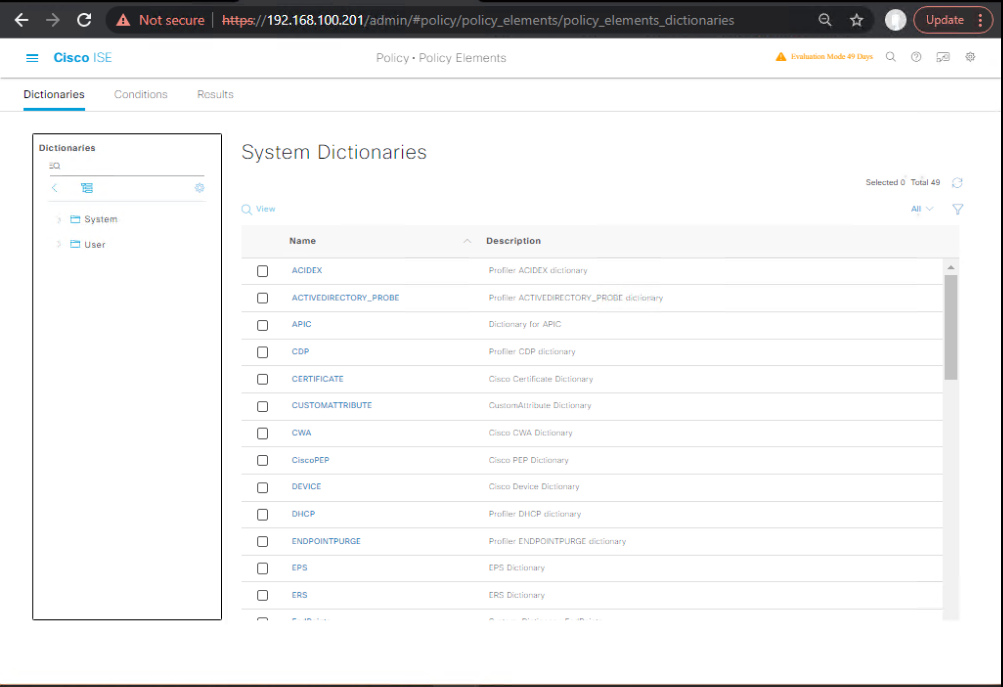

  1. (Optional) Custom Dictionary attributes for policy
    GUI: Policy → Policy Elements → Conditions → Dictionaries (optional; we’ll also use endpoint customAttributes directly).
    [Screenshot: Dictionaries/Attributes]

Phase 3 — Authorization policy path for MAB/802.1X (GUI)

  1. Policy Set
    GUI: Policy → Policy Sets →
    • Allowed Protocols include MAB (PAP/ASCII) and EAP (PEAP/EAP-MSCHAPv2)
    • AuthC: Use Internal Endpoints for MAB (and Internal Users/AD for 802.1X)
      [Screenshot: Policy Set – Allowed Protocols]
  1. AuthZ rules (examples)
    • If EndpointGroup == Printers → VLAN 30 + DACL Printer-Access
    • If Endpoint:customAttributes Owner = Facilities → add ACL permits
      [Screenshot: Authorization Rules referencing EndpointGroup + CustomAttribute]

Phase 4 — Endpoint CRUD via ERS (Postman/cURL)

Headers: Accept: application/json and Content-Type: application/json
Base: https://ISE-FQDN:9060/ers

4.1 Create Endpoint (static group + custom attributes)

POST /config/endpoint
Body (JSON) (golden minimal + extras):

{
  "ERSEndPoint": {
    "name": "PRN-FLR3-HP4050",
    "mac": "00:11:22:33:44:55",
    "description": "HP Printer Floor3",
    "staticGroupAssignment": true,
    "groupId": "ENDPOINT_GROUP_ID_PRINTERS",
    "customAttributes": {
      "location": "BLD-A-FLR3",
      "owner": "Facilities",
      "assetTag": "PRN-04050"
    }
  }
}

Tip: Get groupId via GET /config/endpointgroup and pick the id of Printers.

cURL

curl -k -u ers-endpoints-svc:'<pass>' \
 -H "Accept: application/json" -H "Content-Type: application/json" \
 -d @endpoint_printer.json \
 https://ISE-FQDN:9060/ers/config/endpoint

Expect: 201 Created + Location header (endpoint ID)

Validate (GUI):
Administration → Identity Management → Identities → Endpoints → search MAC
[Screenshot: Endpoint present with Group=Printers + customAttributes]

Validate (CLI):

  • Switch (after port activity / MAB trigger)
show authentication sessions interface Gi1/0/10 details
show mac address-table | include 0011.2233.4455
  • ISE Live Logs: Operations → RADIUS → Live Logs (MAB attempts)

4.2 Read/Search Endpoints

  • GET all (paged): /config/endpoint
  • GET by ID: /config/endpoint/{id}
  • GET by MAC: /config/endpoint/mac/00:11:22:33:44:55 (handy for lookups)

cURL example:

curl -k -u ers-endpoints-svc:'<pass>' \
 -H "Accept: application/json" \
 https://ISE-FQDN:9060/ers/config/endpoint/mac/00:11:22:33:44:55

4.3 Update Endpoint (move group, edit attributes)

PUT /config/endpoint/{id}
Body (JSON):

{
  "ERSEndPoint": {
    "name": "PRN-FLR3-HP4050",
    "description": "HP Printer Floor3 - moved to Floor4",
    "staticGroupAssignment": true,
    "groupId": "ENDPOINT_GROUP_ID_PRINTERS",
    "customAttributes": {
      "location": "BLD-A-FLR4",
      "owner": "Facilities",
      "assetTag": "PRN-04050"
    }
  }
}

Validate: GUI shows updated description/location; next reauth will reapply new policy.

4.4 Delete Endpoint

DELETE /config/endpoint/{id} → expect 204 No Content.
Validate: GUI endpoint gone; NAD sessions eventually clear (or manually disconnect).

Phase 5 — Endpoint Group APIs (create, read, map IDs)

Create group (optional)
POST /config/endpointgroup

{
  "EndPointGroup": {
    "name": "IoT-Sensors",
    "description": "All IoT sensors (MAB)",
    "systemDefined": false
  }
}

List groups → GET /config/endpointgroup (capture IDs for groupId in endpoints).
[Screenshot: Endpoint Group list]

Phase 6 — Session Controls (Reauth/Disconnect) & ANC

6.1 Force Reauthentication (apply new policy immediately)

Reauth by MAC
PUT /config/session/MACADDRESS/reAuth

curl -k -u ers-endpoints-svc:'<pass>' \
 -X PUT https://ISE-FQDN:9060/ers/config/session/00:11:22:33:44:55/reAuth

Validate (Switch):

show authentication sessions interface Gi1/0/10

State should flap/re-authorize; Live Logs show new hit.

6.2 Disconnect Session (bounce)

PUT /config/session/MACADDRESS/disconnect
Useful when moving VLANs/DACLs.

6.3 ANC Quarantine / Clear

Create ANC policy (once)
POST /config/ancpolicy

{"AncPolicy": {"name": "Quarantine", "actions": ["QUARANTINE"]}}

Apply to MAC
POST /config/ancendpoint/apply

{
  "OperationAdditionalData": {
    "additionalData": [
      {"name":"macAddress","value":"00:11:22:33:44:55"},
      {"name":"policyName","value":"Quarantine"}
    ]
  }
}

Clear ANC
POST /config/ancendpoint/clear

{
  "OperationAdditionalData": {
    "additionalData": [
      {"name":"macAddress","value":"00:11:22:33:44:55"}
    ]
  }
}

Validate:

  • GUI: Operations → ANC Policy → Endpoint shows applied policy
  • Switch CLI: show authentication sessions (DACL/VLAN may change)
  • Live Logs: new AuthZ with Quarantine result / DACL

Phase 7 — Bulk Endpoint Import (CSV → Python)

CSV (endpoints.csv)

mac,name,description,groupName,location,owner,assetTag
00:11:22:33:44:55,PRN-FLR3-HP4050,HP Printer Floor 3,Printers,BLD-A-FLR3,Facilities,PRN-04050
00:aa:bb:cc:dd:ee,IoT-Temp-01,Temp Sensor,IoT-Sensors,BLD-B-FLR2,OT,TS-0001

Python (create-or-update idempotent)

import csv, requests, sys, time

ISE="https://ISE-FQDN:9060/ers"
AUTH=("ers-endpoints-svc","<password>")
H={"Accept":"application/json","Content-Type":"application/json"}
VERIFY=False  # set CA bundle in production

def groups_by_name():
    r=requests.get(f"{ISE}/config/endpointgroup",auth=AUTH,headers=H,verify=VERIFY)
    r.raise_for_status()
    out={}
    for g in r.json().get("SearchResult",{}).get("resources",[]):
        gd=requests.get(g["link"]["href"],auth=AUTH,headers=H,verify=VERIFY).json()
        eg=gd["EndPointGroup"]
        out[eg["name"]]=eg["id"]
    return out

def get_ep_by_mac(mac):
    r=requests.get(f"{ISE}/config/endpoint/mac/{mac}",auth=AUTH,headers=H,verify=VERIFY)
    return r.json() if r.status_code==200 else None

def create_ep(mac,name,desc,groupId,attrs):
    body={"ERSEndPoint":{
        "name":name,"mac":mac,"description":desc,
        "staticGroupAssignment": True,"groupId":groupId,"customAttributes":attrs}}
    r=requests.post(f"{ISE}/config/endpoint",json=body,auth=AUTH,headers=H,verify=VERIFY)
    return r.status_code, r.text

def update_ep(eid,name,desc,groupId,attrs):
    body={"ERSEndPoint":{
        "name":name,"description":desc,
        "staticGroupAssignment": True,"groupId":groupId,"customAttributes":attrs}}
    r=requests.put(f"{ISE}/config/endpoint/{eid}",json=body,auth=AUTH,headers=H,verify=VERIFY)
    return r.status_code, r.text

grp=groups_by_name()

with open("endpoints.csv") as f:
    for row in csv.DictReader(f):
        mac=row["mac"].lower()
        name=row["name"]; desc=row["description"]
        gname=row["groupName"]; gid=grp.get(gname)
        if not gid:
            print(f"[ERROR] Group '{gname}' not found for {mac}")
            continue
        attrs={"location":row["location"],"owner":row["owner"],"assetTag":row["assetTag"]}
        existing=get_ep_by_mac(mac)
        if existing:
            eid=existing["ERSEndPoint"]["id"]
            code,txt=update_ep(eid,name,desc,gid,attrs)
            print(f"[UPDATE {code}] {mac} -> {gname} :: {txt[:120]}")
        else:
            code,txt=create_ep(mac,name,desc,gid,attrs)
            print(f"[CREATE {code}] {mac} -> {gname} :: {txt[:120]}")
        time.sleep(0.2)  # gentle throttle

Validate:

  • GUI: Endpoints list reflects imports, correct groups & attributes
  • Switch/WLC: sessions match expected AuthZ when devices connect
  • Live Logs: MAB/802.1X hits show group-based policy

Phase 8 — Posture & MnT Validation (optional but powerful)

MnT active sessions (XML typical)

curl -k -u ers-endpoints-svc:'<pass>' \
 "https://ISE-FQDN/admin/API/mnt/Session/MACAddress/00:11:22:33:44:55"

Parse IP, NAD, AuthC/AuthZ results; confirm after reauth/ANC.

Phase 9 — Break & Fix Drills (common errors)

  • 401/403 → ERS disabled / wrong role / IP restriction → fix ERS settings & admin role
  • 400 Bad Request → JSON wrapper ERSEndPoint missing, wrong field, bad MAC format, or invalid groupId
  • 409 Conflict → endpoint already exists (same MAC) → switch to PUT update
  • 422 → referenced groupId not found → enumerate groups and pick correct ID
  • Reauth has no effect → NAD CoA not enabled or device not authenticated → fix NAD config and re-test
  • ANC applied but traffic not blocked → AuthZ rule doesn’t account for ANC policy / DACL mapping → verify policy path & DACL

Troubleshooting (Endpoint Automation via ERS/MnT/ANC/Session APIs)

0) Rapid Triage (60-second path)

  1. ERS on & auth works?curl -k -u ers-endpoints-svc:'<pass>' -H "Accept: application/json" \ https://ISE:9060/ers/config/version
    • 200 → proceed
    • 401/403/404 → §1A–1C
  2. Endpoint CRUD test (create minimal)
    • POST /ers/config/endpoint with golden body (§2B).
    • 201 + Location → proceed
    • 400/409/415/422 → §2
  3. Group mapping valid?
    • GET /ers/config/endpointgroup and confirm groupId → §3.
  4. Policy applies? Trigger session reauth
    • PUT /ers/config/session/<MAC>/reAuth → check Live Logs + switch show auth sess → §4.
  5. ANC quarantine works?
    • POST /ers/config/ancendpoint/apply → check GUI Operations → Adaptive Network Control → §5.

1) Access, Certificates, Service State

1A) 404 Not Found on ERS endpoints

  • Likely: ERS disabled.
  • Fix: GUI → Administration → System → Settings → ERS Settings → Enable ERS for Read/Write → Save.
  • Re-test: GET /ers/config/version.

1B) 401 Unauthorized / 403 Forbidden

  • Likely: wrong creds/role or IP restriction.
  • Fixes:
    • Admin user has ERS Admin role (and MnT Read if needed).
    • Remove/adjust Allowed IPs restriction.
    • Check account not disabled/locked.
  • Re-test: GET /ers/config/version.

1C) TLS / Cert chain errors (Postman/Python)

  • Lab: allow insecure (-k, Postman “SSL verification off”, verify=False).
  • Prod: install CA-signed HTTPS cert on ISE; trust CA on client.

1D) ISE services down / slow

show application status ise | include (Application|Database|API|pxGrid|M&T)
  • Restart in lab if stuck: application stop ise ; application start ise (last resort; not in prod).

2) Endpoint CRUD – Payload & Schema Errors

2A) 415 Unsupported Media Type

  • Cause: missing/incorrect Content-Type.
  • Fix: set headers:
    • Accept: application/json
    • Content-Type: application/json

2B) 400 Bad Request (golden minimal)

Use this exact body first; then add fields later:

{
  "ERSEndPoint": {
    "name": "PRN-FLR3-HP4050",
    "mac": "00:11:22:33:44:55",
    "staticGroupAssignment": false
  }
}

Common mistakes & fixes

  • Missing ERSEndPoint wrapper → add it.
  • Invalid MAC format (bad chars/length) → use 00:11:22:33:44:55.
  • Unknown fields (e.g., identityGroups) → remove; endpoint uses groupId (single).
  • JSON trailing commas → remove.

2C) 409 Conflict (endpoint exists)

  • Cause: same MAC already present.
  • Fix path:
    1. GET /ers/config/endpoint/mac/<MAC> → grab id.
    2. PUT /ers/config/endpoint/{id} to update (group/attributes).
    3. If replacing record → DELETE then POST (rarely needed).

2D) 422 Unprocessable Entity (invalid reference)

  • Cause: bad groupId.
  • Fix: enumerate groups: curl -k -u ers-endpoints-svc:'<pass>' -H "Accept: application/json" \ https://ISE:9060/ers/config/endpointgroup Then GET each link.href, copy exact id.

2E) Pagination surprises (listing endpoints)

  • Symptom: only a subset of endpoints returned.
  • Fix: follow SearchResult.nextPage.href or HTTP Link header until no more pages.

3) Endpoint Group Mapping & Custom Attributes

3A) Group exists in GUI but API rejects groupId

  • Cause: using name instead of id.
  • Fix: resolve ID via GET and use that ID in endpoint body.

3B) Custom attributes not visible in GUI

  • Cause: wrong JSON object nesting or name collision.
  • Correct body snippet:
"customAttributes": {
  "location": "BLD-A-FLR3",
  "owner": "Facilities",
  "assetTag": "PRN-04050"
}
  • Validate: open endpoint in GUI → Custom Attributes tab.

4) Session Control (ReAuth/Disconnect) & Policy Re-application

4A) ReAuth returns 200 but policy unchanged

  • Causes/Fixes:
    • Device not currently authenticated → no active session to reauth. Check:
      • Switch: show authentication sessions interface Gi1/0/x details
    • CoA not enabled on NAD → enable & verify.
    • Wrong MAC (dash vs colon) → get session MAC from switch output and reuse exact format.
  • Validate effect:
    • ISE Live Logs: new hit with updated authorization rule.
    • Switch: DACL/VLAN update visible in show authentication sessions.

4B) Disconnect call works but endpoint reconnects with old policy

  • Cause: endpoint cached (sticky) or policy didn’t change.
  • Fix: confirm endpoint group/attributes changed before reauth; confirm AuthZ rule references those values.

5) ANC (Adaptive Network Control) Troubles

5A) Apply ANC returns OK but traffic not blocked

  • Root causes:
    • ANC policy exists but AuthZ rules don’t honor ANC state (e.g., no Quarantine DACL mapping).
    • CoA not supported on NAD/WLAN.
  • Fixes:
    • Create/verify ANC policy (Quarantine) and ensure your policy set has result that enforces the Quarantine DACL when ANC is active.
    • Verify NAD CoA.
  • Validation:
    • GUI: Operations → Adaptive Network Control (endpoint listed).
    • Switch: show authentication sessions (new DACL), or show ip access-lists hits.

5B) Clear ANC but endpoint stays blocked

  • Cause: session still bound to quarantine authz.
  • Fix: call ReAuth or Disconnect after clearing ANC; verify Live Logs reauthorization.

6) MnT & Live Logs – “Proof of Fix”

6A) No Live Logs for MAB/802.1X

  • Cause: NAD not added or wrong shared secret.
  • Fix:
    • GUI: Network Devices → verify device IP/secret.
    • Switch: test aaa group radius (for quick signal).

6B) Live Log shows “Unknown NAS” / “User not found”

  • Unknown NAS: fix NAD object in ISE.
  • User not found: for MAB, ensure Internal Endpoints lookup is used in AuthC; endpoint record exists.

6C) Pull active session (MnT API)

curl -k -u ers-endpoints-svc:'<pass>' \
 "https://ISE/admin/API/mnt/Session/MACAddress/00:11:22:33:44:55"
  • Validate current NAD, IP, AuthZ profile, DACL name.

7) Postman Runner & Python – Typical Breakages

7A) Postman “Could not get any response”

  • SSL verify failure → turn off in lab (Settings); in prod install CA chain.
  • Wrong port/FQDN → use https://<ISE>:9060/ers.

7B) Python SSLError / ReadTimeout

  • Add verify=False (lab) or CA bundle; use timeout=10.
  • Reuse requests.Session(); add retry/backoff for bulk.

7C) Bulk import partial failures

  • Pattern: 201 for some, 409/422 for others.
  • Fix: idempotent flow:
    1. GET by MAC → exists? PUT; else POST.
    2. Log errors per row to errors.csv and continue.
    3. Throttle ~5–10 req/s per node.

8) Switch/WLC CLI – What to Check

Catalyst (wired)

show authentication sessions interface Gi1/0/10 details
show running-config | section radius|aaa
show cts interface Gi1/0/10  (if TrustSec used)
debug authentication all

WLC 9800 (wireless)

show wireless client mac 0011.2233.4455 detail
show aaa servers
show logging | inc radius|coa

You want to see:

  • Session Authorized; AuthZ rule name; DACL/VLAN correct; Reauths counted after API triggers.

9) Example Error Payloads (recognize fast)

ERS 400 – bad field

{"ERSResponse":{"messages":[{"title":"Invalid request body: unknown field 'identityGroups'","type":"ERROR","code":"invalid"}]}}

ERS 409 – duplicate MAC

{"ERSResponse":{"messages":[{"title":"Duplicate resource: endpoint already exists","type":"ERROR","code":"duplicate"}]}}

ERS 422 – bad groupId

{"ERSResponse":{"messages":[{"title":"Reference not found: endpointgroup id","type":"ERROR","code":"invalid-reference"}]}}

ANC apply OK

{"OperationResult":{"result":"SUCCESS","resultValue":"Successfully applied ANC policy"}}

10) Decision Trees

Create/Update endpoint

  • 415 → set headers.
  • 400 → wrapper/fields/MAC → use golden minimal body.
  • 409 → switch to PUT.
  • 422 → wrong groupId → list groups & use correct ID.
  • 2xx but no policy change → run ReAuth → verify Live Logs.

ANC path

  • Apply → no block → check DACL mapping + CoA.
  • Clear → still blocked → ReAuth/Disconnect, confirm Live Logs.

11) Governance & Safety (prod)

  • Least-privilege ERS user; IP restrict.
  • Rotate credentials; store in secret manager.
  • CA-signed certs; no -k in prod.
  • Log to SIEM: ERS Audit + RADIUS + ANC actions (who/what/when).

12) Ready-to-Paste “Golden” Calls

Create endpoint (minimal)

curl -k -u ers-endpoints-svc:'<pass>' -H "Accept: application/json" -H "Content-Type: application/json" \
-d '{"ERSEndPoint":{"name":"EP-01","mac":"00:11:22:33:44:55","staticGroupAssignment":false}}' \
https://ISE:9060/ers/config/endpoint

Move endpoint to group + attributes (PUT)

curl -k -u ers-endpoints-svc:'<pass>' -H "Accept: application/json" -H "Content-Type: application/json" \
-X PUT -d '{"ERSEndPoint":{"name":"EP-01","description":"moved","staticGroupAssignment":true,"groupId":"<GROUP-ID>","customAttributes":{"location":"BLD-A","owner":"OT"}}}' \
https://ISE:9060/ers/config/endpoint/<ENDPOINT-ID>

ReAuth session

curl -k -u ers-endpoints-svc:'<pass>' -X PUT https://ISE:9060/ers/config/session/00:11:22:33:44:55/reAuth

ANC apply / clear

curl -k -u ers-endpoints-svc:'<pass>' -H "Content-Type: application/json" \
-d '{"OperationAdditionalData":{"additionalData":[{"name":"macAddress","value":"00:11:22:33:44:55"},{"name":"policyName","value":"Quarantine"}]}}' \
https://ISE:9060/ers/config/ancendpoint/apply

curl -k -u ers-endpoints-svc:'<pass>' -H "Content-Type: application/json" \
-d '{"OperationAdditionalData":{"additionalData":[{"name":"macAddress","value":"00:11:22:33:44:55"}]}}' \
https://ISE:9060/ers/config/ancendpoint/clear

13) Cleanup & Forensics

  • Export Operations → Audit (CSV) after runs.
  • Remove lab endpoints you created (DELETE) to keep DB clean.
  • Clear ANC policies from lab endpoints.
  • Re-enable SSL verification in Postman/Python.
  • Capture before/after policy screenshots for your lab journal.

FAQs – Automating Endpoint Management via Cisco ISE APIs

FAQ 1. Why should I automate endpoint management in ISE instead of using the GUI?

  • Answer: The GUI is fine for ad-hoc tasks, but it does not scale. In large environments, thousands of devices (printers, IoT, BYOD, contractors) are added/removed daily. APIs enable bulk import, near-real-time updates, integration with CMDB/asset inventory, and closed-loop remediation (e.g., auto-quarantine via SOC tools). Automation reduces human error and enforces consistency across policy sets.

FAQ 2. Which APIs in ISE are relevant for endpoint automation?

  • Answer:
    • ERS (External RESTful Services): CRUD operations for endpoints, groups, ANC policies.
    • MnT (Monitoring & Troubleshooting API): Pull live session info, RADIUS logs, posture results.
    • Session APIs: Trigger CoA (ReAuth/Disconnect).
    • ANC APIs: Apply/Clear quarantine policies dynamically.
    • pxGrid: Context sharing with other security tools (Splunk, Firewalls, EDR).
      Each serves a piece of the automation lifecycle: create → assign → enforce → monitor → remediate.

FAQ 3. What are the prerequisites before calling ISE APIs?

  • Answer:
    • Enable ERS (Admin → System → Settings → ERS Settings).
    • Create a dedicated ERS Admin account (least privilege).
    • Confirm CoA enabled on NADs (switches/WLCs).
    • Have ISE certificate trusted by client (or allow insecure in lab only).
    • Know port numbers: ERS = 9060/9061, MnT = 443.
      Without these, API calls will fail with 401/403/404 or TLS errors.

FAQ 4. How do I create a new endpoint using the API?

  • Answer:
    Use POST /ers/config/endpoint with JSON body: { "ERSEndPoint": { "name": "PRN-FLR3-HP4050", "mac": "00:11:22:33:44:55", "staticGroupAssignment": false } }
    • 201 Created → success (Location header contains endpoint ID).
    • Common errors: 400 (bad JSON), 409 (duplicate MAC), 422 (invalid groupId).
      Always test with a minimal body first, then add custom attributes.

FAQ 5. How do I assign endpoints to specific groups or profiles?

  • Answer:
    • Endpoint groups have unique IDs, not just names.
    • Run GET /ers/config/endpointgroup → copy id.
    • Update endpoint with PUT /ers/config/endpoint/{id} and include:
    "groupId": "<group-uuid>"
    • Verify in GUI: Endpoints → Group Assignment.
      Without correct groupId, policy rules won’t match.

FAQ 6. How do I enforce policy changes immediately on an endpoint?

  • Answer: After updating an endpoint, trigger re-evaluation:
    • PUT /ers/config/session/<MAC>/reAuth → forces CoA (reauth).
    • PUT /ers/config/session/<MAC>/disconnect → fully drops the session.
    • Confirm via ISE Live Logs or switch: show authentication sessions interface Gi1/0/10 details
    Without reauth, changes wait until next session refresh.

FAQ 7. What is ANC and how is it used with automation?

  • Answer:
    ANC = Adaptive Network Control. It lets ISE dynamically quarantine or restrict endpoints.
    • POST /ers/config/ancendpoint/apply → apply ANC policy (e.g., Quarantine).
    • POST /ers/config/ancendpoint/clear → remove.
      Use cases: SOC detects malware → triggers ANC API → endpoint forced into quarantine VLAN/DACL.
      It’s the fastest API-driven enforcement mechanism.

FAQ 8. How can I monitor if my automation worked correctly?

  • Answer:
    • ISE MnT API: Query sessions/logs by MAC/IP/User.
    • Live Logs GUI: Verify new auth with updated policy hit.
    • NAD CLI: Check applied DACL/VLAN (show auth sess).
    • Audit logs: Track ERS actions (who/what/when).
      Always validate in 3 planes: API return code, ISE Live Logs, and NAD CLI.

FAQ 9. What are the most common errors engineers hit with ERS APIs?

  • Answer:
    • 401 Unauthorized / 403 Forbidden: bad creds or ERS not enabled.
    • 415 Unsupported Media Type: missing Content-Type: application/json.
    • 400 Bad Request: wrong JSON wrapper (must use "ERSEndPoint").
    • 409 Conflict: endpoint already exists.
    • 422 Unprocessable Entity: invalid groupId reference.
    • Timeouts: large bulk requests → throttle or batch.
      Each error is predictable if you check response body codes.

FAQ 10. How do I safely use ISE APIs in production?

  • Answer:
    • Use service accounts with least privilege.
    • Enforce IP restrictions for API clients.
    • CA-signed certs (never -k in prod).
    • Log all API changes to SIEM for auditing.
    • Batch imports to avoid overwhelming ISE.
    • Always test in lab/staging before production push.
      Governance is as important as the automation itself.

YouTube Link

For more in-depth Cisco ISE Mastery Training, subscribe to my YouTube channel Network Journey and join my instructor-led classes for hands-on, real-world ISE experience

[NEW COURSE ALERT] CISCO ISE (Identity Service Engine) by Sagar Dhawan
CCIE Security v6.1 Training – Ticket#1 Discussed
CCIE Security v6.1 – MAC Authentication Bypass (MAB) in Cisco ISE
CCNP to CCIE SECURITY v6.1 – New Online Batch

Closing Notes

  • Treat endpoint onboarding as code: CSV → API → logs → verify.
  • Custom Attributes are policy superpowers—encode owner/site/asset in the endpoint object.
  • Use ReAuth/Disconnect to enforce instantly and ANC for incident response.
  • Always prove: ISE Live Logs, MnT session, NAD/WLC CLI—don’t assume.

Upgrade Your Skills – Start Today

“For more in-depth Cisco ISE Mastery Training, subscribe to my YouTube channel Network Journey and join my instructor-led classes.”

Fast-Track to Cisco ISE Mastery Pro — 4-month live cohort:

  • Real-world labs: ERS, MnT, pxGrid, ANC, TrustSec, Posture, Wired/Wireless
  • Automation packs: Endpoint/User/ANC/Session APIs + Playbooks
  • Troubleshooting bibles with log samples & fixes
    Enroll / syllabus: https://course.networkjourney.com/ccie-security/

Enroll Now & Future‑Proof Your Career
Email: info@networkjourney.com
WhatsApp / Call: +91 97395 21088

Trainer Sagar Dhawan
Hi all, Good to see you here. I'm your Trainer for CCIE, CCNP, CCNA, Firewall batches and many more courses coming up! Stay tuned for latest updates! Keep me posted over Whatsapp/Email about your experience learning from us. Thanks for being part of - "Network Journey - A journey towards packet-life!!!"

Related Posts

Day 76 – Cisco ISE Mastery Training: Applying TrustSec in Wireless Networks

[Day 76] Cisco ISE Mastery Training: Applying TrustSec in Wireless Networks

  • Posted on
    • Day 89 – Cisco ISE Mastery Training: Integrating with Splunk

    [Day 89] Cisco ISE Mastery Training: Integrating with Splunk

  • Posted on
    • Day 109 – Cisco ISE Mastery Training: Integration with Cisco ASA VPN

    [Day 109] Cisco ISE Mastery Training: Integration with Cisco ASA VPN

  • Posted on
