FlexConnect Deployment – Bringing Wireless to Remote Branches [CCNP Enterprise]

Today I want to take you behind the scenes of one of the most practical features in enterprise wireless: FlexConnect. I remember walking into a client’s branch office in another city—no WLC in sight—but still, APs were serving users with full authentication, VLANs, and security policies. That’s when FlexConnect shines.

If you manage branch offices, remote sites, or need resilient wireless access even when connectivity to the WLC is down—FlexConnect is your best friend. Let’s break it down with theory, real-world scenarios, CLI magic, and an EVE-NG lab to make you truly FlexConnect-ready.

---

Theory in Brief

What is FlexConnect?

FlexConnect (formerly known as HREAP – Hybrid Remote Edge Access Point) is a Cisco wireless solution designed for remote or branch offices. It allows lightweight APs to locally switch client traffic without sending it back to the central WLC—saving bandwidth and ensuring resiliency during WAN outages.

In standard CAPWAP deployments, both control and data traffic between APs and WLCs are tunneled. But in FlexConnect mode, data traffic can be locally bridged, while control communication continues with the WLC.

---

When to Use FlexConnect?

FlexConnect is ideal when:

• The AP is at a remote site connected over WAN
• You want to minimize data tunneling to the main WLC
• Local switching is required to reduce latency
• WAN failure should not impact Wi-Fi availability

---

FlexConnect Modes

1. Connected Mode: AP maintains connectivity with the WLC.
   • Control and policy decisions made centrally
   • Can still switch traffic locally if configured
2. Standalone Mode: AP temporarily loses contact with the WLC.
   • Pre-configured policies continue to function
   • Local authentication and switching stay active

---

Central vs Local Switching

• Central Switching: Traffic goes from AP to WLC through the CAPWAP tunnel
• Local Switching: Traffic exits directly from the AP’s local network (bypassing the WLC for data)

This flexibility enables optimized performance and cost efficiency for remote sites.

---

Comparison – FlexConnect Overview

Feature	Description
Purpose	Branch office wireless deployment
Previous Name	HREAP (Hybrid Remote Edge AP)
AP Requirement	Lightweight AP
WLC Connectivity	Required for configuration, optional after
Control Plane	Always centralized via CAPWAP
Data Plane	Local or Central switching (configurable)
Modes	Connected & Standalone
WAN Failover Support	Yes (Standalone mode)
VLAN Mapping	Supported at AP level
Authentication	Central or Local

---

Pros and Cons of FlexConnect

Pros	Cons
Enables local switching for remote branch efficiency	Initial configuration still requires WLC connectivity
Supports resiliency during WAN outages	Not ideal for large-scale central control
Reduces WAN bandwidth usage	Complexity in managing VLAN mappings per site
Faster local access to branch resources	Limited guest and advanced services without WLC tunnel
Seamless fallback between connected and standalone	Misconfigurations may lead to client drops during failover

---

Essential CLI Commands

Device	Command	Description
WLC	show flexconnect summary	Displays FlexConnect APs and their status
WLC	show flexconnect group name <group>	Shows configuration for FlexConnect group
WLC	debug flexconnect all enable	Enables FlexConnect debugging
WLC	config ap mode flexconnect <AP name>	Converts AP to FlexConnect mode
WLC	config ap vlan mapping add	Adds VLAN to SSID mapping
AP	show capwap client rcb	Displays AP’s runtime configuration
AP	debug capwap client no-reload	Troubleshoots CAPWAP from AP side
AP	show version	Verifies AP image and mode
AP	show interface summary	Check if local switching is active
WLC	show wlan <ID>	Shows SSID configuration and FlexConnect settings

---

Real-World Use Case – Retail Chain with Remote Branches

Component	Description
Scenario	A retail company has 200+ branches across India
Problem	Tunneling traffic from each branch to the central WLC in Delhi creates WAN congestion
Solution	Convert branch APs to FlexConnect, enable local switching for guest traffic, and central authentication for employee SSID
Result	45% WAN bandwidth savings, improved guest access speed, and uninterrupted Wi-Fi during MPLS downtimes
Bonus Benefit	Easier VLAN mapping per branch without touching the core WLC config repeatedly

---

EVE-NG LAB – FlexConnect Deployment Simulation

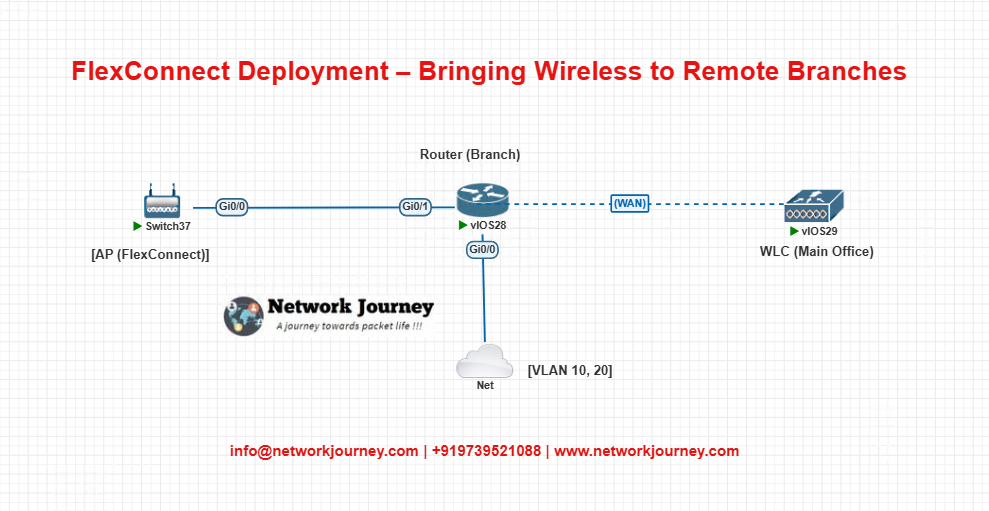

Lab Topology Diagram

---

Step-by-Step Configuration

Step 1: Set AP to FlexConnect Mode (on WLC)

config ap mode flexconnect AP-FLEX1

Step 2: Create a WLAN and Assign VLANs

config wlan create 10 GUEST_SSID guest
config wlan vlan 10 20  ! Maps SSID to VLAN 20

Step 3: Enable Local Switching on the WLAN

config wlan flexconnect local-switching enable 10

Step 4: VLAN Mapping (Optional)

config ap vlan mapping add AP-FLEX1 10 20

Step 5: Save and Verify

show wlan 10
show flexconnect summary

Step 6: WAN Link Simulation

In EVE-NG, simulate WAN outage by shutting down the router’s WAN interface and confirm AP enters Standalone Mode while still providing local services.

---

Troubleshooting Tips

Issue	Command	Tip
AP not switching locally	show wlan <ID>	Ensure “local switching” is enabled
Clients drop during WAN failover	debug capwap events enable	Check FlexConnect fallback
VLAN tags not passed	show flexconnect group	Verify VLAN mappings per SSID
AP not in FlexConnect mode	show ap summary	Confirm mode is FlexConnect
AP reboots during failover	debug capwap client	Inspect memory/power constraints

---

Frequently Asked Questions (FAQ)

1. What is FlexConnect in Cisco Wireless Architecture?

Answer:
FlexConnect is a wireless deployment mode that allows Lightweight Access Points (LAPs) to operate semi-autonomously at remote branch locations while still being managed by a central Wireless LAN Controller (WLC).
In normal CAPWAP mode, APs forward all traffic (including client data) back to the WLC. But with FlexConnect, APs can locally switch client traffic and continue operation during WLC disconnection, making it ideal for branch offices with limited WAN connectivity.

---

2. How does FlexConnect differ from Local Mode?

Answer:

Feature	FlexConnect	Local Mode
Data Traffic Forwarding	Can be local or central	Always sent to WLC
WLC Dependency	Can operate during WLC outage	Needs constant WLC connection
Ideal For	Branch sites	Campus environments
Roaming	Limited support across WAN	Seamless across APs in same WLC

FlexConnect provides greater resilience and flexibility for remote deployments, whereas Local Mode is optimized for high-bandwidth, centrally managed wireless setups.

---

3. What are the two main FlexConnect forwarding modes?

Answer:
FlexConnect supports:

• Central Switching: Client data is tunneled back to the WLC.
• Local Switching: Client data is bridged locally at the AP to the branch switch, saving WAN bandwidth.

You can configure this per SSID, giving you control over which applications use local breakout (like guest Wi-Fi) and which stay centralized (like corporate traffic).

---

4. What happens if the WLC becomes unreachable in FlexConnect mode?

Answer:
In the event of WAN or WLC failure, APs in FlexConnect mode enter “Standalone Mode”. Here’s what happens:

• Clients can still connect and authenticate (if credentials are pre-cached).
• Traffic continues to flow via local switching.
• New clients can join if FlexConnect ACLs and WLANs are preconfigured.
• Centralized features like RADIUS or web authentication may be impacted unless fallback methods are in place.

This allows the branch to maintain wireless operations even during central outages.

---

5. Can FlexConnect support VLAN tagging and multiple SSIDs?

Answer:
Yes, absolutely. In FlexConnect local switching, each SSID can be mapped to a different VLAN on the branch switch. This lets you segment traffic (e.g., Guest, Corporate, Voice) without sending it back to the central WLC.
You just need to:

• Define the VLAN mappings on the WLC.
• Ensure the trunk port to the AP at the branch supports all required VLANs.

This keeps the deployment scalable and secure across different traffic types.

---

6. How does client roaming work in FlexConnect deployments?

Answer:
Roaming behavior in FlexConnect varies:

• Within a Site (Same Switch/WLC): Roaming is fast and seamless if APs are in the same FlexConnect group.
• Across Sites (Different Switches or WAN): Roaming is limited; clients may have to reauthenticate or receive a new IP, especially in local switching mode.

To ensure smooth roaming, use FlexConnect Groups, which allow key caching and state sync between APs at the same site.

---

7. What is a FlexConnect Group and why is it important?

Answer:
A FlexConnect Group is a configuration tool that groups multiple FlexConnect APs together, typically based on site or location. Benefits include:

• Shared WLAN and VLAN mappings
• Centralized RADIUS accounting
• Fast roaming using Key Caching (like CCKM or OKC)
• Unified configuration management

This ensures consistent behavior and reduces configuration overhead for remote deployments.

---

8. Which authentication methods work in standalone FlexConnect mode?

Answer:
When the WLC is unreachable, FlexConnect supports the following locally stored authentication options:

• Local MAC Authentication
• LEAP/PEAP with Caching (If credentials were previously authenticated)
• WebAuth (if pre-configured and locally hosted)

However, if your WLAN relies solely on external RADIUS or central web portals, clients won’t be able to authenticate in standalone mode unless backup authentication policies are configured.

---

9. What are the key CLI commands to troubleshoot FlexConnect issues?

Answer:

Command	Purpose
show ap config general <AP-name>	Check AP mode, FlexConnect status
show ap config wlan <AP-name>	View WLAN-VLAN mappings
debug capwap events enable	Trace control communication with WLC
show flexconnect group summary	Verify FlexConnect group membership
show ap client statistics	Check connected client status on the AP

These commands help validate local switching, AP configuration, and client behavior during WLC disconnection.

---

10. What are the benefits and limitations of using FlexConnect?

Answer:

Benefits	Limitations
Enables wireless at remote sites without local WLCs	Limited roaming across sites
Reduces WAN usage via local switching	Requires careful preconfiguration
Supports resilience during WAN outages	Some advanced features depend on WLC reachability
Offers local VLAN segmentation	Monitoring and troubleshooting can be complex

FlexConnect is ideal for distributed branch deployments, especially when WAN bandwidth or uptime is a concern. Just make sure to test configurations under WLC failure to ensure continued service.

---

YouTube Link

Watch the Complete CCNP Enterprise: Flex Connect Deployment – Bringing Wireless to Remote Branches Lab Demo & Explanation on our channel:

---

Final Note

Understanding how to differentiate and implement Flex Connect Deployment – Bringing Wireless to Remote Branches is critical for anyone pursuing CCNP Enterprise (ENCOR) certification or working in enterprise network roles. Use this guide in your practice labs, real-world projects, and interviews to show a solid grasp of architectural planning and CLI-level configuration skills.
