Mobility Groups & Roaming – Seamless Wireless in Action [CCNP Enterprise]

Let me take you back to a time during one of my early enterprise Wi-Fi projects. A user walked across an entire office floor—from one end to the other—while on a VoIP call, and didn’t drop a single packet. Magic? No! That’s the power of roaming and mobility groups in wireless networks. Today, you and I will explore how devices roam seamlessly between access points and how mobility groups orchestrate this entire dance in the background.

If you’ve ever wondered, “How does my phone stay connected to Wi-Fi while moving across buildings?”—this post is for you.

---

Theory in Brief

What Are Mobility Groups?

A Mobility Group is a collection of Wireless LAN Controllers (WLCs) that share mobility information to support seamless client roaming. When controllers are part of the same mobility group, clients can roam between APs managed by different WLCs without reauthentication or session interruption.

In simpler words—imagine you have multiple floors or buildings, each managed by a separate WLC. As a user moves from one floor to another, their session continues smoothly because the WLCs talk to each other in the same mobility group.

---

What is Roaming?

Roaming is the process by which a wireless client moves from one access point to another while maintaining its connection to the same wireless network (SSID). It ensures uninterrupted connectivity—especially critical for real-time apps like VoIP, video calls, and online gaming.

Roaming is classified as:

• Intra-controller roaming: Roaming between APs managed by the same WLC.
• Inter-controller roaming: Roaming between APs managed by different WLCs (same or different mobility group).

---

Types of Roaming

1. Layer 2 Roaming:
   • Client IP remains the same.
   • Happens within the same subnet.
   • Fast and seamless.
2. Layer 3 Roaming:
   • Client moves to a different subnet.
   • WLC uses tunneling (Anchor/Foreign WLC) to maintain IP.
   • Slightly more complex, but still seamless.

---

Why Are Mobility Groups Important?

Without mobility groups, inter-controller roaming wouldn’t be possible. Mobility groups:

• Allow client context sharing
• Enable session continuity
• Maintain QoS, security posture, and IP address
• Prevent authentication re-challenges

They’re essential for large enterprise networks, universities, hospitals, and malls—anywhere clients are mobile.

---

Comparison – Roaming and Mobility Groups

Feature	Description
Mobility Group	Logical group of WLCs that share client data
Purpose	Seamless roaming across controllers
Required For	Layer 3 roaming, inter-controller roaming
Roaming Type 1	Intra-controller (same WLC)
Roaming Type 2	Inter-controller (Layer 2 or Layer 3)
Key Protocol	CAPWAP, Mobility Tunnel
Anchor Controller	WLC where the client first connects
Foreign Controller	New WLC where client moves
Layer 2 Roaming	Same subnet; IP remains
Layer 3 Roaming	Different subnet; tunnel preserves IP

---

Pros and Cons of Mobility Groups & Roaming

Pros	Cons
Seamless client experience across locations	Requires careful WLC and mobility group configuration
Maintains session continuity	Layer 3 roaming adds some overhead
Reduces authentication delays	Can cause roaming delays if misconfigured
Centralized management via WLC	Complexity increases with scale
Supports BYOD and mobile-first strategies	Debugging inter-WLC issues can be tricky

---

Essential CLI Commands

Device	Command	Description
WLC	show mobility summary	Displays current mobility peers
WLC	show mobility group	Shows configured mobility group name
WLC	show mobility anchor	Lists static/dynamic mobility anchors
WLC	debug mobility handoff	Debug roaming handoffs
WLC	debug mobility events enable	Enables mobility event tracking
WLC	show client detail <MAC>	Shows client mobility state
WLC	config mobility group domain <name>	Sets the mobility group name
WLC	config mobility add <IP> <MAC> <Group>	Adds a peer WLC to the group
WLC	ping <WLC IP>	Basic connectivity test between WLCs
AP	show capwap client rcb	Client roaming control block (roaming info)

---

Real-World Use Case – University Wi-Fi Roaming

Component	Details
Business Need	Students roam across large campus while staying connected to the university SSID
Infrastructure	3 WLCs managing hundreds of APs across departments
Solution	All WLCs added to the same mobility group to ensure Layer 2/3 roaming
Benefits	Continuous access to e-learning platforms, voice calls, and video streaming

---

EVE-NG LAB – Simulating Roaming and Mobility Groups

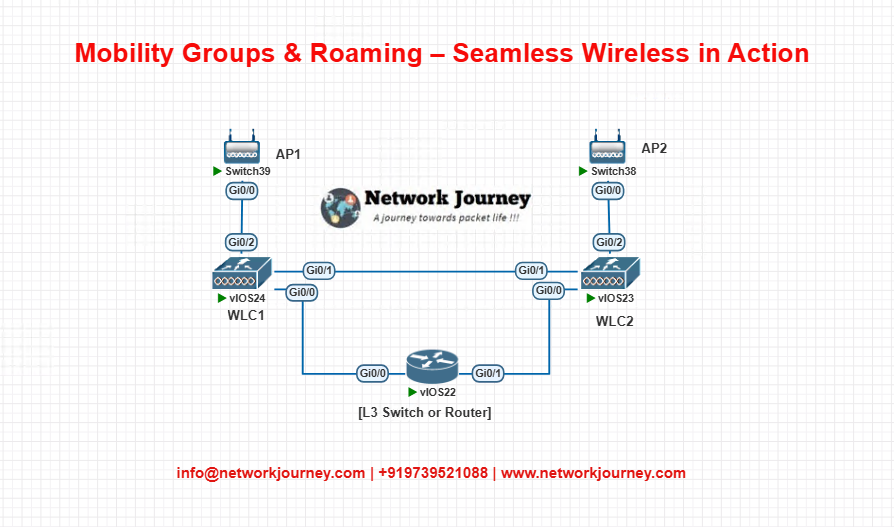

Topology Diagram

---

Step-by-Step CLI Configuration

Step 1: Set the Mobility Group Name

On WLC1:

config mobility group domain NetworkJourney

On WLC2:

config mobility group domain NetworkJourney

Step 2: Add Each Other as Mobility Peers

On WLC1:

config mobility add 192.168.1.2 00:11:22:33:44:55 NetworkJourney

On WLC2:

config mobility add 192.168.1.1 00:66:77:88:99:AA NetworkJourney

Step 3: Confirm Configuration

show mobility summary
show mobility group

Step 4: Connect Client to AP1 → Roam to AP2

Observe client status:

show client detail <MAC>

Look for:

• Anchor WLC
• Foreign WLC
• Mobility state

---

Troubleshooting Tips

Issue	Command	Tip
Client drops during roaming	debug mobility handoff	Check if WLCs are in the same group
WLCs not sharing client info	show mobility summary	Validate peer IPs and MACs are correct
Roaming too slow	debug client events	Verify RF optimization and roaming thresholds
Layer 3 tunnel not forming	ping <WLC IP>	Check for firewall or routing issues
IP address changes post-roam	show client detail <MAC>	Client likely moved without Layer 3 roaming setup

---

Frequently Asked Questions (FAQ)

1. What is a Mobility Group in a wireless network?

Answer:
A Mobility Group is a logical grouping of Wireless LAN Controllers (WLCs) that allows seamless Layer 2 and Layer 3 client roaming between access points managed by different WLCs. When WLCs are part of the same Mobility Group, they exchange client context and maintain session continuity, enabling users to move across APs without losing connectivity—even if managed by different controllers.

---

2. Why are Mobility Groups important in enterprise WLAN design?

Answer:
Mobility Groups enable centralized roaming intelligence. Without them, a roaming client would need to reauthenticate every time it switches controllers. This would break real-time applications like VoIP or video calls. By sharing session and client data between controllers, Mobility Groups preserve user experience and maintain uninterrupted service during transitions between APs or controllers.

---

3. How does roaming work in a Mobility Group?

Answer:
Roaming within a Mobility Group follows these steps:

• Layer 2 Roaming: If the client moves to a new AP on the same VLAN/subnet, the WLC simply updates the client entry without requiring reauthentication.
• Layer 3 Roaming: If the client moves to a new AP in a different subnet (different WLC), the original controller becomes the Anchor WLC, and the new controller becomes the Foreign WLC. Client traffic is tunneled back to the anchor via Mobility Tunnels, maintaining session continuity.

---

4. What are Anchor and Foreign Controllers in the context of client roaming?

Answer:
In Layer 3 Roaming, the controller that originally authenticated the client is called the Anchor WLC, and the one currently serving the client’s new AP is the Foreign WLC.

• The Anchor WLC holds the IP session and routes all data traffic.
• The Foreign WLC forwards user data through the CAPWAP tunnel to the Anchor.

This setup keeps the IP address constant, avoiding disruptions in applications that are sensitive to IP changes.

---

5. Can clients roam between controllers in different Mobility Groups?

Answer:
No, seamless roaming is only supported within the same Mobility Group. Controllers in different Mobility Groups do not share client context, so the client would be forced to reauthenticate, possibly get a new IP address, and face service interruptions. If your network spans multiple locations, ensure all relevant WLCs belong to the same Mobility Group for smooth handovers.

---

6. How many controllers can be part of a Mobility Group?

Answer:
Cisco supports up to 72 controllers in a single Mobility Group, depending on hardware and software versions. However, it’s best to design with scalability and performance in mind—keep the group size manageable to reduce overhead and complexity. Always validate your WLC model’s limits in Cisco documentation or use design best practices for enterprise-scale WLANs.

---

7. What is Mobility Domain vs. Mobility Group—are they the same?

Answer:
They are related but not the same:

• Mobility Group: Refers to the set of WLCs that share client session info for seamless roaming.
• Mobility Domain: A configuration term used primarily in Fast Secure Roaming (802.11r) that defines where fast transitions are allowed without full reauthentication.

In short: Mobility Group = Controller-level roaming, while Mobility Domain = Roaming behavior at the client/authentication level.

---

8. What commands are useful to verify Mobility Group and Roaming status on a Cisco WLC?

Answer:
Here are a few essential CLI commands for troubleshooting:

Command	Purpose
show mobility summary	Displays summary of mobility peers and group name
show mobility group member	Shows each member’s IP, status, and role
show client detail <MAC>	View client-specific roaming and anchor/foreign info
debug mobility handoff	Real-time logs of roaming events and handoffs

These commands help identify connectivity issues, misconfigurations, or failed handoffs.

---

9. What factors influence roaming decisions for wireless clients?

Answer:
While the controller manages mobility, the client device ultimately decides when and where to roam based on:

• Signal strength (RSSI)
• Signal-to-noise ratio (SNR)
• AP load and capacity
• Channel interference
• Vendor-specific roaming algorithms

This means even if the controller is configured correctly, poor client-side decisions can still cause roaming delays or sticky clients.

---

10. How do you ensure optimal roaming performance in a Mobility Group deployment?

Answer:
To ensure fast and reliable roaming:

• Tune RF settings: Use proper transmit power and minimal channel overlap.
• Enable Fast Roaming protocols like 802.11r, 802.11k, and 802.11v.
• Avoid client stickiness: Lower AP min RSSI thresholds to encourage roaming.
• Keep firmware updated: On both WLC and client devices.
• Monitor and test: Use tools like Wi-Fi analyzers and roaming simulators to evaluate client behavior.

Proper planning and tuning are key to delivering a truly seamless mobility experience in enterprise wireless networks.

---

YouTube Link

Watch the Complete CCNP Enterprise: Mobility Groups & Roaming – Seamless Wireless in Action Lab Demo & Explanation on our channel:

---

Final Note

Understanding how to differentiate and implement Mobility Groups & Roaming – Seamless Wireless in Action is critical for anyone pursuing CCNP Enterprise (ENCOR) certification or working in enterprise network roles. Use this guide in your practice labs, real-world projects, and interviews to show a solid grasp of architectural planning and CLI-level configuration skills.
