Native VLAN Mismatch Detection: The Hidden Threat to Your Network [CCNP ENTERPRISE]

It’s subtle, often goes unnoticed, and yet can silently disrupt your network, especially when dealing with trunk links. I created this article so you don’t just memorize it for your CCNA or CCNP—you understand it, simulate it, and troubleshoot it like a real-world engineer. Let’s get into this crucial topic.

---

Theory in Brief: Understanding Native VLAN Mismatches

In IEEE 802.1Q trunking, VLAN tags are used to differentiate traffic from different VLANs. However, one VLAN is always allowed to travel untagged across the trunk. This is known as the Native VLAN.

By default, Cisco assigns VLAN 1 as the native VLAN on trunk ports. But when two connected switches have different native VLANs on each end of a trunk, it creates a native VLAN mismatch. This leads to security risks, misrouted traffic, and troubleshooting nightmares.

Why does this matter? Untagged frames sent by one switch are interpreted differently by the other switch if the native VLANs don’t match. It can break Layer 2 connectivity and interfere with Voice VLANs, management traffic, or routing updates.

This issue is often detected through CDP (Cisco Discovery Protocol), which throws a warning if it notices a native VLAN mismatch between trunk links.

---

Comparison: Risks, and Benefits

Feature	Native VLAN Matched	Native VLAN Mismatched
VLAN Tagging Behavior	Untagged frames treated identically	Untagged frames assigned to wrong VLAN
Switch Behavior	Normal communication	Miscommunication or packet loss
Detected by CDP?	No warning	Yes – CDP will log mismatch
Use Case	Management VLAN, voice/data separation	Mistaken config during manual trunk setup
Security Implications	Standard isolation	Can lead to VLAN hopping, data leaks
Real-World Risk	Low	High if left unchecked

---

Essential CLI Commands

Purpose	Command	Description
Show VLANs on the switch	show vlan brief	View VLAN database
Show trunking status	show interfaces trunk	Verify trunk ports and native VLAN
Verify interface switchport config	show interfaces <intf> switchport	View access/trunk mode and native VLAN
Detect native VLAN mismatch (CDP)	show cdp neighbors detail	CDP alerts on mismatched VLANs
Change native VLAN	switchport trunk native vlan <VLAN_ID>	Sets correct native VLAN on trunk
Debug VLAN packets (optional)	debug sw-vlan packet	Low-level packet debug
Show spanning-tree config per VLAN	show spanning-tree vlan <ID>	Check STP forwarding/blocking status
Ping between VLANs (via L3)	ping <IP>	Basic L3 connectivity test

---

Real-World Use Case

Scenario	Setup Details	Impact if Mismatch Exists
Inter-switch trunk link	SW1 native VLAN 1, SW2 native VLAN 99	Untagged traffic misinterpreted on SW2
Voice/data VLAN separation	Voice = 20 (tagged), Data = 10 (native)	Voice packets may drop or be misrouted
Management VLAN config	Switch A = native VLAN 10, Switch B = native VLAN 1	Management access disrupted
Trunk link with mismatched VLAN tags	Allowed VLANs correct, native VLAN differs	STP topology issues or traffic flooding

---

EVE-NG Lab – Native VLAN Mismatch Demo

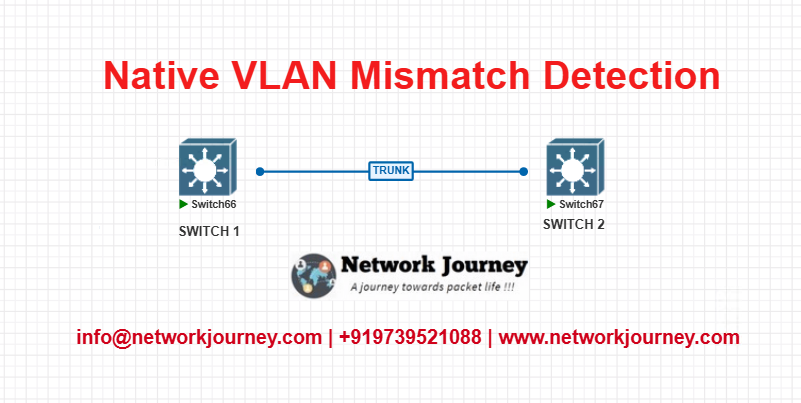

Lab Topology:

Goal: Create a mismatch and detect it with CDP

---

Config – SW1 (Native VLAN 10)

vlan 10
 name DATA

interface fa0/24
 switchport trunk encapsulation dot1q
 switchport mode trunk
 switchport trunk native vlan 10

---

Config – SW2 (Native VLAN 99)

vlan 99
 name MGMT

interface fa0/24
 switchport trunk encapsulation dot1q
 switchport mode trunk
 switchport trunk native vlan 99

---

Test – Use CDP to detect mismatch

SW1# show cdp neighbors detail
! CDP will alert: "Native VLAN mismatch discovered on Fa0/24"

You’ll also notice unpredictable behavior if untagged traffic passes this trunk—especially management VLAN or DHCP issues.

---

Troubleshooting Tips

Problem	Likely Cause	CLI to Use	Fix
CDP alert about native VLAN	Mismatch between trunk links	show cdp neighbors detail	Align native VLANs
Inter-VLAN communication failure	Incorrect trunk native config	show interfaces trunk	Correct native VLAN
Management traffic blocked	Native VLAN doesn’t carry management	show run int <intf>	Reassign native VLAN
STP inconsistency errors	Misaligned VLANs on trunks	show spanning-tree vlan <id>	Verify VLAN path and root
Traffic leakage between VLANs	Native VLAN not isolated	show vlan, show interfaces switchport	Use unused VLAN as native VLAN

---

FAQs – Native VLAN Mismatch

1. What is the Native VLAN in Cisco switches?

Answer:
The Native VLAN is the VLAN that carries untagged traffic on an 802.1Q trunk link.
By default, the native VLAN is VLAN 1, but it can be changed for security or segmentation purposes. Any untagged frame arriving on a trunk port is assumed to belong to the native VLAN.

---

2. What is a Native VLAN mismatch?

Answer:
A Native VLAN mismatch occurs when two ends of a trunk link have different native VLANs configured. For example:

• Switch A: native VLAN 10
• Switch B: native VLAN 20

This causes untagged traffic to be assigned to different VLANs at each end, leading to data leakage, routing errors, and broadcast domain confusion.

---

3. How can I detect a native VLAN mismatch on a Cisco network?

Answer:
Use:

show cdp neighbors detail

This reveals native VLAN configuration mismatches via Cisco Discovery Protocol (CDP).

You may also see log messages like:

%CDP-4-NATIVE_VLAN_MISMATCH: Native VLAN mismatch discovered on FastEthernet0/1

---

4. Why is a Native VLAN mismatch considered a security risk?

Answer:
Because untagged traffic may be mistakenly switched into the wrong VLAN, leading to:

• Traffic leaks across VLANs
• Inter-VLAN communication bypassing routing policies
• Potential for man-in-the-middle (MITM) attacks

Attackers can exploit VLAN hopping in such misconfigurations.

---

5. What is the best practice for Native VLAN configuration?

Answer:

• Always match native VLANs on both sides of a trunk link.
• Avoid using VLAN 1 as native; create a dedicated, unused VLAN (e.g., VLAN 999).
• Explicitly set native VLANs:

interface gi0/1
 switchport trunk native vlan 999

• Restrict the native VLAN from being used on access ports.

---

6. Can you disable untagged traffic completely on a trunk port?

Answer:
Not directly, but you can mitigate untagged traffic by:

• Setting a non-existent VLAN as native
• Using Private VLANs or Dynamic ARP Inspection (DAI) for better security
• Enabling 802.1X and port security on end-user access ports

---

7. How do I change the native VLAN on a trunk port?

Answer:

interface gi0/1
 switchport trunk native vlan 999

This command changes the native VLAN to 999. Ensure the same setting exists on both trunk ends to avoid mismatches.

---

8. How does STP behave during a native VLAN mismatch?

Answer:
Spanning Tree Protocol (STP) sends BPDUs on the native VLAN. If there’s a mismatch:

• BPDUs may be interpreted incorrectly or missed
• This can lead to STP topology loops or instability
• Inconsistencies in root bridge election and port roles may occur

---

9. How can I protect my network from native VLAN-related issues?

Answer:

• Change the native VLAN to an unused VLAN (e.g., VLAN 999)
• Use CDP/LLDP for automated mismatch detection
• Apply BPDU Guard and Root Guard on access ports
• Periodically verify trunk settings:

show interfaces trunk

---

10. How does native VLAN mismatch affect VoIP phones or access ports?

Answer:
On ports using both voice and data VLANs, a native VLAN mismatch can:

• Disrupt voice traffic tagging
• Cause DHCP failure for phones or PCs
• Lead to QoS policy mismatches

Always test VoIP ports thoroughly when native VLANs are configured or changed.

---

YouTube Link

Watch the Complete CCNP Enterprise: Native VLAN Mismatch Detection: The Hidden Threat to Your Network Lab Demo & Explanation on our channel:

---

Final Note

Understanding how to differentiate and implement Native VLAN Mismatch Detection: The Hidden Threat to Your Network is critical for anyone pursuing CCNP Enterprise (ENCOR) certification or working in enterprise network roles. Use this guide in your practice labs, real-world projects, and interviews to show a solid grasp of architectural planning and CLI-level configuration skills.
