As a network trainer and hands-on engineer, I’ve seen engineers struggle not with capturing packets—but with filtering them effectively in Wireshark. Trust me, if you don’t filter the noise, your packet captures become digital haystacks. That’s why in this post, I’m sharing battle-tested Wireshark filter tips, specifically tailored for Layer 2 and Layer 3 scenarios. Whether you’re troubleshooting a VLAN issue or tracking an IP conflict, these filter hacks will save you hours of head-scratching. Let’s dive in and make Wireshark your best friend!


Theory in Brief

What is Wireshark?
Wireshark is the world’s most popular network protocol analyzer. It captures packets in real time and lets you inspect every field—down to the bit level. It supports hundreds of protocols and is used by network engineers, cybersecurity experts, and developers.

Why do filters matter?
In modern networks, you’re not just capturing a few packets—you’re pulling thousands every second. Without proper filters, meaningful analysis becomes impossible. Filters help narrow down the noise, highlight anomalies, and zoom in on issues like broadcast storms, spanning tree loops, ARP conflicts, DNS delays, and TCP retransmissions.

Layer 2 vs Layer 3 filtering:
At Layer 2, you deal with MAC addresses, VLAN tags, and Ethernet types. At Layer 3, the focus shifts to IP addressing, routing protocols, and ICMP/TCP/UDP headers. Knowing what and where to filter is crucial—Wireshark gives you surgical precision for both.

Capture vs Display Filters:

  • Capture Filters are set before the capture starts (like host 192.168.1.1)
  • Display Filters are applied after capture to dissect traffic (like ip.src == 192.168.1.1)

Summary / Comparison / Pros and Cons

Key Comparison of Layer 2 vs Layer 3 Filtering

Filter LevelFocus AreasExample FilterUse Case
Layer 2MAC address, VLAN, EtherTypeeth.src == 00:11:22:33:44:55Track specific host’s Ethernet traffic
Layer 3IP address, ICMP, Routing protocolsip.dst == 192.168.1.1Trace packets to a destination device

Pros and Cons of Using Wireshark Filters

ProsCons
Pinpoint accuracy in traffic analysisComplex syntax can confuse new users
Great for both real-time and offline analysisDisplay filters don’t reduce capture file size
Vast protocol supportToo many filters can slow down analysis
Open source and widely supportedRequires admin rights for some capture interfaces

Essential CLI Commands for Filter-Based Troubleshooting

Here are some essential Wireshark-related CLI commands and TCP/IP stack helpers you’ll often use:

TaskCommandDescription
Start Wireshark with capture filterwireshark -f "host 10.10.10.1"Captures only traffic to/from specific IP
Display MAC address filtereth.addr == aa:bb:cc:dd:ee:ffShows Layer 2 traffic from a specific device
Display IP filterip.addr == 192.168.0.10Filters packets with specific IP
Show ARP trafficarpUseful for detecting ARP storms
View DNS queriesdns && ip.addr == 8.8.8.8DNS to/from Google’s public DNS
TCP retransmissionstcp.analysis.retransmissionDetects performance issues in TCP
ICMP troubleshootingicmpFor ping and network unreachable analysis

Real-World Use Case

ScenarioFilter UsedPurpose/Benefit
Troubleshoot ARP issuesarpDetect IP conflicts or excessive broadcasts
Analyze VLAN tagging problemsvlan.id == 100Isolate traffic on VLAN 100
Identify rogue DHCP serverbootp.option.dhcp == 1Detect unauthorized DHCP offers
Diagnose slow HTTP applicationhttp.request + tcp.analysis.flagsFind delays or TCP retransmissions
Monitor specific user IPip.addr == 192.168.1.100Trace user-specific problems
Find spanning tree loopsstp or llc.dsap == 0x42Detect excessive STP BPDUs

EVE-NG Lab – Basic Layer 2 & 3 Capture

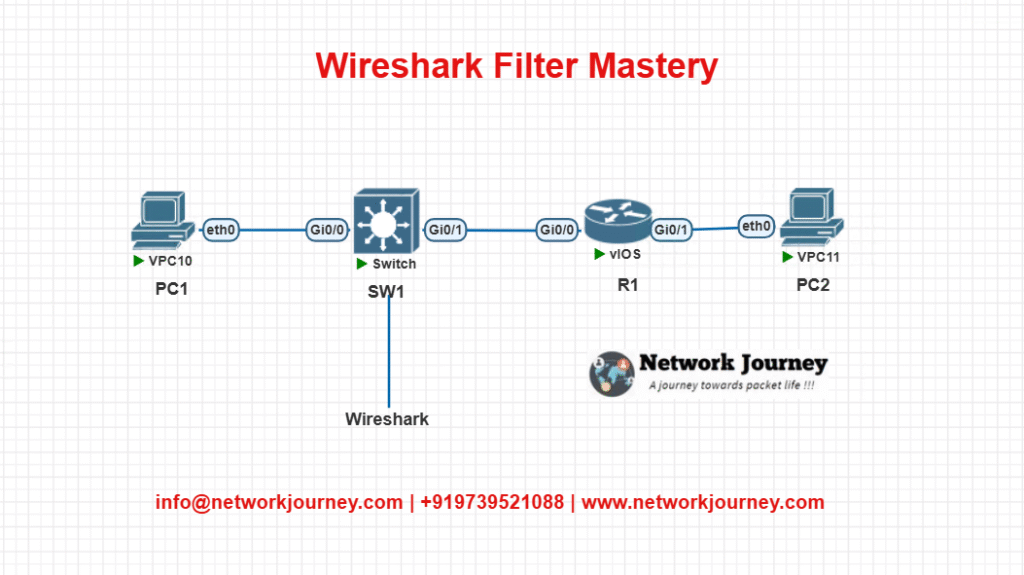

Lab Topology


Goal:

  • Capture packets between PC1 and PC2 using Wireshark.
  • Filter based on VLAN, IP, and ICMP.

Configuration Summary

R1:

interface Gig0/0
 ip address 192.168.1.1 255.255.255.0
 no shut

PC1:

ip address 192.168.1.10 255.255.255.0

PC2:

ip address 192.168.1.20 255.255.255.0

SW1 (optional VLAN config):

vlan 10
interface fa0/1
 switchport mode access
 switchport access vlan 10

Wireshark Interface:

Start capture on the interface connected to SW1, apply filters like:

  • ip.addr == 192.168.1.10
  • icmp
  • eth.src == 00:11:22:33:44:55

Troubleshooting Tips

SymptomPossible CauseFilter or Command to Use
Too many packetsNo filter appliedUse ip.addr == x.x.x.x
Cannot see VLAN trafficCapture not done on trunk portUse vlan.id == <VLAN> and capture on trunk
ARP floodingIP conflict or rogue deviceUse arp to identify high frequency requests
DNS timeoutResolver unreachableUse dns + ip.addr == 8.8.8.8
Missing ICMP repliesACL or firewall dropping echo replyUse icmp to isolate dropped packets

Frequently Asked Questions (FAQs)

1. What’s the difference between Capture Filters and Display Filters in Wireshark?

Answer:
Capture Filters are applied before packet collection begins. They determine what traffic gets captured by Wireshark. For example, if you set a capture filter like host 192.168.1.1, only traffic to or from that host will be captured.

Display Filters, on the other hand, are applied after the capture. They help you drill down into specific packets from a larger capture set. For example, ip.addr == 192.168.1.1 shows all packets involving that IP within the existing capture file.


2. How can I filter traffic from a specific MAC address?

Answer:
Use Wireshark’s display filter:
eth.addr == 00:11:22:33:44:55
This will show all packets with the specified MAC address as either the source or destination. If you want to filter by direction, use:

  • eth.src == 00:11:22:33:44:55 for source
  • eth.dst == 00:11:22:33:44:55 for destination

This is useful for identifying Layer 2 issues or tracking rogue devices.


3. Can I use Wireshark to detect VLAN tagging problems?

Answer:
Yes. You can apply the filter:
vlan
to show all VLAN-tagged traffic. To filter by VLAN ID specifically, use:
vlan.id == 100
If VLANs are misconfigured or missing tags, these filters will help you confirm if tags are present or if traffic is being sent untagged over trunk ports.


4. How do I detect ARP spoofing or duplicate IP addresses with Wireshark?

Answer:
Use the filter:
arp
Look for multiple ARP replies mapping the same IP address to different MAC addresses. That’s a clear sign of ARP spoofing or IP conflict. Also, excessive ARP requests from one host may indicate a misconfigured or rogue device.


5. Is it possible to monitor ping (ICMP Echo) traffic using Wireshark?

Answer:
Absolutely. Use the filter:
icmp
to capture both Echo Requests and Echo Replies.
For direction-specific filters:

  • icmp.type == 8 for Echo Request (ping)
  • icmp.type == 0 for Echo Reply

This is helpful when troubleshooting network reachability and packet loss.


6. How can I analyze slow HTTP or web application performance?

Answer:
Use these filters:

  • http.request – to see all client HTTP requests
  • http.response – to analyze server replies
  • tcp.analysis.retransmission – to identify packet retransmissions

You can also right-click on a TCP stream and use “Follow → TCP Stream” to view the entire conversation between the client and server.


7. What’s the best way to filter DNS queries and responses?

Answer:
Use the filter:
dns
To monitor DNS traffic involving a specific IP (like Google DNS), use:
dns && ip.addr == 8.8.8.8
This helps when diagnosing resolution delays, misconfigured DNS servers, or DNS-related connectivity issues.


8. How do I troubleshoot TCP connection issues with Wireshark?

Answer:
Use filters like:

  • tcp.flags.syn == 1 to see TCP connection attempts
  • tcp.analysis.retransmission to catch retransmitted packets
  • tcp.analysis.flags to view handshake, resets, or zero-window conditions

These help identify issues like slow handshakes, packet loss, or congestion.


9. Can I use Wireshark to detect a STP (Spanning Tree Protocol) loop?

Answer:
Yes. Use the filter:
stp
or
llc.dsap == 0x42
If you see excessive BPDUs from multiple sources or repeated TCNs (Topology Change Notifications), it may indicate a spanning-tree issue or loop forming in the Layer 2 network.


10. Can I apply filters in EVE-NG or GNS3 when running Wireshark captures?

Answer:
Yes. In both EVE-NG and GNS3, when you launch Wireshark to capture packets on virtual links, you can apply display filters just like on physical networks.

Examples:

  • ip.addr == 192.168.1.10 to focus on a single host
  • icmp to observe pings
  • eth.src == <MAC> for Layer 2 filtering

This helps in lab simulations when debugging L2-L3 behavior without real devices.
