[Day 36] Cisco ISE Mastery Training: Multi-Domain Authentication (Voice + Data VLAN)

---

Introduction

In modern enterprise environments, a single Ethernet port often serves two devices simultaneously:

• An IP phone (using the Voice VLAN)
• A user endpoint like a PC or laptop connected through the phone’s internal switch port (using the Data VLAN)

Multi-Domain Authentication (MDA) enables these two devices to authenticate independently using 802.1X or MAB, ensuring role-based access control while maintaining proper VLAN segmentation.

Without MDA, your security posture weakens — either the phone gets unauthenticated access or the PC rides on the same VLAN without compliance enforcement.

Cisco ISE integrates seamlessly with MDA to:

• Authenticate both devices separately
• Apply correct VLANs (voice/data) dynamically
• Enforce posture/security policies for the data VLAN user without affecting voice traffic

---

Problem Statement

When a switchport connects to both an IP phone and a PC:

• If authentication is per-port, the PC can bypass security using the phone’s session.
• Voice devices may be blocked or delayed if strict NAC rules are applied to both.
• Network segmentation for voice QoS and user security becomes impossible without per-device policies.

Result: Security gaps, VLAN leaks, compliance failures, and poor VoIP quality.

---

Solution Overview

Cisco ISE + Catalyst Switch MDA:

• Per-domain authentication: Voice devices authenticate in the voice domain, PCs in the data domain.
• VLANs are dynamically assigned per device based on ISE Authorization Profiles.
• IP phones often use MAB (OUI-based), while PCs use 802.1X/EAP-TLS.
• Ensures zero VLAN hopping and correct QoS tagging for voice traffic.

---

Sample Lab Topology

Lab Components:

• Platform: VMware/EVE-NG
• Cisco ISE: v3.x (Policy Node + Admin Node)
• Switch: Catalyst 9300/3650 (IOS-XE 16.x) in EVE-NG or physical
• Endpoints:
  • Cisco IP Phone 88xx/79xx series (or simulated via MAB MAC)
  • Windows 10 PC with AnyConnect NAM for 802.1X
• AD Server for user authentication

Topology Diagram:

---

Step-by-Step GUI Configuration Guide

A. Switch CLI Configuration for MDA

! Enable AAA
aaa new-model
aaa authentication dot1x default group radius
aaa authorization network default group radius

! Define RADIUS Servers
radius server ISE1
 address ipv4 10.10.10.10 auth-port 1812 acct-port 1813
 key C1sc0ISE

! Interface MDA config
interface Gi1/0/10
 switchport mode access
 switchport voice vlan 20
 authentication host-mode multi-domain
 authentication order mab dot1x
 authentication priority mab dot1x
 authentication port-control auto
 mab
 dot1x pae authenticator
 spanning-tree portfast

---

B. ISE GUI Configuration

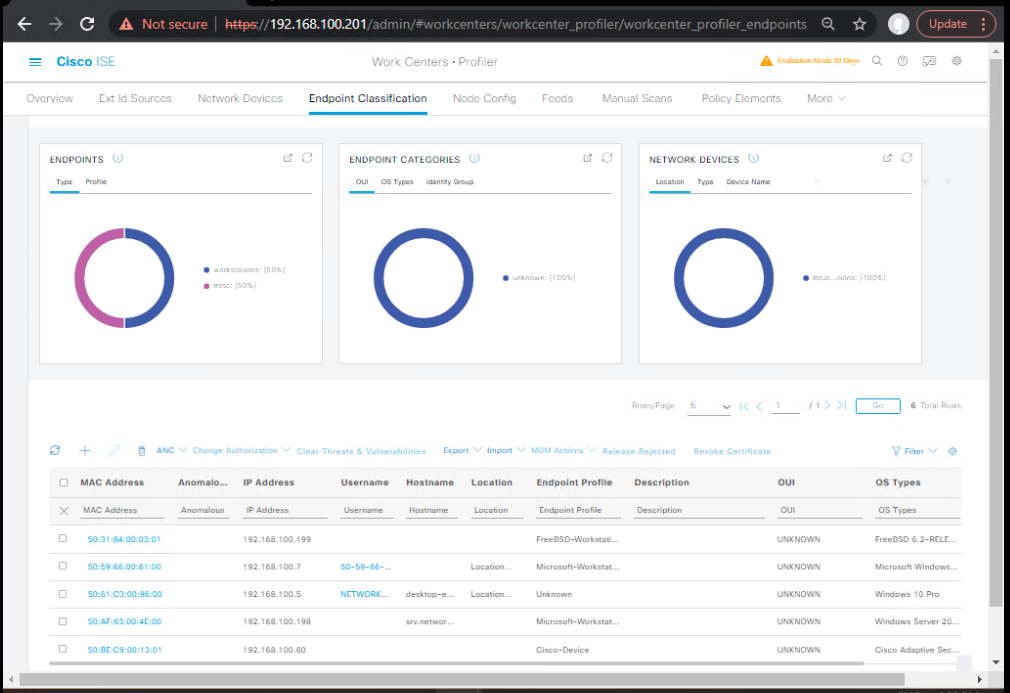

Step 1 – Add IP Phone OUI to Endpoint Identity Group

1. Work Centers → Profiler → Endpoint Identity Groups
2. Create group: IP_Phones
3. Add condition: OUI CONTAINS 00:1B:54 (example Cisco phone OUI)
   [Screenshot: Endpoint Identity Group Creation]

---

Step 2 – Create Authorization Profiles

• Voice AuthZ Profile:
  • Name: VOICE_VLAN_20
  • VLAN: 20
  • DACL: Permit voice services
  • QoS marking optional
• Data AuthZ Profile:
  • Name: DATA_VLAN_30
  • VLAN: 30
  • Apply posture policy if needed

[Screenshot: AuthZ Profile Screen]

---

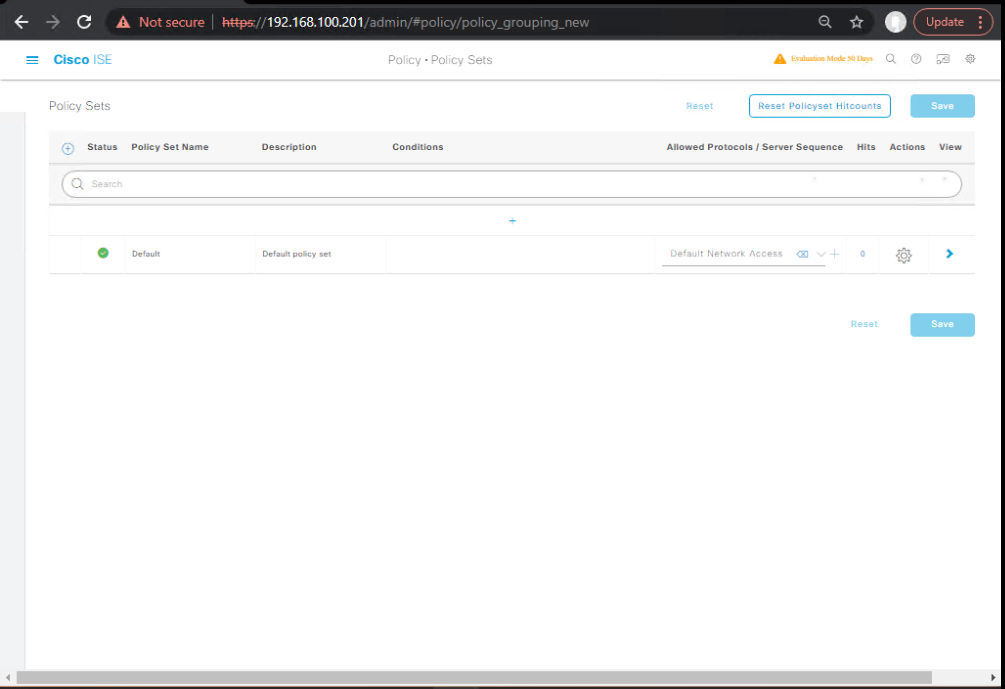

Step 3 – Create Policy Set

1. Go to Policy → Policy Sets
2. Create new Policy Set: MDA-Voice-Data
3. Conditions:
   • Voice Domain: IF EndpointGroup == IP_Phones THEN VOICE_VLAN_20
   • Data Domain: IF Wired_802.1X_EAP-TLS THEN DATA_VLAN_30
     [Screenshot: Policy Set Screen]

---

Step 4 – Test Authentication

• Connect IP phone → Should authenticate via MAB, get VLAN 20
• Connect PC through phone → Should authenticate via 802.1X, get VLAN 30

---

FAQs – Multi-Domain Authentication

1. What is the main difference between MDA and Multi-Auth?

• MDA allows exactly one voice device in the voice domain and one data device in the data domain on a single port.
• Multi-Auth allows multiple authenticated devices in the data domain only — no separate voice domain.

---

2. Can an IP phone and PC use the same VLAN in MDA?

• Technically yes, but it defeats the purpose of MDA. Best practice is to assign a dedicated voice VLAN for QoS and security, and a separate data VLAN for endpoints.

---

3. How does ISE differentiate between a phone and a PC?

• Via profiling methods: OUI MAC database, CDP/LLDP info, DHCP fingerprinting. Most Cisco phones advertise device-type=IP Phone in CDP/LLDP packets.

---

4. What happens if the IP phone fails authentication?

• If MAB for the voice domain fails, the phone won’t get the voice VLAN and calls will fail. The PC can still attempt authentication in the data domain independently.

---

5. Which authentication method should be used for IP phones?

• Most deployments use MAB for phones (fast, low-touch). Some organizations enforce 802.1X EAP-TLS on newer phones for higher security.

---

6. Can I apply posture assessment to phones in MDA?

• Not recommended — posture assessment is designed for user endpoints. Phones are usually exempted from posture to avoid call disruption.

---

7. How do I verify MDA is working on the switch?

Run:

show authentication sessions interface Gi1/0/10 details

You should see two sessions:

• One with Domain: VOICE
• One with Domain: DATA

---

8. How do I check in ISE that both domains are authenticated?

• Go to Operations → RADIUS → Live Sessions and search for the switch port. You should see two separate RADIUS sessions tied to the same interface.

---

9. What VLAN is assigned if the PC fails authentication?

• It depends on your policy:
  • Critical VLAN if configured (for failed auth but essential connectivity)
  • Guest VLAN if unauthenticated users are allowed
  • Or port remains blocked if strict NAC is enforced

---

10. Does MDA work with downloadable ACLs (dACLs)?

• Yes. You can push separate dACLs for the voice and data domains from ISE. For example, voice domain may only allow SIP/RTP, while data domain follows corporate policy.

---

YouTube Link

For more in-depth Cisco ISE Mastery Training, subscribe to my YouTube channel Network Journey and join my instructor-led classes for hands-on, real-world ISE experience

---

Closing Notes

Multi-Domain Authentication is critical in environments where IP phones and PCs share the same access port. With proper ISE policies, you can:

• Maintain VLAN isolation
• Enforce security per device
• Preserve QoS for voice
• Keep compliance posture checks intact for data users

---
