Introduction

Wireless networks are the lifeline of modern enterprises — but also a massive attack surface. Without centralized authentication and policy enforcement, wireless SSIDs become easy entry points for unauthorized users, rogue devices, and security breaches.

Cisco Identity Services Engine (ISE) brings RADIUS-based 802.1X/WPA2-Enterprise authentication to the wireless edge, integrating directly with Cisco Wireless LAN Controllers (WLCs) to enforce access policies, posture checks, VLAN assignments, and dynamic ACLs — all in real-time.

By mastering WLC-ISE integration, you gain the ability to:

  • Authenticate users with AD/LDAP credentials.
  • Differentiate corporate, BYOD, and guest devices automatically.
  • Enforce role-based access policies without manual VLAN/SSID sprawl.
  • Centrally log and monitor all wireless access events.

Today’s lab will walk you through end-to-end WLC integration with ISE, so you can authenticate and control wireless access at enterprise scale.

Problem Statement

Without ISE integration, a WLC can only do pre-shared key (PSK) or simple MAC filtering — neither is secure or scalable:

  • PSKs are static, can be shared, and require rekeying for every change.
  • MAC filtering is easily bypassed with spoofing.
  • No dynamic policy: All users/devices are treated the same, regardless of their identity or posture.

In regulated industries (finance, healthcare, government), compliance demands centralized authentication, authorization, and accounting (AAA) with audit logs — exactly what WLC-ISE integration delivers.

Solution Overview

The WLC communicates with ISE over RADIUS (AAA):

  1. User/device connects to SSID.
  2. WLC forwards credentials to ISE.
  3. ISE validates identity against AD, local DB, or certificates.
  4. ISE sends authorization attributes back to WLC (VLAN, ACL, QoS).
  5. WLC applies policy instantly.

We will configure:

  • WLC as a RADIUS client on ISE.
  • WLC SSID for 802.1X authentication.
  • ISE policy sets for wireless access control.
  • CLI + GUI verification for successful integration.

Sample Lab Topology

Platform:

  • VMware Workstation / EVE-NG hosting:
    • Cisco ISE 3.x VM
    • Cisco WLC (v8.x or v9800 if IOS-XE based)
    • Catalyst Switch for trunking
    • Windows Server (AD + DNS + DHCP)
    • Wireless endpoint (Windows 10 laptop, smartphone)

Diagram:

Step-by-Step GUI & CLI Configuration Guide

Step 1 – Add WLC as a RADIUS Client in ISE

  1. Go to Administration → Network Resources → Network Devices.
  2. Click Add.
  3. Name: WLC-9800-LAB
  4. IP Address: Management IP of WLC (e.g., 192.168.10.10).
  5. Shared Secret: ISEradius@123 (must match WLC).
  6. Check RADIUS Authentication Settings.
  7. Click Save.

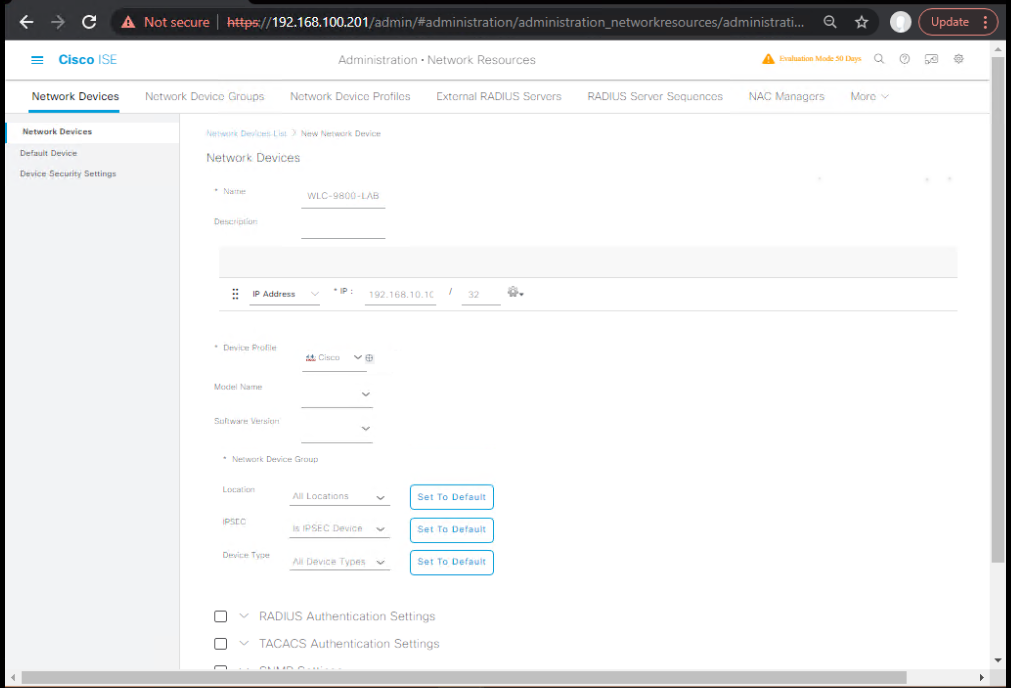

    [Screenshot: ISE Add Network Device Screen]

Step 2 – Configure WLC for RADIUS with ISE

GUI Method

  1. Login to WLC GUI → Security → AAA → RADIUS Authentication.
  2. Click New.
  3. Server Address: ISE IP (192.168.10.20).
  4. Shared Secret: Same as in Step 1.
  5. Enable Support for CoA (Change of Authorization).
    [Screenshot: WLC RADIUS Auth Server Config]

CLI Method

config radius auth add 192.168.10.20 1812 ascii ISEradius@123
config radius auth enable 192.168.10.20
config radius auth port 192.168.10.20 1812
config radius auth network-timeout 5
config radius auth retransmit 3
config radius auth support-coa enable 192.168.10.20

Step 3 – Configure SSID for 802.1X

GUI:

  1. WLANs → Create New → Go.
  2. Name: Corp-Secure
  3. SSID: Corp-Secure
  4. Security: WPA2-Enterprise
  5. Authentication: 802.1X → RADIUS Server: ISE

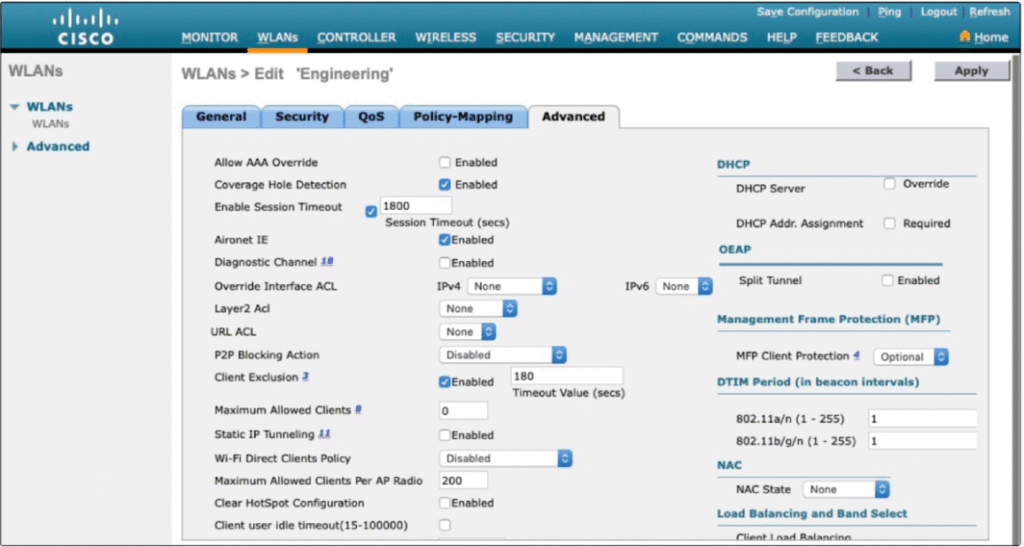

    [Screenshot: WLC WLAN Security Tab]

Step 4 – Create ISE Policy Set

  1. Go to Policy → Policy Sets → Add.
  2. Name: Wireless_8021X_Policy
  3. Conditions: Device Type = Wireless AND SSID = Corp-Secure.
  4. Authentication Policy: Allow EAP-TLS/PEAP against AD.
  5. Authorization Policy: Map roles to VLANs or ACLs.
    [Screenshot: ISE Policy Set Screen]

Step 5 – Validate Authentication

On WLC CLI:

debug client <MAC-address>
debug aaa all enable
show client detail <MAC-address>

On ISE GUI:

  • Operations → RADIUS Live Logs → Look for Authentication Passed.

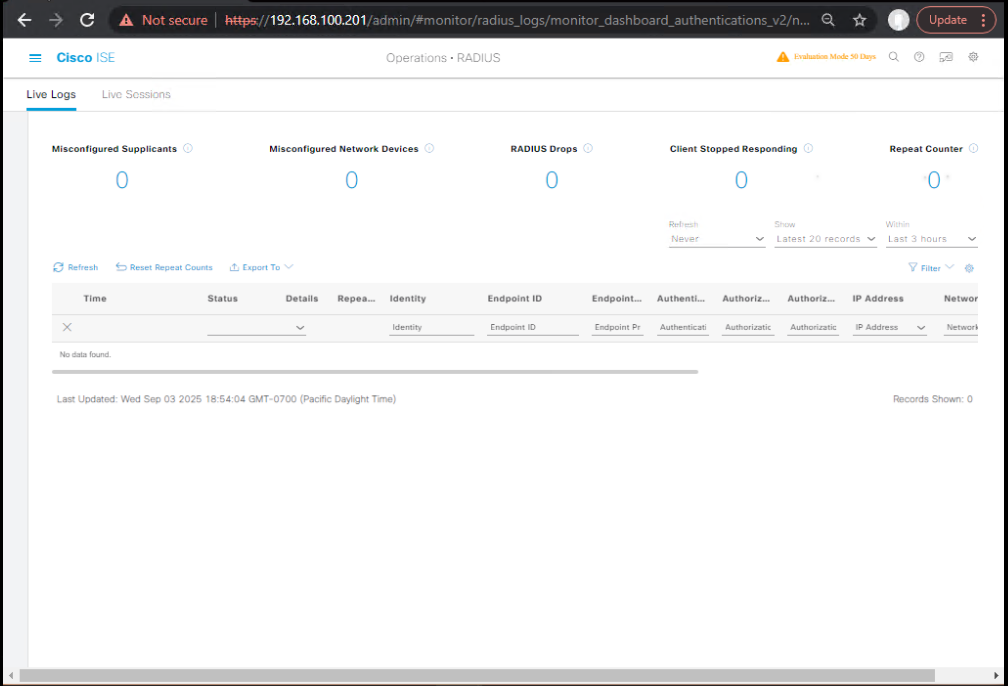

    [Screenshot: ISE Live Logs Success Entry]

Step 6 – Validate Authorization

On WLC CLI:

show wlan <wlan-id>
show client detail <MAC-address> | include VLAN

Check if VLAN/ACL matches ISE authorization result.

FAQs

1. Do I need a separate SSID for ISE integration?

Answer: No. You can integrate any existing SSID with ISE by changing its authentication method to WPA2/WPA3-Enterprise (802.1X) and pointing it to the ISE RADIUS server. However, many engineers prefer creating a dedicated SSID (e.g., Corp-Secure) for easier testing before migrating production users.

2. Which authentication protocols are supported?

Answer: Commonly used protocols are PEAP-MSCHAPv2 (username/password) and EAP-TLS (certificate-based). PEAP is easier to deploy but less secure. EAP-TLS provides the highest security but requires PKI infrastructure for certificate management.

3. Can WLC send device MAC addresses to ISE for profiling?

Answer: Yes. WLC includes Calling-Station-ID (client MAC) in RADIUS requests. ISE can use this for profiling to differentiate device types (laptop, phone, IoT) and apply different authorization rules.

4. How do I verify that RADIUS communication is working?

Answer:

  • On WLC CLI: test aaa radius 192.168.x.x username password ascii
  • On ISE GUI: Check Operations → RADIUS Live Logs for authentication attempts.

5. What is CoA and why is it important in wireless NAC?

Answer: Change of Authorization (CoA) allows ISE to change a user’s session dynamically without disconnecting them — for example, after posture validation. Without CoA, the user must reconnect to get updated policies.

6. Can I assign VLANs dynamically based on AD group membership?

Answer: Yes. Create Authorization Profiles in ISE mapping AD groups to VLAN IDs, then return the Tunnel-Private-Group-ID RADIUS attribute to WLC during authentication.

7. What happens if ISE is unreachable during wireless authentication?

Answer:

  • If Fallback Policy on WLC is set to Open, users may connect without authentication (security risk).
  • If set to Closed, authentication will fail and users cannot connect.
    Design HA by deploying at least two ISE Policy Service Nodes.

8. How do I capture wireless authentication logs for troubleshooting?

Answer:

  • On WLC CLI: debug client <mac-address> debug aaa all enable
  • On ISE GUI: Check Live Logs with filters for MAC or username.

9. Is there a difference in config between AireOS WLC and IOS-XE WLC (9800 series)?

Answer: Yes — the GUI paths differ, and IOS-XE uses a policy profile structure. But the AAA concepts, RADIUS server settings, and ISE integration principles remain identical.

10. Can I integrate multiple WLCs with a single ISE cluster?

Answer: Absolutely. Each WLC is added as a separate network device in ISE with its own management IP and shared secret. They can all point to the same ISE PSN(s) for authentication.
