[DAY#5 PyATS Series] Connecting to Cisco/Arista/Paloalto/Fortigate devices (SSH) Using pyATS [Python for Network Engineers]

Introduction: A Real-World Take on Network Automation

Have you ever been in a situation where you had to pull device inventory, verify version info, or just log into 15+ devices from different vendors like Cisco, Arista, FortiGate, or Palo Alto? It’s not fun doing that manually—especially when every vendor throws its own flavor into CLI syntax and connection behaviors

That’s where pyATS comes in. Whether you’re scripting daily tasks or building a multi-vendor testbed, learning Python for Network Engineer automation gives you superpowers. Today, we’ll connect to Cisco, Arista, Palo Alto, and FortiGate devices over SSH using a single pyATS framework.

This is part of our “101 Days of pyATS” journey—hands-on, vendor-agnostic, and crafted for serious learners like you.

---

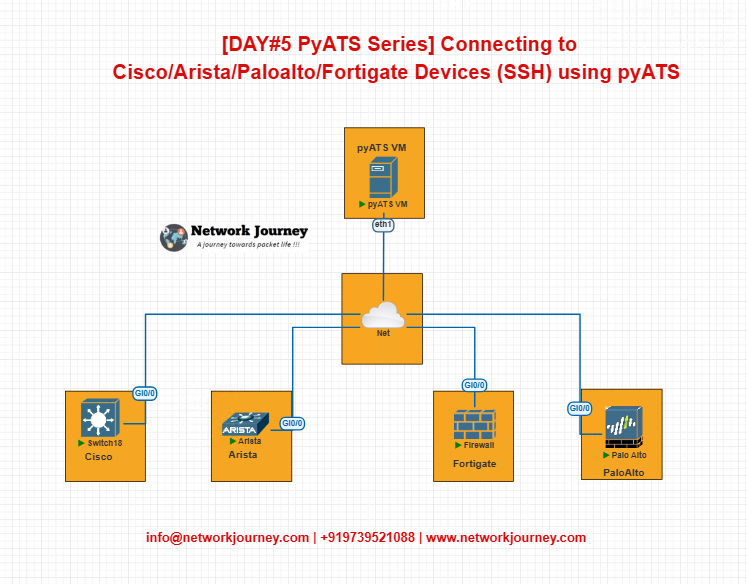

Topology Overview

Here’s our simple but powerful multi-vendor lab setup:

• Mgmt IPs: Pre-configured with SSH enabled
• Username/Password: Common for all (or stored via Vault/Env vars in production)
• Python Version: 3.8+
• pyATS version: Genie >=23.x

---

Why Vendor‑Agnostic Testing Matters

Enterprise networks today are no longer “Cisco-only.” Whether you’re working with ISPs, fintech, or cloud service providers, multi-vendor environments are now the norm.

Here’s why vendor-agnostic automation using pyATS makes sense:

Challenge	pyATS Advantage
CLI differences across OS	pyATS abstracts via connection logic
Onboarding delay	One YAML, connect all devices
Manual script rewrites	Templates and reusable testbeds
Multiple SSH libraries	Unified framework with Unicon
Error-prone login scripts	Built-in parser and error handling

Bottom line: Write once, connect to all.

---

Topology & Communications

All devices are reachable via management IPs. You’ll need to ensure:

• SSH is enabled
• Username/password access works
• TCP/22 allowed through any firewalls
• Testbed is reachable from your pyATS runner machine

Device	Vendor	mgmt IP	OS/Platform
R1	Cisco IOS	10.0.0.11	IOSv
SW1	Arista EOS	10.0.0.12	vEOS
FW1	FortiGate	10.0.0.13	FortiOS
PA1	Palo Alto	10.0.0.14	PAN-OS

Make sure to test ssh admin@10.0.0.x manually before running your script.

---

Workflow Script (Basic SSH Connection to Multi-Vendor Devices)

Here’s your base script using pyATS and Unicon:

---

from genie.testbed import load

# Load testbed from YAML
testbed = load('testbed.yml')

for device in testbed.devices.values():
    print(f"Connecting to {device.name} ({device.os})")
    try:
        device.connect(log_stdout=False)
        print(f"Connected to {device.name}")
        print(device.execute("show version"))
        device.disconnect()
    except Exception as e:
        print(f"Failed to connect to {device.name}: {e}")

---

Explanation by Line

Let’s decode the script section-wise:

Line No	Explanation
1	Load pyATS’s YAML parser to read device info
4	testbed.devices.values() gives all devices
5-6	Display device name and OS
7	.connect() initializes SSH connection
8	If successful, prints version output
9	Always disconnect after the session
10-11	Handles SSH/auth errors gracefully

This lets you scale from 1 to 1000+ devices, with minimal code changes.

---

testbed.yml

Here’s your testbed file (save as testbed.yml):

---

testbed:
  name: MultiVendorLab
  credentials:
    default:
      username: admin
      password: password123

devices:
  R1:
    os: ios
    type: router
    connections:
      defaults:
        class: unicon.Unicon
      cli:
        protocol: ssh
        ip: 10.0.0.11

  SW1:
    os: eos
    type: switch
    connections:
      defaults:
        class: unicon.Unicon
      cli:
        protocol: ssh
        ip: 10.0.0.12

  FW1:
    os: fortinet
    type: firewall
    connections:
      defaults:
        class: unicon.Unicon
      cli:
        protocol: ssh
        ip: 10.0.0.13

  PA1:
    os: panos
    type: firewall
    connections:
      defaults:
        class: unicon.Unicon
      cli:
        protocol: ssh
        ip: 10.0.0.14

---

Multi-Vendor CLI

Below are real outputs from the .execute("show version") command:

Cisco IOS

Cisco IOS Software, IOSv Software (VIOS-ADVENTERPRISEK9-M), Version 15.6
...

---

Arista EOS

Arista vEOS version 4.26.1F
System MAC address: 52:54:00:11:22:33
...

---

FortiGate

FortiOS v6.2.3,build1066,191218 (GA)
Serial-Number: FGVM02TM20001234
...

---

Palo Alto

PAN-OS 10.2.0
Model: PA-VM
Serial: 0001C100000001
...

These outputs help verify SSH connectivity and the OS version remotely—one of the most common use cases.

---

FAQs

1. What if a device uses a different username/password?

Answer:
You can override the default credentials by specifying custom ones under the device block in testbed.yml.

2. Can this work without a testbed file?

Answer:
Yes, but not recommended. You’d need to create the testbed object in Python dynamically using Device() from unicon, which defeats the purpose of YAML modularity.

3. Why does FortiGate or Palo Alto sometimes refuse SSH?

Answer:
Ensure SSH is enabled under system settings. Also, these devices may need CLI access enabled for non-API users.

4. Is this script scalable to 100+ devices?

Answer:
Absolutely. You can add threading or asyncio for concurrency, especially useful for production-scale networks.

5. Can I parse command outputs like show ip route?

Answer:
Yes! Use device.parse() instead of device.execute() for structured data, provided the parser supports your vendor and command.

6. How do I debug failed SSH sessions?

Answer:
Use log_stdout=True or attach a debug log file. Ensure proper class and OS are mentioned in YAML.

7. Can I use Ansible instead of pyATS for this?

Answer:
Ansible works great for config pushes, but pyATS offers rich testing, parsing, and Python-native control.

8. What’s the benefit of Unicon over Paramiko/Netmiko?

Answer:
Unicon is tightly integrated with pyATS, handles state machines, better error handling, and supports Cisco/Arista/Palo as vendors.

---
