Ever had one of those moments where your device just locks up, and you can’t even SSH or ping it anymore—even though the CPU is not maxed out? I’ve been there. As someone who’s spent years deep in the trenches of data centers and campus networks, I can tell you that most of the time, it’s not the data plane that gives up—it’s the control plane that’s overwhelmed

That’s why today, we’re diving into one of the most critical but often neglected topics in network hardening: Control Plane Policing (CoPP). If you’re building or managing enterprise-grade infrastructure—be it for service providers or high-availability enterprise cores—CoPP isn’t optional; it’s essential. In this blog, we’ll unpack what CoPP is, why it matters, how it works, and how to implement and troubleshoot it using both CLI and EVE-NG labs.


Theory in Brief

What is the Control Plane?

The Control Plane is like the brain of a network device—it manages routing tables, processes management protocols (like SSH, SNMP), handles CDP/LLDP, and more. It doesn’t forward actual traffic—that’s the job of the Data Plane—but it tells the data plane how to forward traffic.

The Problem: Control Plane Overload

Unlike the data plane, which is often hardware accelerated, the control plane is CPU-driven and vulnerable to high packet rates. Malicious actors or even legitimate traffic surges (like OSPF storms) can bring your router’s brain to a halt, making it unresponsive.

The Solution: Control Plane Policing (CoPP)

CoPP is a feature that allows you to define and enforce QoS policies for traffic destined to the control plane. It helps prevent DoS attacks and keeps critical protocols functional by rate-limiting or dropping unnecessary traffic before it reaches the CPU.

How it Works

Cisco platforms implement CoPP using Modular QoS CLI (MQC). You define traffic classes, create policies, and apply them to the control-plane using a special command. You can match protocols, IPs, ACLs, or even DSCP values.


Summary

FeatureDescription
PurposeProtect router/switch control plane from overload
Applies ToTraffic destined to the device itself
Implementation PlatformIOS, IOS-XE, NX-OS (syntax may vary)
Common MatchesSSH, Telnet, BGP, OSPF, SNMP, ICMP, etc.
EnforcementPolicy Maps with policing or rate-limiting
Deployment Best PracticePermit essential, rate-limit important, drop unknown
Troubleshooting Toolshow policy-map control-plane, show class-map, debug control-plane

CLI Commands

TaskCommand ExampleNotes
Create ACL for BGPip access-list standard BGP-ACL
permit host 10.1.1.1
Match trusted BGP neighbor IPs
Define class-mapclass-map match-any BGP-CLASS
match access-group name BGP-ACL
Create policy-mappolicy-map CONTROL-PLANE
class BGP-CLASS
police 8000 1000 conform-action transmit exceed-action drop
Polices traffic to 8kbps
Apply to control-planecontrol-plane
service-policy input CONTROL-PLANE
Applies policy to traffic going to CPU
Verify policyshow policy-map control-planeCheck if matches and actions are applied
Debug trafficdebug ip icmp
debug control-plane input
Use carefully—impacts CPU

Real-World Use Case

ScenarioProblemHow CoPP Helps
Large campus core switchBroadcast storms or rogue SNMP floodsRate-limit non-essential control traffic
BGP Edge Router under DDoSBGP, SSH traffic floods hitting CPUDrop untrusted source IPs, police essential protocols
Remote access routerICMP flood via WAN linkRate-limit ICMP to prevent CPU starvation
IoT NetworkExcessive CDP/LLDP packets from unmanaged devicesDrop or rate-limit discovery protocols

EVE-NG Mini LAB: Control Plane Policing

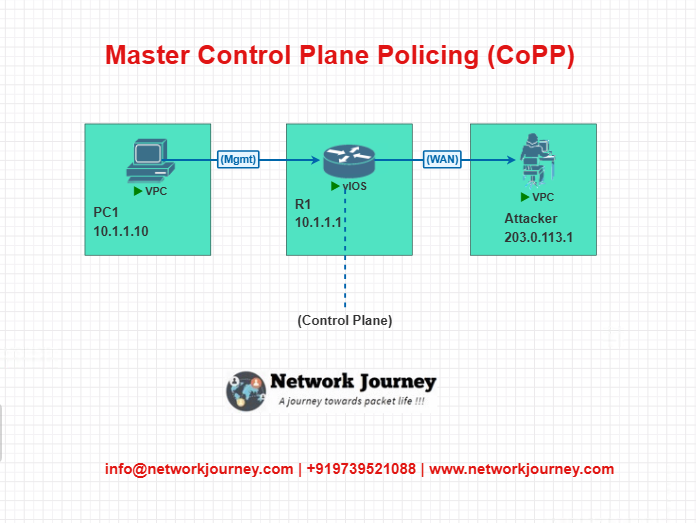

LAB TOPOLOGY

DEVICE CONFIGURATION

Step 1: Create ACL to Match BGP Peer

R1(config)# ip access-list standard BGP-ACL
R1(config-std-nacl)# permit 10.1.1.2

Step 2: Define Class-map

R1(config)# class-map match-any BGP-CLASS
R1(config-cmap)# match access-group name BGP-ACL

Step 3: Create Policy-map

R1(config)# policy-map CONTROL-PLANE
R1(config-pmap)# class BGP-CLASS
R1(config-pmap-c)# police 8000 1000
R1(config-pmap-c)# conform-action transmit
R1(config-pmap-c)# exceed-action drop

Step 4: Apply to Control Plane

R1(config)# control-plane
R1(config-cp)# service-policy input CONTROL-PLANE

VERIFICATION

R1# show policy-map control-plane

Look for “packets matched” and “drop” counts.


Troubleshooting Tips

SymptomPossible CauseSolution
Device unreachableCoPP drops critical management protocolsEnsure correct match in class-map and ACLs
Policy not matchingWrong ACL or class-map syntaxVerify ACL entries, use show class-map
Legitimate packets droppedOver-aggressive policingAdjust policing rate and burst sizes
High CPU despite CoPPCoPP not applied correctlyRe-check with show policy-map control-plane
ICMP reply droppedICMP not permitted in any classAdd class-map for ICMP with controlled rate

Most Common FAQs on CoPP

1. What exactly is Control Plane Policing (CoPP) and why is it important?

Answer:
Control Plane Policing (CoPP) is a security and QoS feature that allows network engineers to filter and rate-limit traffic destined to the control plane (CPU) of a router or switch.

Its importance lies in:

  • Preventing Denial-of-Service (DoS) attacks on the CPU.
  • Ensuring that vital protocols like BGP, OSPF, SSH, SNMP, and ICMP are protected and receive sufficient CPU time.
  • Allowing fine-grained control over which protocols can reach the control plane and at what rate.

Without CoPP, even a simple ICMP flood or malformed routing packet could render your core device unreachable.


2. How does CoPP differ from traditional QoS or ACL filtering?

Answer:
CoPP is control-plane specific, whereas traditional QoS or ACLs are often applied on transit traffic going through the data plane.

Key differences:

FeatureTraditional QoS/ACLsCoPP
Applies toTransit traffic (data plane)Control plane (to device CPU)
ObjectivePrioritize/delay/drop trafficProtect router CPU from overload
Applied OnInterfacesControl plane (via control-plane command)

CoPP protects the device itself, not the traffic going through it.


3. Can CoPP cause legitimate traffic like BGP or SSH to drop?

Answer:
Yes, if misconfigured, CoPP can unintentionally rate-limit or block essential control plane traffic.

Common causes include:

  • Incorrect or missing IPs in the ACL.
  • Overly strict policing values.
  • Not accounting for burst traffic from protocols like OSPF or BGP.

Tip: Always test CoPP policies in a lab first and monitor live counters (show policy-map control-plane) during initial deployment.


4. What is the syntax to apply a CoPP policy in Cisco IOS/IOS-XE?

Answer:
The syntax uses MQC (Modular QoS CLI) style:

  1. Define an ACL: nginxCopyEditip access-list standard SSH-ACL permit host 10.1.1.1
  2. Define a class-map: pgsqlCopyEditclass-map match-any SSH-CLASS match access-group name SSH-ACL
  3. Define a policy-map: pgsqlCopyEditpolicy-map CONTROL-PLANE class SSH-CLASS police 8000 1000 conform-action transmit exceed-action drop
  4. Apply to control-plane: pgsqlCopyEditcontrol-plane service-policy input CONTROL-PLANE

This limits SSH traffic from 10.1.1.1 to 8 Kbps with 1 Kbps burst.


5. What are the best practices when designing a CoPP policy?

Answer:
Follow these structured best practices:

  1. Categorize traffic:
    • Critical: SSH, BGP, OSPF → Permit or rate-limit gently.
    • Important: SNMP, ICMP → Police moderately.
    • Unknown/Unwanted: Drop or tightly police.
  2. Use specific ACLs to match trusted sources only.
  3. Monitor initial traffic rates before deciding on police values.
  4. Test in EVE-NG or lab before applying to production.
  5. Document policy intent for future audits or team members.

6. What’s the difference between CoPP and CPPr?

Answer:
While both protect the control plane, there are key differences:

FeatureCoPPCPPr (Control Plane Protection)
ScopeWhole control-planeSub-interfaces of control-plane (routing, mgmt)
ConfigurationMQC style with ACL, class-map, etc.Platform-dependent (available in ISR/ASR)
GranularityBasicMore granular
AvailabilityIOS/IOS-XENot available on all platforms

Use Case Tip: If CPPr is available on your platform, it gives more refined control over types of control traffic.


7. How to verify if CoPP is working correctly on a live router?

Answer:
Use the following command to verify CoPP behavior:

show policy-map control-plane

Look for:

  • Class Match Count – How many packets are hitting each class.
  • Dropped Packets – Ensure legitimate protocols aren’t being dropped.
  • Police Rate Match – Confirms if policing is applied as intended.

Additionally, check:

show access-lists
show class-map
show policy-map

Use debug ip packet or debug control-plane carefully (on low CPU usage).


8. What happens if I don’t implement CoPP on my edge routers?

Answer:
Not having CoPP can lead to:

  • Complete CPU starvation during attacks like ICMP floods or BGP route spamming.
  • Unreachable routers—even management protocols like SSH or SNMP may stop responding.
  • Control plane instability affecting OSPF/BGP adjacencies.
  • Increased security risk from unauthorized or malformed packets.

For any internet-facing device, CoPP is a must-have, not a luxury.


9. How can I test CoPP in a lab setup like EVE-NG?

Answer:
Here’s how to simulate and test CoPP:

  1. Create 3 nodes:
    • R1 (router with CoPP policy)
    • PC1 (management station)
    • PC2 or Kali Linux (attacker)
  2. Use attacker node to flood R1 with ICMP, SNMP, or TCP traffic.
  3. Check CoPP stats using: pgsqlCopyEditshow policy-map control-plane
  4. Adjust police values and observe whether packets are dropped or allowed.

You can also run ping -t, nmap, or use hping3 to simulate various protocols.


10. Can I log dropped or policed packets in CoPP for auditing?

Answer:
Yes, but with limitations.

Options include:

  • ACL logging: pgsqlCopyEditip access-list extended DROP-ACL deny ip any any log
  • Syslog configuration to send logs to a central server.
  • Use SNMP traps (for larger environments) tied to control-plane thresholds.
  • Manual counter checks: pgsqlCopyEditshow policy-map control-plane

Logging every packet can be CPU-intensive, so log initially during testing, then disable for performance.


YouTube Video: CoPP Explained with Demo

Watch the Complete CCNP Enterprise: Master Control Plane Policing (CoPP) with Labs & CLI Demo & Explanation on our channel:

Class 1 CCNP Enterprise Course and Lab Introduction | FULL COURSE 120+ HRS | Trained by Sagar Dhawan
Class 2 CCNP Enterprise: Packet Flow in Switch vs Router, Discussion on Control, Data and Management
Class 3 Discussion on Various Network Device Components
Class 4 Traditional Network Topology vs SD Access Simplified

Final Note

Understanding how to differentiate and implement Don’t Let Your Router Crash! Master Control Plane Policing (CoPP) with Labs & CLI is critical for anyone pursuing CCNP Enterprise (ENCOR) certification or working in enterprise network roles. Use this guide in your practice labs, real-world projects, and interviews to show a solid grasp of architectural planning and CLI-level configuration skills.
