How Do Bridge Domains and EPGs Work Together in Cisco ACI? [CCNP Enterprise]

Today we’re going deep into a topic that often seems overwhelming at first but becomes incredibly exciting once you get the hang of it — Cisco ACI (Application Centric Infrastructure). When I first started exploring Cisco ACI in customer data center deployments, I found myself fascinated by how it breaks the norms of traditional networking with policy-driven architecture.

If you’re preparing for CCNP/CCIE Data Center or working in enterprise network design, this guide will help you understand the building blocks of ACI — Bridge Domains and EPGs (Endpoint Groups) — in a simple, real-world manner with CLI, use cases, and labs. Let’s dive right in.

---

Theory in Brief

What is Cisco ACI? Cisco ACI is Cisco’s SDN (Software Defined Networking) solution for modern data centers. Unlike traditional switch-by-switch configurations, ACI is built around a centralized controller called the APIC (Application Policy Infrastructure Controller) that manages the entire fabric using policies.

ACI Logical Model Overview:

• Tenants: Top-level container for policies, typically per customer or department.
• VRFs (Private Networks): Layer 3 segmentation within a tenant.
• Bridge Domains (BD): Layer 2 forwarding construct, similar to a VLAN.
• EPGs (Endpoint Groups): Logical grouping of endpoints that share common policies.

Bridge Domains and EPGs in Action:

• A Bridge Domain defines the subnet and gateway for your endpoints.
• EPGs group devices like VMs, bare-metal servers, or containers. These EPGs connect to Bridge Domains and control communication through contracts (ACL-like policies).

Why It Matters: This decoupling of policy from topology allows you to enforce consistent security, QoS, and forwarding decisions across your data center — no matter where your workloads live.

---

Bridge Domains and EPGs Summary

Feature	Bridge Domain	EPG (Endpoint Group)
Layer	Layer 2	Logical grouping (above L2/L3)
Purpose	Forwarding domain (like VLAN)	Group endpoints by application/policy
IP/Subnet Defined?	Yes	No
Connected To	EPGs, Subnets	BDs, Interfaces (Static Path, VMM, L2 out)
Policy Role	Routing/gateway config, Flooding behavior	Policy enforcement, contracts

---

Pros and Cons

Pros (Bridge Domain / EPG)	Cons
Centralized management (APIC)	Steep learning curve
Decouples policy from physical topology	Requires Cisco Nexus 9000 and APIC
Excellent for micro-segmentation	Policy dependency issues if misconfigured
Flexible path mapping (Static/Dynamic)	Slight complexity in troubleshooting

---

Essential CLI Commands (APIC & Leaf)

Task	Command Example	Description
Check EPGs in a Tenant	moquery -c fvAEPg -f 'fvAEPg.dn="uni/tn-Tenant1"'	Lists EPGs under a tenant
Check BD Configuration	moquery -c fvBD -f 'fvBD.dn="uni/tn-Tenant1"'	Show BD and associated subnets
Verify Contract Attachments	show contract usage	Displays contracts used in EPGs
Interface Path Binding	show interface eth 1/1 epg	Shows which EPG is mapped to interface
Ping from Leaf Switch	ping <destination IP>	Useful for verifying endpoint reachability

---

Real-World Use Cases

Use Case	Description	Benefit
Multi-Tenant DC	Isolate tenants using separate VRFs and EPGs	Policy isolation, tenant-level control
App-Tier Segmentation	Web, App, DB servers in different EPGs with contracts	Better security and access control
Hybrid Workload Policies	Physical + virtual workloads in same EPG	Uniform policies regardless of location
Service Insertion	Redirect traffic through FW using contracts & BDs	Integrated security without re-architecture

---

EVE-NG Lab: Mini ACI Simulation (Using vAPIC & vLeaf)

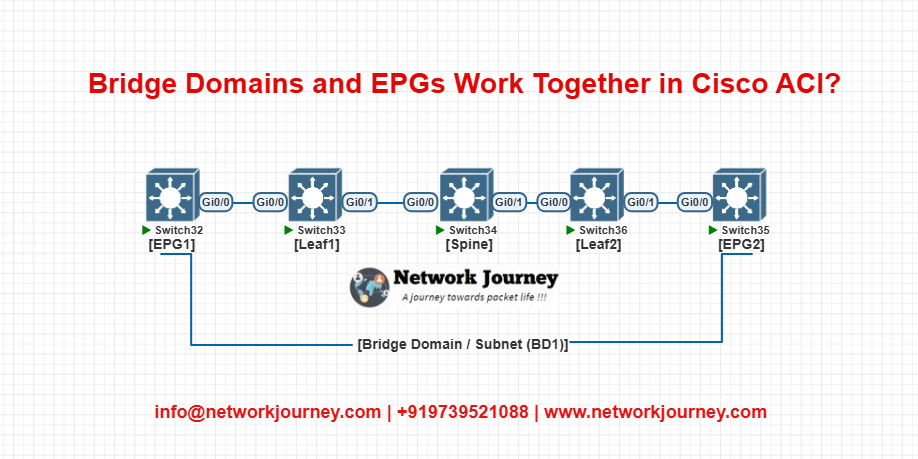

Lab Topology Diagram

• Use Cisco Nexus 9000v switches with ACI simulation in EVE-NG
• Simulate APIC using vAPIC image (limited functionality for practice)

Sample Configuration Flow:

# On APIC GUI or via REST/CLI
Create Tenant: Finance
Create VRF: Finance-VRF
Create Bridge Domain: BD-Finance
 Assign subnet: 10.10.10.1/24
Create Application Profile: App1
Create EPGs: Web-EPG, App-EPG
Associate both to BD-Finance
Bind EPG to interface: Leaf1 eth1/1 → Web-EPG
                      Leaf2 eth1/2 → App-EPG
Create Contracts: Web-to-App-Allow (TCP 8080)
Provide/Consume between EPGs

---

Troubleshooting Tips

Problem	Command/Tool	Resolution
Endpoint not learned	show endpoint on leaf	Check EPG mapping and BD subnet config
Contract not enforced	show zoning-rule	Validate correct provider/consumer setup
Ping fails between EPGs	ping from leaf or endpoint	Ensure contracts and BD subnet are reachable
Wrong Interface to EPG Mapping	show interface epg	Rebind or verify static path binding
APIC config not syncing	Check APIC logs or moquery	Verify fabric health and sync status

---

Frequently Asked Questions (FAQs)

1. What is a Bridge Domain in Cisco ACI?

Answer:
A Bridge Domain (BD) in Cisco ACI is a Layer 2 forwarding construct within a Tenant. It represents a broadcast domain, similar to a VLAN in traditional networking. All endpoints associated with the same BD can communicate at Layer 2. It is directly associated with a Subnet and can be connected to multiple EPGs.

---

2. What is an Endpoint Group (EPG)?

Answer:
An Endpoint Group (EPG) is a logical grouping of endpoints (servers, VMs, etc.) that share the same policy. EPGs determine how traffic is classified and treated in Cisco ACI. Policies like contracts (which define allowed traffic) are applied between EPGs rather than between VLANs or subnets.

---

3. How do Bridge Domains and EPGs relate to each other?

Answer:
EPGs are bound to a Bridge Domain. This means that all endpoints in an EPG reside in the same Layer 2 network (BD). The BD provides the networking context, while the EPG defines policy boundaries. You can have multiple EPGs mapped to the same BD, allowing policy-based segmentation within the same subnet.

---

4. Can multiple EPGs share the same Bridge Domain?

Answer:
Yes. This is a common design practice in ACI. Multiple EPGs can be associated with a single Bridge Domain. This allows for Layer 2 connectivity among endpoints, but policies (contracts) between EPGs control which endpoints can talk to each other, providing segmentation within a shared subnet.

---

5. Is subnet configuration done in the Bridge Domain or EPG?

Answer:
Subnets are configured within the Bridge Domain, not the EPG. The BD defines the IP gateway for the endpoints connected to it. You can also define multiple subnets in a BD if needed, and decide whether they are advertised externally or used internally.

---

6. Do EPGs provide any Layer 3 routing function?

Answer:
No. EPGs do not provide Layer 3 routing themselves. Routing between subnets (inter-BD routing) is handled by Contract and VRF logic within the ACI fabric. EPGs are simply groupings of endpoints for applying policy, not routing constructs.

---

7. How do Contracts work between EPGs?

Answer:
Contracts in Cisco ACI define what kind of traffic is allowed between two EPGs. If EPG A and EPG B are in the same or different Bridge Domains, they cannot talk to each other unless a contract is applied. Contracts contain filters that define protocols/ports allowed.

---

8. Can a Bridge Domain span multiple VRFs?

Answer:
No. A Bridge Domain is always associated with a single VRF. VRFs provide Layer 3 segmentation, and a BD cannot exist in more than one VRF. However, multiple BDs can exist within the same VRF.

---

9. What happens if I associate two EPGs to different BDs but forget to configure a contract?

Answer:
If no contract is applied and ‘Enforced Mode’ is enabled (which it is by default), there will be no communication between the EPGs, even if the Bridge Domains are in the same VRF. A contract must be configured to explicitly allow communication between those EPGs.

---

10. Can I use Bridge Domains without EPGs or vice versa?

Answer:
No. In Cisco ACI, both Bridge Domains and EPGs are mandatory components of the forwarding and policy model. A BD provides Layer 2 context, and EPGs group endpoints for policy enforcement. One cannot function as intended without the other in an operational ACI fabric.

---

YouTube Link

Watch the Complete CCNP Enterprise: How Do Bridge Domains and EPGs Work Together in Cisco ACI? Lab Demo & Explanation on our channel:

---

Final Note

Understanding how to differentiate and implement How Do Bridge Domains and EPGs Work Together in Cisco ACI? is critical for anyone pursuing CCNP Enterprise (ENCOR) certification or working in enterprise network roles. Use this guide in your practice labs, real-world projects, and interviews to show a solid grasp of architectural planning and CLI-level configuration skills.
