We’re going to unravel one of the most critical topics in networking — Loop Prevention Techniques. If you’ve ever spent hours troubleshooting unstable networks, flapping routes, or broadcast storms, chances are, you’ve come face-to-face with some sort of looping issue.

In the classroom or during real-world deployments, this is something I see engineers struggle with quite a bit. But don’t worry — by the end of this article, you’ll not only understand why loops happen, but also how to prevent them like a pro using industry-standard techniques and tools.

Let’s break it down in a way that’s simple, actionable, and lab-tested .


Theory in Brief – What Causes Loops?

In networking, a loop is a scenario where packets continuously circulate between devices without reaching their destination. This can:

  • Consume bandwidth
  • Overwhelm routers/switches
  • Cause instability and outages

Loops typically occur in Layer 2 (switching) or Layer 3 (routing) domains, and the prevention techniques vary depending on the layer.

Layer 2 Loops

At Layer 2, Ethernet doesn’t have a native TTL mechanism — so frames can circulate forever. This is why Spanning Tree Protocol (STP) and its variants exist: they prevent switching loops by creating a loop-free topology.

Layer 3 Loops

At Layer 3, routing loops occur when incorrect or outdated routing information causes packets to bounce between routers. These are often a result of:

  • Slow convergence
  • Misconfiguration
  • Route redistribution without filters

To combat this, routing protocols have built-in loop prevention mechanisms like hop count limits, split horizon, and route poisoning.


Comparison – Loop Prevention Techniques

TechniqueLayerUsed InProsCons
Spanning Tree Protocol2Ethernet SwitchingAutomatically blocks loopsSlow convergence (in classic STP)
Rapid STP / MST2Modern SwitchingFaster convergenceStill can block backup paths
Split Horizon3RIP, EIGRPPrevents routing info bouncingDoesn’t work in all topologies
Route Poisoning3RIPMarks bad routes to flush themLimited to distance-vector protocols
Hold-Down Timers3RIPSuppresses route flappingMay delay convergence unnecessarily
TTL / Hop Count Limit3All IP packetsEnsures packets don’t loop foreverDoesn’t prevent loop formation
Loop Guard / BPDU Guard2Cisco SwitchingPrevents unidirectional loopsNeeds manual config and monitoring
Route Filtering with Tags3RedistributionPrevents routing loop via tagsRequires route-map knowledge

Essential CLI Commands

CommandDescription
show spanning-treeView STP status and root bridge info
spanning-tree bpduguard enableEnable BPDU guard on interface
show ip protocolsView routing protocol timers & AD
debug ip rip / debug eigrp packetsTrace routing updates for loop detection
show ip routeExamine route origin and potential loops
show ip ospf databaseVerify LSAs and routing loops in OSPF
`show runinclude route-map`

Real-World Use Case: Multi-WAN with Conditional Routing & Redistribution

ScenarioDescription
EnvironmentEnterprise with dual WAN links (ISP1 and ISP2)
ProblemLoops occurred due to improper redistribution between OSPF and EIGRP
SolutionUsed route-maps with tagging + distribute-list filtering
ResultRoutes are now cleanly exchanged without looping back into original domain
CLI Usedset tag, match tag, route-map, redistribute, distribute-list

EVE-NG LAB: Simulating a Routing Loop and Preventing It

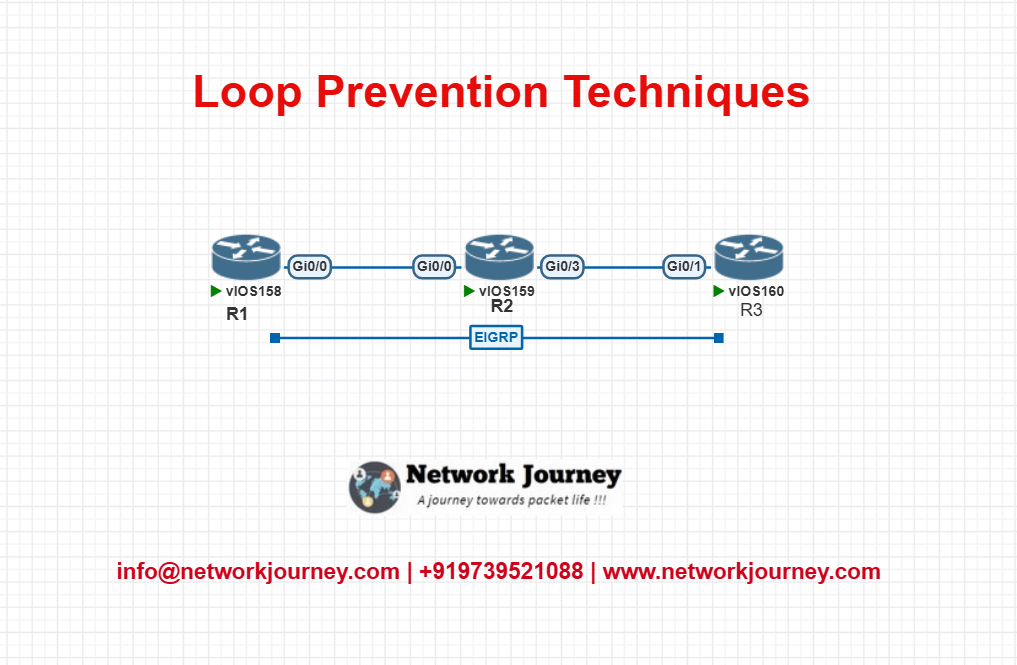

Lab Topology

Goal:

  • R1 runs OSPF
  • R3 runs EIGRP
  • R2 redistributes between both

Without proper filtering, R1 → R2 → R3 → R2 → R1 will create a loop!


Key Configuration Snippet

On R2: Tag incoming EIGRP routes
route-map TAG-EIGRP permit 10
set tag 100

router ospf 1
redistribute eigrp 100 subnets route-map TAG-EIGRP

! Prevent re-injection
route-map BLOCK-TAG permit 10
match tag 100
!
route-map BLOCK-TAG deny 20

router eigrp 100
redistribute ospf 1 route-map BLOCK-TAG

Verification

show ip route
debug ip routing
show ip protocols

You’ll now see that OSPF routes tagged with 100 do not return to EIGRP — loop prevented!


Troubleshooting Tips

SymptomPossible CauseFix
STP topology flaps frequentlyMisbehaving switches or unidirectional linkEnable BPDU Guard and Loop Guard
EIGRP routes bounce back into OSPFNo filtering or tagging appliedUse route-maps with tags
RIP loops in hub-and-spoke topologySplit horizon disabled on hubEnable split horizon or use filtering
Traffic keeps spinning between routersNo TTL decrement or convergence delayCheck TTL, use debug ip packet
Convergence too slow after loop fixSTP/RIP timers too highOptimize hello/dead/hold-down timers

FAQs – Loop Prevention Techniques

1. What is a routing loop, and why is it dangerous for a network?

Answer:
A routing loop occurs when packets circulate endlessly between routers due to incorrect or outdated routing information. It happens mostly in dynamic routing environments where convergence is slow or broken. This situation consumes bandwidth, CPU, and memory resources and can bring down your entire network segment. That’s why loop prevention is not just good practice—it’s essential.


2. How do distance vector protocols prevent routing loops?

Answer:
Distance vector protocols like RIP and EIGRP use several loop prevention mechanisms:

  • Split Horizon: Prevents a route learned on an interface from being advertised back out the same interface.
  • Route Poisoning: Marks a failed route with an unreachable metric (e.g., 16 in RIP).
  • Hold-down Timers: Suppresses changes for a certain period to allow stable convergence.
  • Triggered Updates: Sends immediate updates on route changes.

These techniques help avoid loops before they form or reduce the impact of a temporary loop.


3. What loop prevention techniques are used in OSPF?

Answer:
OSPF is a link-state protocol and doesn’t rely on techniques like split horizon or route poisoning. Instead, it uses:

  • Dijkstra’s SPF algorithm: Calculates the shortest path tree with a complete network topology.
  • LSA aging and sequence numbers: Ensure routers always have the most recent information.
  • Hierarchical design with areas: Limits the scope of route updates, making the protocol more loop-resilient.

Since OSPF maintains a full map of the network, it inherently avoids routing loops during normal operation.


4. How does BGP prevent routing loops, especially on the internet?

Answer:
BGP (Border Gateway Protocol) uses AS_PATH attribute to prevent loops. Every time a BGP route passes through an autonomous system (AS), the AS number is prepended to the AS_PATH.

If a router receives a route containing its own AS number in the AS_PATH, it knows that the route has already passed through it and rejects it, preventing a loop.

This is a very scalable and effective technique in large-scale networks like the internet.


5. What is the role of TTL in loop prevention?

Answer:
TTL (Time to Live) is a Layer 3 mechanism in IP packets that acts as a last-resort loop prevention technique. Every time a packet passes through a router, the TTL is decremented by 1.

If TTL reaches 0, the packet is discarded, and an ICMP “Time Exceeded” message is sent back. This prevents packets from looping infinitely, though it doesn’t stop the loop itself—just its symptoms.


6. What is Split Horizon, and how does it work?

Answer:
Split Horizon is a simple yet effective rule used in distance vector protocols like RIP and EIGRP. It states:

“Never advertise a route back out of the interface from which it was learned.”

This avoids the possibility of another router considering you as a valid next-hop for a route that it originally advertised to you. It’s a key defense mechanism against loops in small-to-medium networks.


7. What is route poisoning and how is it different from hold-down timers?

Answer:
Route Poisoning means advertising an unreachable route with the maximum possible metric (e.g., 16 in RIP, which means “infinity”). This tells all neighboring routers that the route is no longer valid.

On the other hand, Hold-down Timers temporarily suppress changes to routes for a fixed period, allowing time for the network to converge. They prevent the “bouncing” of routes due to flapping links.

Both work together to stabilize and protect the network during topology changes.


8. How does EIGRP prevent loops differently from RIP?

Answer:
EIGRP uses a more advanced method called the Diffusing Update Algorithm (DUAL). It ensures that:

  • Routes are only installed if a feasible successor exists.
  • Feasibility Condition ensures loop-free routes by comparing advertised distances.

Unlike RIP, which waits on timers, EIGRP makes intelligent decisions based on real-time topology changes. This makes loop prevention faster and more reliable.


9. Can using static routes create routing loops? How do we prevent them?

Answer:
Yes, static routes can unintentionally cause loops, especially in redundant topologies where administrators forget to account for failover paths or don’t monitor interface states.

To prevent loops with static routes:

  • Always use next-hop verification.
  • Combine with IP SLA and object tracking.
  • Implement floating static routes with higher AD as backups.

Manual configuration needs careful planning—static doesn’t mean safe by default.


10. What best practices should a network engineer follow to avoid routing loops?

Answer:
Here are some practical recommendations:

  • Understand your routing protocol’s loop prevention tools (split horizon, DUAL, SPF, AS_PATH).
  • Use route summarization to limit routing updates and convergence scope.
  • Design a hierarchical network (especially with OSPF areas or BGP confederations).
  • Avoid unnecessary redistribution between protocols.
  • Monitor routes proactively using syslogs, SNMP traps, or NetFlow.

Loop prevention is about anticipating mistakes, not just reacting to them. Think like a troubleshooter before issues arise.


YouTube Link

Watch the Complete CCNP Enterprise: Loop Prevention Techniques – Keeping Your Network Stable and Efficient Lab Demo & Explanation on our channel:

Class 1 CCNP Enterprise Course and Lab Introduction | FULL COURSE 120+ HRS | Trained by Sagar Dhawan
Class 2 CCNP Enterprise: Packet Flow in Switch vs Router, Discussion on Control, Data and Management
Class 3 Discussion on Various Network Device Components
Class 4 Traditional Network Topology vs SD Access Simplified

Final Note

Understanding how to differentiate and implement Loop Prevention Techniques – Keeping Your Network Stable and Efficient is critical for anyone pursuing CCNP Enterprise (ENCOR) certification or working in enterprise network roles. Use this guide in your practice labs, real-world projects, and interviews to show a solid grasp of architectural planning and CLI-level configuration skills.
