we’re diving into one of the most underutilized yet powerful tools in network troubleshooting—Syslog. Whether you’re a CCNA, CCNP aspirant, or a working professional in a NOC/SOC environment, having a deep understanding of Syslog Levels and Configuration will save you hours of guesswork and help you become a more efficient network engineer.

Syslog isn’t just a logging mechanism—it’s your network’s voice. From hardware failures to interface flaps and authentication logs, Syslog provides real-time insight into the health and security of your infrastructure. So let’s break it down step-by-step and configure it just like we do in live Cisco deployments.


Theory in Brief: What is Syslog?

Syslog (System Logging Protocol) is a standard for message logging that allows network devices (like routers, switches, firewalls, etc.) to send event notification messages to a central server or terminal. These messages can include everything from routine operations to critical system failures.

Cisco IOS devices generate Syslog messages and send them to:

  • The local console
  • Logging buffer
  • Remote Syslog server
  • Terminal lines (vty, aux)

Why Syslog is Critical?

Syslog gives you visibility into:

  • Interface status changes (up/down)
  • Configuration changes
  • Routing updates
  • Security alerts
  • System-level errors

It’s like a black box for your network—vital for real-time monitoring, auditing, and forensic investigations.


Understanding Syslog Severity Levels

Syslog messages are categorized by severity—levels 0 to 7, with 0 being the most critical.

LevelNameDescriptionExample
0EmergencySystem is unusableKernel panic, catastrophic failure
1AlertImmediate action neededLoss of primary router
2CriticalCritical conditionsHardware errors
3ErrorError conditionsInterface failure
4WarningWarning messagesHigh CPU usage
5NotificationNormal but significantConfiguration saved
6InformationalInformational messagesLink up/down
7DebuggingDebug-level messagesACL matches, debug outputs

Summary – Benefits & Limitations

FeatureProsCons
Centralized LoggingEasier to correlate and audit eventsRequires Syslog server
Severity FilteringCustomize log levels per destinationMisconfiguration can miss critical events
Real-time VisibilityImmediate fault notificationFlooding if debug (level 7) is overused
Persistent StorageUseful for compliance and troubleshootingConsumes disk space if not managed
Lightweight ProtocolSupported across almost all vendorsUses UDP (no guarantee of delivery)

Essential CLI Commands (Cisco IOS)

TaskCommandDescription
Set logging hostlogging <IP>Sends logs to external Syslog server
Enable console logginglogging consoleLogs displayed on console
Set buffer logginglogging buffered <size>Stores logs in router/switch memory
Set logging trap levellogging trap <level>Controls which severity levels are sent
View log buffershow loggingDisplays local buffer logs
Disable logging`no logging <consolemonitor
Log config changesarchive log configMonitors configuration events

Real-World Use Case

ScenarioSyslog RoleOutcome
ISP core router failsLogs alert sent to NOC serverEngineers are immediately notified
Interface on switch flaps frequentlyLevel 3/4 logs indicate unstable portPreventive replacement scheduled
Unauthorized login attempt detectedLevel 5 logs show failed SSH accessTriggered automated lockdown script
Syslog integrated with SIEM (e.g., Splunk)Security logs forwarded for analysisNetwork anomalies correlated with events
Configuration changes in productionNotification level shows admin activityAuditable change history

EVE-NG LAB: Simulating Syslog Configuration

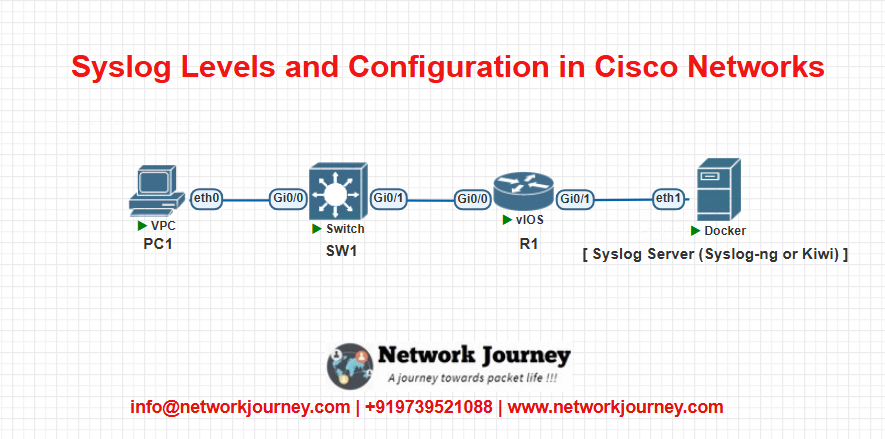

Lab Topology

Goal: Configure R1 and SW1 to send Syslog messages to the Syslog server.

Lab Configurations

On Router R1:

conf t
hostname R1
logging 192.168.1.100      ! Syslog server IP
logging trap informational
logging buffered 10000
logging console
end

On Switch SW1:

conf t
hostname SW1
logging 192.168.1.100
logging trap warnings
logging monitor debugging
end

On Syslog Server:

Ensure syslog-ng, rsyslog, or Kiwi Syslog Server is installed and listening on UDP port 514.


Troubleshooting Tips

IssueCauseSolution
Logs not received on Syslog serverFirewall blocking UDP 514Open port 514 UDP on server/router
Too many debug messagesLogging level set too lowRaise logging level to 4 or 5
No logs on bufferBuffer logging not enabledUse logging buffered 8192
Duplicate logs on consoleLogging monitor and console both enabledUse no logging console to reduce clutter
Logs lost on rebootNot stored to external serverUse remote Syslog with persistent storage

Frequently Asked Questions (FAQs)

1. What are Syslog severity levels and how are they structured?

Answer:
Syslog severity levels indicate the urgency or importance of a message, ranging from 0 (Emergency) to 7 (Debugging). Level 0 is the most critical, used for system-down events, while level 7 includes verbose debugging information. These levels help administrators filter and prioritize logs, ensuring critical issues are addressed immediately while routine logs are recorded for analysis.


2. What’s the difference between logging trap, logging buffered, and logging console?

Answer:

  • logging trap <level>: Sends logs of the defined severity (and higher) to remote Syslog servers.
  • logging buffered <size>: Saves logs in the local buffer memory of the device.
  • logging console: Displays logs in real time on the device’s console port.

Each serves a different destination and purpose, giving administrators flexibility based on the use case.


3. What severity level should I use in production environments?

Answer:
In production, a balanced level like 4 (Warnings) or 5 (Notifications) is recommended. This allows the capture of significant issues and important updates without overwhelming the logging server or system memory. Levels 6 (Informational) and 7 (Debug) can be used temporarily for troubleshooting, but are too verbose for ongoing operations.


4. How do I configure a Cisco router to send logs to a Syslog server?

Answer:
Here’s a basic configuration:

conf t
logging 192.168.1.100        ! IP of the Syslog server
logging trap informational   ! Set minimum severity level
logging on                   ! Enable logging
end

This setup ensures your router sends log messages of level 6 and above to the Syslog server.


5. Can I send logs to more than one Syslog server?

Answer:
Yes! Cisco IOS supports multiple Syslog destinations. Just use the logging <IP> command multiple times:

logging 192.168.1.100
logging 192.168.1.101

Each configured server will receive a duplicate copy of every log message that meets the severity filter.


6. What happens if I set the logging trap level to “debug”?

Answer:
Setting logging trap debugging (level 7) means all logs, including the most verbose debug messages, will be sent to the remote Syslog server. This can be useful for detailed troubleshooting, but be cautious—debug-level logs can consume bandwidth and storage rapidly and should not be left running in production.


7. Why are some Syslog messages not showing up on my server?

Answer:
Common causes include:

  • Firewall blocking UDP port 514
  • Incorrect trap severity level
  • Logging not enabled (logging on)
  • Syslog server misconfiguration

Ensure all necessary configurations are correct and that Syslog traffic is not being dropped or filtered in the network.


8. What port does Syslog use, and is it secure?

Answer:
Syslog uses UDP port 514 by default, which is not encrypted or reliable (no delivery guarantee). For enhanced security, use Syslog over TCP/TLS (port 6514) if supported by your network devices and server. You can also segment Syslog traffic using a management VLAN or IPsec tunnel for better control.


9. Can I log only specific events like configuration changes?

Answer:
Yes. Use Cisco’s configuration change logging feature:

archive
 log config
  logging enable

This will capture and log all configuration changes made via CLI, which is essential for auditing and compliance.


10. How can I view and export logs stored in the buffer?

Answer:
To view logs in the device’s memory buffer, use:

show logging

To export logs, you can copy them manually from the terminal output or use TFTP/FTP to export configurations and logs. However, for long-term storage and searching, it’s always best to forward logs to a remote Syslog server.
