QoS Diagnose & Fix Network Performance Issues [CCNP Enterprise]

If you’ve ever hit the panic button because your VoIP calls are choppy or your video stream froze mid-presentation, I feel your pain. Just this morning, I was on a call that sounded like we were underwater—definitely not the crisp audio I expect! That’s when QoS troubleshooting becomes your superhero cape. In this guide, we’ll walk through real-world scenarios, CLI tactics, and lab drills so you can swiftly identify and resolve performance glitches. Let’s tackle these issues head-on, shall we?

---

Theory in Brief

What is QoS Troubleshooting?

QoS (Quality of Service) troubleshooting is the process of diagnosing and resolving issues related to traffic prioritization, queuing, classification, or marking in your network. It helps prevent dropped packets, latency spikes, and jitter—especially during congestion.

Why It Matters

In multi-traffic networks—where voice, video, cloud apps, and file transfers coexist—bandwidth competition is real. QoS ensures critical applications get the facility they need. When it doesn’t work, users notice. And they complain. And you fix it.

Key Steps in Troubleshooting

1. Detect the issue — collect symptoms like jitter or packet loss.
2. Isolate components — queuing, policing, shaping, marking.
3. Use CLI tools — show, debug, clear stats, etc.
4. Observe metrics — match rates, drops, queue depth.
5. Adjust policies — tweak limiting, buffering, priority allocations.
6. Validate — re-run tests, observe behavior improvements.

Best Practices

• Start simple: match stats and packet naming.
• Work systematically: rule out one component at a time.
• Use lab scenarios: replicate issues, test fixes before deploying.
• Monitor continuously: QoS isn’t “set and forget.” It evolves with traffic.

---

Summary / Comparison / Pros & Cons

Scenario	Symptoms	Likely Cause	Best CLI Tool	Fix Strategy
Voice jitter/delay	Choppy audio, call quality hits	LLQ not assigned or too small	show policy-map interface	Add LLQ, increase priority percentage
Bulk traffic hogging link	Slow responses, files never end	Lack of policing/shaping	show queueing interface, show policy-map	Shape or police bulk class, limit bursts
Unexpected drops	Missing or high drop counters	WRED thresholds too low	show queueing interface, show wred	Tune WRED thresholds
DSCP/marking ignored	No DSCP tags in reports	Trust boundary misconfigured	show mls qos interface trust, show policy-map interface	Set correct trust on devices
Packet misclassification	Wrong packets in wrong queue	Class-map ACL or match statements off	debug qos packet class-map	Correct ACLs or DSCP matches }
Shaping causing lag	Increased latency under load	Excessive buffer use	show policy-map interface, show queueing interface	Reduce burst size, tweak shape rate
LLQ starving others	Other traffic slow or dropped	LLQ too large or no bandwidth share	show policy-map interface, show queueing interface	Add bandwidth to class-default
Ingress drops	Packets dropped as ingress	Policer misconfigured	show policy-map interface, show class-map	Adjust policer rate or convert to shaping
Spikes during bursts	Periodic packet loss	Not enough buffer or misweighted queue	show queueing interface, show class-map	Reallocate buffers or adjust WFQ weights
QoS not working at edge	End-to-end issues, no marking	Service-policy not applied on interface	show running-config, show policy-map interface	Apply the correct service-policy

---

Essential CLI Commands

Task	Command Example	Purpose
Show interface policy	show policy-map interface Gi0/1	View matched traffic and queue stats
Inspect queue state	show queueing interface Gi0/1	View queue utilization, drops
Check WRED parameters	show wred interface Gi0/1	Examine WRED thresholds
Debug classification	debug qos packet class-map VOICE	See which class-map is matching live packets
Show trust configuration	show mls qos interface Gi0/2 trust	Validate DSCP/CoS trust setup on switch interfaces
View globally configured QoS maps	show mls qos maps	Check DSCP-to-CoS and mark settings
Show class-map definitions	show class-map VOICE	Confirm classification criteria
Clear policy counters	clear policy-map interface Gi0/1 counters	Reset stats for troubleshooting
Show shaping statistics	show policy-map interface Gi0/1	Includes shaping/policing rates
Show port queue use	show queuing interface Gi0/1	Displays per-queue usage and drops

---

Real‑World Use Case Scenarios

Use Case	Problem Description	QoS Misconfiguration	Solution	Outcome
Branch Voice Failures	Scaling up VOIP served poor call quality	LLQ not implemented, default queue used	Add priority 20 for VOICE in policy-map	Jitter stabilized, calls improved
Daily Backup Disruption	Daily backups slow business tools	No shaping, backup hogged all bandwidth	Implement shape average for backup class	Backups run off-hours, business unaffected
Sudden Drops at Edge	Intermittent application drops noticed across branch link	Misaligned WRED thresholds, early drops	Adjust WRED on egress interface	Packet throughput normalized, drops resolved
DSCP Not Preserved	Core saw only default DSCP even though edge marked packets	Trust removed on trunk port	Apply mls qos trust dscp on trunk	DSCP preserved, classification improved
Inaccurate Classification	Bulk traffic ended up in VOICE queue	Class-map used wrong ACL-DSCP match	Correct ACL and class-map to match actual traffic	Bulk moved to right queue, voice decongested

---

Small EVE‑NG Lab Scenario

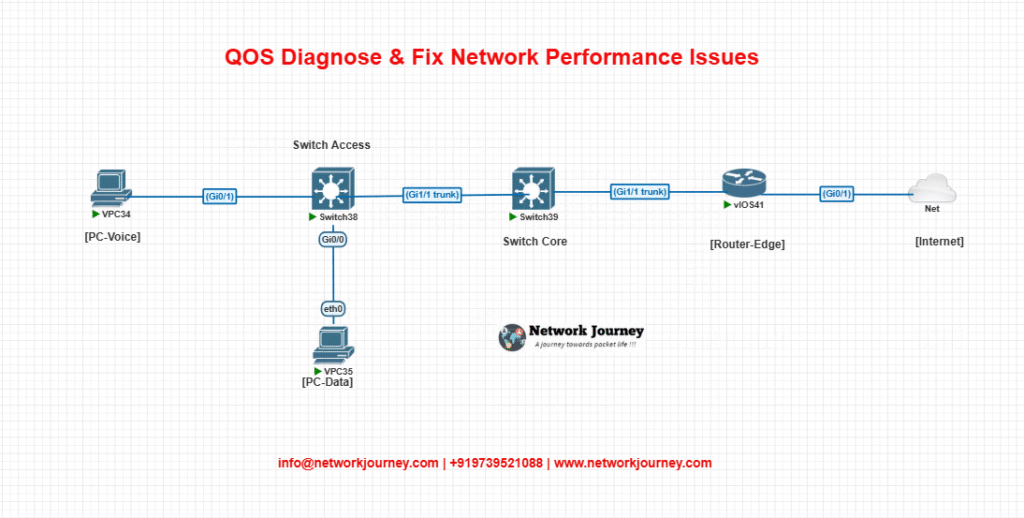

Lab Diagram

• Switch-Access: Contains Voice (CoS trust) and Data (no trust)
• Switch-Core: DSCP trust trunk link
• Router-Edge: Applies QoS policy (LLQ, policing, WRED) on egress

CLI Configuration

Switch-Access

interface Gi0/1
 switchport mode access
 switchport access vlan 10
 mls qos trust cos

interface Gi0/2
 switchport mode access
 switchport access vlan 20
 mls qos trust none

interface Gi1/1
 switchport mode trunk
 mls qos trust dscp

Router-Edge

class-map match-any VOICE
 match ip dscp ef

class-map match-any BULK
 match access-group 101

access-list 101 permit ip any any

policy-map EDGE-QOS
 class VOICE
   priority 2000000
 class BULK
   shape average 5000000
 class class-default
   fair-queue
   random-detect

interface Gi0/1
 service-policy output EDGE-QOS

---

Troubleshooting Tips

Issue	Likely Cause	CLI Tips for Diagnosis	Recommended Fix
Voice jitter under load	LLQ not assigned or too small	show policy-map interface, show queueing interface	Add/update LLQ and priority percentage
Backup traffic dropping others	No shaping or LLQ misconfiguration	show policy-map, debug qos packet	Add shaping for backup class
Drops during queues overflow	WRED thresholds too aggressive	show queueing interface, show wred	Loosen WRED thresholds or change queue fairness
DSCP tags missing mid-network	Trust misconfigured on switch or trunk	show mls qos interface, show mls qos maps	Apply correct trust mode on relevant interfaces
Wrong traffic in wrong queue	Class-map ACL or match incorrect	debug qos packet class-map, show class-map	Correct class-map or ACL logic
Poor throughput post-policing	Policer threshold or burst definined too low	show policy-map interface, show policy-map interface class BULK	Increase CIR or convert to shaping
High latency because of shaping	Buffer causing delays	show policy-map interface, show queueing interface	Reduce burst size or use less aggressive shaping
Service-policy missing on interface	Applied to wrong interface/direction	show running-config, show policy-map interface	Apply to correct interface and direction
Counters not updating	Misplaced service-policy or inactive class-map	show policy-map interface, show class-map	Correct direction or add missing policy/class-map
New traffic not matching policy	Missing or improper ACL/DSCP in class-map	show class-map, debug qos packet class-map	Update classification logic to include relevant traffic

---

FAQs

1: What are the most common causes of network performance issues in enterprise environments?

Answer:
The most common causes include:

• Congestion on WAN or uplink interfaces due to bandwidth overuse.
• Lack of QoS policies, leading to critical traffic (like VoIP or video) being treated as best effort.
• Misconfigured QoS policies, such as incorrect class-maps or untrusted markings.
• Hardware limitations like buffer exhaustion on switches or routers.
• High CPU or memory usage on routing devices affecting packet forwarding.

Diagnosing starts with identifying where the symptoms appear—user endpoints, edge routers, or core switches—and then drilling into traffic statistics.

---

2: How can I detect high latency or jitter affecting voice and video traffic?

Answer:
Latency and jitter often manifest as:

• Choppy audio during VoIP calls.
• Pixelated or freezing video during conferencing.
  Use the following tools:
• ping and traceroute to find latency spikes.
• IP SLA (on Cisco) to measure jitter and response time.
• Wireshark to view packet inter-arrival times and jitter variation.
• show policy-map interface on routers to see if voice traffic is being prioritized and whether it’s dropping.

Ensure that voice/video is in a Low Latency Queue (LLQ) and that the queue isn’t experiencing drops.

---

3: What CLI commands can I use to quickly identify performance bottlenecks on Cisco devices?

Answer:
Here are powerful commands for diagnosis:

• show interfaces – Reveals input/output errors, drops, and load.
• show policy-map interface – Displays traffic classes, drops, queue stats.
• show platform hardware qos interface [interface] queue stats – On some platforms, shows queue utilization in detail.
• show queueing interface – Displays congestion stats.
• debug qos packet – Debugs real-time packet classification.

Use these to confirm if bandwidth limits are exceeded or queues are full.

---

4: How do I confirm if QoS marking is preserved end-to-end across the network?

Answer:
Use the following to verify:

• show mls qos interface on switches to see trust state.
• Packet capture (e.g., Wireshark or SPAN) to view DSCP values.
• show policy-map interface to see if packets are classified correctly based on DSCP.

Markings may be stripped or altered at switches if trust boundaries are misconfigured. Ensure mls qos trust dscp is enabled on trunk ports and VoIP-connected access ports.

---

5: What are trust boundaries, and how do they impact QoS?

Answer:
A trust boundary defines where you choose to accept or overwrite QoS markings from devices. Typically:

• Trusted: Cisco IP Phones, trusted routers.
• Untrusted: End-user devices, laptops.

If a device is outside the trust boundary, its markings are ignored or reset. Misconfigured trust can result in critical traffic being marked as best effort, affecting performance.

Use:

mls qos trust dscp

on trusted interfaces, and leave it off where QoS should be assigned by the switch/router.

---

6: How can I identify whether traffic is being dropped due to misconfigured QoS?

Answer:
Drops due to QoS often show up in:

• show policy-map interface – Check for high drop counters.
• show queueing interface – Reveals queue lengths and drops.
• LLQ overuse – If voice is dropping, LLQ might be too small.
• Policing misconfiguration – Can cause packets to be dropped unnecessarily.

If a class has a high drop count and match rate, verify the bandwidth allocation, policing, or shaping settings.

---

7: My backup traffic is affecting VoIP calls. How do I fix this?

Answer:
The backup traffic likely uses too much bandwidth, starving voice. Solutions:

1. Classify backup traffic in a separate class-map.
2. Apply shaping (e.g., shape average) to limit its bandwidth.
3. Ensure voice is in a priority queue (priority command).

Example:

class-map match-any BACKUP
 match access-group 101

policy-map WAN-QOS
 class VOICE
   priority 2000
 class BACKUP
   shape average 500000

Apply the policy to the WAN egress interface.

---

8: What tools can simulate network issues for testing QoS policies?

Answer:
For lab testing:

• EVE-NG or GNS3: Simulate a full Cisco topology.
• iPerf or ping flood: Simulate traffic loads.
• Cisco IP SLA: Emulates delay-sensitive traffic like voice.
• D-ITG or Nping: Send specific types of packets with custom DSCP.

These tools help verify QoS marking, queuing behavior, and shaping/policing effects before live deployment.

---

9: Why isn’t my QoS policy matching any traffic?

Answer:
Possible causes:

• Wrong ACL or class-map criteria.
• Service-policy not applied to the correct interface or direction.
• DSCP or CoS mismatches.
• Traffic arrives unmarked or marked differently than expected.

Use debug qos packet and show class-map to verify:

• Packet headers.
• Match conditions.
• Whether the policy is active.

Always test matches with a real or simulated traffic source.

---

10: How often should I review or adjust my QoS policies?

Answer:
QoS policies should be reviewed quarterly or when:

• You add new applications (like new VoIP systems or video tools).
• Users complain of performance degradation.
• Link utilization changes (e.g., upgrading from 100 Mbps to 1 Gbps).
• SLA compliance reporting shows jitter, delay, or loss.

Use NetFlow, SNMP monitoring, and CLI tools to collect performance data and adjust policies as needed. QoS is dynamic—adapt as traffic patterns evolve.

---

YouTube Link

Watch the Complete CCNP Enterprise: QOS Diagnose & Fix Network Performance Issues Lab Demo & Explanation on our channel:

---

Final Takeaways

Understanding how to differentiate and implement QOS Diagnose & Fix Network Performance Issues is critical for anyone pursuing CCNP Enterprise (ENCOR) certification or working in enterprise network roles. Use this guide in your practice labs, real-world projects, and interviews to show a solid grasp of architectural planning and CLI-level configuration skills.
