I’ve seen too many organizations suffer massive outages due to a single point of failure—sometimes because of a downed switch, a failed uplink, or even a misconfigured router. In this post, I’ll walk you through the core theory, practical CLI, real-world use cases, and a hands-on EVE-NG lab so you can build your own always-on, fail-safe architecture.

Let’s master redundancy, because downtime is not an option.


Theory in Brief: What Is Redundancy in Networking?

Redundancy in networking refers to providing alternate paths or components so that if one element fails, the network continues to operate seamlessly. This is a core requirement in enterprise networks, data centers, and service provider environments where uptime is crucial.


Types of Redundancy

  1. Link Redundancy: Multiple physical or logical links between devices.
  2. Device Redundancy: Dual routers, switches, or firewalls to avoid a single point of failure.
  3. Power Redundancy: Dual power supplies in devices connected to separate power sources.
  4. Path Redundancy: Traffic can take alternate routes using protocols like OSPF, EIGRP, or BGP.

Why Redundancy Matters

Without redundancy, even a minor failure can bring down an entire segment of your enterprise. Redundant designs also allow maintenance without downtime and provide resilience against hardware or link failures.


Common Redundancy Protocols

  • HSRP / VRRP / GLBP – Gateway Redundancy
  • STP / RSTP / MSTP – Layer 2 Loop Prevention
  • EtherChannel / LACP – Link Aggregation
  • OSPF / BGP / EIGRP – Dynamic Routing Path Redundancy
  • VSS / StackWise / vPC – Device Redundancy

Redundancy Comparison

Redundancy TypePurposeTechnologies UsedExample
Link RedundancyPrevent link failure impactEtherChannel, LACPDual uplinks between switches
Gateway RedundancyPrevent gateway failureHSRP, VRRP, GLBPRedundant router acting as default gateway
Device RedundancyEnsure device failoverVSS, StackWise, vPCDual core switches acting as one
Path RedundancyEnable dynamic failover routesOSPF, BGP, EIGRPMultiple links via different ISPs

Pros and Cons

Redundancy TypeProsCons
LinkSimple and fast failoverCost of additional cabling
DeviceHigh availability with load sharingExpensive hardware, more config effort
GatewayAutomatic failover for clientsPotential failover delays
PathIntelligent routingComplexity and convergence issues

Essential CLI Commands

PurposeCommandDescription
Check HSRP statusshow standbyView HSRP group and state
Verify EtherChannelshow etherchannel summarySee port aggregation status
Check OSPF neighborsshow ip ospf neighborConfirm path redundancy
Monitor STP rolesshow spanning-treeEnsure proper L2 redundancy
View vPC consistency (Nexus)show vpc consistency-parameters globalvPC config validation

Real-World Use Case: Redundant Enterprise WAN

ScenarioRedundancy TypeDescription
Dual ISP for WAN connectivityPath RedundancyOSPF/BGP used to load balance and failover
StackWise Core Switches in campusDevice RedundancyCore switch failure doesn’t impact users
HSRP between two routersGateway RedundancyUsers continue internet access even if one router fails
Dual fiber uplinks between access & distribution switchesLink RedundancyPrevents downtime from cable or port failure

EVE-NG Lab: Redundancy Topology

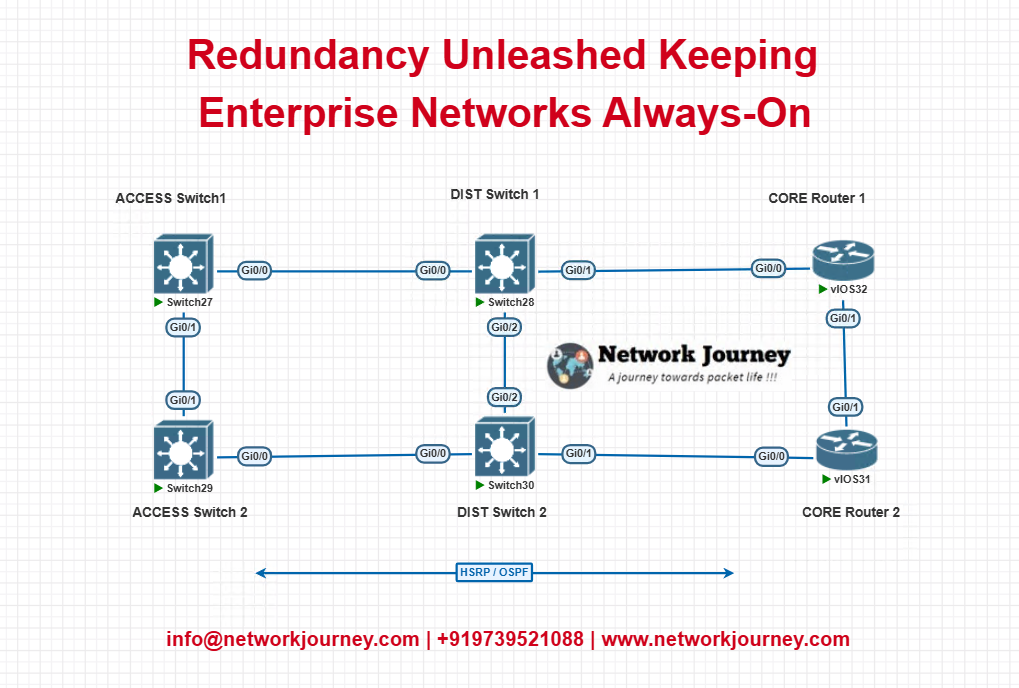

Lab Topology Diagram


Lab Configuration

1. HSRP on Core Routers

interface g0/1
 ip address 10.1.1.2 255.255.255.0
 standby 1 ip 10.1.1.1
 standby 1 priority 110
 standby 1 preempt

2. OSPF for Path Redundancy

router ospf 1
 network 10.1.1.0 0.0.0.255 area 0

3. EtherChannel on Dist-Switch

interface range g0/1 - 2
 channel-group 1 mode active
interface port-channel1
 switchport mode trunk

Troubleshooting Tips

IssuePossible CauseResolution
HSRP not failing overNo preempt or same prioritySet preempt + different priorities
STP loops after redundancyPortFast misused on trunk portsOnly enable PortFast on edge ports
EtherChannel downMismatched configs or speed/duplexUse show etherchannel summary to debug
OSPF not forming adjacenciesMismatched area, hello/dead timersCheck show ip ospf neighbor
vPC showing type-1 inconsistencyConfig mismatch in VLANs or STP rolesRun show vpc consistency-parameters

FAQs on Network Redundancy

1. What does redundancy mean in networking and why is it important?

Answer:
Redundancy in networking refers to having alternate paths, devices, or services that can take over in case of a failure. Its main goal is to maintain network uptime and eliminate single points of failure. In enterprise networks, redundancy ensures business continuity, especially for critical applications like VoIP, ERP, and cloud access.


2. What are the main types of redundancy used in enterprise networks?

Answer:
There are three major types:

  • Link Redundancy: Multiple physical or logical links between devices.
  • Device Redundancy: Backup switches, routers, or firewalls (e.g., dual-core switches).
  • Path Redundancy: Routing protocols like OSPF, EIGRP, or BGP providing multiple routing paths.

Redundancy can also be power-based (dual PSUs), service-based (secondary ISPs), and data-based (storage replication).


3. What are the differences between Active-Active and Active-Standby redundancy?

Answer:

  • Active-Active: Both devices/links are operational and share traffic load. Offers load balancing and high availability.
  • Active-Standby: One device/link is active while the other is on standby. Simpler setup but less efficient resource utilization.

Each model has its use cases based on performance, cost, and complexity.


4. How does First Hop Redundancy Protocol (FHRP) fit into network redundancy?

Answer:
FHRPs like HSRP, VRRP, and GLBP allow multiple routers to present a single virtual IP address as the default gateway for end devices. If the active router fails, the standby takes over, preventing traffic disruption. GLBP even supports load balancing, unlike HSRP and VRRP which are Active-Standby by nature.


5. What role does Layer 2 redundancy play and how is it managed?

Answer:
At Layer 2, redundancy is achieved using multiple uplinks or switch paths. However, this can cause loops. Hence, protocols like Spanning Tree Protocol (STP), RSTP, and MST are used to manage redundant paths by blocking one or more to prevent loops while still providing a failover option.


6. What is the impact of redundancy on network performance and complexity?

Answer:
Redundancy improves reliability and resilience, but it can:

  • Increase cost (more devices and links)
  • Add configuration complexity
  • Require careful design to avoid suboptimal routing or STP loops

Proper planning and use of design principles (like hierarchical models) can minimize drawbacks.


7. How can you test the effectiveness of redundancy in a live network?

Answer:

  • Perform planned failover tests during maintenance windows
  • Use simulation labs (EVE-NG/GNS3) before deployment
  • Implement monitoring tools (like SNMP, NetFlow) to observe failover behavior
  • Run ping tests, traceroutes, or disable primary links manually for testing redundancy behavior

Testing ensures that the failover mechanism works as intended.


8. What tools or protocols ensure redundancy at Layer 3?

Answer:
Key Layer 3 redundancy mechanisms include:

  • Dynamic routing protocols like OSPF, EIGRP, BGP for multiple path support
  • FHRPs for default gateway resilience
  • BFD (Bidirectional Forwarding Detection) for fast failure detection
  • Policy-based routing (PBR) to influence failover paths

These help in fast reconvergence and intelligent route selection during failures.


9. Is redundancy also applicable to WAN and Internet connectivity?

Answer:
Absolutely. WAN redundancy includes:

  • Dual ISPs for internet failover
  • MPLS + Broadband hybrid WAN
  • SD-WAN for intelligent path selection and auto-failover
  • IP SLA + Track in routers to monitor internet health and switch traffic automatically

This ensures that remote offices and cloud applications remain reachable, even if one path fails.


10. How should enterprises decide on the right level of redundancy?

Answer:
It depends on:

  • Business criticality of the applications
  • Downtime tolerance (RTO/RPO)
  • Budget constraints
  • Compliance requirements (e.g., HIPAA, PCI)

Start with a risk analysis. For critical networks, full redundancy (device, path, link) is ideal. For cost-sensitive setups, hybrid models with redundancy in core areas may suffice.


YouTube Link

Watch the Complete CCNP Enterprise: Redundancy Unleashed: Keeping Enterprise Networks Always-On Lab Demo & Explanation on our channel:

Class 1 CCNP Enterprise Course and Lab Introduction | FULL COURSE 120+ HRS | Trained by Sagar Dhawan
Class 2 CCNP Enterprise: Packet Flow in Switch vs Router, Discussion on Control, Data and Management
Class 3 Discussion on Various Network Device Components
Class 4 Traditional Network Topology vs SD Access Simplified

Final Note

Understanding how to differentiate and implement Redundancy Unleashed: Keeping Enterprise Networks Always-On is critical for anyone pursuing CCNP Enterprise (ENCOR) certification or working in enterprise network roles. Use this guide in your practice labs, real-world projects, and interviews to show a solid grasp of architectural planning and CLI-level configuration skills.
