If you’ve ever sat there staring at your router’s CLI wondering whether to use a route map or a prefix list, you’re not alone. I’ve seen many students — even working professionals — struggle with this subtle yet powerful decision. Today, I’ll walk you through these tools not just in theory, but in a way you’ll be able to implement confidently in real-world enterprise networks.

So grab a coffee, launch your EVE-NG lab, and let’s go beyond textbook and into practical CCNP-level mastery.


Theory in Brief: What Are Route Maps & Prefix Lists?

Prefix List: The Filter

Prefix lists are used to match specific IP prefixes and subnet lengths. Think of it as a more powerful version of an access list, designed for route filtering. It’s commonly used in:

  • Controlling which routes get advertised or received in BGP or OSPF.
  • Defining prefix-match conditions in route maps or policy-based routing.

Example:

ip prefix-list FILTER-PREFIX seq 5 permit 10.0.0.0/8 le 24

This means: Permit any route starting with 10.0.0.0/8 and with subnet mask up to /24.


Route Map: The Policy Engine

Route maps are like if-else logic blocks — they evaluate matched conditions and then take specific actions. They’re super flexible and used in:

  • Policy-based routing
  • Route filtering and redistribution
  • Manipulating BGP attributes (like setting local preference or metric)

Example:

route-map PBR-TEST permit 10
match ip address 101
set ip next-hop 192.168.1.1

Relationship: Prefix Lists Inside Route Maps

Here’s where most learners get confused — prefix lists are often used inside route maps. You define your match logic using a prefix list, then use the route map to apply actions.


Route Maps vs Prefix Lists – Comparison

FeaturePrefix ListRoute Map
PurposeMatch IP prefixes (filtering)Apply policies (filter + act)
Common UseRoute filtering in BGP, OSPF, etc.Policy-based routing, redistribution, PBR
Match CapabilitiesIP address + subnet length onlyCan match multiple conditions (IP, AS, tags)
Actions SupportedNo (just permit/deny)Yes (set next-hop, local-pref, tags, etc.)
ComplexitySimpleMore complex but flexible
Config DependencyCan be standalone or in route mapsOften uses prefix list or access-list
CLI UseLightweightHeavier logic processing

Pros and Cons

FeaturePrefix ListRoute Map
ProsFast processing, simple to configureExtremely flexible, can match and modify route behavior
ConsLimited to IP/subnet matchingMore CPU-intensive, harder to read for beginners
Ideal UsageFiltering routes in BGP, redistributing specific prefixesPolicy-based routing, route manipulation during redistribution, conditional routing

Essential CLI Commands

TaskCLI Command
Create prefix listip prefix-list MY-LIST seq 5 permit 192.168.0.0/16 le 24
View prefix listshow ip prefix-list
Create route maproute-map SET-NH permit 10
Match prefix list in route mapmatch ip address prefix-list MY-LIST
Set next hop in route mapset ip next-hop 10.1.1.1
Apply route map to redistributionredistribute ospf 1 route-map SET-NH
Debug route map usagedebug ip routing / debug ip policy
View route map usageshow route-map

Real-World Use Case

ScenarioDescription
Multi-site BGP FilteringUse prefix list to allow only your public /24 blocks to be advertised
Route RedistributionUse route map to selectively redistribute OSPF into BGP based on tags
Policy-Based Routing (PBR)Use access list + route map to redirect guest VLAN traffic via firewall
Default Route ControlUse prefix list to match 0.0.0.0/0 in BGP

Small EVE-NG Lab – Route Map + Prefix List Filtering

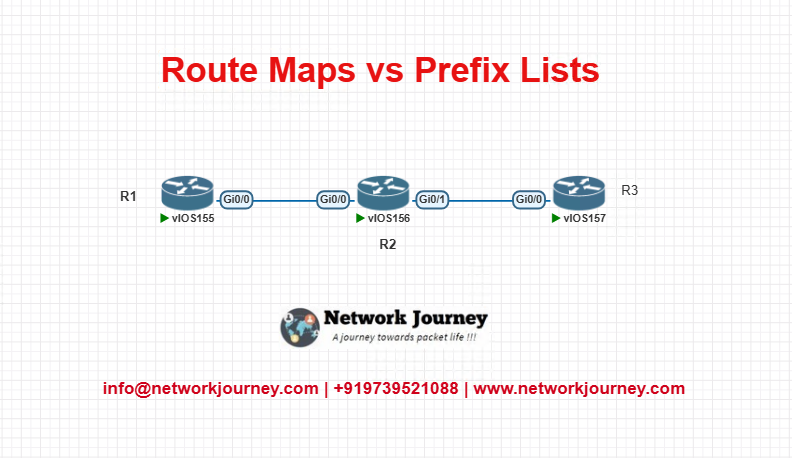

Lab Topology

  • R1 advertises multiple networks via OSPF.
  • R2 redistributes OSPF into BGP using route map + prefix list.
  • R3 receives only selected prefixes.

R1 Configuration (OSPF Advertisements)

router ospf 1
network 10.1.1.0 0.0.0.255 area 0
network 192.168.10.0 0.0.0.255 area 0

R2 Configuration (Prefix List + Route Map)

ip prefix-list FILTER-ROUTES seq 5 permit 10.1.1.0/24

route-map REDIST-BGP permit 10
match ip address prefix-list FILTER-ROUTES
set metric 200

router bgp 100
redistribute ospf 1 route-map REDIST-BGP

R3 Configuration (BGP Neighbor)

router bgp 100
neighbor 192.168.2.2 remote-as 100

Troubleshooting Tips

IssueCheck ThisSuggested Command
Route map not matchingPrefix list missing or wrongshow route-map, show ip prefix-list
Routes not redistributed into BGPRoute map deny all? Redistribute cmd applied?debug ip routing, show ip bgp
Route filtered unexpectedlySequence number or prefix length mismatchshow ip prefix-list detail
BGP neighbor not receiving routeCheck route-map on outgoing routeshow ip bgp neighbors <ip> received-routes
Prefix list showing 0 matchesSequence logic wrong or prefix format errorshow ip prefix-list <name>

FAQs – Route Maps vs Prefix Lists

1. What is the primary difference between a route map and a prefix list?

Answer:
A prefix list is used only to match and filter IP prefixes, typically for route advertisements and inbound filtering in protocols like BGP or OSPF.
A route map, on the other hand, acts like a policy engine — it can match on many conditions (prefix, next-hop, tags, metrics) and take actions (like setting metrics, changing next-hop, or redistributing routes).

In short:

  • Prefix list = filter
  • Route map = filter + act

2. Can a prefix list be used without a route map?

Answer:
Yes. You can apply prefix lists directly to BGP neighbors, distribute-lists, or filter commands in routing protocols to control which prefixes are accepted or advertised.
Example:

neighbor 192.168.1.1 prefix-list BLOCK-NETS in

This blocks certain prefixes from being accepted from a BGP neighbor.


3. Are route maps used only for routing decisions?

Answer:
No. Route maps are versatile and used in:

  • Routing (BGP/OSPF/Redistribution)
  • Policy-Based Routing (PBR)
  • NAT configuration
  • QoS classification
    So, route maps go far beyond routing—they’re a powerful tool for applying conditional logic in multiple services on Cisco devices.

4. Can I match a prefix list inside a route map?

Answer:
Absolutely. That’s a common practice. You create a prefix list to match specific routes and then reference it within a route map to apply a policy.
Example:

 ip address prefix-list ALLOW-ROUTES

This helps you modularize your logic — keep matching and action parts separately for clarity.


5. Do route maps process entries sequentially?

Answer:
Yes. Route maps use sequence numbers, and they process entries from the lowest to highest until a match is found. Once a match occurs in a permit or deny statement, the evaluation stops.

Think of it like an if-else ladder — the first match wins. Hence, ordering your route map sequences correctly is critical.


6. What’s the default behavior of a prefix list?

Answer:
If a prefix list doesn’t explicitly permit a prefix, that prefix is implicitly denied.
So always ensure your prefix list includes necessary permit statements, or you might unintentionally block desired routes.


7. Can I apply a route map on both inbound and outbound BGP updates?

Answer:
Yes. In BGP, you can apply route maps for both incoming and outgoing route advertisements using:

 x.x.x.x route-map MY-MAP in
neighbor x.x.x.x route-map MY-MAP out

This gives you full control over what you learn from a peer and what you send to them.


8. What happens if none of the match conditions in a route map are met?

Answer:
If there is no match, and there is no implicit permit or deny, the route or traffic is dropped by default. That’s why careful planning of match statements and default sequences is important. Always include a final “catch-all” sequence if needed:

route-map MY-MAP permit 100

9. Which one should I prefer for filtering routes: ACLs or Prefix Lists?

Answer:
Prefix lists are preferred over ACLs for route filtering because:

  • They are faster to process.
  • They support more granular control with le and ge options.
  • They are purpose-built for IP prefix matching in routing contexts.

ACLs are still used in PBR and access control scenarios, but prefix lists are the go-to for routing tasks.


10. Can I use both prefix lists and route maps together in the same configuration?

Answer:
Yes — and this is very common in real-world networks. For example, in route redistribution between OSPF and BGP, you can:

  • Create a prefix list to define which prefixes to allow.
  • Use a route map to match that prefix list and set route attributes.
  • Apply the route map during the redistribution process.

This layered approach ensures both precision and flexibility in your routing policies.


YouTube Video – Watch the Live Lab

Watch the Complete CCNP Enterprise: Route Maps vs Prefix Lists – A Deep Dive for Real-World Networking [ CCNP ENTERPRISE ] Lab Demo & Explanation on our channel:

Class 1 CCNP Enterprise Course and Lab Introduction | FULL COURSE 120+ HRS | Trained by Sagar Dhawan
Class 2 CCNP Enterprise: Packet Flow in Switch vs Router, Discussion on Control, Data and Management
Class 3 Discussion on Various Network Device Components
Class 4 Traditional Network Topology vs SD Access Simplified

Final Note

Understanding how to differentiate and implement Route Maps vs Prefix Lists – A Deep Dive for Real-World Networking is critical for anyone pursuing CCNP Enterprise (ENCOR) certification or working in enterprise network roles. Use this guide in your practice labs, real-world projects, and interviews to show a solid grasp of architectural planning and CLI-level configuration skills.
