Security Zones Explained: From Flat Networks to Fortresses [CCNP ENTERPRISE]

---

Let’s be honest. At some point, we’ve all created a flat network with just a few VLANs and thought — “Yeh toh kaafi secure hai.” Until… a misconfigured ACL or open port lets someone pivot from the user segment to your server VLAN — and suddenly, your core gets compromised.

This happened to one of my students in a live data center. They had firewalls, VLANs, even ACLs, but no zoning. Once we fixed their security zones and policies, lateral movement attacks stopped immediately.
Security zones aren’t just a “next-gen firewall” feature — they’re an essential design principle every engineer should master.

In this guide, I’ll take you from theory to CLI to EVE-NG lab — so you can implement security zones in your own environment confidently.

---

Theory in Brief

What are Security Zones?

Security zones are logical groupings of interfaces or networks with similar security levels.
They define how traffic is allowed or restricted between areas like:

• Inside (trusted)
• Outside (untrusted)
• DMZ (semi-trusted)
• VPN zones
• Guest zones

Instead of just using ACLs or VLANs, zones help you define policies between groups, making security both scalable and understandable.

---

Why Use Zones?

Without zones, managing access is like handling a 100-way intersection with traffic lights on each street — chaos. Zones abstract complexity by creating lanes.

You create zone-based policies such as:

• “Allow DMZ to talk to Database only on port 3306”
• “Deny Guest access to Inside zone”

This approach gives clear segmentation, policy consistency, and layered defense — especially critical in firewalls like Cisco ASA, Palo Alto, Fortigate, and even SD-WAN.

---

Where Are Zones Applied?

Zones are typically applied in:

• Firewalls (Zone-Based Firewall on Cisco IOS/ASA, Fortigate, Palo Alto)
• Routers with ZBFW
• SD-WAN edge devices
• Some L3 switches

Even cloud vendors (AWS Security Groups, Azure NSGs) use zone-like policy controls.

---

Key Design Considerations

• Least Privilege: Start with Deny All and allow only what’s needed
• Consistency: Apply same rules for similar zones across locations
• Logging: Log inter-zone traffic for auditing
• Fail-Open vs Fail-Close: Decide how devices behave on failover

---

Security Zone Comparison

Zone Type	Trust Level	Typical Use	Can Access
Inside	High	Core LAN, trusted users	Internet, DMZ, limited guest
Outside	Low	Internet or ISP edge	Limited inbound (NATed) only
DMZ	Medium	Public-facing servers (web, mail)	Inside (controlled), Outside
VPN Zone	Medium	Remote workers	Inside (based on policy)
Guest	Very Low	BYOD, visitors	Only Internet (No internal)

---

CLI Commands (Cisco IOS ZBFW Example)

Task	CLI Command
Enable ZBFW	zone security INSIDE zone security OUTSIDE
Assign interface to zone	interface Gig0/1 zone-member security INSIDE
Define class map	class-map type inspect match-any CM_HTTP match protocol http
Define policy map	policy-map type inspect PM_INSIDE_TO_OUTSIDE class CM_HTTP inspect
Apply policy to zone pair	zone-pair security ZP_INSIDE_OUTSIDE source INSIDE destination OUTSIDE service-policy type inspect PM_INSIDE_TO_OUTSIDE
View policy config	show zone security show policy-map type inspect zone-pair
Debug traffic	debug policy-map type inspect

---

Real-World Use Cases

Scenario	Problem	Solution (Zone-Based)
Flat LAN network	No segmentation, easy lateral movement	Create Inside, DMZ, Guest zones
Server in same VLAN as users	Direct access to databases/web apps	Place servers in DMZ with tight ACLs
Branch office access to cloud only	Unnecessary access to corporate LAN	VPN zone limited to Internet access only
IoT Devices in office LAN	Insecure devices on critical network	Create IoT Zone, restrict to Internet
BYOD devices getting DHCP from LAN	Data leak risk	Create Guest Zone with Internet-only rule

---

Lab: Security Zones in Action

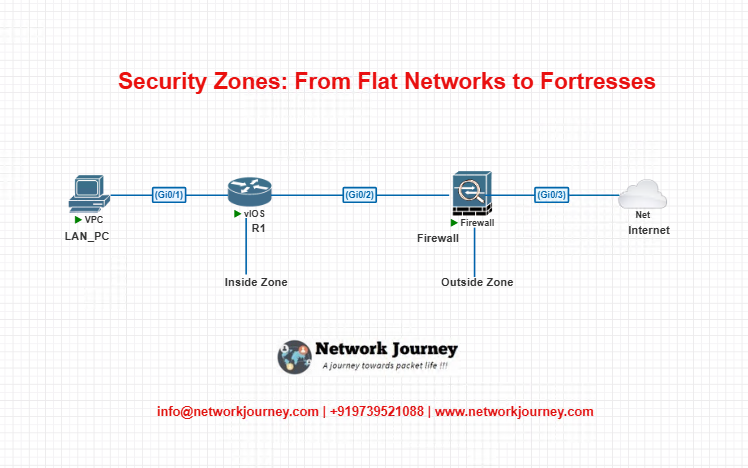

Topology Diagram (Simplified)

LAB STEPS (Cisco IOS Firewall – Zone Based)

1. Create Zones

zone security INSIDE
zone security OUTSIDE

2. Assign Interfaces to Zones

interface Gi0/1
 zone-member security INSIDE

interface Gi0/2
 zone-member security OUTSIDE

3. Create Class Map

class-map type inspect match-any WEB_TRAFFIC
 match protocol http
 match protocol https

4. Create Policy Map

policy-map type inspect POLICY_INSIDE_OUT
 class WEB_TRAFFIC
  inspect
 class class-default
  drop

5. Create Zone Pair

zone-pair security ZP_IN_OUT source INSIDE destination OUTSIDE
 service-policy type inspect POLICY_INSIDE_OUT

6. Test Traffic
   From LAN PC, browse to http://8.8.8.8 — it should pass.
   Try SSH — it should be blocked unless added in class-map.

---

Troubleshooting Tips

Symptom	Likely Cause	Resolution
All traffic blocked	Policy not applied or zones misconfigured	Check zone-member, zone-pair, and policies
Ping not working	ICMP not matched in class-map	Add ICMP to class-map or allow in ACL
Debug shows drop	Implicit drop by class-default	Add specific matches or separate policy
ACL not effective	ZBFW overrides ACLs	Apply rules via policy maps
No logs seen	Logging not enabled	Use log keyword or monitor logging

---

Frequently Asked Questions

What is the purpose of security zones in a network?

Answer:
Security zones help segment the network into logical areas with defined trust levels. The main purpose is to:

• Isolate critical systems from less trusted users or networks
• Control and monitor traffic between different parts of the network
• Enforce least privilege policies using zone-based access controls
• Improve visibility, compliance, and incident response
• Reduce the attack surface by limiting lateral movement

---

2: How do security zones differ from VLANs or subnets?

Answer:

• VLANs/Subnets are Layer 2/Layer 3 constructs used to segment traffic physically or logically.
• Security Zones, on the other hand, are policy-based logical groupings that define what traffic is allowed or denied between network areas.

You can think of zones as an additional security policy layer over VLANs or subnets.

---

3: Is it mandatory to assign every interface to a zone?

Answer:
Yes, if you’re using Zone-Based Firewall (ZBFW) on Cisco IOS or a similar security platform. Any interface not assigned to a zone:

• Will not pass traffic to/from zone members
• Could become an unmonitored or vulnerable interface
• Might not participate in policy enforcement

To ensure proper filtering, every active interface should be assigned to a zone.

---

4: What happens if I don’t define a zone-pair between two zones?

Answer:
If no zone-pair exists between two zones:

• Traffic between them is implicitly denied
• No policy will be enforced
• Even permitted protocols will not function

Solution: Always create a zone-pair and policy for any inter-zone communication.

---

5: Can I allow some traffic and block others between zones?

Answer:
Yes. With policy maps and class maps, you can:

• Match specific protocols (e.g., HTTP, SSH, ICMP)
• Permit or inspect some while denying others
• Add logging and connection tracking if needed

This gives you granular control over what’s allowed between zones.

---

6: Is traffic allowed between interfaces in the same zone?

Answer:
Yes. By default, intrazone traffic is allowed unless explicitly denied.
This means:

• Devices in the same zone (e.g., INSIDE) can communicate freely
• It reduces complexity for same-trust-level devices
• Still, logging and inspection can be applied manually if required

---

7: How do I design effective security zones?

Answer:
Use the Principle of Least Privilege and follow these guidelines:

• Group interfaces with similar trust levels
• Create zones for:
  • Inside (core users, servers)
  • Outside (internet)
  • DMZ (public-facing apps)
  • VPN (remote users)
  • Guest (BYOD, visitors)
  • IoT (non-compliant or smart devices)
• Define clear policies between zones
• Use naming conventions like ZP_INSIDE_DMZ, ZP_GUEST_OUTSIDE

---

8: Can I use ACLs with security zones?

Answer:
Yes, but:

• In most firewall or router platforms (like Cisco IOS ZBFW), zone policies take precedence over ACLs
• ACLs can still be used for fine-grained control inside a zone or between specific subnets
• It’s recommended to use policy maps for inter-zone filtering, and ACLs for intra-zone or host-level rules

---

9: How can I monitor or troubleshoot inter-zone traffic?

Answer:
Use these tools and commands:

• Enable debugging: bashCopyEditdebug policy-map type inspect all
• Check applied policies: bashCopyEditshow policy-map type inspect zone-pair show zone security
• Log matches: Use log keyword in class-map or policy-map
• Wireshark/tcpdump: Use on test clients for traffic validation

---

10: Are security zones supported only on firewalls?

Answer:
No. Security zones are supported on multiple platforms:

• Cisco Routers: ZBFW with CLI
• Cisco ASA/FTD: ASA policies use zones
• Palo Alto: Zone-based by design
• FortiGate: Interfaces are grouped into zones
• SD-WAN: Zones used for segmentation
• Cloud: AWS Security Groups and Azure NSGs act like zones

So the concept is vendor-agnostic, even if the implementation varies.

---

YouTube Link

Watch the Complete CCNP Enterprise: Security Zones Explained: From Flat Networks to Fortresses Demo & Explanation on our channel:

---

Final Note

Understanding how to differentiate and implement Security Zones Explained: From Flat Networks to Fortresses is critical for anyone pursuing CCNP Enterprise (ENCOR) certification or working in enterprise network roles. Use this guide in your practice labs, real-world projects, and interviews to show a solid grasp of architectural planning and CLI-level configuration skills.
