Problem Summary

In a mid-sized enterprise, users across VLANs suddenly reported that they couldn’t browse the internet or access external services. While internal services like file sharing and internal DNS were operational, anything beyond the firewall was unreachable.

---

Symptoms Observed

• Clients couldn’t reach external IPs (e.g., 8.8.8.8, google.com)
• Continuous timeouts in ping, traceroute to internet
• Default gateway was reachable
• DNS resolution was working for some, but responses were not consistent
• No issues in internal VLAN-to-VLAN communication
• Access Layer switches and Core showed normal CPU/memory usage
• Logs showed NAT translation failures

---

Root Cause Analysis

Initial checks revealed:

• The internet-facing interface was up/up
• IP routing was working, default route pointed to ISP
• NAT configuration was present, but NAT table was not populating
• Overload keyword was missing from the ip nat inside source statement
• ACL tied to NAT did not include newer subnets
• Translation logs were empty → No NAT means no return traffic

---

The Fix

After pinpointing NAT as the root cause, the following steps were taken:

Step 1: Fix NAT Configuration

conf t
ip access-list standard NAT_ACL
 permit 192.168.10.0 0.0.0.255
 permit 192.168.20.0 0.0.0.255

ip nat inside source list NAT_ACL interface GigabitEthernet0/1 overload

Step 2: Define Interfaces

interface GigabitEthernet0/0
 ip nat inside

interface GigabitEthernet0/1
 ip nat outside

Step 3: Clear Stale NAT Translations

clear ip nat translation *

---

EVE-NG Lab Topology

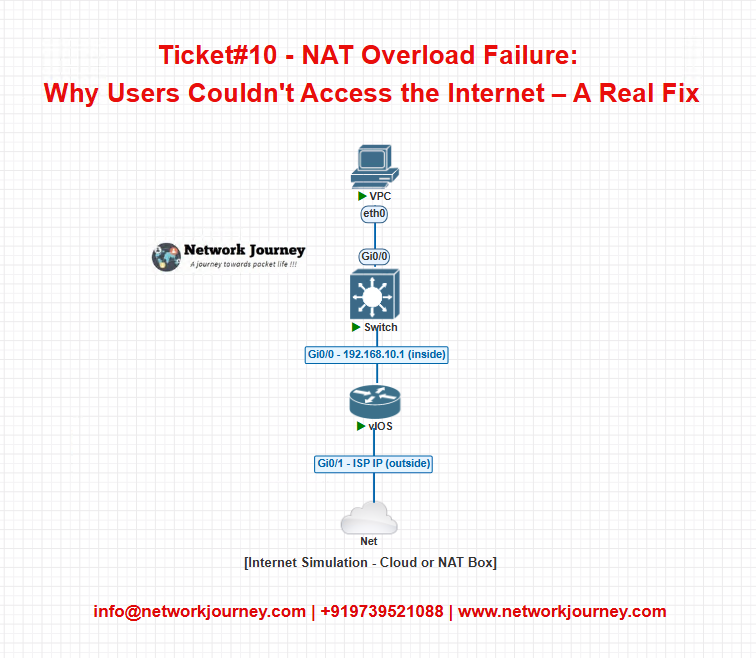

Here’s a simplified lab diagram to replicate the issue:

EVE-NG Devices:

• 1 Cisco vIOS-L2 (Access Layer)
• 1 Cisco vIOS-L3 (Core/Edge Router)
• 1 NAT Cloud Object

---

Verification

Run the following commands to verify NAT translations and ensure traffic is flowing:

show ip nat translations
show ip nat statistics
debug ip nat

Sample Output:

Pro Inside global      Inside local       Outside local      Outside global
--- 203.0.113.5        192.168.10.10      8.8.8.8            8.8.8.8

• Users were then able to browse the internet
• Translation entries confirmed working NAT Overload
• Debug showed successful translations

---

Key Takeaways

• NAT Overload is crucial for private IP-to-public IP translation
• Missing overload keyword = no PAT, no internet
• Always match NAT ACLs with correct subnets
• Verification is easier with show ip nat translations

---

Best Practice/Design Tips

• Always comment and document your NAT ACLs
• Automate NAT checks using Python/pyATS in production
• Don’t use a wide NAT ACL (e.g., any) — it can expose the network
• Keep NAT stats and logs enabled for quick diagnosis
• Monitor NAT table size for scaling issues in enterprise environments

---

FAQs

1. Why is the overload keyword important in NAT?

Answer:
It enables Port Address Translation (PAT), allowing multiple private IPs to share a single public IP using different ports.

---

2. What happens if the NAT ACL doesn’t include a user subnet?

Answer:
That subnet won’t be translated, and traffic will fail as return packets can’t reach the source.

---

3. How do you check NAT configuration on a router?

Answer:
Use:

show run | section nat
show ip nat translations

---

4. Can incorrect NAT ACLs cause complete internet outage?

Answer:
Yes. If users are excluded from NAT translation, return traffic is dropped.

---

5. Why should I clear NAT translations?

Answer:
To remove stale or buggy sessions, especially after fixing or changing NAT rules.

---

6. How does NAT relate to internet access?

Answer:
It translates private IPs to public IPs, required for outbound communication to the public internet.

---

7. Can NAT overload be used on multiple interfaces?

Answer:
Yes, but each needs a separate ip nat outside definition and interface mapping.

---

8. What’s the difference between static NAT and NAT overload?

Answer:

• Static NAT maps one-to-one (1:1)
• NAT Overload maps many-to-one using ports (PAT)

---

9. What tool can simulate this scenario in labs?

Answer:
Use EVE-NG with Cisco IOSv images and NAT Cloud object or VirtualBox NAT adapter.

---

10. What if NAT is working, but DNS is not?

Answer:
Check if DNS packets are being NAT’d correctly or blocked by firewall/ACLs.

---

11. How do you monitor NAT performance?

Answer:
Use:

show ip nat statistics

Also monitor CPU/memory as high loads may affect translation.

---

12. Is NAT required in IPv6?

Answer:
No. IPv6 offers end-to-end reachability, making NAT unnecessary in most cases.

---

13. What if NAT translations are working but still no internet?

Answer:
Check default route, firewall, DNS issues, or possible asymmetric routing.

---

14. Can NAT be disabled temporarily for testing?

Answer:
Yes. Remove ip nat inside and ip nat outside from interfaces, but do this in test environments only.

---

15. How can I automate NAT troubleshooting?

Answer:
Use pyATS + Genie to run checks like:

pyats parse "show ip nat translations"

---

YouTube Link

Watch the Complete CCNP Enterprise: NAT Overload Failure: Why Users Couldn’t Access the Internet – A Real Fix Demo & Explanation on our channel:

---
