Two-Tier vs Three-Tier Network Architecture – Complete Guide with EVE-NG Lab & CLI [CCNP Enterprise]

In this post, I’ll break down Two-Tier and Three-Tier Network Architecture in simple terms, just like I do in my instructor-led classes. By the end, you’ll not only understand these models but also see how to configure and simulate them using EVE-NG.

In enterprise network design, understanding network architecture models is essential for creating scalable, secure, and efficient networks. Two of the most commonly used models are the Two-Tier and Three-Tier Architectures.

Theory in Brief

A Two-Tier Architecture, also known as a collapsed core model, merges the core and distribution layers into a single layer while maintaining the access layer. This design simplifies the network, reduces hardware requirements, and is ideal for small to medium-sized networks. It allows for easier management and faster deployment, especially in locations like branch offices or SMBs.

On the other hand, the Three-Tier Architecture is the industry standard for large-scale enterprise networks. It separates the network into Access, Distribution, and Core layers. The access layer connects endpoints (PCs, IP phones), the distribution layer provides routing, policy enforcement, and inter-VLAN routing, while the core focuses on fast and resilient data forwarding across the network.

The three-tier model introduces better fault tolerance, scalability, and modularity, making it easier to manage changes, upgrades, and expansions. However, it does increase cost and design complexity.

Choosing between these models depends on multiple factors like budget, future growth, resiliency needs, and technical skillsets. Let’s explore them side by side below.

---

Comparison: Two-Tier vs Three-Tier

Criteria	Two-Tier Architecture	Three-Tier Architecture
Layers Involved	Access + Collapsed Core	Access + Distribution + Core
Complexity	Low	High
Scalability	Limited	Highly Scalable
Cost	Lower CapEx and OpEx	Higher CapEx due to more devices
Redundancy & Resilience	Basic	Advanced
Performance	Moderate	High (Supports high-speed core)
Ease of Management	Easier (fewer devices)	Modular but more components
Best Use Case	Branches, SMBs	Large Enterprises, Campuses

---

Pros and Cons

Architecture	Pros	Cons
Two-Tier	Cost-effective, simpler to deploy and manage	Limited scalability, basic fault tolerance
Three-Tier	Modular, highly scalable, policy & redundancy-rich	Expensive, needs experienced designers

---

Essential CLI Commands

Function	CLI Command Example	Description
Interface status	show ip interface brief	Check status of interfaces
Routing table view	show ip route	Displays routing entries
Spanning Tree info	show spanning-tree vlan [id]	View STP root/ports per VLAN
VLAN database	show vlan brief	See active VLANs on access switches
EtherChannel status	show etherchannel summary	Displays channel group states
Check neighbor devices	show cdp neighbors	See physical connectivity
HSRP/VRRP status	show standby / show vrrp	High availability gateway info
Traceroute	traceroute [destination IP]	Validate packet flow

---

Real-World Use Cases

Scenario	Architecture Used	Why It Works
Small Office or Branch Location	Two-Tier	Minimal hardware, easy to deploy
Large Enterprise with Core & Distribution	Three-Tier	Supports hundreds of switches, scalable design
Campus with Voice, Data, Wi-Fi segments	Three-Tier	Policy enforcement and segmentation are needed
Remote Data Center Interconnect	Two-Tier (collapsed leaf-spine)	Fast and simple forwarding

---

EVE-NG Lab Demonstration

We will create a simple topology inside EVE-NG to visualize both architectures.

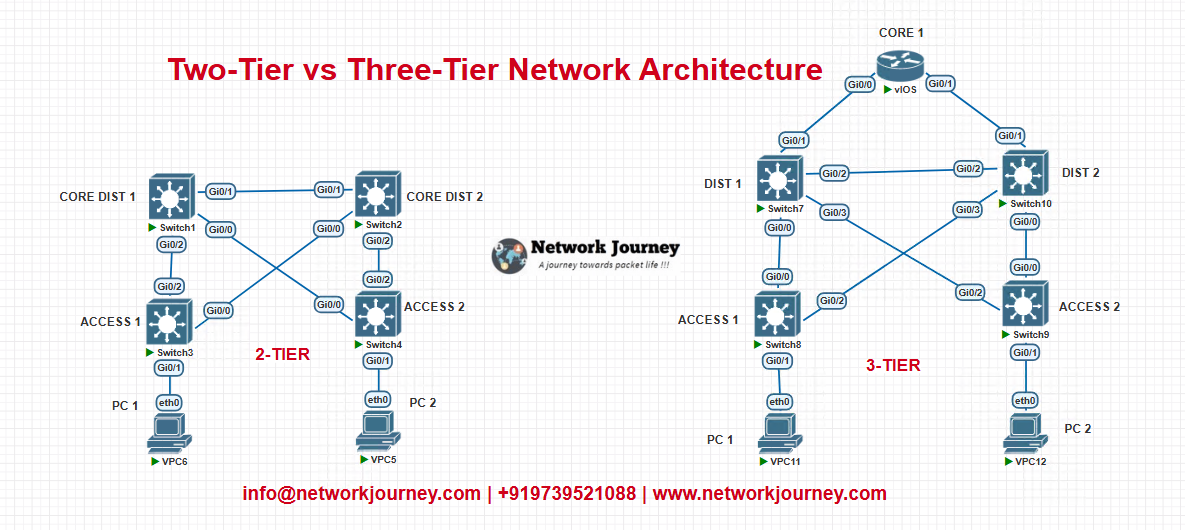

Lab Topology Diagram

---

Topology Components

Two-Tier:

• SW1 & SW2 (Core + Distribution layer collapsed)
• SW3, SW4 (Access Layer)
• End Hosts (PC1, PC2)

Three-Tier:

• CORE1
• DIST1, DIST2
• SW5, SW6 (Access Layer)
• End Hosts (PC3, PC4)

---

Basic CLI Configuration

1. Configure VLANs on Access Switch

enable
configure terminal
vlan 10
 name SALES
vlan 20
 name HR
exit

interface range fa0/1 - 12
 switchport mode access
 switchport access vlan 10

interface range fa0/13 - 24
 switchport mode access
 switchport access vlan 20

exit

2. Configure EtherChannel on Distribution/Core Switch

interface range gi0/1 - 2
 channel-group 1 mode active
exit

interface port-channel 1
 switchport
 switchport mode trunk
exit

3. Assign IPs and enable routing (for Inter-VLAN)

interface vlan 10
 ip address 192.168.10.1 255.255.255.0
 no shutdown

interface vlan 20
 ip address 192.168.20.1 255.255.255.0
 no shutdown

ip routing

4. Trunk Ports to Access Switches

interface gi0/3
 switchport trunk encapsulation dot1q
 switchport mode trunk
 switchport trunk allowed vlan 10,20

---

Testing

On host PC1:

C:\> ping 192.168.20.100

Check:

• End-to-end VLAN reachability
• Path via collapsed vs 3-tier hierarchy
• STP convergence

---

Troubleshooting Tips

Issue	Cause	Fix / Command
Devices not pinging across switches	VLAN not created on trunk ports	Check with show vlan on all switches
STP loop or inconsistent ports	Same priority on root bridge devices	Use show spanning-tree, adjust priority
PC not getting IP address	DHCP not forwarded or VLAN mismatch	show ip dhcp binding, show interface
EtherChannel not bundling	Mode mismatch between ports	Use show etherchannel summary
No inter-VLAN routing	Missing ip routing or SVIs	Check with show ip route

---

FAQs

1. What is the main difference between a Two-Tier and a Three-Tier network architecture?

Answer:
The primary difference lies in the number of layers used for traffic distribution and scalability.

• Two-Tier Architecture includes:
  • Access Layer
  • Distribution/Core (merged layer)
• Three-Tier Architecture includes:
  • Access Layer
  • Distribution Layer
  • Core Layer
    Three-tier design offers greater scalability and better traffic isolation, especially in large enterprise networks.

---

2. When should I choose Two-Tier over Three-Tier?

Answer:
Choose Two-Tier when:

• The network is small or medium-sized
• You need simplicity and lower cost
• There is limited east-west traffic
  It’s ideal for branch offices, small data centers, or SMBs.

---

3. Why is Three-Tier architecture preferred in large enterprises?

Answer:
Three-Tier architecture provides:

• Better scalability for large numbers of devices
• Redundancy and faster convergence
• Traffic segmentation using the Distribution Layer
  It allows multiple Access Layer switches to aggregate through Distribution, and multiple Distribution switches to be aggregated into a high-speed Core.

---

4. What are the scalability limits of a Two-Tier network?

Answer:
Two-Tier is typically limited by:

• Number of Access switches per Distribution switch
• Bandwidth bottlenecks at the Distribution layer
• Lack of segmentation between departments or functions
  As you scale past ~10 Access switches or need isolation between departments, moving to Three-Tier is advised.

---

5. How does latency compare between the two architectures?

Answer:

• Two-Tier offers lower latency in smaller setups due to fewer hops.
• Three-Tier introduces additional hops but offers better load distribution and faster convergence under failure scenarios.

---

6. Is it more difficult to troubleshoot Three-Tier networks?

Answer:
Yes, slightly.
Three-Tier networks involve more devices, paths, and redundancy, which means:

• More configurations to check
• More BGP/OSPF/EIGRP instances
• Complex routing decisions
  However, with good design and logging, it’s manageable.

---

7. Which architecture supports high availability better?

Answer:
Three-Tier supports high availability more effectively due to:

• Redundant Distribution and Core links
• Load balancing and traffic isolation
• Faster convergence in STP, HSRP, or dynamic routing events
  Two-Tier can also support HA, but is limited by its flatter structure.

---

8. Can I mix both architectures in one enterprise network?

Answer:
Absolutely! Many enterprises run hybrid networks:

• Two-Tier in branch locations
• Three-Tier in HQ or data centers
  This ensures cost-effectiveness and scalability where needed.

---

9. What protocols are typically used at each layer in Three-Tier design?

Answer:

• Access Layer:
  • VLANs, PortFast, 802.1X
• Distribution Layer:
  • EIGRP, OSPF, HSRP, VRRP, ACLs, summarization
• Core Layer:
  • High-speed routing (BGP/OSPF), MPLS backbone, minimal filtering for fast throughput

---

10. How do Two-Tier and Three-Tier impact SDN and automation tools?

Answer:
Three-Tier provides modular design that aligns well with SDN architectures like Cisco ACI or DNAC.

• Easier to automate due to layer separation
• Better control over policy enforcement
  In Two-Tier setups, automation is possible but less granular due to flattened design and fewer isolation points.

---

YouTube Link

Watch the Complete CCNP Enterprise: Two-Tier vs Three-Tier Lab Demo & Explanation on our channel:

---

Final Note

Understanding how to differentiate and implement Two-Tier and Three-Tier architectures is critical for anyone pursuing CCNP Enterprise (ENCOR) certification or working in enterprise network roles. Use this guide in your practice labs, real-world projects, and interviews to show a solid grasp of architectural planning and CLI-level configuration skills.
