Wireless LAN Controller Architecture – A CCNP Deep Dive [CCNP ENTERPRISE]

If you’ve ever worked with enterprise Wi‑Fi, you know how vital a good controller architecture is. I remember troubleshooting a campus network where the WLC was overloaded and APs were floating—quite a nightmare! That’s exactly why today, we’re going to explore Wireless LAN Controller (WLC) Architecture deeply—but in a way that keeps it simple and relatable.

Think of your WLC as the “brains” of your wireless network. It handles configurations, security policies, performance management, and keeps all the APs in sync. Whether you’re running a small branch site or managing a large campus, understanding this architecture helps you design, scale, and troubleshoot like a pro.

So sit back—grab some coffee—and let’s unravel how this powerful controller engine keeps your wireless network smooth, secure, and scalable.

---

Theory in Brief

1. Controller‑Based vs Controller‑less Design
   In a controller‑based architecture, APs are lightweight and rely on a central WLC for management, configuration, and intelligence. Conversely, controller‑less designs (like standalone APs) are simple to deploy but harder to manage at scale, and lack centralized policy enforcement.
2. Control Plane vs Data Plane
   The WLC handles the control plane, orchestrating authentication, roaming, RF management, firmware updates, and policy enforcement. APs handle the data plane, forwarding client traffic locally or tunneling back to the WLC. This separation improves performance and scalability.
3. Logical Control Architecture
   From a network’s perspective, WLCs form a virtual cluster of controllers—sometimes in High Availability (HA) pairs or as a distributed cluster across sites. This ensures redundancy, load balancing, and seamless client roaming.
4. AP Join Process
   When an AP boots, it discovers a WLC via DHCP option 43, DNS, or layer‑3 broadcast. After CAPWAP tunnel establishment, it receives its configuration (SSID, RF policy, etc.) from the WLC. Essentially, the AP becomes a managed extension of the controller.
5. Wired to Wireless Integration
   The WLC integrates with RADIUS/TACACS for authentication, with AAA servers for policy, and with network infrastructure (VLANs, QoS, HA) to ensure smooth, secure operations. It’s the central hub for wireless security, performance, and client mobility.

---

Architectural Comparison

Feature	Standalone APs	Controller‑Based WLC
Centralized Management	Manual per AP	Single-pane control
Scalability	Poor (manual configs)	Excellent (APs auto-join WLC)
Policy Consistency	Fragmented per AP	Uniform via controller
Firmware & Software Upgrades	Manual update on each AP	Instant mass upgrade
Roaming without interruptions	Limited	Fast & seamless across APs
Security and Monitoring	Basic	Advanced (RF, IDS/IPS, rogue detection)
Cost	Low for small setups	Higher initial cost, better ROI scale

---

Essential CLI Commands

Command	Description
show capwap ip config	Verify AP’s CAPWAP status and WLC communication
show ap summary	List joined APs with status
show wlan summary	List configured WLANs on WLC
show wireless stats client detail	Get client-level connection and performance data
show redundancy summary	Check HA status, active/standby roles
debug capwap events enable	Log AP join/fail events (for troubleshooting)
show run-config wlan <id>	Display WLAN config (SSID, VLAN, security policy)
show wlan ap join stats	Find out why AP is failing to join WLC
show sysinfo	WLC system overview – version, uptime, license
show wireless fabric controllers	In Fabric environments: view cluster and connectivity

---

Real‑World Use Case

Requirement	Implementation
Campus-wide Wi‑Fi	Multiple APs join a single WLC for centralized control
No interruptions during roaming	Controller handles seamless Layer-2/3 client roaming
Centralized upgrades	One firmware update on WLC is pushed to all APs
Consistent security policies	All WLANs across APs use same encryption, ACLs, etc.
Redundancy & Failover	WLC HA pair ensures uptime if one controller fails

Impact: Simplified management, unified user experience, and reliable performance—even during dense usage or AP failures.

---

EVE‑NG Lab – Controller + Two APs + Two Clients

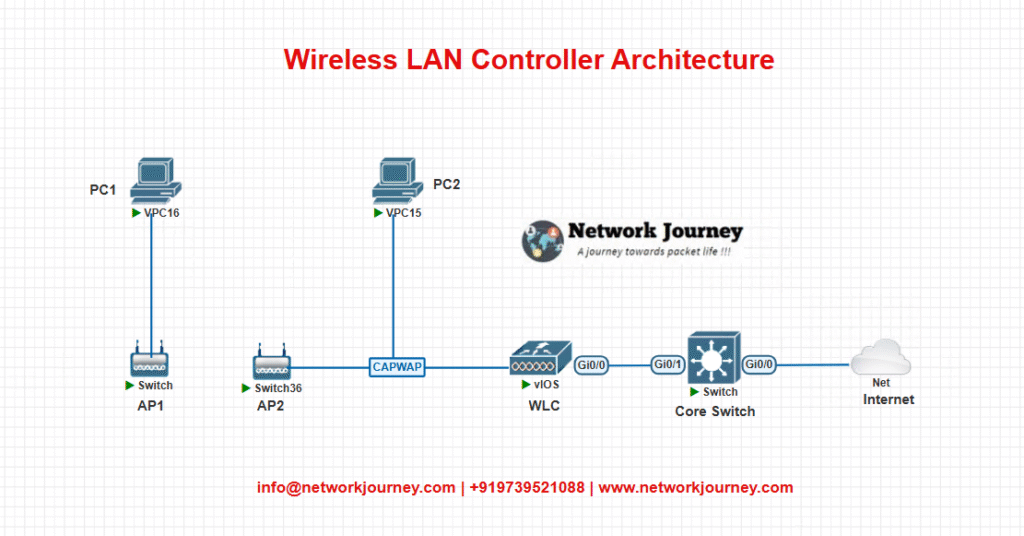

Topology Diagram

• APs and WLC are part of campus core.
• Host PCs connected wirelessly to each AP.

Basic Configuration Sample

On WLC:

(config)# wlan 1 OfficeSSID OfficeSSID
(config-wlan)# security wpa2 ciphers aes
(config-wlan)# security wpa2 passphrase NetworkJourney123
(config-wlan)# interface vlan 10
(config)# ap join-discovery dhcp
(config)# ap join  # optional if auto-join via DHCP, DNS
(config)# redundancy enable
(config)# ap group default-group dynamic-interface vlan10

On APs:

APs usually auto-join. For manual:
ap(config)# capwap ap controller ip address <WLC-IP>

On Clients:

• Connect to SSID OfficeSSID, enter passphrase, verify IP assignment from VLAN 10.

Verification:

WLC# show ap summary
WLC# show wlan summary
WLC# show wireless stats client detail

---

Troubleshooting Tips

Symptom	Possible Cause	Troubleshooting Tip
AP not joining WLC	DHCP option 43 missing or DNS wrong	Check dhcp-option 43 and DNS lookup for CAPWAP-CTRL
Client disconnects on roam	Wireless mobility group misconfigured	Verify same Mobility Anchor Controller & VLANs
Poor RF performance	Power/Coverage/Channel interference	Use show ap config general + RF scans on AP
WLC HA failover didn’t happen	HA licensed not installed	Ensure HA license & check show redundancy summary
Clients not getting IP	VLAN / DHCP misconfiguration	Check dynamic interface-mapping & external DHCP server

---

FAQs – WLC Architecture

1. What is a Wireless LAN Controller (WLC), and why is it used in enterprise networks?

Answer:
A Wireless LAN Controller (WLC) is a centralized device that manages and controls multiple wireless access points (APs) in a network. Instead of configuring each AP individually, the WLC enables administrators to control all APs from a single point—pushing configuration, managing authentication, monitoring traffic, and handling roaming. This is especially valuable in enterprise-scale deployments where managing dozens or hundreds of APs manually would be impractical.

---

2. How do Access Points (APs) communicate with the WLC?

Answer:
APs communicate with the WLC using CAPWAP (Control And Provisioning of Wireless Access Points) protocol. CAPWAP tunnels carry two types of traffic:

• Control Tunnel: Encrypted and used for exchanging management/configuration information.
• Data Tunnel: Optionally encrypted; used to carry client data traffic to and from the WLC.

This tunnel-based architecture centralizes all control and can even centralize data, depending on deployment mode.

---

3. What are the main components of WLC architecture?

Answer:
The key components of WLC architecture include:

• Access Points (Lightweight or CAPWAP-based)
• Wireless LAN Controller
• CAPWAP tunnels (Control and Data)
• Mobility groups for seamless client roaming
• Interfaces and VLANs to segregate traffic
• RADIUS/AAA Servers for authentication
• DHCP Server or Relay for IP assignment

These components work together to provide a scalable, secure, and manageable wireless infrastructure.

---

4. What is the difference between Local Mode and FlexConnect Mode in WLC deployments?

Answer:

Feature	Local Mode	FlexConnect Mode
Data Traffic	Tunneled to WLC	Switched locally at AP (by default)
Use Case	Campus/centralized deployments	Remote branch or WAN locations
Dependency	Fully dependent on WLC	Works even if WLC is unreachable (limited)

In Local Mode, the AP tunnels both data and control traffic to the WLC. In FlexConnect, control is still centralized, but APs can switch traffic locally to reduce WAN usage.

---

5. How does client roaming work in a WLC-based wireless network?

Answer:
When a client moves from one AP to another, the WLC handles the roaming process, ensuring minimal delay and no session drop (especially for VoIP or video calls). The WLC uses Layer 2 or Layer 3 roaming mechanisms depending on whether the APs are on the same or different VLANs/subnets.

• Layer 2 Roaming: No IP change. Seamless.
• Layer 3 Roaming: IP remains same, but traffic is tunneled via anchor/foreign WLCs.

WLC maintains client state and session continuity throughout the process.

---

6. What are Mobility Groups in WLC architecture?

Answer:
Mobility Groups are a set of WLCs that share client information for seamless roaming across controllers. This is critical in large networks where multiple WLCs are deployed. Clients moving between APs managed by different WLCs within the same group won’t experience disconnections.

Mobility Groups use mobility messages over UDP port 16666 to exchange client session info, helping support Layer 3 roaming scenarios.

---

7. What is an Anchor WLC and Foreign WLC in wireless design?

Answer:
These are concepts used in Layer 3 roaming or Guest WLANs:

• Foreign WLC: The controller where the client first connects.
• Anchor WLC: The controller that manages client IP and policy enforcement.

The data tunnel is built between the Anchor and Foreign WLCs. This setup is commonly used in Guest access design, where guest traffic is tunneled to a DMZ-located Anchor WLC for security reasons.

---

8. How is security handled in WLC architecture?

Answer:
WLCs support various enterprise-grade security features:

• 802.1X authentication with RADIUS/AAA
• WPA2/WPA3 Enterprise encryption
• Guest access control with web authentication
• ACLs and policies per SSID
• Role-based access (TrustSec integration)

The centralized nature of WLC makes it easier to apply consistent security policies across all connected APs and wireless clients.

---

9. What is the difference between Autonomous and Lightweight APs?

Answer:

Feature	Autonomous AP	Lightweight AP
Management	Standalone (individually managed)	Controlled by WLC
Deployment Use Case	Small/SMB networks	Large enterprise networks
Roaming Support	Limited/manual	Seamless/centralized
Configuration Method	CLI or GUI on each AP	WLC pushes config to APs

Lightweight APs are the go-to choice for large networks as they reduce admin overhead and enable centralized visibility and control.

---

10. Can WLC be deployed in the cloud or as a virtual appliance?

Answer:
Absolutely. Cisco offers virtual WLCs (vWLC) that can be hosted on virtual platforms (VMware ESXi, Hyper-V, etc.) and cloud-managed solutions like Cisco Meraki.

• vWLC: Ideal for lab, testing, or small-scale production.
• Meraki Cloud Controller: Managed entirely from the cloud, suitable for distributed and mobile-first networks.

These options provide flexibility, scalability, and lower operational costs—great for modern, agile deployments.

---

YouTube Video

Watch the Complete CCNP Enterprise: Wireless LAN Controller Architecture – A CCNP Deep Dive Lab Demo & Explanation on our channel:

---

Final Note

Understanding how to differentiate and implement Wireless LAN Controller Architecture – A CCNP Deep Dive is critical for anyone pursuing CCNP Enterprise (ENCOR) certification or working in enterprise network roles. Use this guide in your practice labs, real-world projects, and interviews to show a solid grasp of architectural planning and CLI-level configuration skills.
