Wireless QoS Settings – Prioritizing Your Wireless Traffic Like a Pro [CCNP Enterprise]

Have you ever found yourself streaming a video while your download crawls at a snail’s pace—or worse, voice calls keep breaking even with full bars of Wi-Fi? That’s not just bad luck; that’s a network without QoS! Today, we’re going to demystify a crucial concept that keeps our Wi-Fi smooth and real-time apps responsive—Wireless Quality of Service (QoS).

Whether you’re an engineer deploying enterprise Wi-Fi, a student prepping for CCNP, or just curious about why your Zoom call freezes when someone else is gaming—this deep dive is for you. I’ll walk you through the theory, real CLI outputs, a working lab in EVE-NG, and even sprinkle in some real-world use cases. So, grab a cup of coffee and let’s get into wireless QoS—the unsung hero of efficient wireless networking.

---

Theory in Brief: What is Wireless QoS?

Wireless Quality of Service (QoS) is a set of techniques and mechanisms used to prioritize traffic over a wireless network. Unlike wired networks, Wi-Fi is a shared medium. That means packets from video calls, voice traffic, web browsing, and file downloads all compete for the same airtime. Without prioritization, a large file transfer could easily hog the bandwidth and degrade your video conference quality.

QoS steps in as the traffic cop. It classifies and prioritizes packets based on their type—voice, video, best effort, or background—so your critical applications get the resources they need.

Wireless vs Wired QoS

Wired QoS is based on bandwidth and queuing. Wireless QoS, however, is airtime-based, meaning even a single slow device can impact all clients. QoS on wireless access points uses WMM (Wi-Fi Multimedia), a subset of 802.11e, to tag and queue traffic.

How Traffic is Classified

Cisco WLCs classify traffic using:

• DSCP (Differentiated Services Code Point)
• CoS (Class of Service)
• WMM (Wireless Multimedia Extensions)

Traffic is mapped to Access Categories (AC):

• AC_VO (Voice) – Highest priority
• AC_VI (Video)
• AC_BE (Best Effort)
• AC_BK (Background) – Lowest priority

Application Examples

• Voice over Wi-Fi – Needs low latency, jitter, and packet loss.
• Streaming Video – Needs high throughput and low jitter.
• Web Browsing – Can tolerate delay.
• Backups/Updates – Least critical.

When done right, Wireless QoS ensures real-time traffic like voice and video are smooth even during high network load.

---

Comparision: Wireless QoS Overview

Feature	Description
Purpose	Prioritize wireless traffic types based on application requirements
Technology	WMM (Wi-Fi Multimedia) based on 802.11e
Access Categories	Voice (AC_VO), Video (AC_VI), Best Effort (AC_BE), Background (AC_BK)
Classification	Based on DSCP/CoS/802.1p
Supported On	Cisco WLCs, CAPWAP APs, most enterprise-grade APs
Key Use Cases	VoIP, Video Conferencing, Real-time Gaming, Live Streaming
Impact	Improves performance and user experience for latency-sensitive apps

---

Pros and Cons of Wireless QoS

Pros	Cons
Ensures priority for latency-sensitive apps like voice/video	Requires correct traffic classification
Reduces jitter, delay, and packet loss for critical apps	Misconfigured QoS can worsen performance
Improves user experience under high load	May not be honored across all client devices
Uses industry standard WMM	Needs end-to-end QoS (wired + wireless) for full benefit

---

Essential CLI Commands

Purpose	Command	Description
Show WMM status on WLC	show wlan <WLAN-ID>	Displays QoS profile bound to WLAN
Show QoS policy	show policy-map	View all configured QoS policies
Verify client QoS	show client detail <MAC>	Check QoS tag (DSCP/WMM) applied to a client
View DSCP mapping	show qos dscp-map	Displays DSCP to 802.1p/WMM mapping
Debug QoS issues	debug qos all	Verbose QoS debugging
Verify AP QoS setting	show ap config general <AP_NAME>	Check AP support for WMM/QoS
Monitor traffic stats	show interface summary	Interface-level traffic overview with QoS classes

---

Real-World Use Case: Office VoIP and Video Calls

Scenario	Details
Environment	Corporate Office with 30+ users
Applications	Microsoft Teams, Zoom, VoIP Phones, Google Meet
Problem	Voice breaking up during large file downloads
Solution	Applied QoS profiles on WLAN with Platinum (Voice), Gold (Video), and Silver (Best Effort) policies. DSCP mapping enforced end-to-end.
Outcome	Smooth voice calls, minimal jitter, no impact from background traffic

---

Small EVE-NG Lab: Wireless QoS Simulation

Lab Objective

• Simulate traffic prioritization using WLC and two clients (voice vs background traffic)

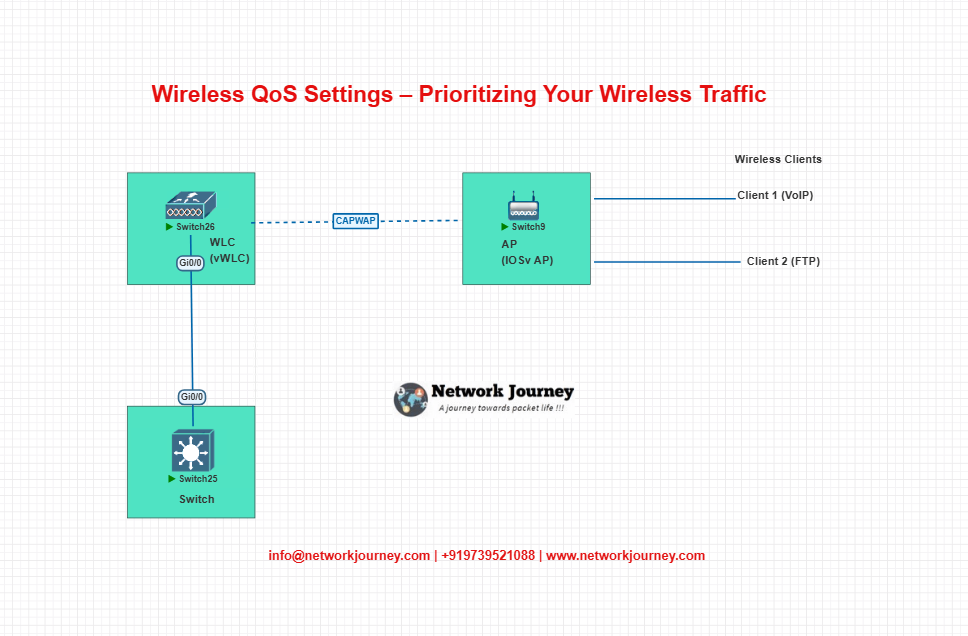

Lab Topology Diagram

---

Configuration Snippets

QoS Profile on WLC

wlc> config wlan create 10 VoIP-WLAN
wlc> config wlan qos 10 platinum
wlc> config wlan enable 10

DSCP Mapping

wlc> config qos dscp 46 platinum

Verify Client DSCP Tags

wlc> show client detail <MAC_ADDRESS>
QoS Level: Platinum
DSCP Mark: 46
WMM Tag: AC_VO

Expected Output

Voice traffic is prioritized over FTP, ensuring uninterrupted VoIP sessions while background file transfers are rate-limited.

---

Troubleshooting Tips

Issue	Possible Cause	Solution
Voice call choppy	WMM not enabled on AP/WLAN	Verify WMM settings via CLI
Video buffering	Wrong QoS profile applied	Ensure DSCP values map correctly
No QoS applied	Client not marking packets	Use ACL/class-map to remark traffic
DSCP tags not honored	Switch truncating CoS/DSCP	Enable trust DSCP on switch ports
Performance drops	Overly aggressive policies	Re-tune QoS to match real traffic

---

Most Common FAQs on Wireless QoS

1. What is Wireless QoS, and why is it important in enterprise networks?

Answer:
Wireless QoS (Quality of Service) refers to the ability of a wireless network to prioritize certain types of traffic to ensure performance and reliability. In an enterprise setting, applications like voice and video require low latency and jitter. QoS ensures these applications are given higher priority over less time-sensitive traffic like file downloads or web browsing. Without QoS, critical business applications may suffer from performance issues.

---

2. How does QoS differ between wired and wireless networks?

Answer:
In wired networks, QoS is implemented at switches and routers using mechanisms like queuing, shaping, and policing. In wireless networks, QoS must also account for the shared nature of the RF medium and interference. Wireless QoS uses Enhanced Distributed Channel Access (EDCA) within the 802.11e standard to prioritize traffic at the access point (AP) level, categorizing it into Access Categories (Voice, Video, Best Effort, and Background).

---

3. What are the main Access Categories (ACs) in Wireless QoS?

Answer:
Wireless QoS classifies traffic into four Access Categories as defined by 802.11e:

• Voice (AC_VO) – Highest priority (e.g., VoIP)
• Video (AC_VI) – High priority (e.g., video conferencing)
• Best Effort (AC_BE) – Default for regular data (e.g., web browsing)
• Background (AC_BK) – Lowest priority (e.g., file downloads, software updates)
  Each category has its own queue and contention window settings, enabling prioritization of delay-sensitive traffic.

---

4. What is WMM (Wi-Fi Multimedia), and how does it support QoS?

Answer:
WMM is a subset of the IEEE 802.11e standard that enables QoS on Wi-Fi networks. It maps Layer 2 802.11 frames to the appropriate Access Category based on their priority. WMM ensures voice and video frames have faster access to the wireless medium by reducing contention and wait times, which helps maintain quality in real-time applications.

---

5. How does Cisco WLC implement Wireless QoS policies?

Answer:
Cisco Wireless LAN Controllers (WLCs) apply QoS policies by allowing administrators to configure WLAN profiles with predefined QoS levels (Platinum, Gold, Silver, Bronze). These profiles map to WMM ACs:

• Platinum → Voice
• Gold → Video
• Silver → Best Effort
• Bronze → Background
  Administrators can apply these profiles per WLAN SSID and even per user or traffic type using policies and classification.

---

6. How does traffic classification work in Wireless QoS?

Answer:
Traffic classification in Wireless QoS is based on DSCP (Differentiated Services Code Point) or CoS (Class of Service) values in Layer 3/Layer 2 headers. These values are mapped to WMM Access Categories using mappings either on the AP or WLC. For example, DSCP EF (Expedited Forwarding) for VoIP is mapped to WMM Voice (AC_VO).

---

7. What are some common issues with improperly configured Wireless QoS?

Answer:
Some common problems include:

• Voice/video delays or choppy calls due to insufficient prioritization
• Inconsistent user experience when DSCP tags are stripped or not honored
• Bandwidth hogging by non-critical applications
• Mismatched QoS settings between client devices and the WLC/AP
  Proper planning and testing are required to avoid these pitfalls.

---

8. How can I verify Wireless QoS is working on my Cisco wireless network?

Answer:
You can verify QoS using:

• WLC GUI: Check WLAN QoS settings and Client Statistics → QoS Queue info
• CLI Commands: Use show client detail <MAC> to view QoS policies applied
• Packet Captures: Analyze DSCP markings on wireless frames
• AP Debugging: Use debug dot11 qos or similar commands to troubleshoot packet queuing and prioritization

---

9. What role do end devices (clients) play in Wireless QoS?

Answer:
End devices are crucial because they must support WMM and correctly mark their traffic. For example, VoIP phones often mark packets with DSCP EF. If the client doesn’t support WMM or mislabels traffic, the AP may not prioritize it appropriately. Cisco recommends validating QoS compatibility for all wireless clients in the network.

---

10. Can I apply per-user or per-application QoS policies in wireless networks?

Answer:
Yes, with advanced features like Cisco AVC (Application Visibility and Control) and policy-based QoS, you can:

• Identify traffic based on application signatures
• Apply specific QoS profiles per user, role, or traffic type
  This requires configuration on the WLC and sometimes integration with Cisco ISE for identity-based policies.

---

YouTube Link

Watch the Complete CCNP Enterprise: Wireless QoS Settings – Prioritizing Your Wireless Traffic Like a Pro Lab Demo & Explanation on our channel:

---

Final Note

Understanding how to differentiate and implement Wireless QoS Settings – Prioritizing Your Wireless Traffic Like a Pro is critical for anyone pursuing CCNP Enterprise (ENCOR) certification or working in enterprise network roles. Use this guide in your practice labs, real-world projects, and interviews to show a solid grasp of architectural planning and CLI-level configuration skills.
