AAA Authentication with TACACS+ and RADIUS – Step-by-Step Cisco Guide [CCNP ENTERPRISE]

AAA Authentication with TACACS+ and RADIUS – Step-by-Step Cisco Guide [CCNP ENTERPRISE]

Let me take you back to my early network engineering days. We had 10 routers and 20 engineers—and we used the same username and password across all devices. No logs. No traceability. Just convenience… until one fine day, someone made a change that brought the network down—and we had zero visibility into who did it.

That day, I realized that security and accountability in network access isn’t optional—it’s essential.
That’s where AAA (Authentication, Authorization, and Accounting) with RADIUS and TACACS+ comes in.

If you’re preparing for CCNA/CCNP or managing an enterprise network, this article will be your go-to guide to implement AAA with CLI examples, real use cases, and an EVE-NG lab to tie it all together.


Theory in Brief

What is AAA?

AAA stands for Authentication, Authorization, and Accounting, and it’s the framework for managing who can access a network device, what they can do, and tracking every action.

  • Authentication: Who are you? (Username/Password check)
  • Authorization: What are you allowed to do?
  • Accounting: What did you do, and when?

What are RADIUS and TACACS+?

AAA uses backend servers to process credentials. Two protocols dominate:

  1. RADIUS (Remote Authentication Dial-In User Service):
    • Combines authentication and authorization
    • Uses UDP (port 1812)
    • Encrypts only passwords
    • Mostly used for network access (Wi-Fi, VPN, etc.)
  2. TACACS+ (Terminal Access Controller Access-Control System Plus):
    • Separates authentication and authorization
    • Uses TCP (port 49)
    • Encrypts entire payload
    • Commonly used for device admin access

Local vs Server-Based AAA

You can configure local AAA with usernames stored in the router/switch, or you can point the device to a TACACS+/RADIUS server like Cisco ISE, FreeRADIUS, or TACACS.net.

Server-based AAA is scalable, auditable, and secure—perfect for production environments.


Why Use AAA?

  • Role-based access control
  • Log every change made via CLI
  • Block/allow users from a central server
  • Compliance (PCI-DSS, ISO, etc.)

If your network matters, AAA matters.


AAA: RADIUS vs TACACS+ Comparison

FeatureRADIUSTACACS+
Transport ProtocolUDPTCP
Port1812 (Auth), 1813 (Acct)49
EncryptionPassword OnlyFull Payload
Authentication/AuthzCombinedSeparate
Use CaseAccess (VPN, Wi-Fi)Admin Login (SSH, Console, Telnet)
Cisco RecommendedYes (For Network Access)Yes (For Device Admin Access)

Summary

TaskCLI Command ExampleDescription
Enable AAAaaa new-modelTurns on AAA framework
Define TACACS+ servertacacs-server host 10.1.1.100 key Network@123Add TACACS+ server details
Define RADIUS serverradius-server host 10.1.1.101 key Radius@123Add RADIUS server details
Define method listaaa authentication login default group tacacs+ localUse TACACS+, fallback to local
Apply AAA on VTY linesline vty 0 4
login authentication default
Apply method list to remote access
View active usersshow usersSee who’s logged in
View AAA config`show runinclude aaa`
Debug AAAdebug aaa authentication, debug tacacs, debug radiusReal-time troubleshooting

Use Case

ScenarioProblemAAA Benefit
ISP with 50+ routersNo central login control, passwords everywhereCentralize login with TACACS+
Financial institutionNeeds audit logs of CLI commandsUse TACACS+ with accounting
Wi-Fi Access via Captive PortalUsers connect without trackingUse RADIUS for 802.1X authentication
Multi-admin environmentEveryone uses shared credentialsAAA assigns unique users with per-user access

Lab: TACACS+ Configuration (With Realistic Testing)

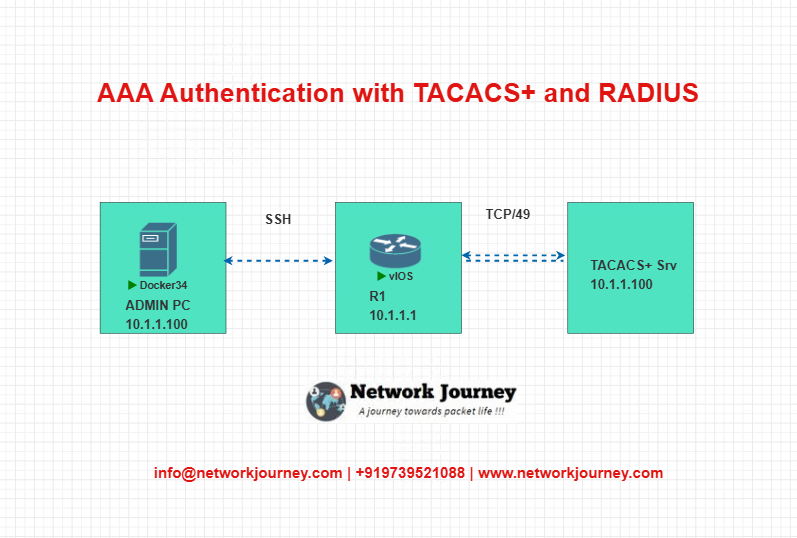

TOPOLOGY OVERVIEW


Step-by-Step Lab Configuration

Step 1: Enable AAA

aaa new-model

Step 2: Configure TACACS+ Server

tacacs-server host 10.1.1.100 key Network@123

Step 3: Define Authentication Method List

aaa authentication login default group tacacs+ local

Step 4: Apply AAA to VTY Lines

line vty 0 4
login authentication default

Step 5: Optional Local Fallback User

username admin secret fallback@123

Testing Scenarios

Test CaseExpected Result
TACACS+ login from Admin PCSuccessful if user is valid
Invalid TACACS+ user loginAccess Denied
TACACS+ server offline + local userFallback login allowed

Troubleshooting Tips

SymptomPossible CauseFix
Login always failsWrong key or server IPRecheck tacacs-server host config
Login times outUDP packet drop (RADIUS) or port issueCheck firewall, verify UDP/1812 or TCP/49
Local fallback not workingNot defined or wrong method listAdd local to end of method list
Debug not showing resultsDebug not enabled or logging turned offRun debug aaa authentication, term mon
Wrong method list usedMisapplied under VTY or not named properlyApply with login authentication <list>

FAQs

What is the primary purpose of implementing AAA in a network?

Answer:
AAA helps secure access to network devices by:

  • Authentication: Verifying user identity before allowing access
  • Authorization: Granting specific permissions based on user roles
  • Accounting: Logging actions performed by users for auditing purposes

This framework ensures only authorized users gain access and their activities are traceable.


2: How does RADIUS differ from TACACS+ in terms of functionality?

Answer:
Here’s a comparison between the two:

  • RADIUS:
    • Uses UDP (faster, less reliable)
    • Combines authentication and authorization
    • Encrypts only the password
    • Suitable for Wi-Fi, VPN, and user access
  • TACACS+:
    • Uses TCP (connection-oriented)
    • Separates authentication, authorization, and accounting
    • Encrypts the entire payload
    • Preferred for device administration and command-level control

3: Can I use both RADIUS and TACACS+ in a single network?

Answer:
Yes, you can. Many organizations use:

  • TACACS+ for network device (router/switch) administrative access
  • RADIUS for user authentication on VPN, Wi-Fi, and 802.1X setups

You can define separate AAA method lists for different services.


4: What happens if the AAA server goes down?

Answer:
If the AAA server becomes unreachable, the device will:

  • Check the method list applied to the login method (VTY, Console, etc.)
  • If the list includes a fallback (e.g., local), it will use local credentials
  • If no fallback is configured, access will be denied

Best Practice: Always include local at the end of the method list for redundancy.


5: Is TACACS+ a Cisco proprietary protocol?

Answer:
Yes, TACACS+ is Cisco proprietary, but it is widely supported by:

  • Third-party devices like Fortinet, Palo Alto, and Juniper
  • Open-source tools like tacacs.net, FreeTACACS+, and commercial systems like Cisco ISE

6: What is the best way to test AAA authentication in a lab?

Answer:
Follow these steps in an EVE-NG or GNS3 lab:

  1. Set up a Cisco router or switch with aaa new-model
  2. Configure a TACACS+ or RADIUS server VM (tacacs.net or FreeRADIUS)
  3. Create a user on the server
  4. Try logging into the router via SSH
  5. Observe whether access is granted or denied and check logs/debugs

Use debug aaa authentication and debug tacacs or debug radius for real-time output.


7: Can I log every command a user runs using AAA?

Answer:
Yes, especially with TACACS+, which supports command accounting.

You can:

  • Log each EXEC and configuration command
  • Track time, user, device, and command history centrally
  • Use Cisco ISE, ACS, or other TACACS+ servers with accounting enabled

This helps in compliance and forensic audits.


8: How can I integrate Windows Server with RADIUS?

Answer:
You can use NPS (Network Policy Server), which is Microsoft’s implementation of RADIUS.

Steps:

  1. Install NPS role on Windows Server
  2. Register the server in Active Directory
  3. Add the router/switch as a RADIUS client
  4. Create a connection request and network policy
  5. Define shared secrets and test login

NPS integrates with AD to use domain credentials.


9: What are the default ports used by TACACS+ and RADIUS?

Answer:

  • TACACS+: TCP port 49
  • RADIUS:
    • UDP port 1812 for Authentication
    • UDP port 1813 for Accounting

Make sure these ports are open on your firewalls between the device and the AAA server.


10: What are some common AAA misconfigurations to avoid?

Answer:
Some common issues include:

  • Forgetting to add a local fallback in method lists
  • Misconfiguring server IP or shared secret
  • Not applying AAA to VTY or console lines
  • Using default method list when a named list is required
  • Incorrect debug usage (not enabling term mon while troubleshooting)

Tip: Always verify with show run | include aaa and test before deploying in production.


YouTube Link

Watch the Complete CCNP Enterprise: AAA Authentication with TACACS+ and RADIUS – Step-by-Step Cisco Guide Demo & Explanation on our channel:

Class 1 CCNP Enterprise Course and Lab Introduction | FULL COURSE 120+ HRS | Trained by Sagar Dhawan
Class 2 CCNP Enterprise: Packet Flow in Switch vs Router, Discussion on Control, Data and Management
Class 3 Discussion on Various Network Device Components
Class 4 Traditional Network Topology vs SD Access Simplified

Final Note

Understanding how to differentiate and implement AAA Authentication with TACACS+ and RADIUS – Step-by-Step Cisco Guide is critical for anyone pursuing CCNP Enterprise (ENCOR) certification or working in enterprise network roles. Use this guide in your practice labs, real-world projects, and interviews to show a solid grasp of architectural planning and CLI-level configuration skills.
