[Day 142 ] Cisco ISE Mastery Training: External RADIUS Proxy for Cloud NAC

Post Views: 63

Table of Contents

Introduction

In modern enterprise networks, security no longer ends at the perimeter. As organizations adopt cloud-based NAC, BYOD, and multi-vendor wireless solutions, a challenge arises: how do you centralize authentication, authorization, and auditing without duplicating identity stores or exposing internal RADIUS infrastructure directly to the internet?

The answer: External RADIUS Proxy. Cisco ISE acts as a policy decision point, while an external RADIUS proxy can forward authentication requests to cloud-based NAC services (or multiple ISE nodes) while preserving security, scalability, and compliance.

In this Article, l will not only configure the external RADIUS proxy, but also validate authentication flows, troubleshoot failures, and implement real-world use cases. By the end, you will be able to design and deploy a hybrid NAC architecture that integrates seamlessly with both on-prem and cloud infrastructure.

Problem Statement

Real-world challenges solved by external RADIUS proxy:

Multi-domain authentication: Enterprise networks often have multiple ISE instances or external NAC systems. Centralizing authentication requests avoids misconfigurations.
Cloud NAC integration: Directly exposing internal RADIUS servers to cloud endpoints is risky. A proxy provides a secure relay.
Scalability & redundancy: Multiple proxies allow failover and load balancing for high availability.
Policy consistency: Ensures that authorization policies are applied uniformly across all access points, wired/wireless, and cloud endpoints.
Simplified auditing: Centralized logging via ISE ensures compliance without managing multiple endpoints independently.

Solution Overview

Cisco ISE supports RADIUS proxy functionality where it acts as an intermediary:

Receives RADIUS requests from network devices (switches, WLCs, VPN).
Forwards requests to the appropriate target server (cloud NAC, another ISE, or third-party RADIUS).
Maintains attribute integrity, supports multiple authentication methods, and allows per-request routing based on policies (source IP, NAS ID, user attributes).
Provides GUI & CLI tools for monitoring and validation, including Live Logs, Authentication Reports, and debugging commands.

Sample Lab Topology

Topology for VMware/EVE-NG Lab:

Device	IP Address	Role
ISE Primary Node (VM)	10.50.1.10	RADIUS proxy configuration
ISE Secondary Node	10.50.1.11	HA / backend authentication server
Cloud NAC (simulated)	10.50.2.20	RADIUS target
WLC (VM/Physical)	10.50.1.20	Wi-Fi Controller, forwards 802.1X requests
Access Switch	10.50.1.5	802.1X wired client
Endpoints	DHCP 10.50.1.x	Test clients for authentication
Admin Workstation	10.50.1.100	For GUI, CLI, Postman/curl testing

Diagram:

Step‑by‑Step GUI Configuration Guide

A – Configure RADIUS Target for Cloud NAC

Step 1: Login to ISE Admin GUI → Administration → Network Resources → Network Devices / RADIUS Targets

Step 2: Click Add → RADIUS Server

Name: CloudNAC-Radius
IP Address: 10.50.2.20
Authentication Port: 1812
Accounting Port: 1813
Shared Secret: CloudSecret123
Retry / Timeout: 3 retries, 5s timeout
Check Enabled

[Screenshot placeholder: ISE RADIUS Target Configuration Screen]

Step 3 – Validate RADIUS Target:

GUI: Test Connection button
CLI:

ping 10.50.2.20
show radius server group CloudNAC-Radius

Expected Result: Ping successful, RADIUS server group displayed.

B – Configure Network Device (WLC / Switch) in ISE

Step 1: Administration → Network Resources → Network Devices → Add

Name: WLC-01
IP Address: 10.50.1.20
Device Type: Wireless LAN Controller
Shared Secret: WLCSecret123

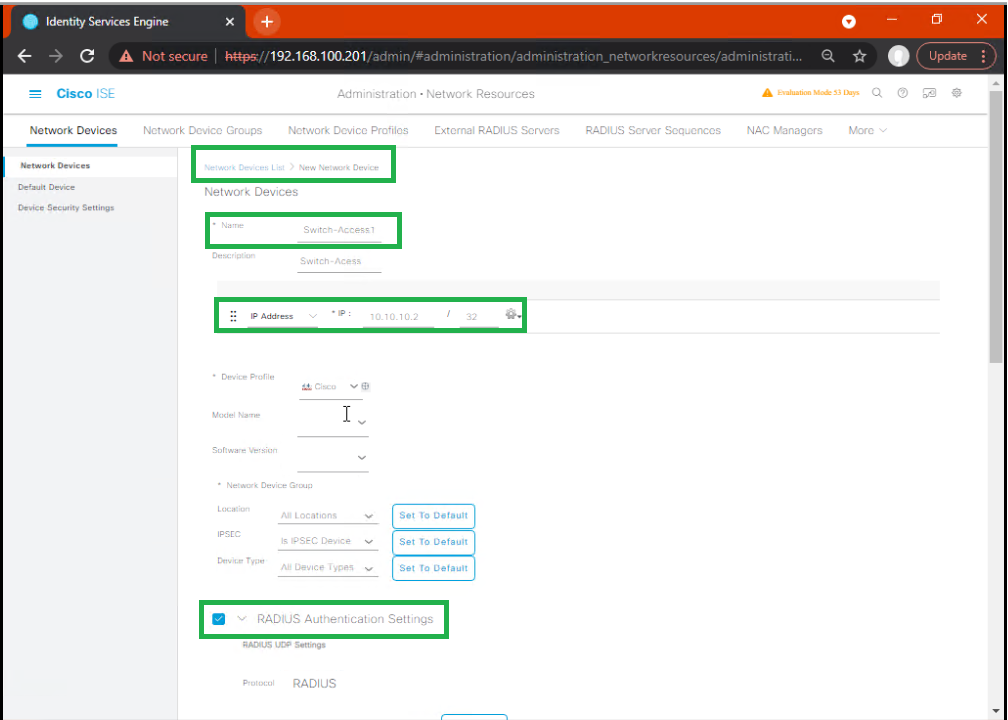

[Screenshot placeholder: Network Device Add Screen]

Step 2 – Assign RADIUS Target:

Under RADIUS Authentication: Select Proxy to CloudNAC-Radius

Step 3 – Validate:

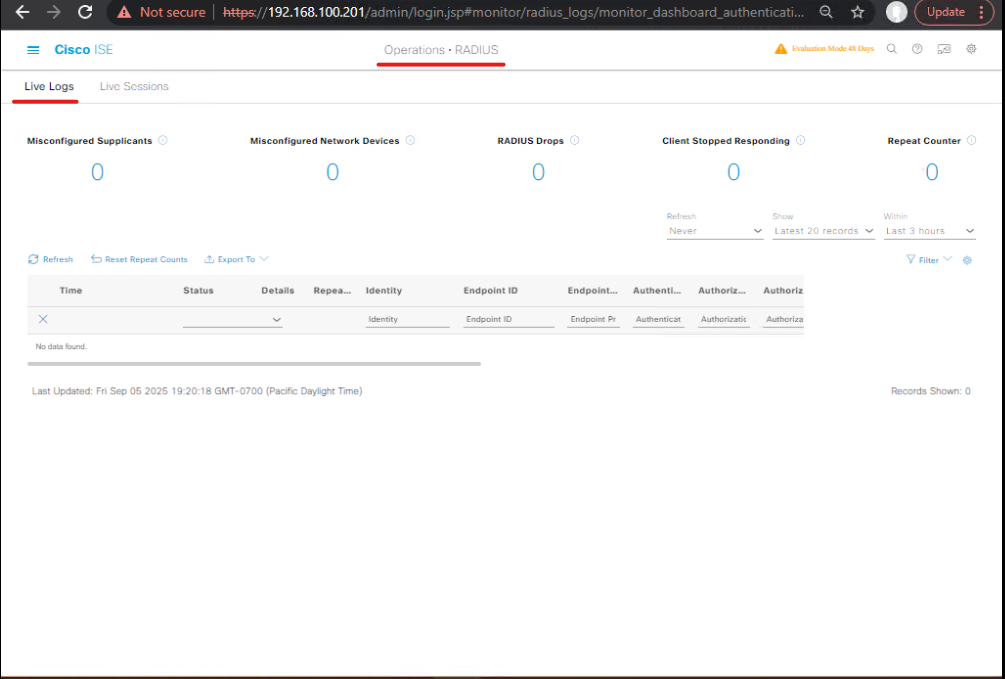

GUI: Operations → RADIUS Live Logs → Test Authentication

CLI:

debug radius authentication
show radius statistics

Expected Result: Incoming request from NAS seen, forwarded to cloud NAC.

C – Configure Policy Set for RADIUS Proxy

Step 1: Policy → Policy Sets → Add New Policy Set

Name: Cloud NAC Proxy Policy
Condition: NAS-IP = 10.50.1.20 (WLC IP)

Step 2 – Authentication Policy:

Select Use RADIUS Proxy
Target: CloudNAC-Radius

Step 3 – Authorization Policy:

Map attributes returned by Cloud NAC → ISE Authorization Profile
Example: CloudNAC-Guest → Guest-VLAN-100

[Screenshot placeholder: Policy Set Authentication & Authorization Screen]

Step 4 – Validate:

GUI: Connect test client → Operations → RADIUS Live Logs
CLI:

show authentication sessions
show radius statistics

Expected Result: Proxy target correctly used, Access-Accept returned, correct VLAN/ACL applied.

D – Configure Backup / Failover RADIUS Target (Optional)

Step 1: Add secondary RADIUS Target → CloudNAC-Secondary

IP Address: 10.50.2.21
Ports, Secret, Retry/Timeout same as primary

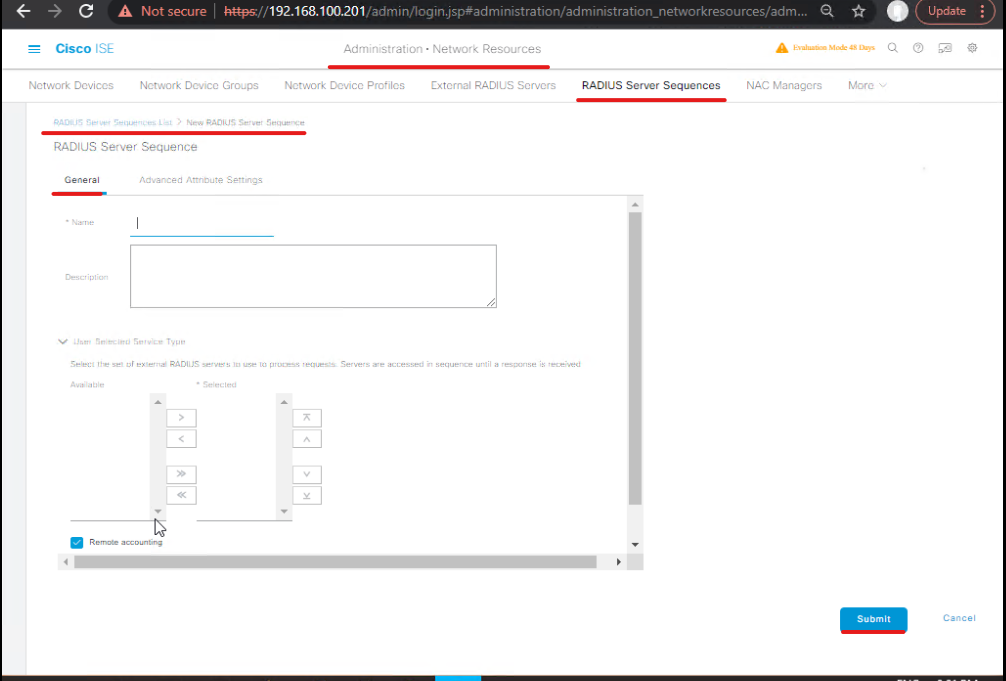

Step 2: Add both targets to RADIUS Target Group

Primary = CloudNAC-Radius, Secondary = CloudNAC-Secondary

Step 3 – Configure Policy Set

Authentication → Use Target Group
Ensure failover order is correct

Step 4 – Validate Failover:

GUI: Disconnect primary NAC, authenticate test client → Operations → RADIUS Live Logs
CLI:

debug radius authentication
show radius statistics

Expected Result: Requests forwarded to secondary, Access-Accept returned.

E – Test End-to-End Client Authentication

Connect test laptop/mobile to Guest SSID.
Observe redirect (if cloud NAC uses captive portal).
Validate in GUI: Operations → RADIUS Live Logs
- Field: Proxy Target = CloudNAC-Radius
CLI validation:

show authentication sessions
debug radius authentication
show radius statistics

Confirm Authorization Profile applied correctly (VLAN, ACL, ACL download).

F – CLI Quick Reference Commands for Validation

Purpose	CLI Command
View RADIUS server group	`show radius server group`
Ping RADIUS target	`ping <IP>`
Show authentication sessions	`show authentication sessions`
Debug authentication	`debug radius authentication`
Show RADIUS statistics	`show radius statistics`
Check running config for proxy	`show running-config radius`

This section is full step-by-step GUI + CLI guide, includes:

RADIUS target config
Network device setup
Policy set creation
Failover / backup target setup
End-to-end validation
CLI quick commands for real-time troubleshooting

Troubleshooting & Diagnostics – External RADIUS Proxy for Cloud NAC

1. Verify Network Connectivity

Objective: Ensure that the ISE proxy can reach the cloud NAC RADIUS server.

Step-by-Step:

Ping the Cloud NAC Targetping 10.50.2.20
- Expected Result: Successful ping → network reachable.
Traceroute to verify pathtraceroute 10.50.2.20
- Validate there are no firewalls or NAT devices blocking RADIUS ports (1812/1813).
GUI Check:
- ISE → Administration → Network Resources → RADIUS Targets → Test Connection

Common Issues:

Firewall blocking UDP 1812/1813
Incorrect IP address or DNS resolution failure

2. Validate RADIUS Target Configuration

Step-by-Step:

Check RADIUS server groupshow radius server group CloudNAC-Radius
- Validate IP, ports, shared secret, retry/timeout.
Check Target Enabled Status
- GUI: Administration → Network Resources → RADIUS Targets → Status column should show Enabled

Common Issues:

Disabled target
Mismatched shared secret → Access-Reject

3. Check Policy Set Mapping

Objective: Ensure authentication requests match the correct policy set.

Step-by-Step:

GUI: Policy → Policy Sets → Verify conditions
- NAS IP / Device IP matches WLC/Switch
- Authentication policy → Forward to RADIUS Proxy
CLI: Validate active sessions: show authentication sessions
- Check Policy Set Name → must match expected policy

Common Issues:

NAS IP mismatch → request routed to default policy
Incorrect conditions → fallback to internal authentication

4. Debug RADIUS Authentication

Objective: See live authentication traffic and proxy behavior.

Step-by-Step:

Enable debug: debug radius authentication
Initiate test authentication from endpoint
Observe logs:
- Look for Proxy Target = CloudNAC-Radius
- Check Access-Accept / Access-Reject messages
GUI: Operations → RADIUS Live Logs
- Fields to verify: NAS IP, User, Proxy Target, Authorization Profile

Common Issues:

Access-Reject from cloud NAC → check shared secret and authentication method
No logs → check NAS forwarding configuration

5. Check Authorization Attributes

Objective: Ensure VLAN / ACL / role is applied correctly.

Step-by-Step:

GUI: Operations → RADIUS Live Logs → Open authentication details
Verify returned attributes:
- Tunnel-Private-Group-ID → VLAN assignment
- Filter-Id → ACL applied
CLI: show authentication sessions detail show radius statistics

Common Issues:

Attribute mapping misconfigured in ISE → authorization profile not applied
Cloud NAC not returning expected RADIUS attributes

6. Failover / Redundancy Troubleshooting

Objective: Ensure secondary RADIUS target is used if primary fails.

Step-by-Step:

Simulate primary failure (shutdown primary cloud NAC or block RADIUS port)
Authenticate test endpoint
Validate logs:
- GUI: Live Logs → Proxy Target = CloudNAC-Secondary
- CLI: debug radius authentication → observe failover attempts

Common Issues:

Retry / timeout misconfigured → requests drop instead of failover
Secondary target not in proxy target group

7. Time / Certificate Validation (SAML / EAP-TLS scenarios)

Objective: Ensure proxy and NAC clocks and certificates are valid.

CLI: Check NTP sync show ntp status
GUI: Verify certificates for EAP-TLS / PEAP if using cloud NAC with certificate-based auth
Test client authentication → validate certificate chain

Common Issues:

Clock skew → authentication fails
Untrusted certificates → Access-Reject

Advanced Diagnostics

Commands / Tools:

Purpose	CLI / Tool
Display RADIUS server group details	`show radius server group <name>`
Live authentication sessions	`show authentication sessions`
Debug authentication traffic	`debug radius authentication`
Show RADIUS statistics	`show radius statistics`
Check running config	`show running-config radius`
Capture SAML / EAP-TLS attributes	Browser SAML-tracer / Wireshark on test endpoint
Test RADIUS reachability	`nc -u <IP> 1812` or `telnet <IP> 1812`

Common Troubleshooting Scenarios

Symptom	Possible Cause	Resolution
Access-Reject	Shared secret mismatch	Update secret on ISE and NAC
No RADIUS response	Network/firewall issue	Verify UDP 1812/1813, routing, NAT
Wrong Authorization Profile applied	Cloud NAC returned unexpected attributes	Update ISE policy mapping
Failover not working	Secondary target misconfigured	Add to target group, adjust retry/timeout
Client cannot connect	NAS not sending RADIUS requests to ISE	Verify NAS IP & shared secret

Best Practices for Troubleshooting

Always validate network reachability first (ping/traceroute).
Use Live Logs for GUI confirmation before diving into CLI.
Enable debug radius authentication only during testing; disable after.
Maintain consistent shared secrets across all RADIUS clients/targets.
Document NAS IPs, proxy targets, and policy sets for each endpoint to simplify debugging.

Lab Walkthroughs with Validation – External RADIUS Proxy for Cloud NAC

Lab Objective

Configure Cisco ISE as a RADIUS Proxy forwarding requests to a Cloud NAC.
Validate authentication, authorization, and failover.
Map attributes from cloud NAC to ISE Authorization Profiles.
Troubleshoot and confirm correct end-to-end behavior.

Lab Devices (VMware/EVE-NG Lab)

Device	IP Address	Role
ISE Primary Node	10.50.1.10	RADIUS Proxy / Policy Server
ISE Secondary Node	10.50.1.11	Backup / Backend Authentication
Cloud NAC	10.50.2.20	Target RADIUS Server
WLC	10.50.1.20	Wireless Controller forwarding RADIUS requests
Access Switch	10.50.1.5	Wired 802.1X switch
Test Endpoint	DHCP 10.50.1.x	Laptop / mobile for authentication test
Admin Workstation	10.50.1.100	GUI / CLI monitoring

Step 1 – Configure RADIUS Target in ISE

Login to ISE GUI → Administration → Network Resources → RADIUS Targets → Add.
Configure:
- Name: CloudNAC-Radius
- IP: 10.50.2.20
- Auth Port: 1812, Acct Port: 1813
- Shared Secret: CloudSecret123
- Retry: 3, Timeout: 5s

Validation:

GUI: Click Test Connection → should succeed
CLI:

ping 10.50.2.20
show radius server group CloudNAC-Radius

Step 2 – Configure Network Device in ISE

Add WLC / Switch: Administration → Network Resources → Network Devices → Add
IP: 10.50.1.20, Shared Secret: WLCSecret123
Configure device to forward RADIUS requests to ISE

Validation:

GUI: Operations → RADIUS Live Logs → see requests from NAS
CLI:

debug radius authentication
show radius statistics

Step 3 – Create Policy Set for RADIUS Proxy

Policy → Policy Sets → Add: Cloud NAC Proxy Policy
Condition: NAS IP = WLC IP
Authentication Policy: Forward to CloudNAC-Radius
Authorization Policy: Map Cloud NAC attributes to ISE Authorization Profiles (e.g., VLAN, ACL)

Validation:

GUI: Operations → RADIUS Live Logs → Proxy Target = CloudNAC-Radius
CLI:

show authentication sessions
show radius statistics

Expected: Access-Accept, correct VLAN/ACL applied

Step 4 – Test Authentication with Wired / Wireless Endpoint

Connect test laptop/mobile to SSID / wired port
Observe 802.1X or captive portal authentication flow

Validation:

GUI: Operations → RADIUS Live Logs → confirm Proxy Target = CloudNAC-Radius
Authorization Profile applied (VLAN / ACL)
CLI:

show authentication sessions
debug radius authentication

Step 5 – Test Failover / Redundancy

Add secondary RADIUS Target → CloudNAC-Secondary
Configure Target Group: Primary = CloudNAC-Radius, Secondary = CloudNAC-Secondary
Policy Set → Authentication → Use Target Group
Simulate primary failure (shutdown primary cloud NAC or block 1812/1813)
Authenticate test client

Validation:

GUI: Live Logs → Proxy Target = CloudNAC-Secondary
CLI: debug radius authentication → observe request forwarded to secondary
Expected: Access-Accept returned without user impact

Step 6 – Attribute Mapping Validation

Ensure cloud NAC sends user roles / VLAN / ACL in RADIUS response
ISE Authorization Policy → maps these attributes to Authorization Profiles
Test multiple users/groups

Validation:

GUI: Live Logs → check Authorization Profile applied for each user
CLI:

show authentication sessions detail

Expected: Correct VLAN / ACL assigned per cloud NAC attributes

Step 7 – Troubleshooting Common Scenarios

Scenario	Validation Steps	CLI / GUI
Access-Reject	Check shared secret, authentication method	`debug radius authentication`, Live Logs
No Proxy Forward	Check NAS IP / Policy Set match	GUI Policy Set conditions, `show authentication sessions`
Failover not working	Check Target Group config, retry / timeout	`show radius server group`, Live Logs
Attribute mapping incorrect	Verify Cloud NAC attributes and ISE mapping	`show authentication sessions detail`, Authorization Profile

Step 8 – End-to-End Lab Summary

Client authenticates via NAS → forwarded by ISE Proxy → Cloud NAC
Cloud NAC returns Access-Accept + attributes → ISE applies Authorization Profile
Failover ensures uninterrupted access if primary NAC unavailable
All authentication sessions and authorization decisions logged in GUI & CLI

Checklist for Validation:

RADIUS Target connection tested
Policy Set conditions verified
Proxy forwarding working (Live Logs / CLI)
Attribute mapping correct
Failover tested
End-to-end authentication successful

Expert Level Use Cases – Step-by-Step Mapping + Validation

Use Case 1: BYOD / Guest Wi-Fi Authentication via Cloud NAC

Objective: Authenticate guest/BYOD users using cloud NAC while ISE acts as a secure RADIUS proxy.
