I’m bringing you one of the most essential yet often misunderstood technologies in networking — GRE Tunnels. I’ve seen students struggle to understand why or how GRE is used, and I completely understand! When I first came across GRE, I kept wondering how traffic magically passes through a non-secure internet and still reaches the right place. In this post, I’ll break it down in the most beginner-friendly way possible — backed by commands, examples, and lab practice.

Let’s dive in!


Theory in Brief

What is GRE? Generic Routing Encapsulation (GRE) is a tunneling protocol developed by Cisco that allows you to encapsulate a wide variety of network layer protocols inside point-to-point links.

Why Use GRE Tunnels? Imagine you want to send data between two locations over the public internet, and you want that data to travel as if it’s part of a private network. GRE allows you to encapsulate packets from one protocol (like IPv4 or IPv6) inside another IPv4 packet — forming a tunnel over the public network.

How GRE Works GRE takes the entire original IP packet and wraps it in a new IP header. This allows for routing flexibility and supports multicast/broadcast traffic (which many VPNs don’t). However, GRE does not provide encryption, which is why it’s often combined with IPsec for secure tunneling.

When to Use GRE Tunnels

  • Connecting branch offices over the internet
  • Enabling dynamic routing over tunnels
  • Supporting multicast traffic

When NOT to Use GRE

  • When encryption is required by itself (GRE does not encrypt)
  • For high-speed core environments where encapsulation adds overhead

GRE Tunnel Summary and Comparison

FeatureGRE TunnelIPsecMPLS
EncapsulationYesYesNo
EncryptionNoYesNo
Supports Dynamic RoutingYesLimitedYes
Multicast SupportYesNoYes
ComplexityLowMediumHigh
Use CaseSite-to-Site TunnelingSecure Site VPNWAN Backbone

Pros and Cons

ProsCons
Simple to configureNo encryption by default
Supports multicast and dynamic routingAdds header overhead
Works with IPv4 and IPv6Less secure if not combined with IPsec

Essential CLI Commands

TaskCommandDescription
Create Tunnel Interfaceinterface Tunnel0Creates a virtual tunnel
Set Tunnel Sourcetunnel source <interface/IP>Defines tunnel start point
Set Tunnel Destinationtunnel destination <IP>Remote tunnel endpoint
Set Tunnel Modetunnel mode gre ipSpecifies GRE mode
Assign IP to Tunnelip address <IP> <MASK>Logical IP of the tunnel
Verify Tunnelshow interface tunnel0Tunnel interface status
Show Tunnel Route`show ip route | i Tunnel`Tunnel routes in routing table
Debug Tunneldebug tunnelReal-time troubleshooting logs

Real-World Use Cases

ScenarioDescriptionBenefit
Branch-to-HQ TunnelConnects remote branches to HQSeamless L3 connectivity
GRE over IPsecCombine GRE with IPsecSecure + Flexible
Dynamic RoutingRun EIGRP/OSPF over GREMulticast and failover support
Cloud InterconnectConnect on-prem to cloudEncapsulates internal traffic over WAN

Small EVE-NG Lab: GRE Tunnel Configuration Example

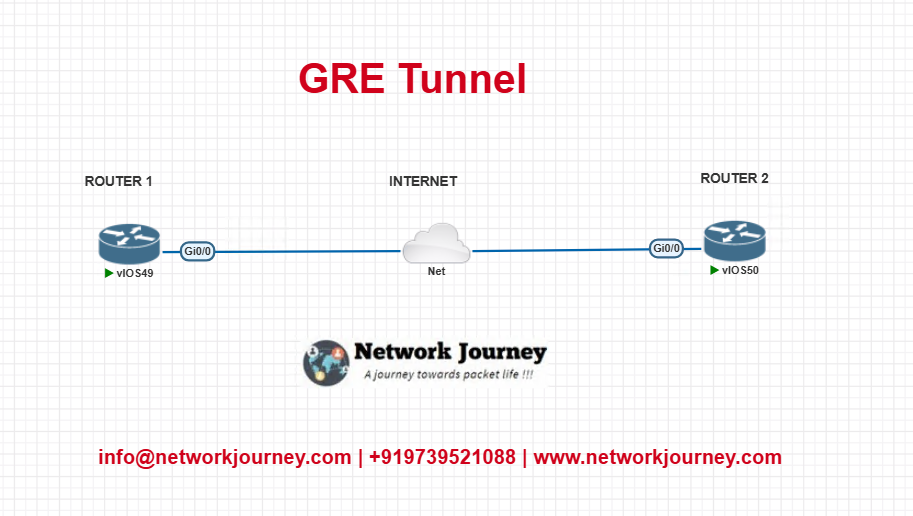

Lab Topology Diagram

How Can GRE Tunnel Help Connect Remote Sites? Full Cisco Setup Guide [CCNP Enterprise]
  • R1 WAN IP: 192.168.12.1
  • R2 WAN IP: 192.168.12.2
  • Tunnel IP on R1: 10.10.10.1/30
  • Tunnel IP on R2: 10.10.10.2/30

GRE Tunnel Configuration

R1 Configuration:

interface Tunnel0
 ip address 10.10.10.1 255.255.255.252
 tunnel source 192.168.12.1
 tunnel destination 192.168.12.2
 tunnel mode gre ip

R2 Configuration:

interface Tunnel0
 ip address 10.10.10.2 255.255.255.252
 tunnel source 192.168.12.2
 tunnel destination 192.168.12.1
 tunnel mode gre ip

Static Routing Example:

ip route 192.168.2.0 255.255.255.0 10.10.10.2

Troubleshooting Tips

ProblemCommandResolution
Tunnel Interface Downshow ip interface briefCheck status and IPs
No Tunnel Routeshow ip routeAdd static or dynamic route
Tunnel Not Formedping tunnel destinationEnsure WAN IPs are reachable
No Return PathtracerouteVerify bidirectional routing
Debug Infodebug tunnelReal-time tunnel insights

FAQs on GRE Tunnel


1. What is a GRE tunnel in networking?

Answer:
GRE (Generic Routing Encapsulation) is a tunneling protocol developed by Cisco that allows you to encapsulate a wide variety of network layer protocols inside virtual point-to-point links. It enables secure and private communication between remote sites over a public network like the internet, without needing encryption (though it can be combined with IPsec for that).


2. When should I use GRE tunnels in my enterprise network?

Answer:
GRE is ideal when:

  • You need to connect remote sites with different routing protocols.
  • You want to carry multicast traffic (which IPsec alone cannot handle).
  • You want to route non-IP traffic or encapsulate complex routing scenarios like OSPF/BGP over the internet.
  • You’re creating lab environments or temporary VPNs.

3. How does GRE differ from IPsec VPN?

Answer:

FeatureGRE TunnelIPsec Tunnel
EncryptionNo (unencrypted)Yes (encrypted)
Multicast SupportYesNo (unless combined with GRE)
Protocol SupportMultiple protocolsIP-only
Use CaseRouting & protocol tunnelingSecure data over untrusted links

Often, GRE + IPsec is used to gain both protocol flexibility and security.


4. What are the minimum configuration steps for a GRE tunnel?

Answer:

  1. Define the tunnel interface:
interface Tunnel0
 ip address 10.10.10.1 255.255.255.0
 tunnel source GigabitEthernet0/0
 tunnel destination 203.0.113.2
  1. Enable routing protocols (optional):
router ospf 1
 network 10.10.10.0 0.0.0.255 area 0

Repeat a similar setup on the remote peer. Now, the two routers are virtually connected.


5. Can I run routing protocols like OSPF or EIGRP over a GRE tunnel?

Answer:
Yes. That’s one of GRE’s biggest advantages. It allows you to run dynamic routing protocols like OSPF, EIGRP, BGP over the tunnel. This is crucial when you’re interconnecting remote offices and want automatic route updates.


6. What are common troubleshooting commands for GRE tunnels?

Answer:

  • show ip interface brief – Check tunnel interface status
  • show interface tunnel0 – View tunnel operational status
  • show ip route – Verify routing across tunnel
  • ping <remote tunnel IP> – Test connectivity
  • debug tunnel – Live debugging if issues persist

Always check that the tunnel source/destination IPs are reachable.


7. What happens if the physical interface used for the tunnel goes down?

Answer:
The GRE tunnel will go down as well. GRE is dependent on the underlying transport path (typically the internet or WAN link). You can add redundancy using IP SLA or tunnel protection mechanisms to dynamically reroute tunnels.


8. Is it possible to secure GRE traffic?

Answer:
Yes. GRE itself does not provide encryption, but it can be combined with IPsec to secure the traffic. This creates a GRE over IPsec tunnel, where GRE provides routing protocol support, and IPsec encrypts the traffic for privacy and security.


9. Can you have multiple GRE tunnels on one router?

Answer:
Absolutely. You can configure multiple GRE tunnels as long as each has:

  • A unique tunnel interface number (e.g., Tunnel0, Tunnel1)
  • Different tunnel destination IPs
  • Unique tunnel source interfaces/IPs or routing logic

This is useful in hub-and-spoke topologies where a central site connects to multiple branches.


10. What are some real-world use cases for GRE tunnels?

Answer:

  • Interconnecting branch routers over the internet using OSPF/BGP
  • Lab testing environments for CCNP/CCIE studies
  • Connecting cloud-based services (e.g., AWS or Azure VPNs) to on-prem routers
  • Extending routing domains across disparate WANs
  • Supporting multicast video streams between campuses

GRE is a flexible, lightweight solution for many enterprise and service provider scenarios.
