VRF Lite Explained: Real-World Use Cases, Commands & Troubleshooting [CCNP Enterprise]

If you’ve ever wondered how service providers keep customer traffic completely isolated even when using the same physical network, or how enterprises segment their internal departments securely, let me introduce you to a real game-changer:VRF Lite.

As someone who’s helped countless students and professionals scale their routing knowledge, I can tell you that VRF Lite is essential not just in the exam room (especially for CCNP Enterprise) but also in real-world networks. It’s simple, effective, and incredibly powerful once you understand how it works. Let’s break it down and even run it through a practical lab.

---

Theory in Brief

VRF (Virtual Routing and Forwarding) is a technology that allows multiple instances of a routing table to coexist on the same physical router. VRF Lite is a simplified form used mainly in enterprise networks without MPLS. It enables network segmentation across departments like HR, Finance, or Guest without the need for separate routers.

Each VRF instance is logically isolated, meaning routes in one VRF cannot communicate with another unless you configure route leaking or a shared segment. That’s what makes it a go-to method for enhancing security and traffic separation.

Unlike traditional routing, where all interfaces share a global routing table, VRF assigns different tables per interface, enabling multi-tenancy and IP address overlap in the same device—super useful when integrating mergers or isolated branches.

VRF Lite is mostly used in LAN scenarios or small to medium-size WANs, and it doesn’t require MPLS labels. Think of it as multi-VRF without the service provider backbone.

---

Summary: VRF Lite Key Points

Feature	Description
Full Form	Virtual Routing and Forwarding
“Lite” Significance	No MPLS, simplified use in enterprise environments
Main Use	Traffic segmentation, routing isolation
Supported on	Routers and multilayer switches
Routing Table Isolation	Yes – each VRF has its own routing and forwarding table
IP Overlap Allowed	Yes, across VRFs
Inter-VRF Communication	Not allowed by default – needs manual routing or route-target mapping
Security Benefit	High – departments are completely isolated

---

Essential CLI Commands

Task	CLI Command	Description
Create VRF	ip vrf HR	Defines a new VRF instance
Assign Interface to VRF	interface g0/1ip vrf forwarding HR	Maps interface to a VRF
Assign IP Address	ip address 192.168.10.1 255.255.255.0	Configure IP after VRF binding
Show VRF Table	show ip vrf	Displays all VRFs configured
Show VRF Routes	show ip route vrf HR	See route table for a specific VRF
Debug Routing	debug ip routing	Debug routing updates
Ping from VRF	ping vrf HR 192.168.10.2	Ping inside specific VRF

---

Real-World Use Case

Scenario	Problem	VRF Lite Solution
Multi-Dept Network Isolation	HR and Finance using same IP space, need isolation	Configure separate VRFs for each department
Partner Network Integration	Temporary integration with overlapping IPs	Assign partner traffic to a dedicated VRF
Guest Wi-Fi Segregation	Guest traffic needs to be isolated from corporate	Use VRF Lite for Guest and Corporate segmentation
Secure Inter-Branch Routing	Prevent routing table pollution in inter-branch WAN	Isolate routes per branch using VRF Lite

---

EVE-NG LAB – VRF Lite Configuration

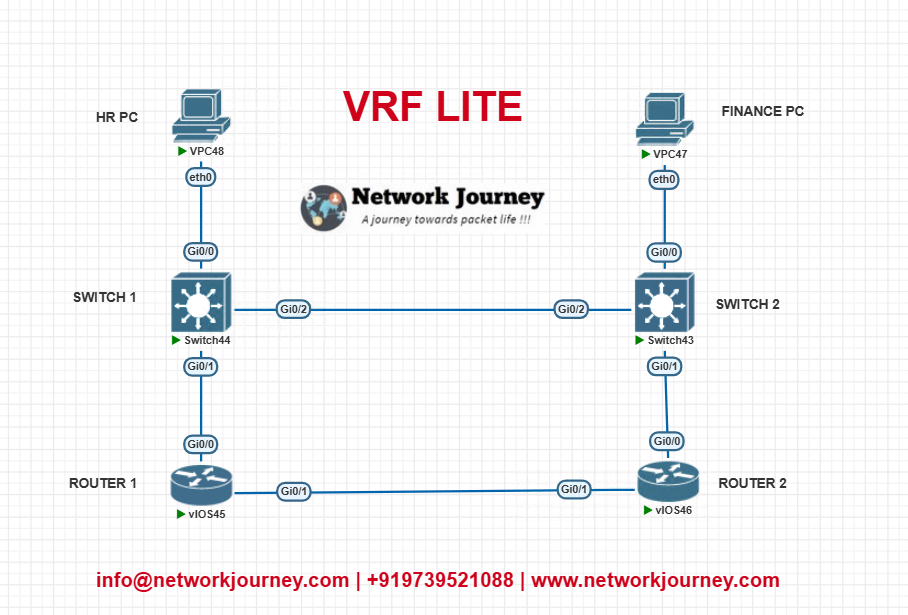

LAB DIAGRAM:

• HR and Finance departments are connected via separate VRFs (VRF_HR, VRF_FINANCE)
• No communication between departments is allowed

---

Configuration: Router R1

ip vrf HR
 rd 100:1
!
ip vrf FINANCE
 rd 100:2
!
interface g0/1
 ip vrf forwarding HR
 ip address 10.1.1.1 255.255.255.0
!
interface g0/2
 ip vrf forwarding FINANCE
 ip address 10.2.2.1 255.255.255.0
!
ip route vrf HR 0.0.0.0 0.0.0.0 10.1.1.254
ip route vrf FINANCE 0.0.0.0 0.0.0.0 10.2.2.254

Repeat on R2 with mirror configurations. Use static or dynamic routing (e.g., EIGRP with VRF support) if required.

---

Troubleshooting Tips

Issue	Cause	Solution
No communication in VRF	Incorrect interface-to-VRF mapping	Use show run to verify interface bindings
Ping fails in VRF	Missing routing info in VRF table	Check with show ip route vrf <name>
Overlapping IPs causing issues	Inter-VRF traffic leaking	Ensure route leaking is not configured
Can’t reach default gateway in VRF	Wrong default route or gateway misconfigured	Use ping vrf <name> <gateway> for validation

---

FAQs – VRF Lite

1. What is VRF Lite and how is it different from full MPLS VRF?

Answer:
VRF Lite (Virtual Routing and Forwarding Lite) allows multiple instances of routing tables on a single router without needing MPLS. It’s commonly used in enterprise networks for network segmentation (e.g., separating departments). Unlike MPLS-based VRF, VRF Lite doesn’t require MPLS labels or service provider core, making it lightweight and suitable for on-premises scenarios.

---

2. Why would an enterprise use VRF Lite?

Answer:
Enterprises use VRF Lite to:

• Segregate traffic between departments or customers
• Enforce multi-tenancy on shared infrastructure
• Improve security and traffic isolation
• Avoid overlapping IP address issues
• Simulate MPLS behavior in labs or edge networks

It’s useful in scenarios like retail stores, campus networks, or ISP edge sites.

---

3. How does VRF Lite achieve traffic separation?

Answer:
VRF Lite assigns interfaces to separate VRF instances, each with its own routing table and forwarding logic. This ensures that routes in one VRF are completely isolated from others, even if they use the same IP address ranges.

---

4. What’s the basic configuration workflow for VRF Lite on Cisco routers?

Answer:
Here’s a basic VRF Lite setup:

ip vrf FINANCE
 rd 100:1
!
ip vrf HR
 rd 100:2
!
interface Gig0/0
 ip vrf forwarding FINANCE
 ip address 192.168.10.1 255.255.255.0
!
interface Gig0/1
 ip vrf forwarding HR
 ip address 192.168.20.1 255.255.255.0

Each interface is tied to a specific VRF, isolating their routes and forwarding.

---

5. How do you verify VRF configuration and routing on a device?

Answer:
Use the following CLI commands:

• show ip vrf – Lists all defined VRFs
• show ip route vrf <VRF_NAME> – Displays routing table for a specific VRF
• ping vrf <VRF_NAME> <destination> – Test connectivity within a VRF
• traceroute vrf <VRF_NAME> <destination> – Track route in a VRF

These help in verifying both control and data plane isolation.

---

6. Can two VRFs communicate with each other directly?

Answer:
By default, no, VRFs are isolated. However, inter-VRF communication is possible using:

• Route leaking via static or BGP
• Multi-VRF CE configuration
• Inter-VRF routing with redistribution

For example:

ip route vrf HR 192.168.10.0 255.255.255.0 10.1.1.1 global

This leaks a route from the FINANCE VRF into the HR VRF.

---

7. What are common issues faced while troubleshooting VRF Lite?

Answer:

Problem	Cause	Fix
No connectivity between VRFs	No inter-VRF route leaking	Add static route or BGP redistribution
Ping fails inside VRF	Incorrect VRF in ping command	Use ping vrf <VRF> <destination>
Routes missing in VRF	Interfaces not assigned to correct VRF	Check ip vrf forwarding on interfaces
ACL blocks inter-VRF traffic	Incorrect security rules	Adjust ACL for specific VRF interfaces

---

8. How does VRF Lite help in overlapping IP environments?

Answer:
Since each VRF maintains its own routing table, duplicate IP subnets can exist in different VRFs without conflict. For example, both VRF-HR and VRF-FIN can use 192.168.1.0/24 separately. This is crucial for multi-tenant environments or when merging networks.

---

9. Can VRF Lite be used with Layer 3 switches?

Answer:
Yes, many Cisco Layer 3 switches (like Catalyst 9300/9500) support VRF Lite. You configure VRFs using the same ip vrf and ip vrf forwarding commands on switch interfaces. This allows you to extend VRF segmentation from routers to the campus switch fabric.

---

10. What’s the difference between VRF Lite and traditional VLANs?

Answer:

Feature	VRF Lite	VLANs
Layer	Layer 3 (Routing)	Layer 2 (Switching)
Isolation Type	Routing Table separation	Broadcast domain segmentation
Use Case	Multi-tenant routing separation	Host-level traffic separation
Overlapping IPs	Supported	Not supported
Complexity	Higher	Lower

In essence, VLANs segment traffic at Layer 2, while VRF Lite does so at Layer 3, offering deeper isolation.

---
